Inflatable Restraint Side Impact Sensing Module (SISM)

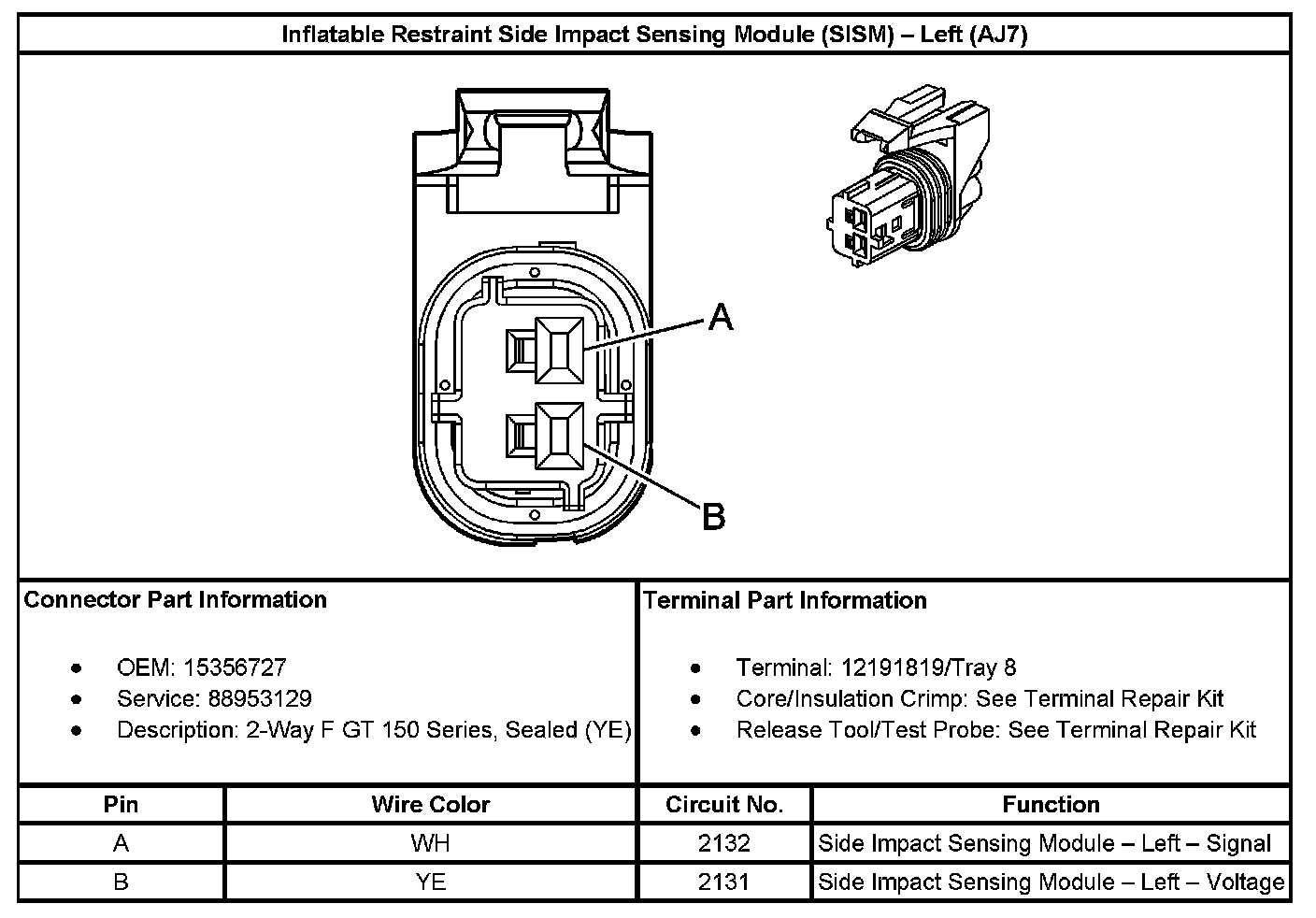

Inflatable Restraint Side Impact Sensing Module (SISM) - Left (With RPO Code AJ7):

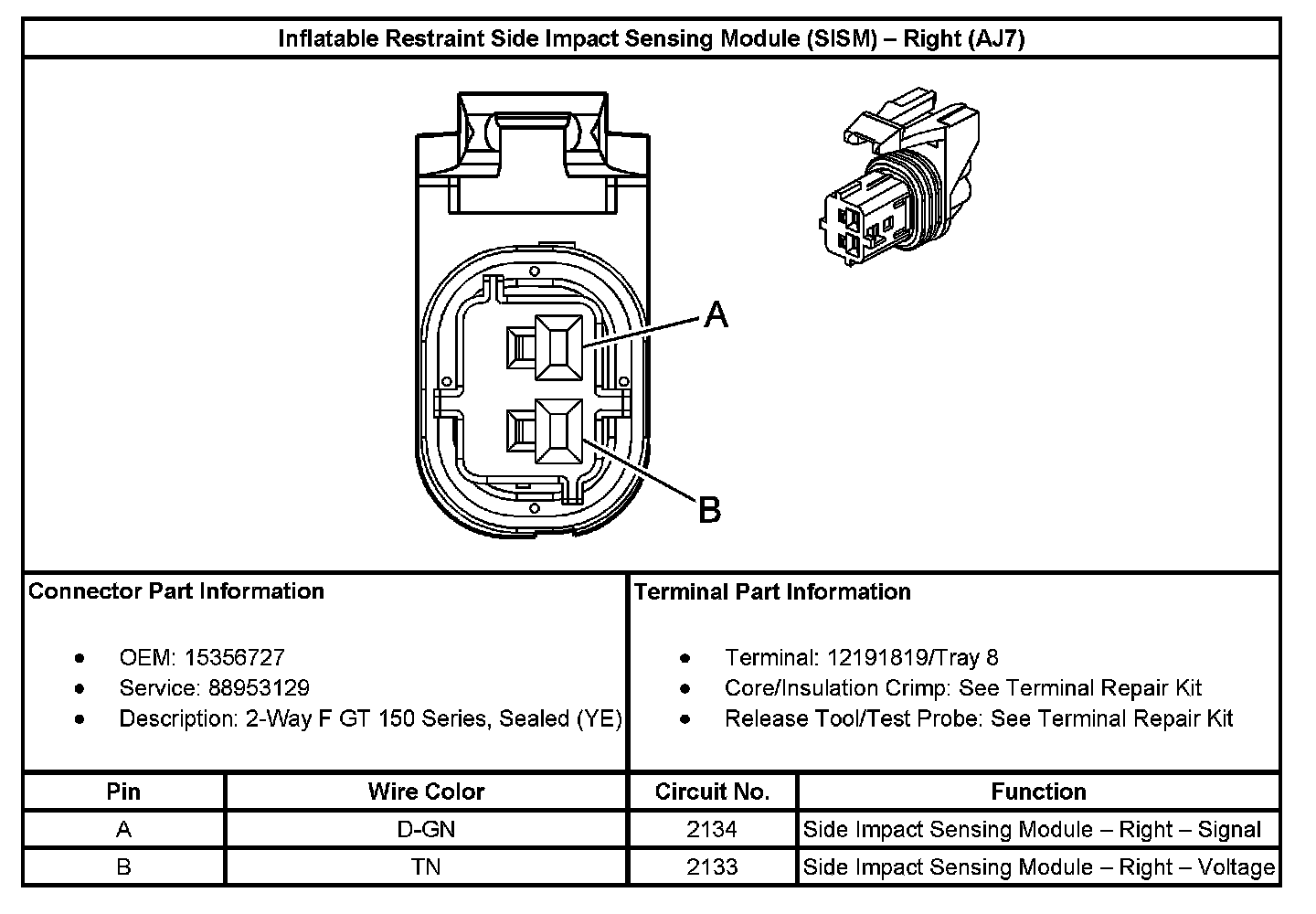

Inflatable Restraint Side Impact Sensing Module (SISM) - Right (With RPO Code AJ7):
