Electronic Brake Control Module

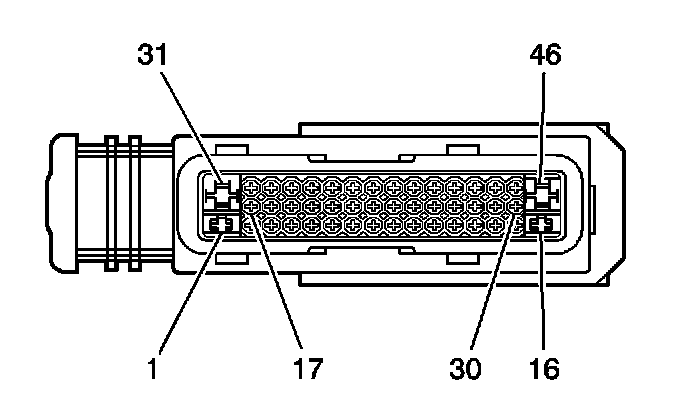

ABS Connector End Views

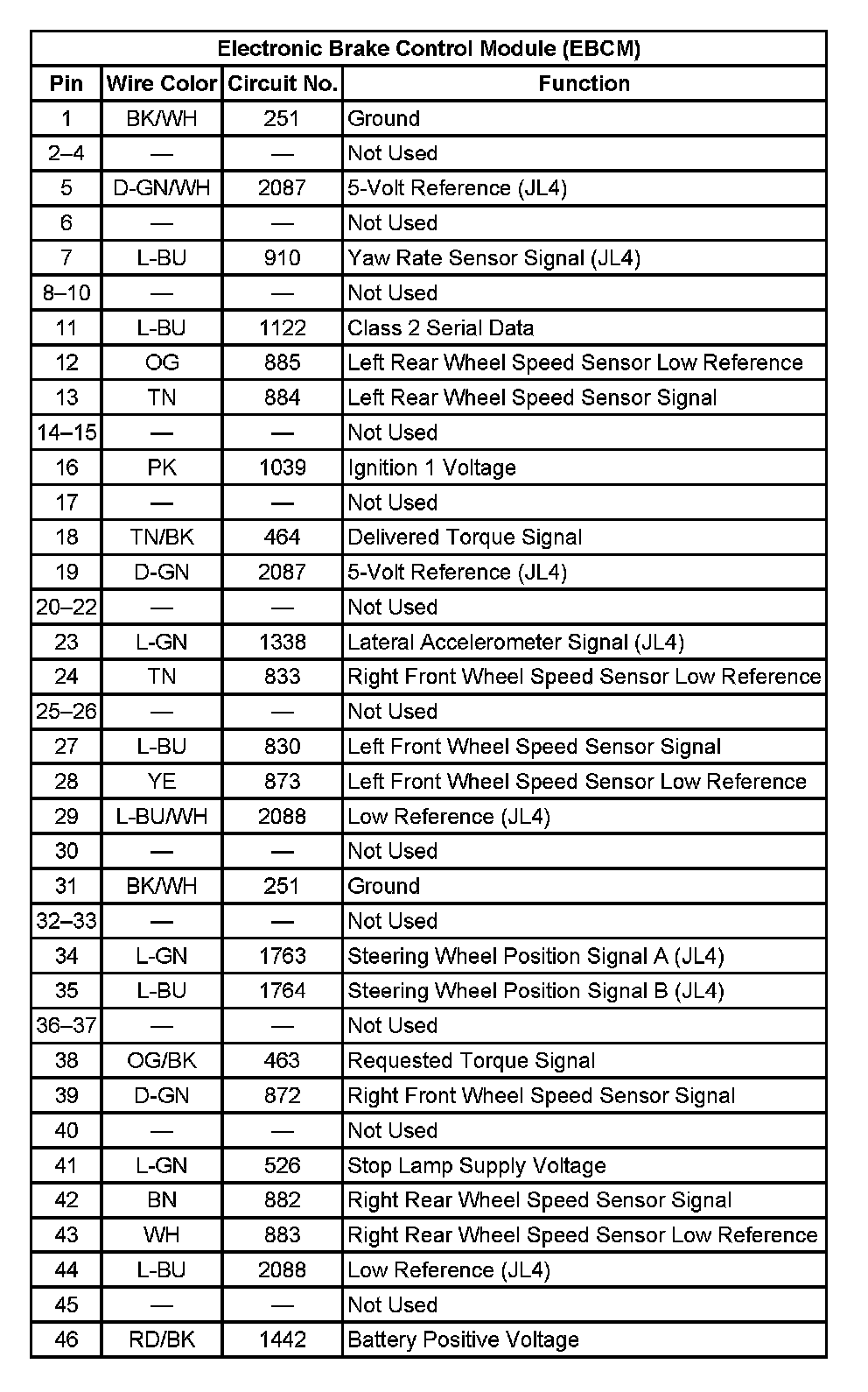

Electronic Brake Control Module (EBCM)

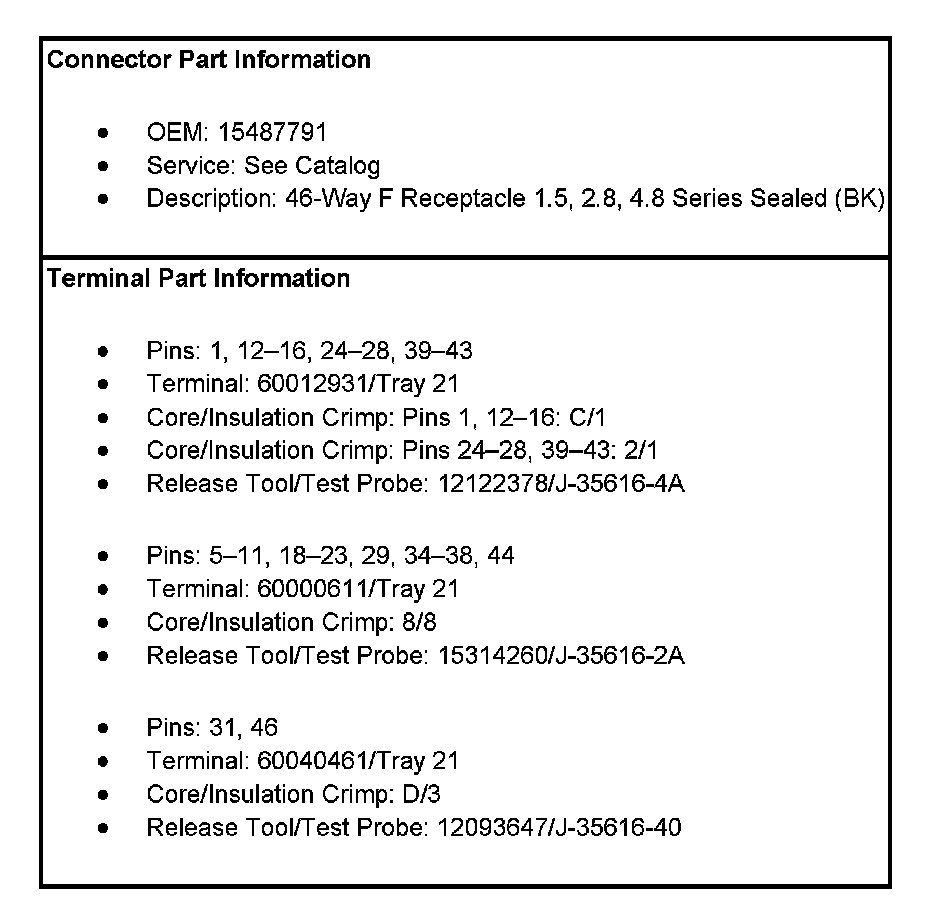

Electronic Brake Control Module (EBCM):




Electronic Brake Control Module (EBCM):
