I/P Fuse Block
Electrical Center Identification Views

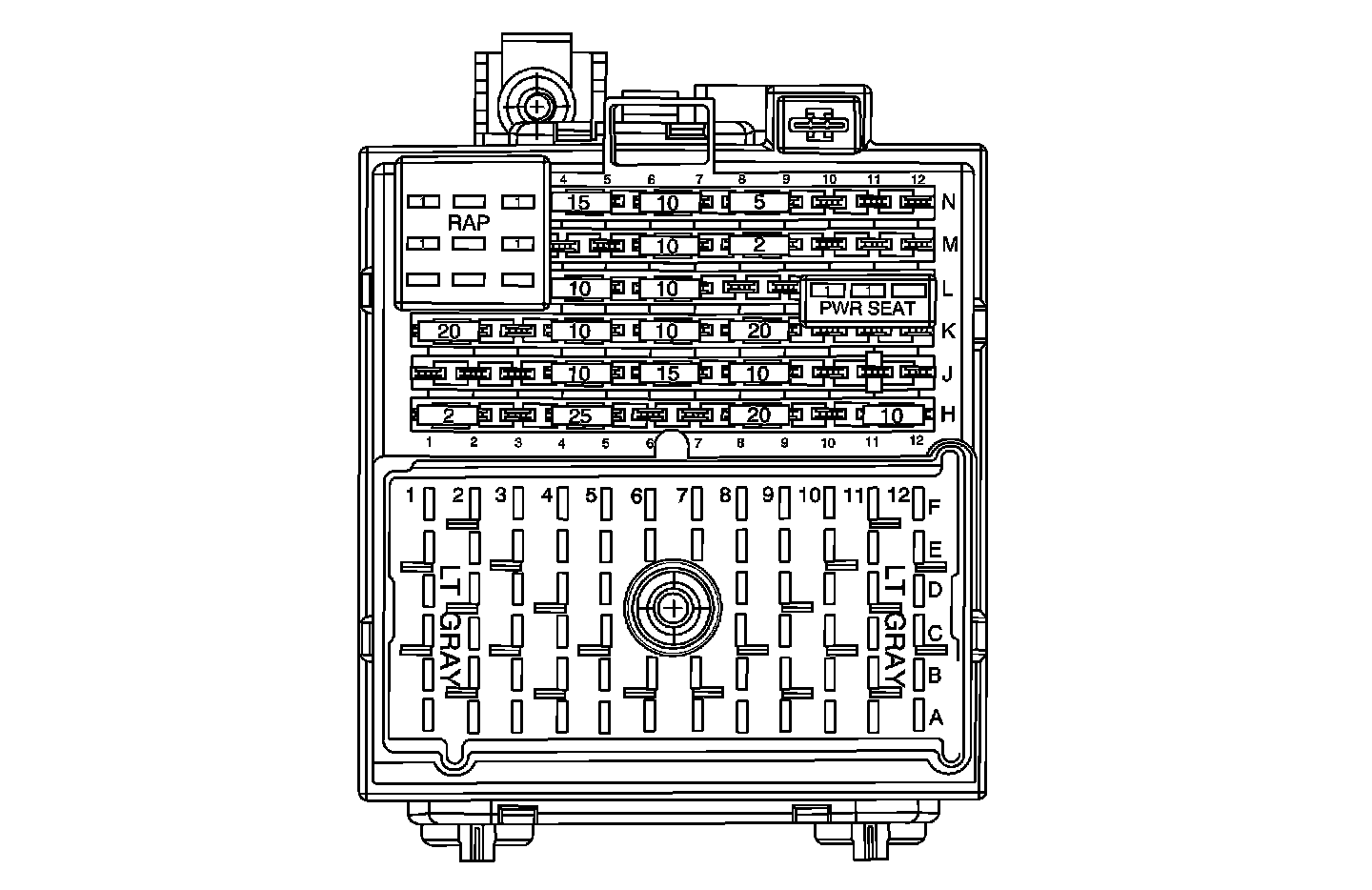

Fuse Block - I/P - Top View
Fuse Block - I/P - Bottom View
Fuse Block - I/P - C1

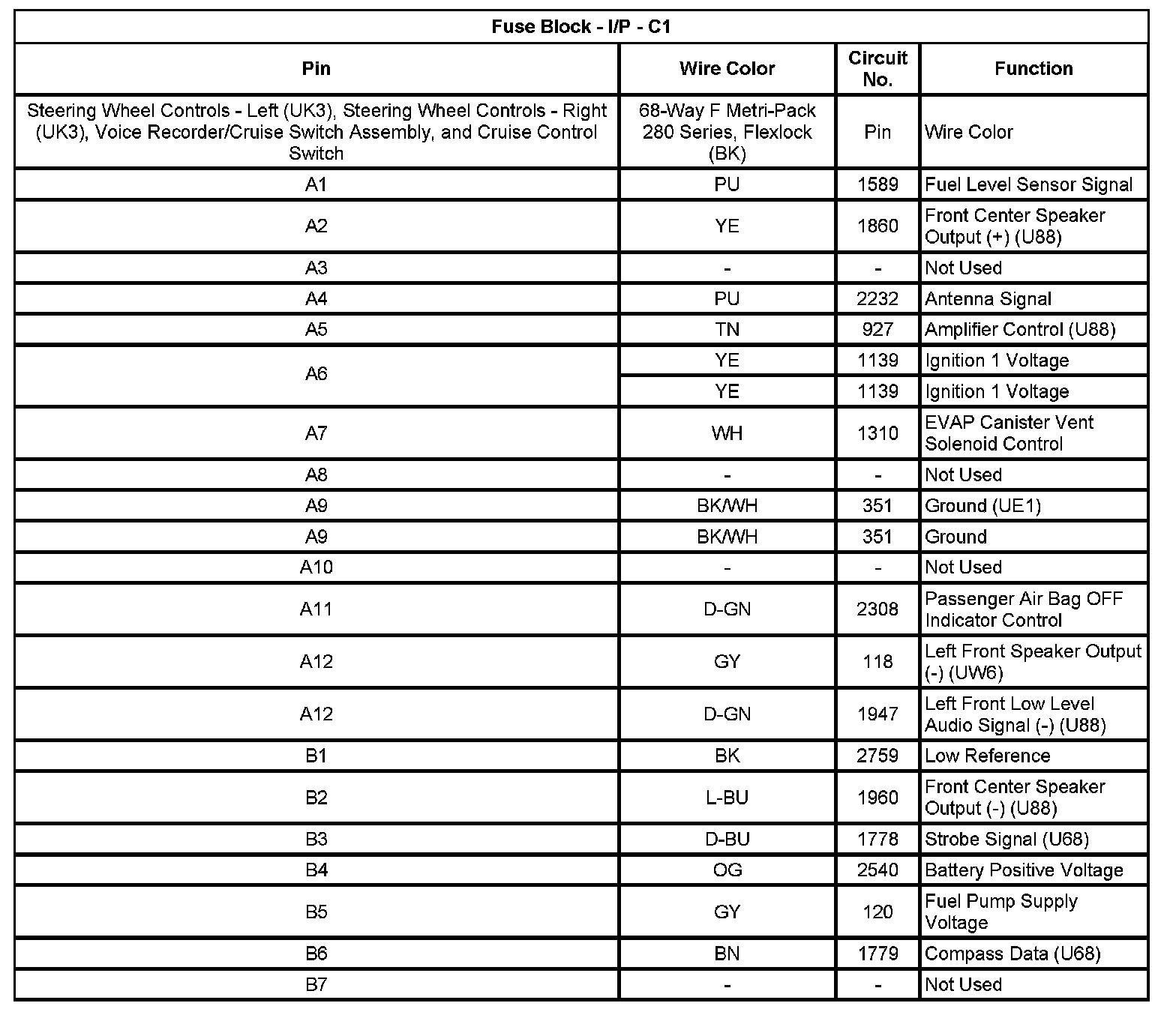

Fuse Block - I/P - C1 (Pin A1 To B7):

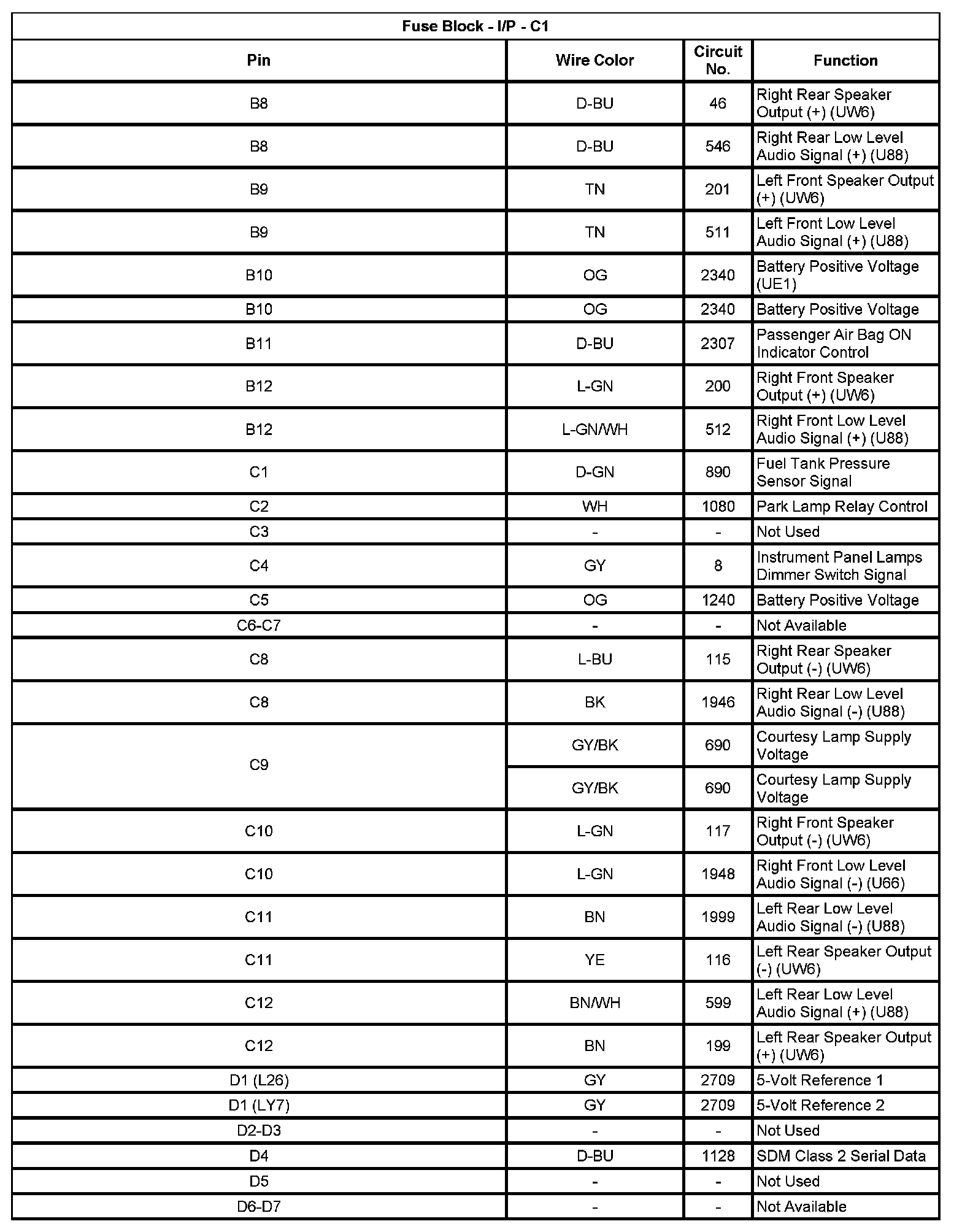

Fuse Block - I/P - C1 (Pin B8 To D7):

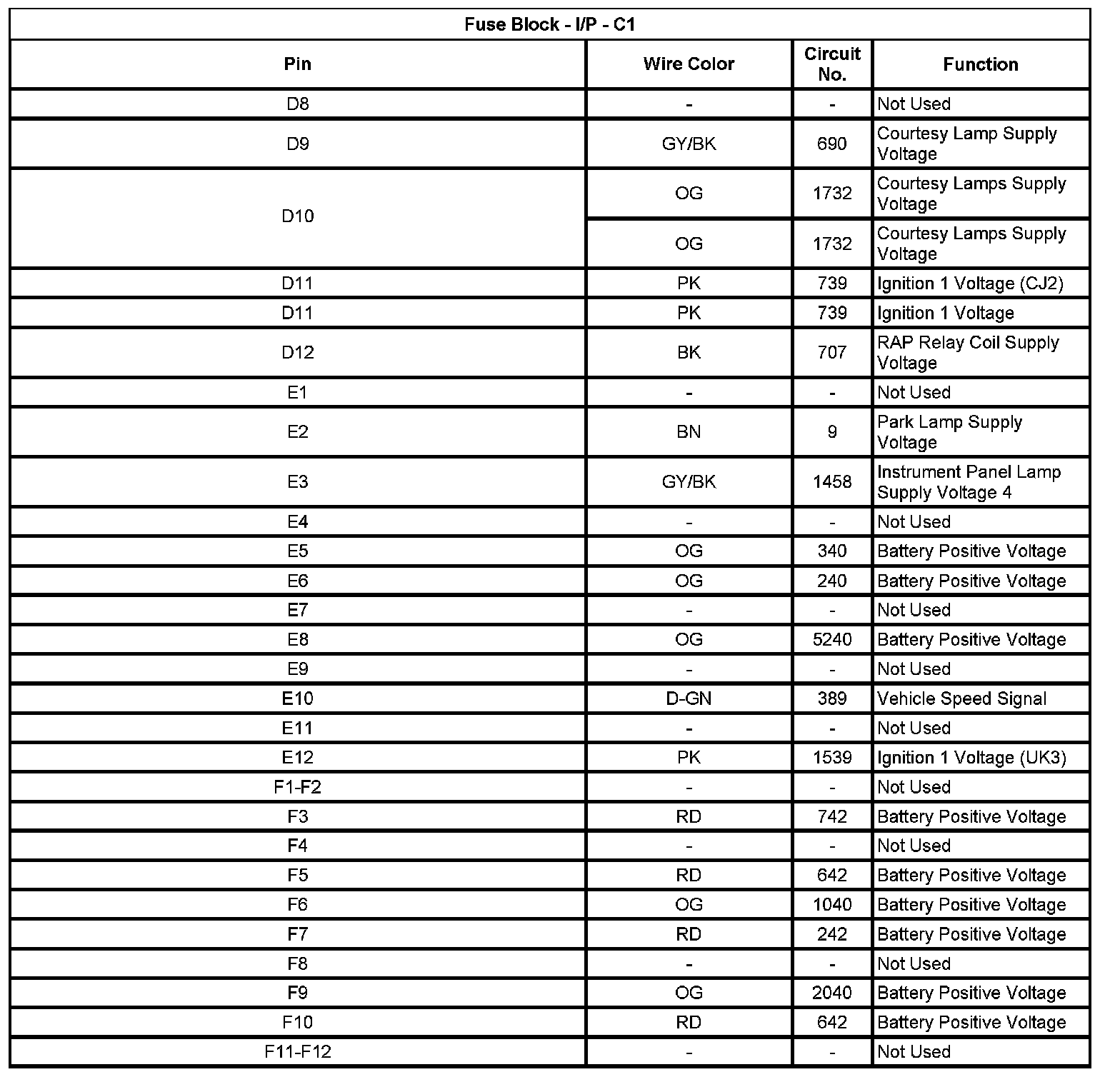

Fuse Block - I/P - C1 (Pin D8 To F12):
Fuse Block - I/P - C2

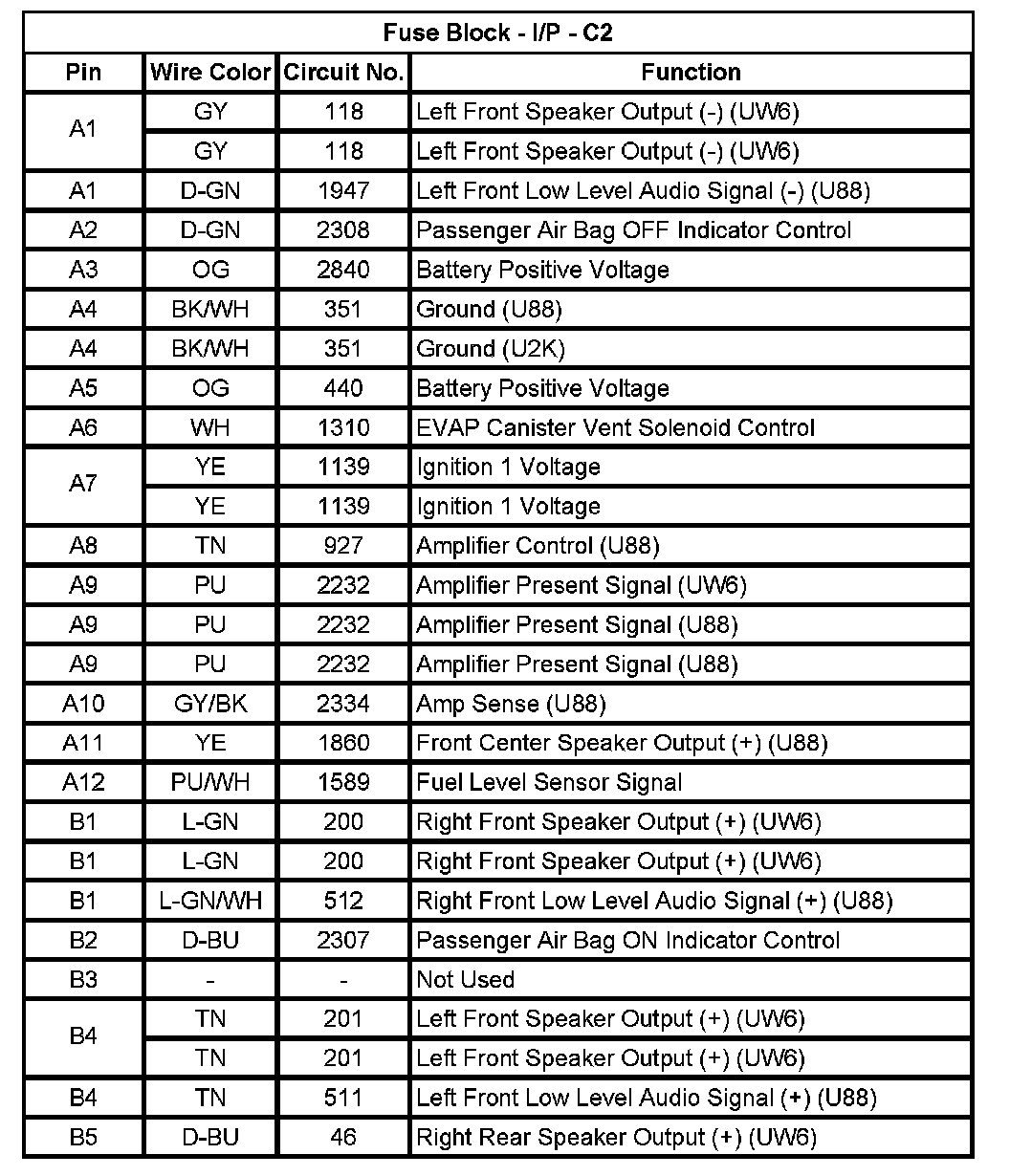

Fuse Block - I/P - C2 (Pin A1 To B5):

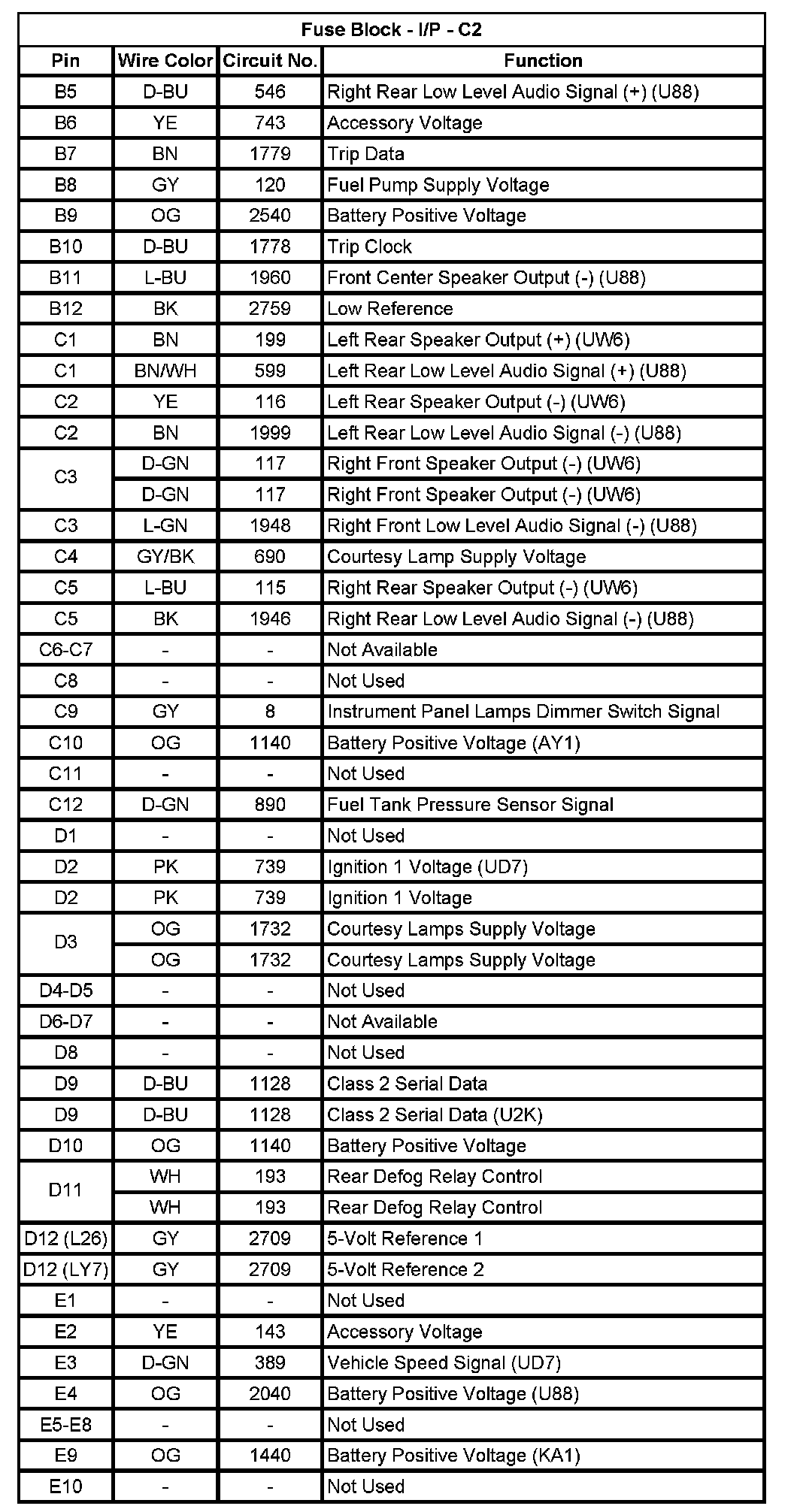

Fuse Block - I/P - C2 (Pin B5 To E10):
Fuse Block - I/P - C2 (Pin E11 To F12):
