Steering Wheel Control Switch Assembly Replacement

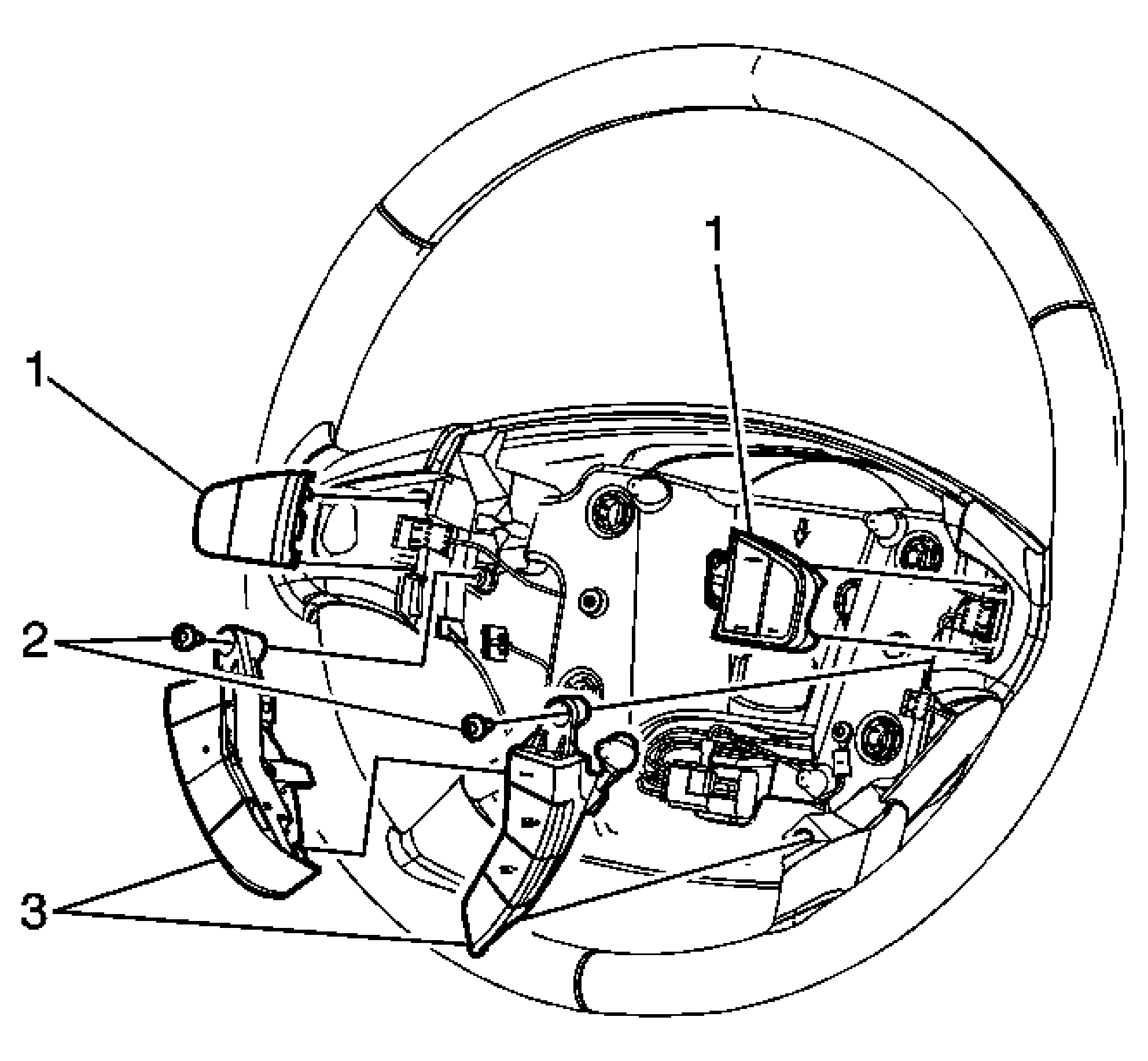

Fig 1: Replacing Steering Wheel Control Switch Assembly
GM1658657Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch Assembly Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1 Upper Steering Wheel Control Switch (Qty: 2)
Tip:
  1. Use a flat-bladed tool to remove the switch from the steering wheel.
  2. Disconnect the electrical connector from the switch.
2 Lower Steering Wheel Control Switch Screw (Qty: 2),

Tighten:  2 N.m (18 lb in)
3 Lower Steering Wheel Control Switch (Qty: 2)
Tip:  Disconnect the electrical from the switch.
