Steering Wheel Secondary/Configurable Control Schematics

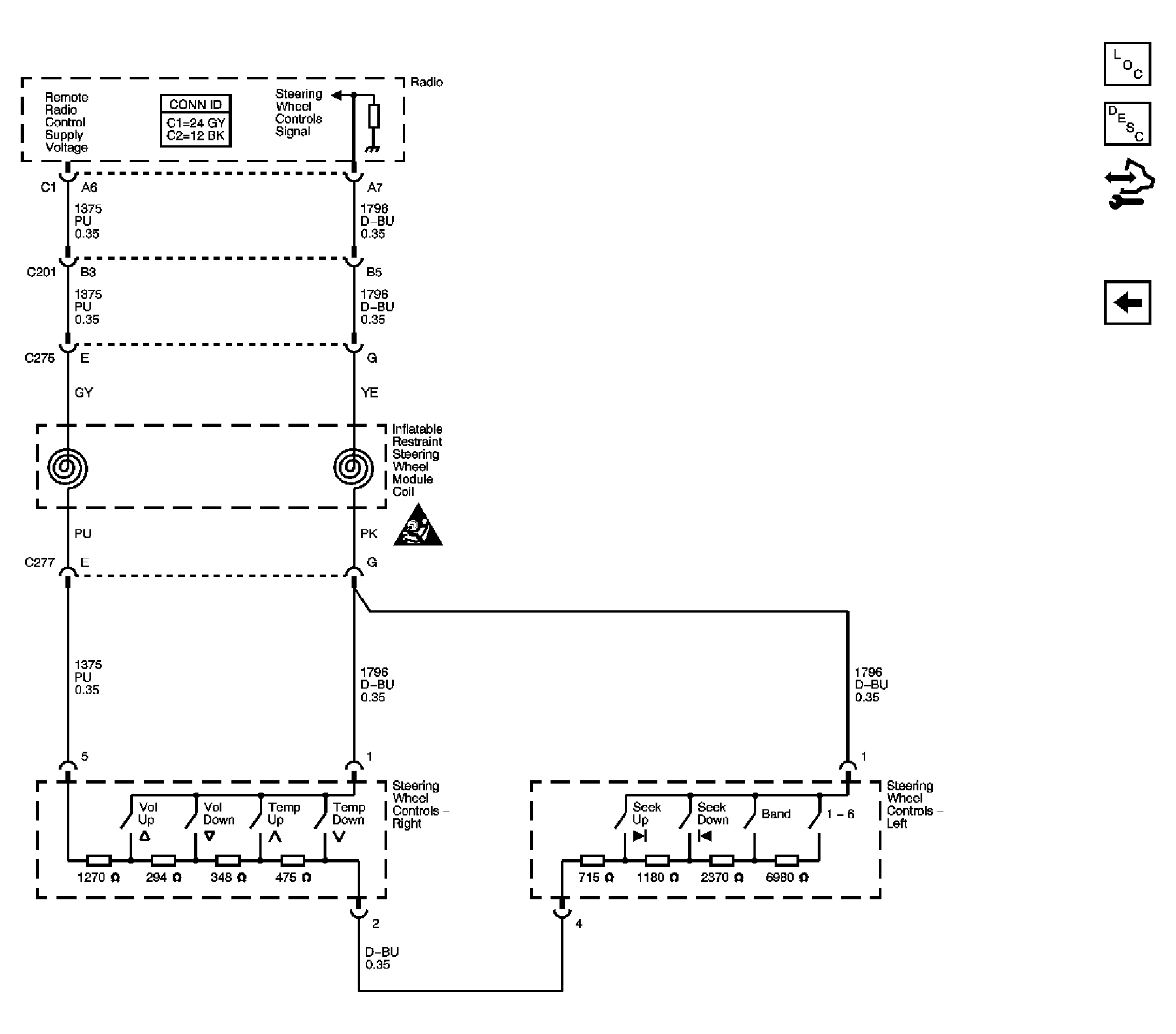

Fig 1: Steering Wheel Controls

GM1803231

Courtesy of GENERAL MOTORS CORP.
