Installation Procedure

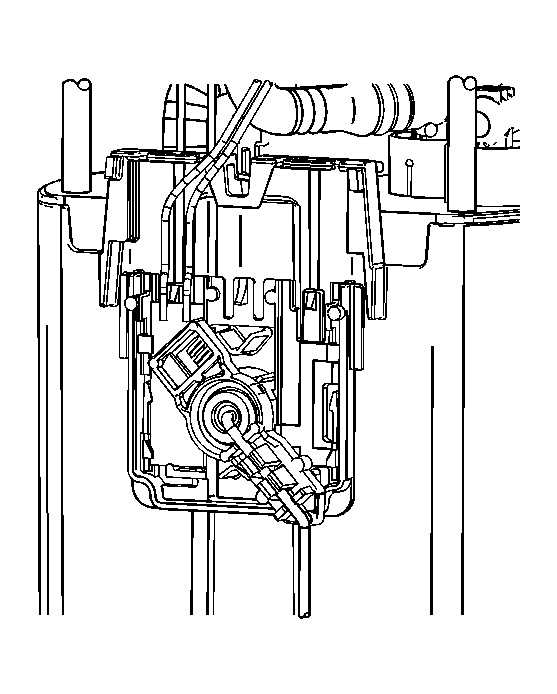

    Fig 1: Aligning Fuel Level Sensor
    GM1404543Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel level sensor up in order to install the fuel level sensor to the fuel sender module.
  2. Ensure that the fuel level sensor retainer is properly engaged.

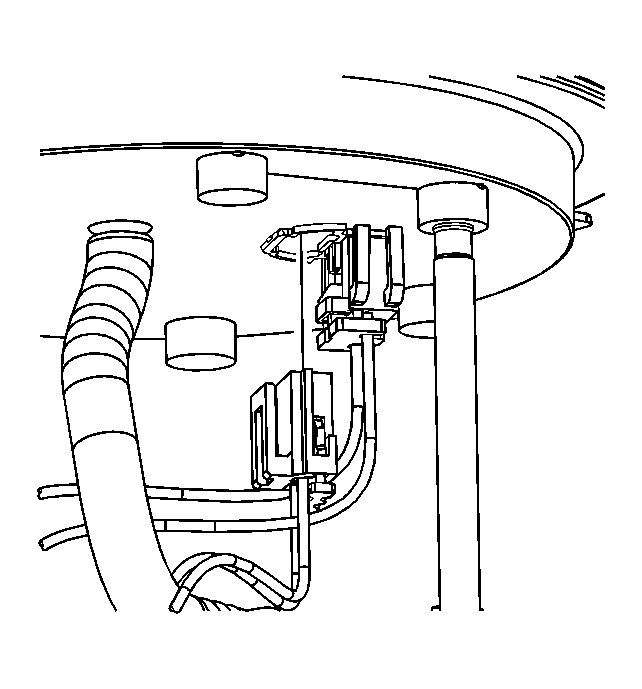

    3. Fig 2: View Of Fuel Level Sensor Electrical Connector
    GM1404537Courtesy of GENERAL MOTORS CORP.
  3. Connect the fuel level sensor electrical connector.
  4. Install the fuel sender to the fuel tank. Refer to Fuel Tank Module Replacement .
