Transmission Control Systems



Automatic Transmission Inline 20-Way Connector End View (3.8L)

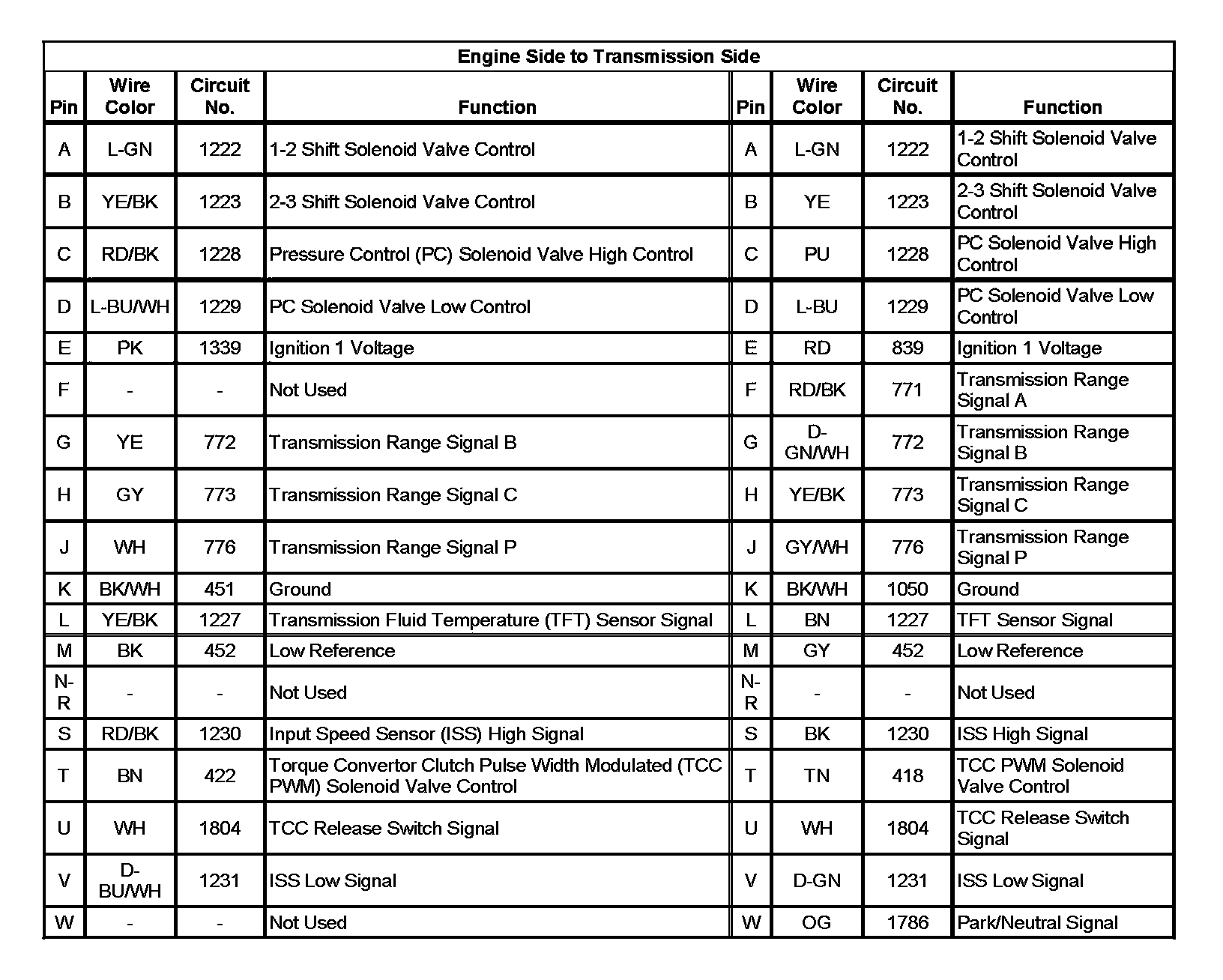

Engine Side to Transmission Side







Engine Side to Transmission Side:
