Barometric Pressure Sensor: Service and Repair

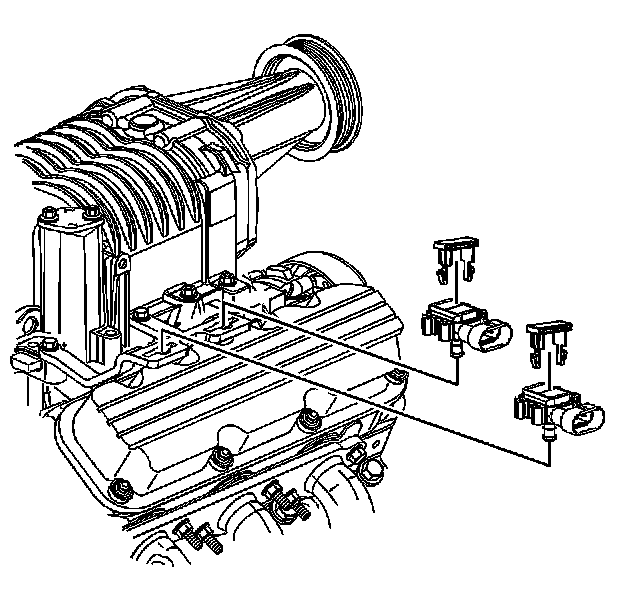

Barometric Pressure Sensor Replacement

Removal Procedure




1. Remove the fuel injector sight shield
2. Disconnect the barometric pressure (BARO) sensor electrical connector.
3. Remove the BARO sensor retainer.
4. Remove the BARO sensor.

Installation Procedure




1. Install the BARO sensor.
2. Install the BARO sensor retainer.
3. Connect the BARO sensor electrical connector.
4. Install the fuel injector sight shield
