Secondary/Configurable Control Component Views

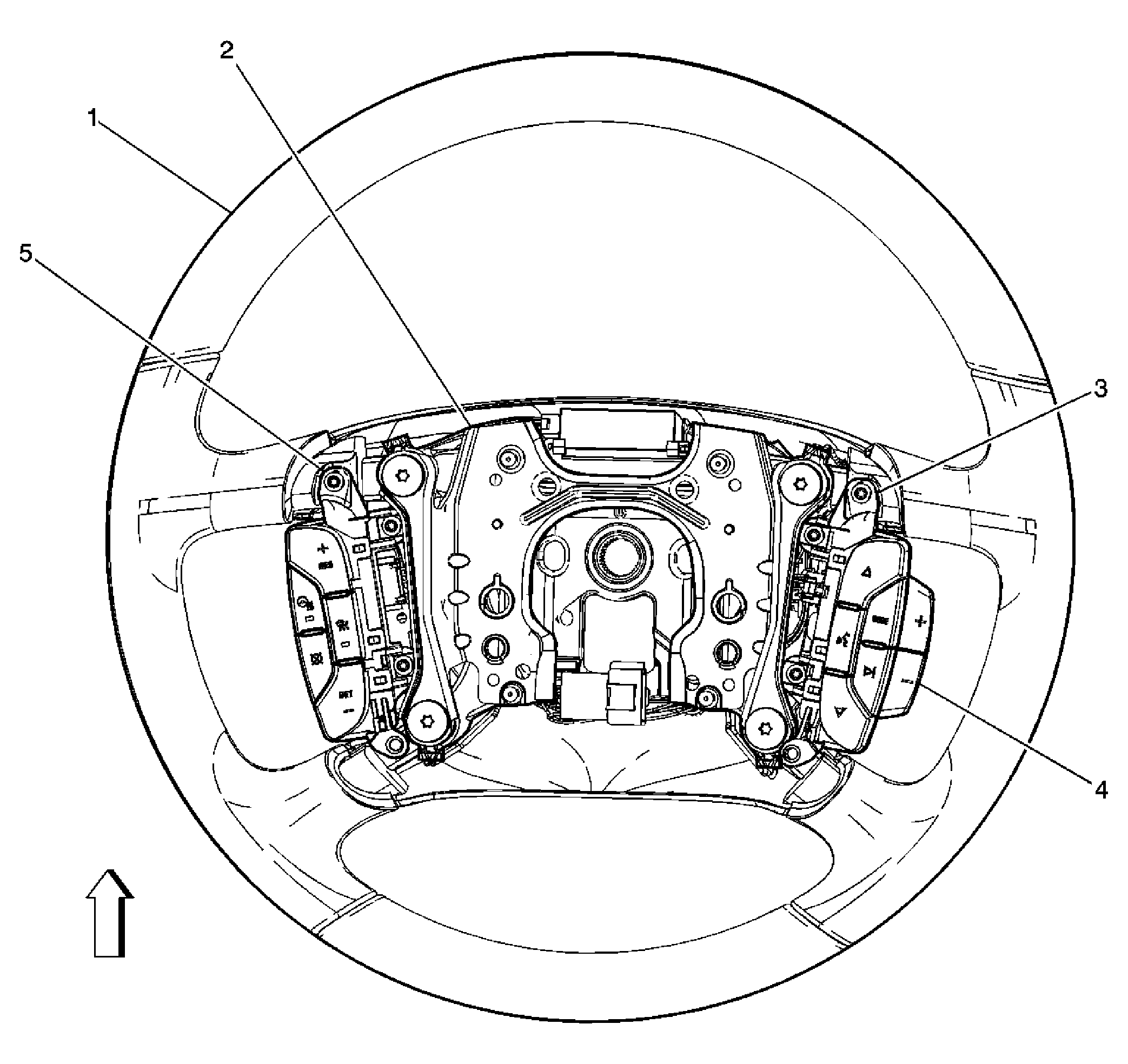

Fig 1: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Heated Steering Wheel
2
Horn Switch
3
Steering Wheel Control Switch - Right
4
Radio Volume Switch
5
Steering Wheel Control Switch - Left
