UNDERHOOD Fuse Block
NOTE:
Underhood electrical center is located on right side front of engine compartment.

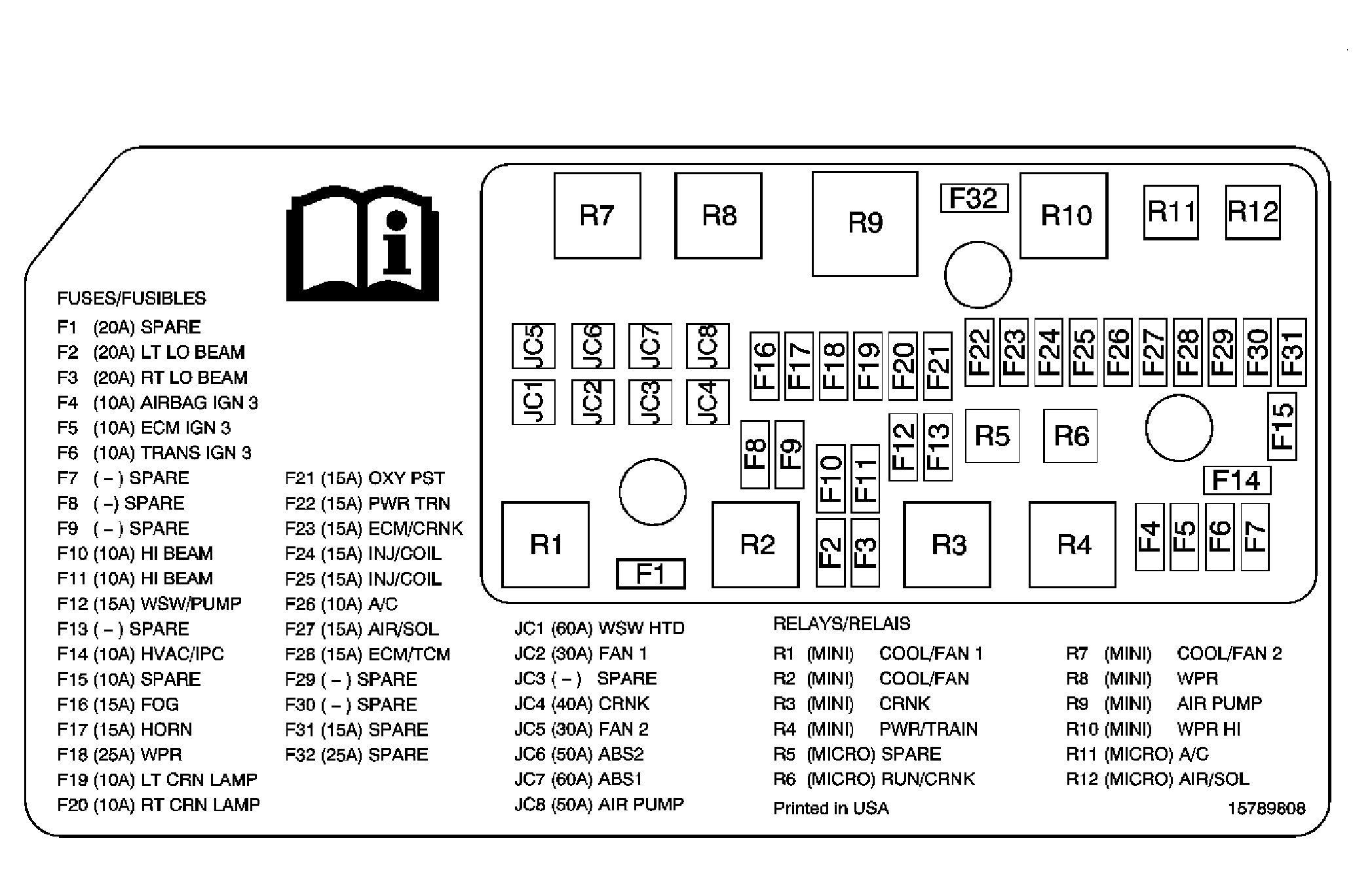

Fuse Block - Underhood Fuse And Relay Identification Legend
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| F1 | SPARE Fuse | 20A | Spare Fuse |
| F2 | LT LO BEAM Fuse | 20A | Headlamp Assembly - LF |
| F3 | RT LO BEAM Fuse | 20A | Headlamp Assembly - RF |
| F4 | AIRBAG IGN 3 Fuse | 10A | Inflatable Restraint I/P Module Indicator, Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| F5 | ECM IGN 3 Fuse | 10A | Engine Control Module (ECM) (LD8), Powertrain Control Module (PCM) (L26) |
| F6 | TRANS IGN 3 Fuse | 10A | Transmission Control Module (TCM) (LD8), Automatic Transmission |
| F7-F9 | SPARE Fuse | - | Spare Fuses |
| F10 | HI BEAM Fuse | 10A | Headlamp Assembly - RF |
| F11 | HI BEAM Fuse | 10A | Headlamp Assembly - LF |
| F12 | WSW/PUMP Fuse | 15A | Windshield Washer Fluid Pump |
| F13 | SPARE Fuse | - | Spare Fuses |
| F14 | HVAC/IPC Fuse | 10A | HVAC Control Module, Instrument Panel Cluster (IPC), Recirculation Actuator (C67) |
| F15 | SPARE Fuse | - | Spare Fuses |
| F16 | FOG Fuse | 15A | Fog Lamp - LF, Fog Lamp - RF (T96) |
| F17 | HORN Fuse | 15A | Horn Assembly |
| F18 | WPR Fuse | 25A | WIPER Relay, WIPER HI Relay |
| F19 | LT CRN LAMP Fuse | 10A | Headlamp - LF |
| F20 | RT CRN LAMP Fuse | 10A | Headlamp - RF |
| F21 | OXY PST Fuse | 15A | Heated Oxygen Sensor (HO2S) 2 |
| F22 | PWR TRN Fuse | 15A | Heated Oxygen Sensor 1 (HO2S) (L26), Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LD8), Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LD8), Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| F23 | ECM/CRNK Fuse | 15A | Engine Control Module (ECM) (LD8), Throttle Actuator Control (TAC) Module (L26) |
| F24 | INJ/COIL Fuse | 15A | Fuel Injectors (L26), Fuel Injectors - Odd Bank (LD8), Ignition Coil/Modules - Odd Bank (LD8) |
| F25 | INJ/COIL Fuse | 15A | Ignition Control Module (L26), Fuel Injectors - Even Bank (LD8), Ignition Coil/Modules - Even Bank (LD8) |
| F26 | A/C Fuse | 10A | A/C Relay |
| F27 | AIR/SOL Fuse | 15A | AIR/SOL Relay (NU6) |
| F28 | ECM/TCM Fuse | 15A | Spare Fuse |
| F29-F30 | SPARE Fuse | - | Spare Fuses |
| F31 | SPARE Fuse | 15A | Spare Fuse |
| F32 | SPARE Fuse | 25A | Spare Fuse |
| JC1 | WSW HTD Fuse | 60A | Windshield Washer Solvent Heater (XA7) |
| JC2 | FAN 1 Fuse | 30A | COOL/FAN 1 Relay |
| JC3 | SPARE Fuse | - | Spare Fuse |
| JC4 | CRNK Fuse | 40A | CRNK Relay |
| JC5 | FAN 2 Fuse | 30A | COOL/FAN 2 Relay |
| JC6 | ABS2 Fuse | 50A | Electronic Brake Control Module (EBCM) |
| JC7 | ABS1 Fuse | 60A | Electronic Brake Control Module (EBCM) |
| JC8 | AIR PUMP Fuse | 50A | AIR PUMP Relay (NU6) |
| R1 | COOL/FAN 1 Relay | - | Engine Control Module (ECM) (LD8), Powertrain Control Module (PCM) (L26), Cooling Fan - Left |
| R2 | COOL/FAN Relay | - | Engine Control Module (ECM) (LD8), Powertrain Control Module (PCM) (L26) |
| R3 | CRNK Starter Relay | - | Starter Motor |
| R4 | POWER/TRAIN Relay | - | ECM/CRNK, INJ/COIL, PWR TRN, INJ COIL, OXY PST Fuses |
| R5 | SPARE Relay | - | Spare Relay |
| R6 | RUN/CRNK Relay | - | ECM IGN 3, HVAC/IPC, TRANS IGN 3, AIR BAG IGN 3 Fuses |
| R7 | COOL/FAN 2 Relay | - | Engine Control Module (ECM) (LD8) Powertrain Control Module (PCM) (L26), Cooling Fan - Right |
| R8 | WPR Wiper Relay | - | WPR HI Relay |
| R9 | AIR PUMP Relay | - | Secondary Air injection (AIR) Pump (NU6) |
| R10 | WPR HI Wiper Relay | - | Windshield Wiper Motor |
| R11 | A/C Relay | - | Engine Control Module (ECM) (LD8) Powertrain Control Module (PCM) (L26), A/C Compressor Clutch |
| R12 | AIR/SOL Relay | - | Secondary Air Injection (AIR) Check Valve (NU6) |
| Printed Circuit Board (PCB) Relays - Not Serviceable | |||
| - | HORN PCB Relay | - | HORN Fuse |
| - | TRN/SIG PCB Relay | - | LT CRN LAMP Fuse |
| - | TRN/SIG PCB Relay | - | RT CRN LAMP Fuse |
| - | FOG LAMP PCB Relay | - | FOG Fuse |
| - | HIGH/BEAM PCB Relay | - | Both HIGH BEAM Fuses |
| - | LO/BEAM PCB Relay | - | LT LO BEAM Fuse, RT LO BEAM Fuse |
| - | WSH PCB Relay | - | WSW/PUMP Fuse |
