Scan Tool Data List

SCAN TOOL DATA LIST
The scan tool data list contains all the power seat system related parameters that are available on the scan tool. The parameters in the list are arranged in alphabetical order. The column, Data List, indicates the location of the parameter within the scan tool menu selections.

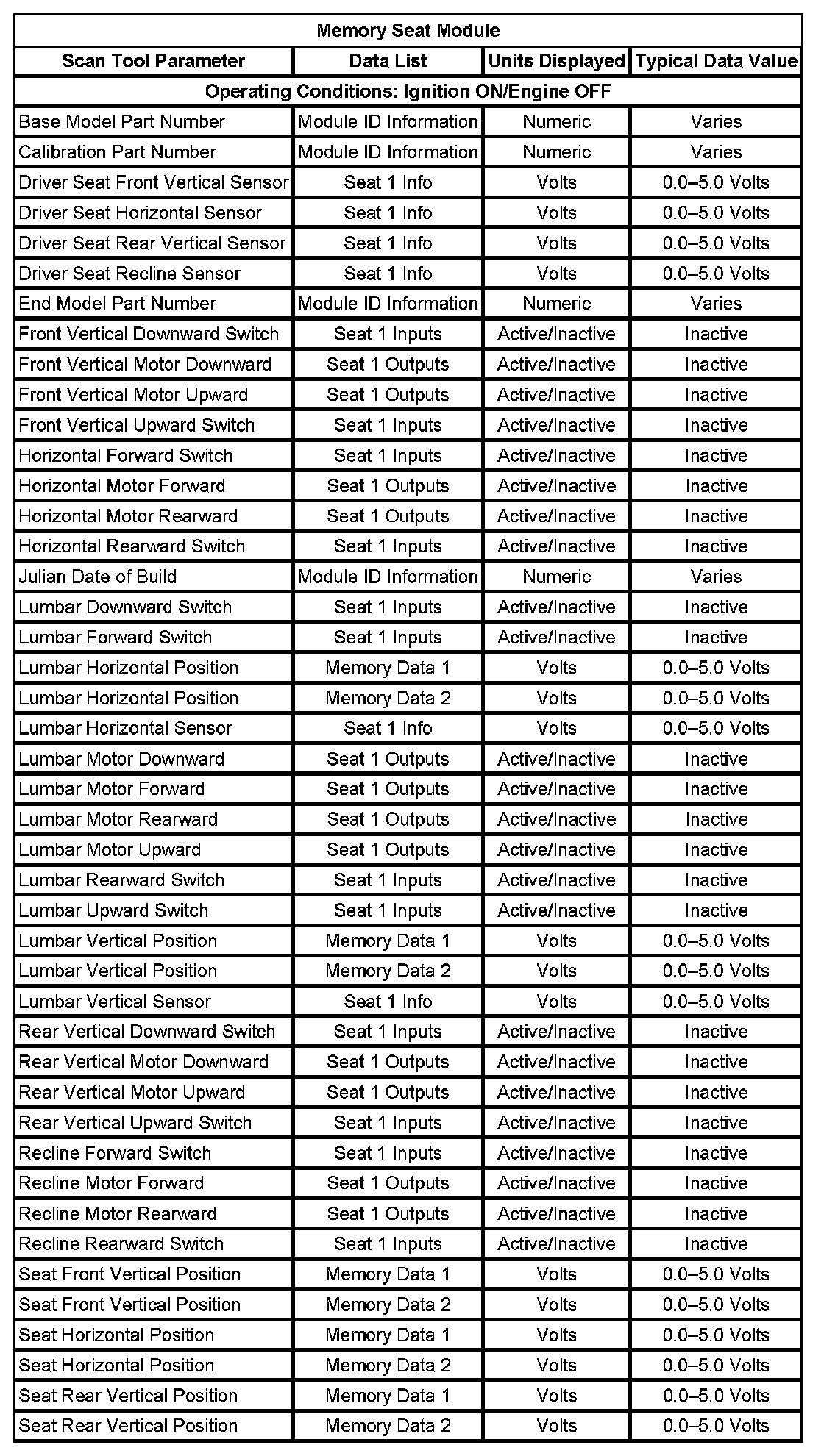

Memory Seat Module (Part 1):

Memory Seat Module (Part 2):

Door Switch(s):

The typical data values are obtained from a properly operating vehicle under the conditions specified in the second row of the scan tool data list table. Comparison of the parameter values from the suspect vehicle with the typical data values may reveal the source of the customer concern.
