Body Control Module (BCM) C2

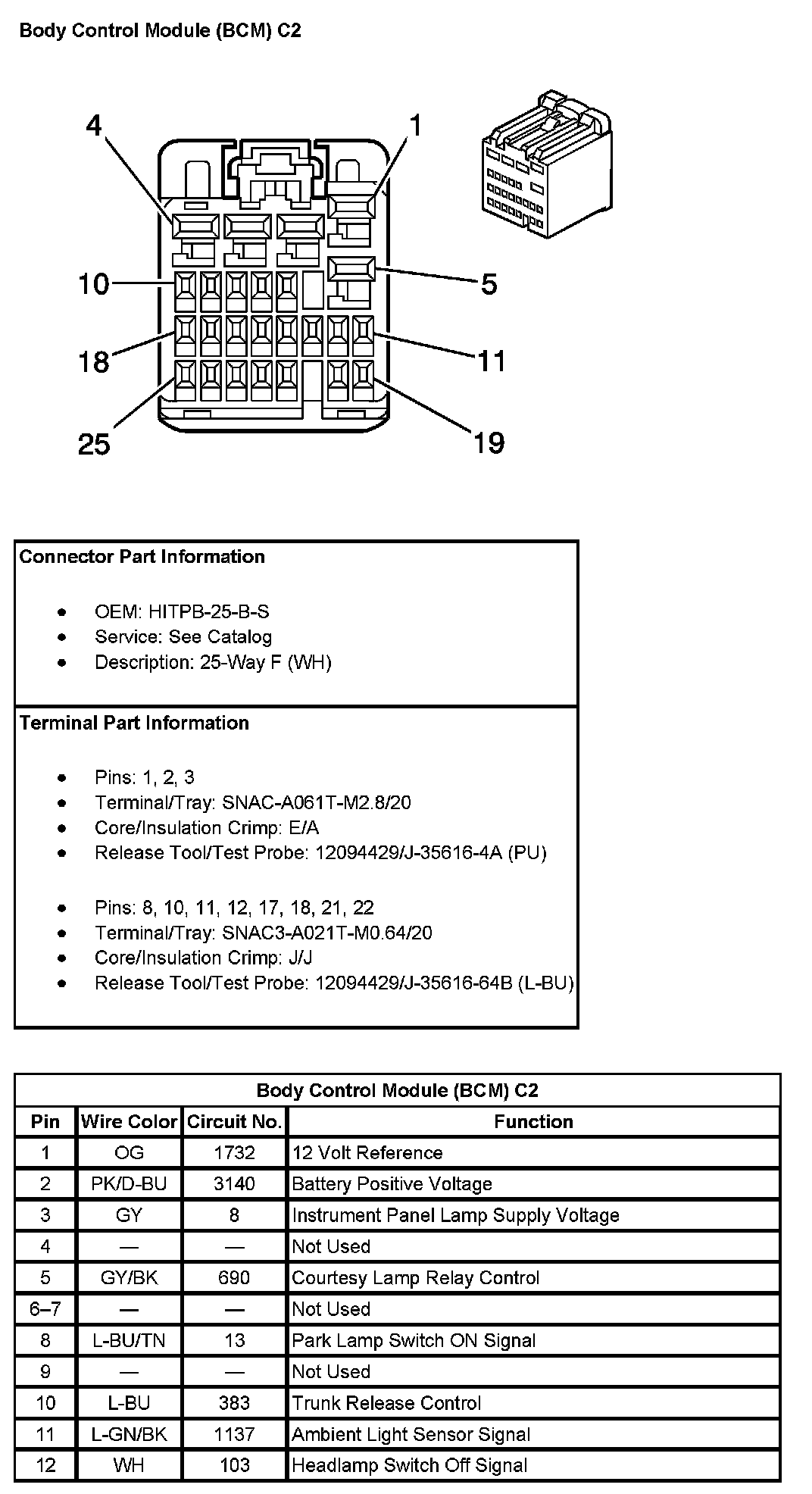

Body Control Module (BCM) C2 (Pin 1 - Pin 12):

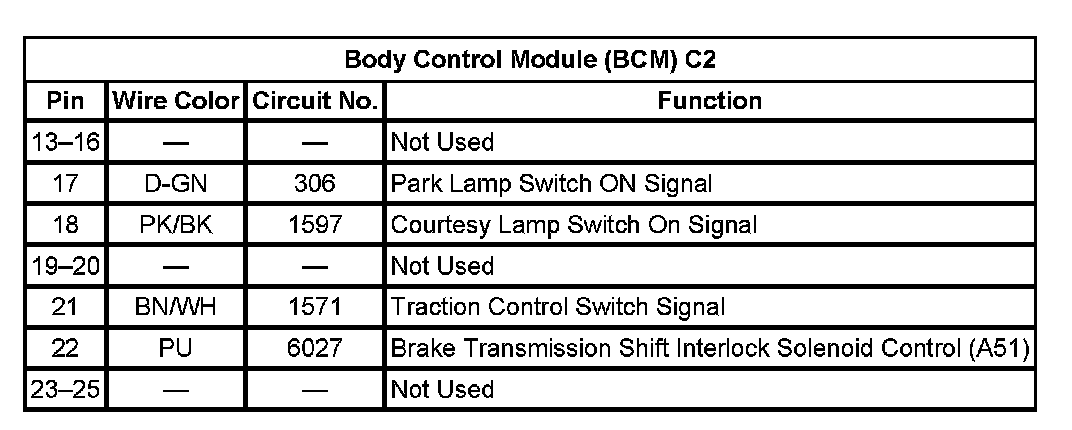

Body Control Module (BCM) C2 (Pin 13 - Pin 25):
