Body Control Module (BCM) C4

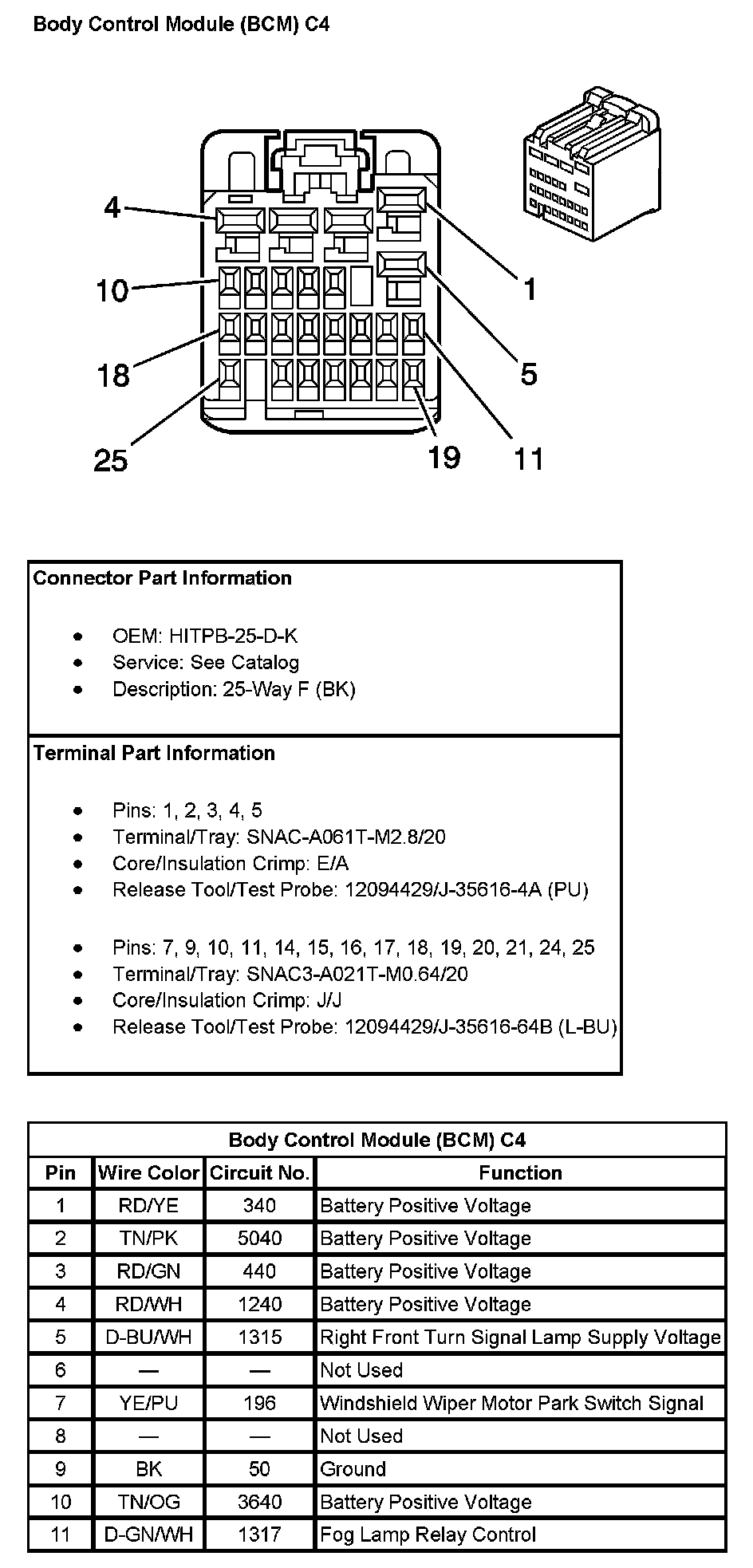

Body Control Module (BCM) C4 (Pin 1 To 11):

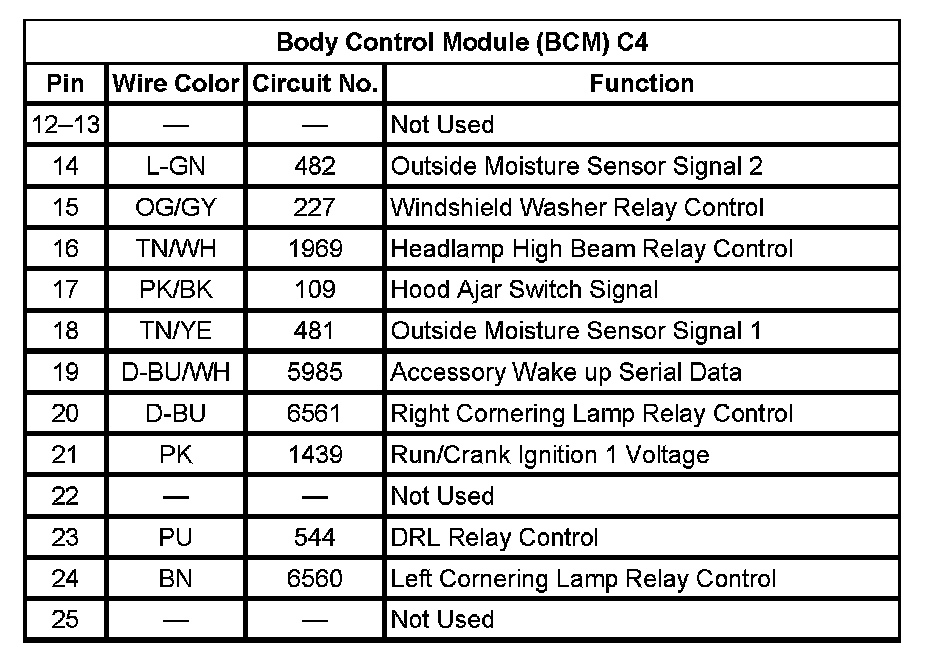

Body Control Module (BCM) C4 (Pin 12 To 25):
