Underhood Fuse Block

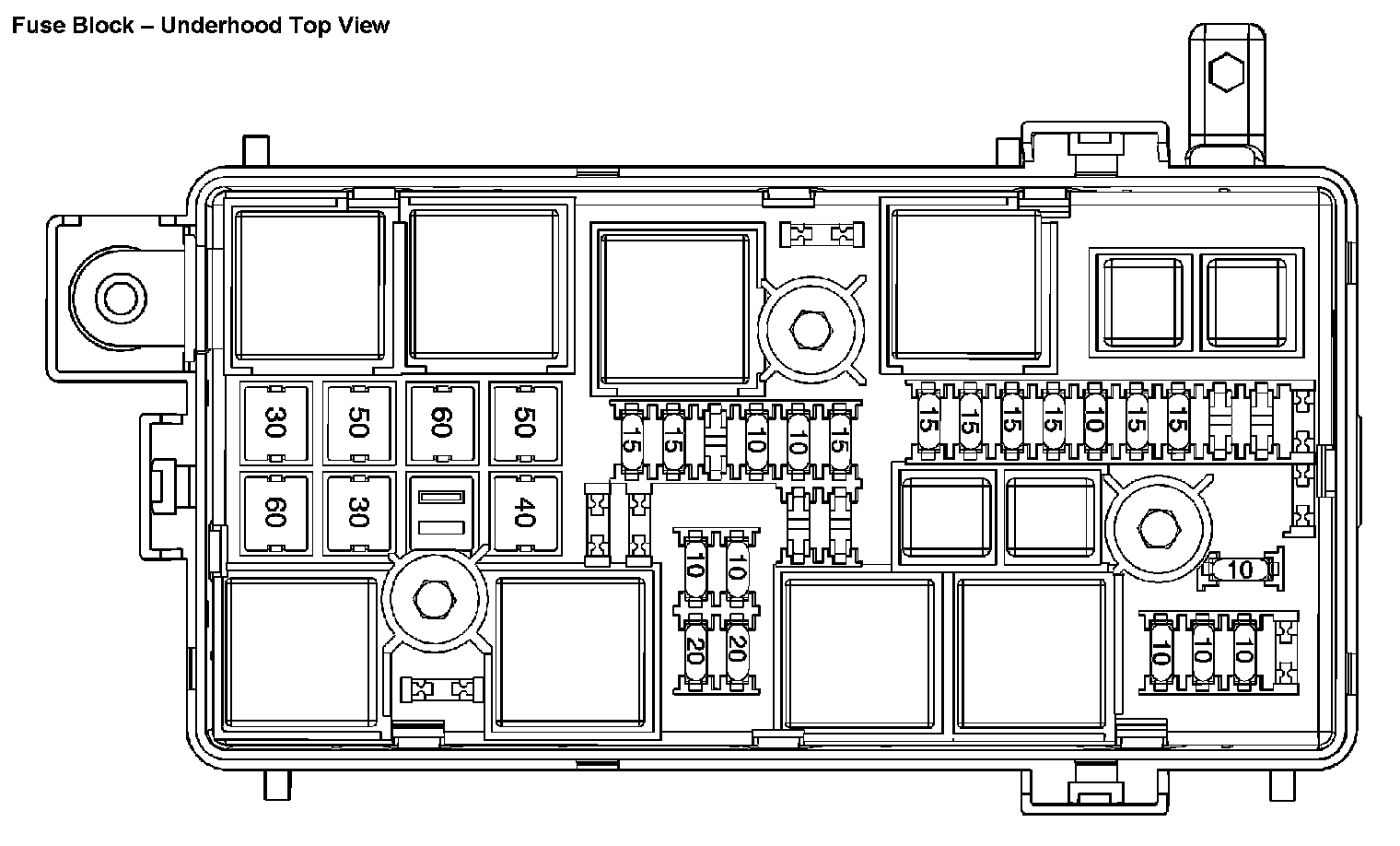

Fuse Block Underhood Top View:




Fuse Block Underhood Bottom View:

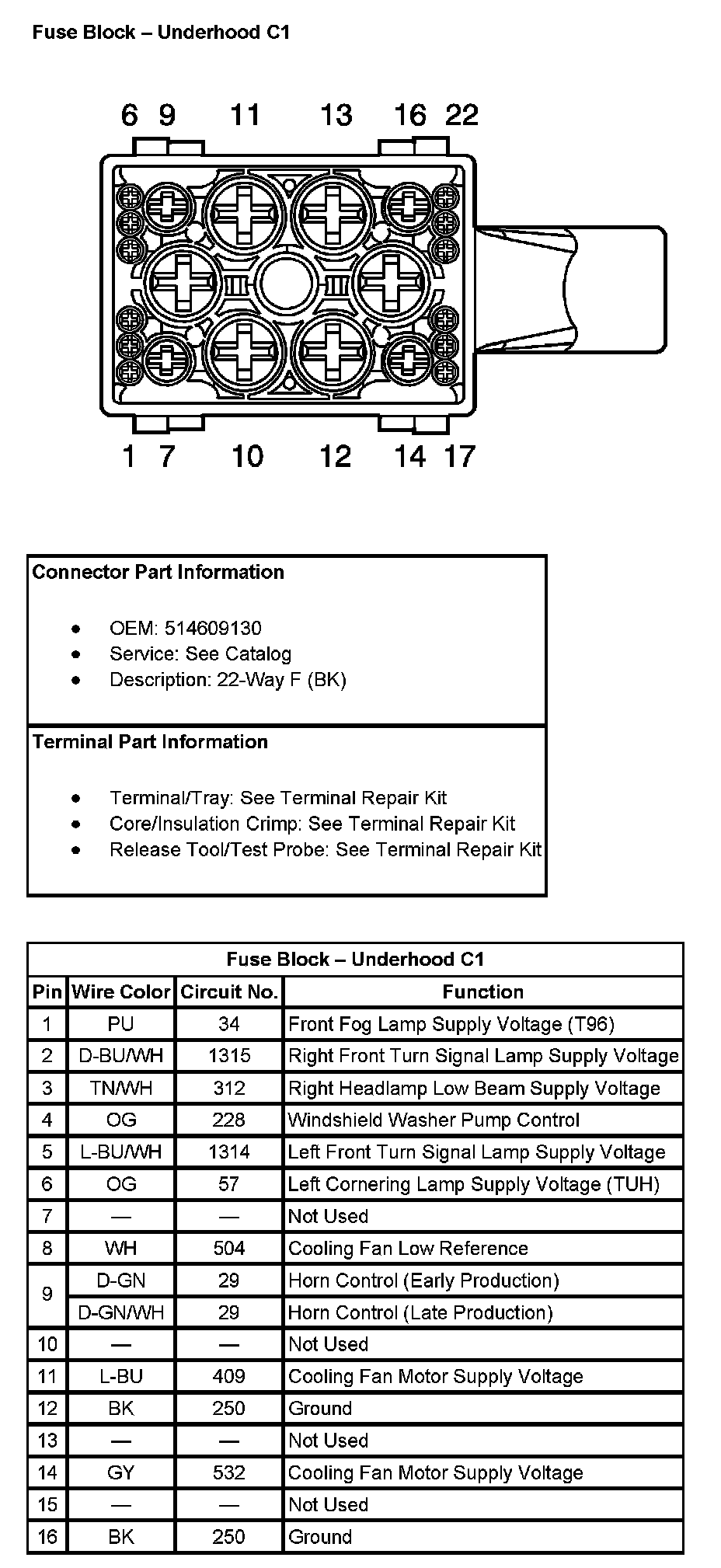

Fuse Block - Underhood C1 (Pin 1 To 16):




Fuse Block - Underhood C1 (Pin 17 To 22):

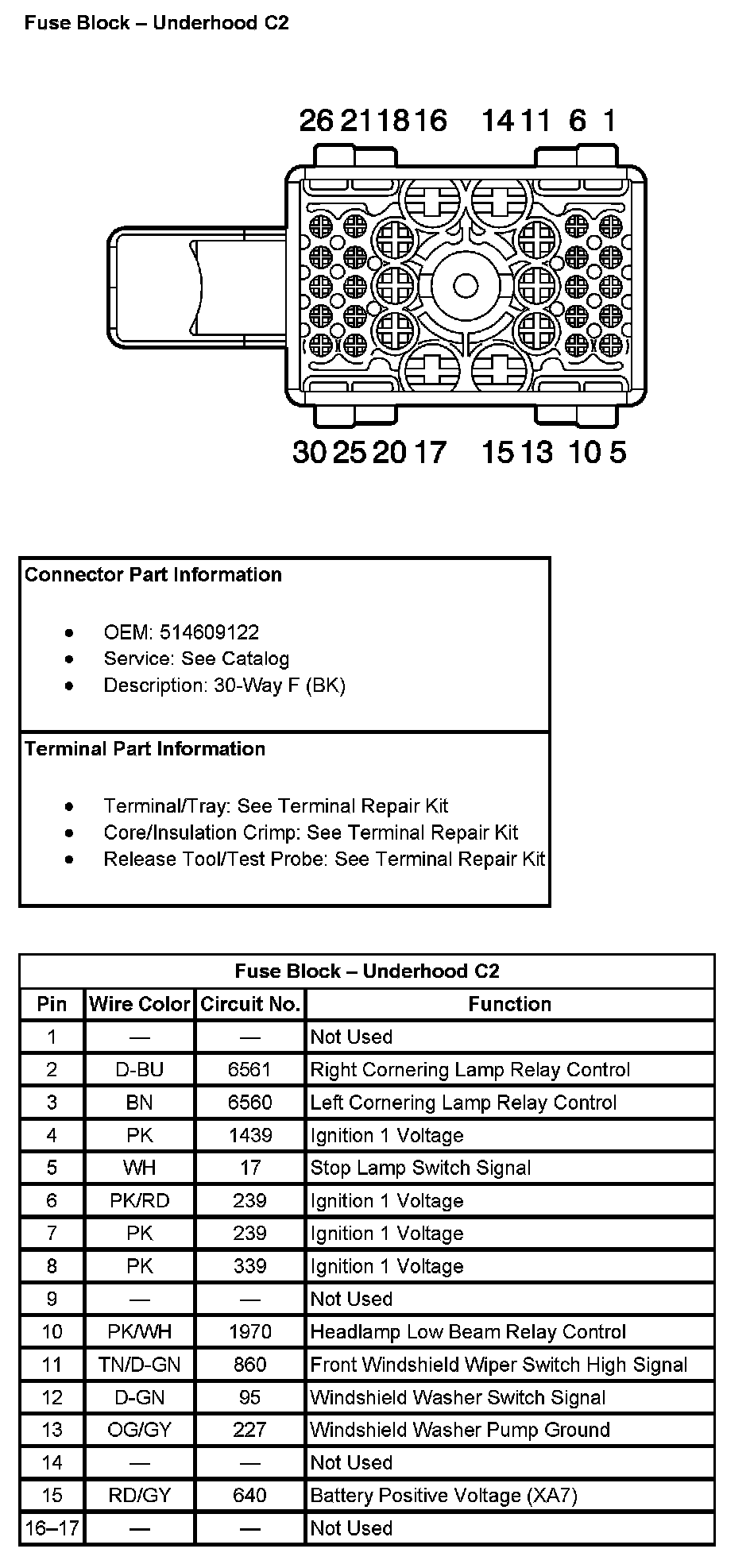

Fuse Block - Underhood C2 (Pin 1 To 17):




Fuse Block - Underhood C2 (Pin 18 To 30):

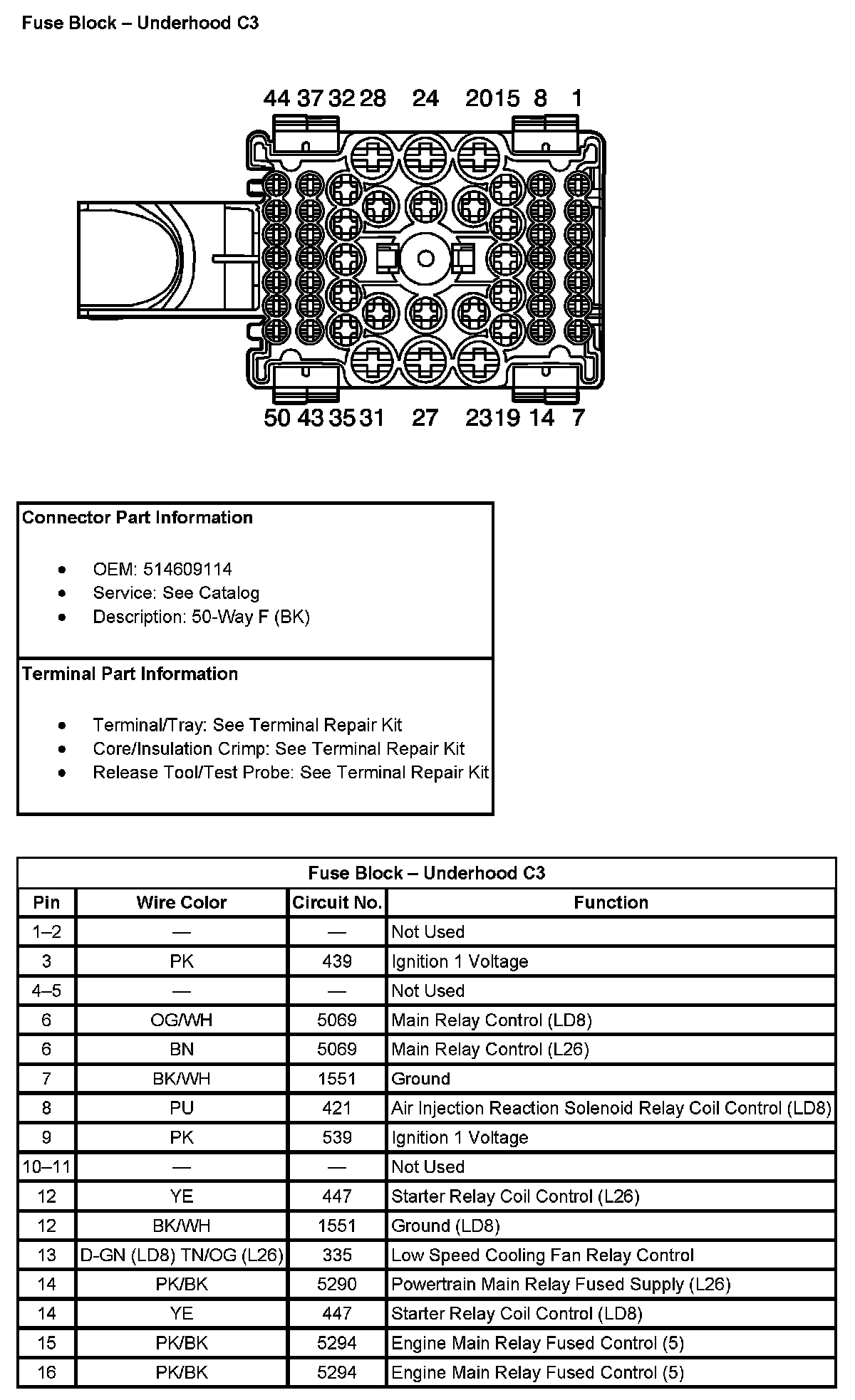

Fuse Block - Underhood C3 (Pin 1 To 16):

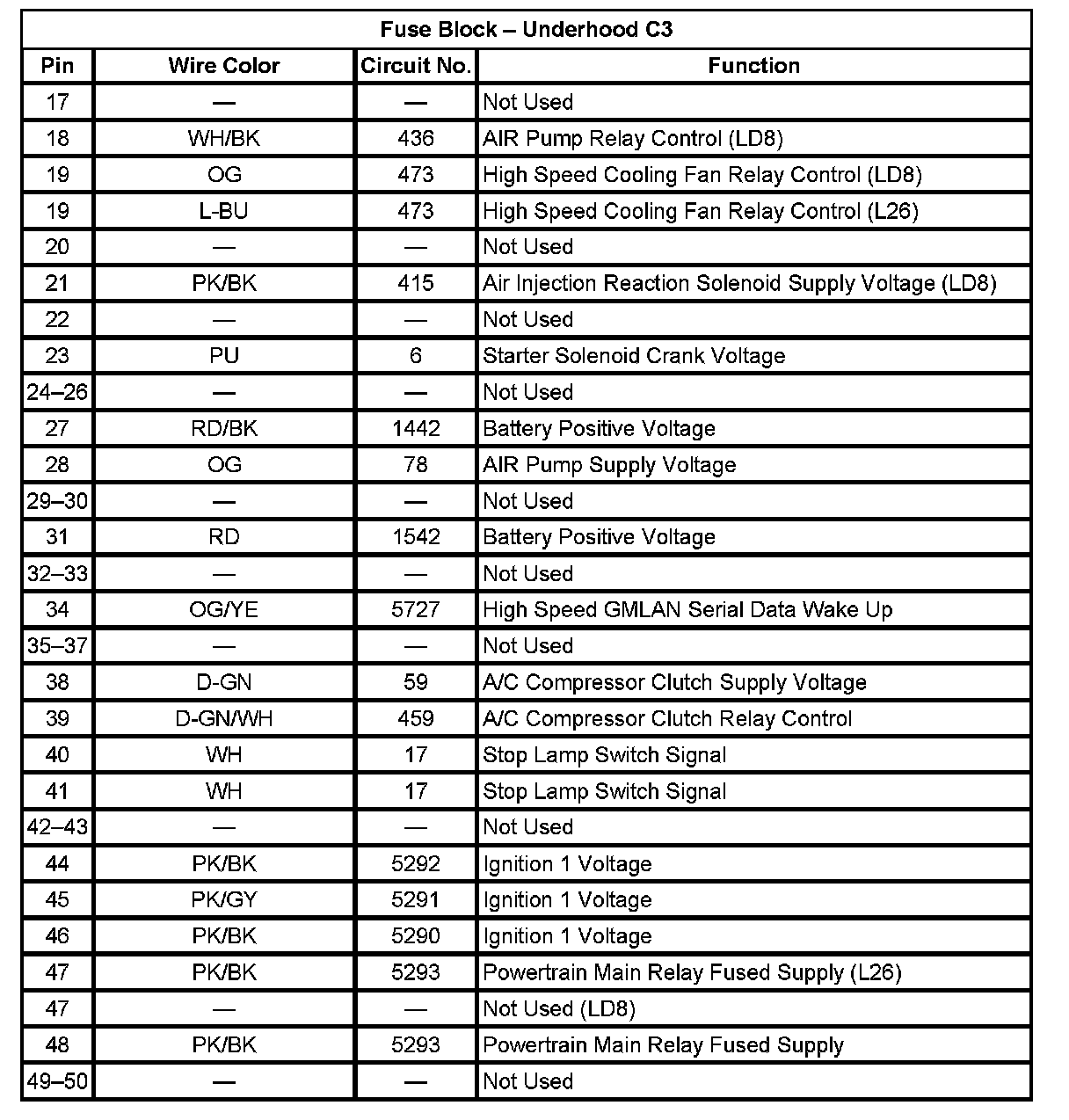

Fuse Block - Underhood C3 (Pin 17 To 50):
