Secondary/Configurable Control Connector End Views



Secondary/Configurable Control Connector End Views

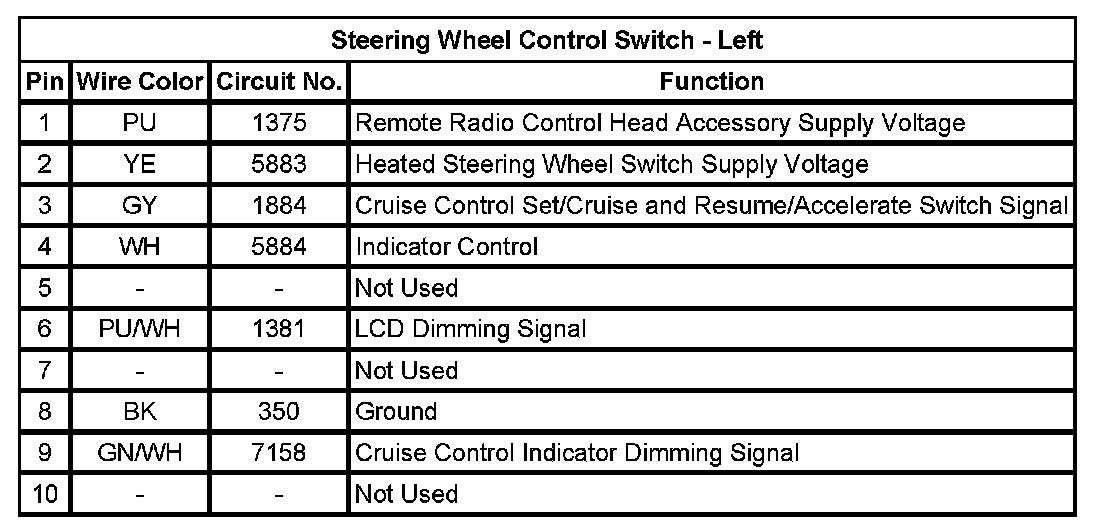

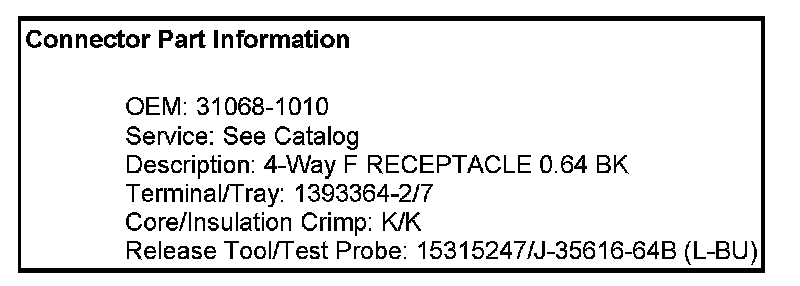

Steering Wheel Control Switch - Left

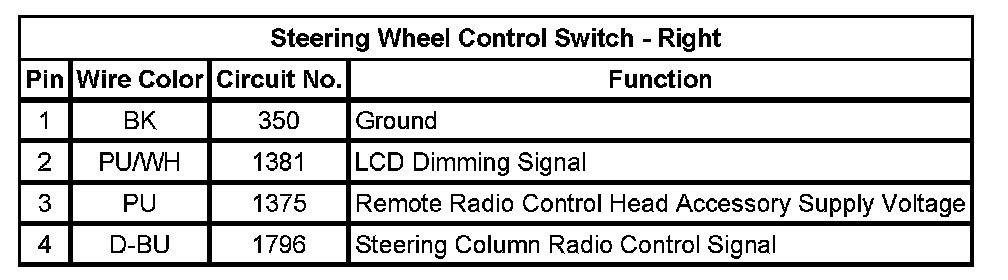

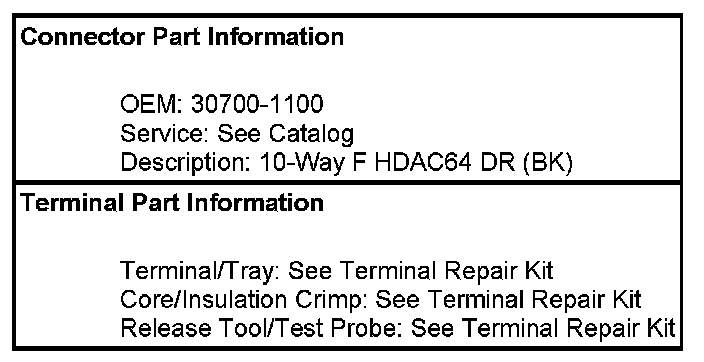

Steering Wheel Control Switch - Right
