Sunroof / Moonroof Module

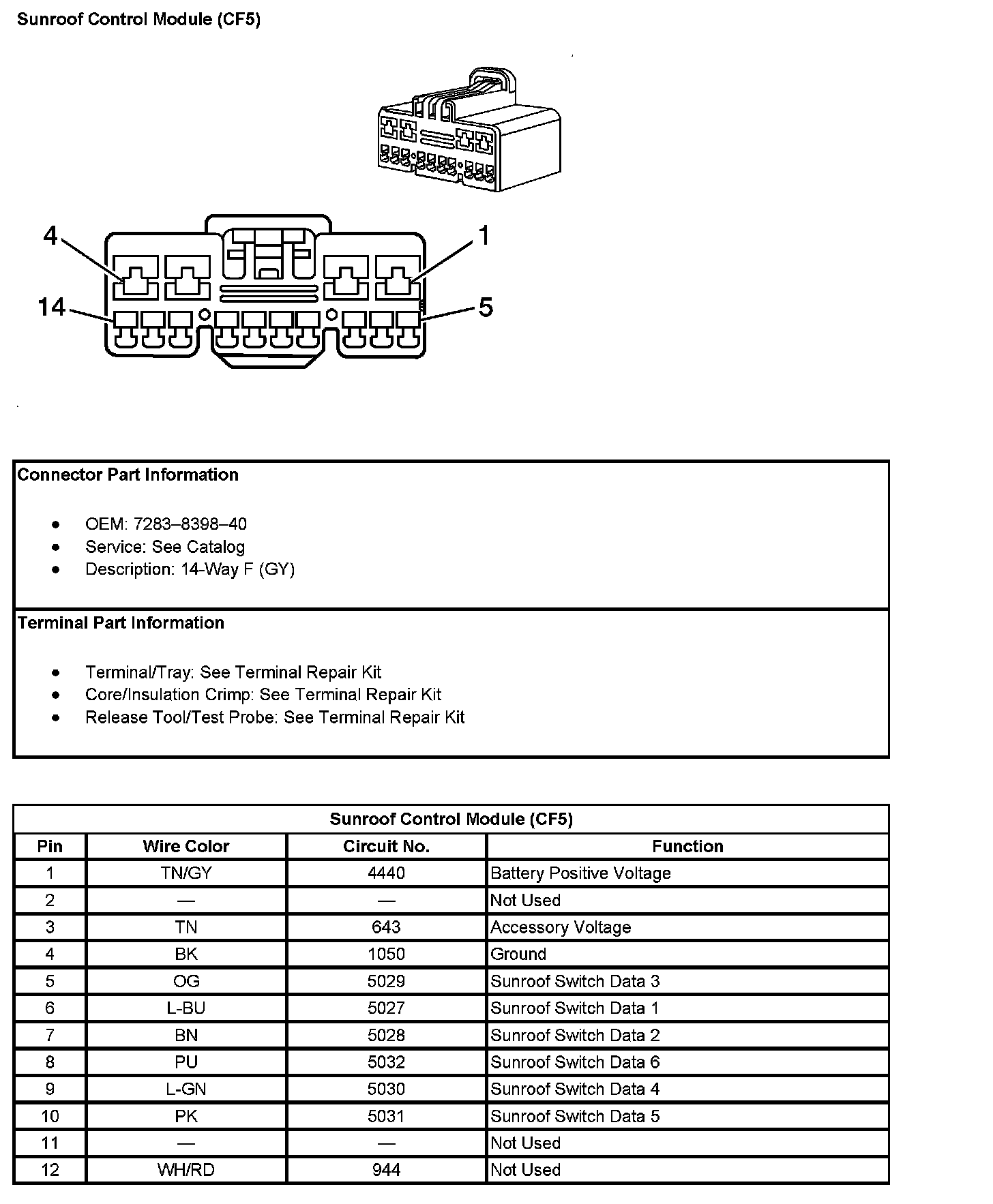

Sunroof Control Module (With RPO Code CF5) Pin 1 To 12:

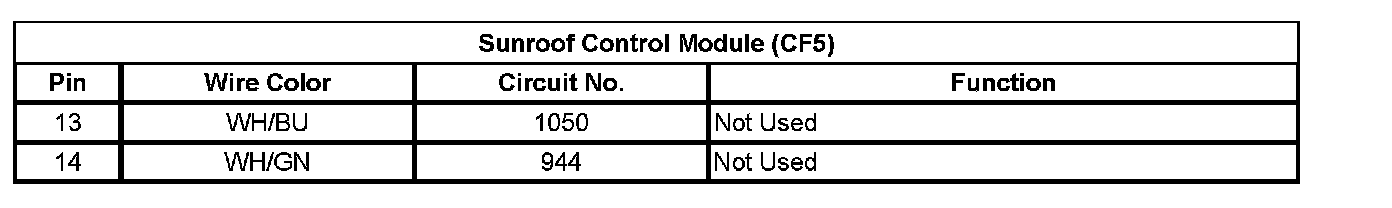

Sunroof Control Module (With RPO Code CF5) Pin 13 To 14:
