Body Control Module (BCM) C1

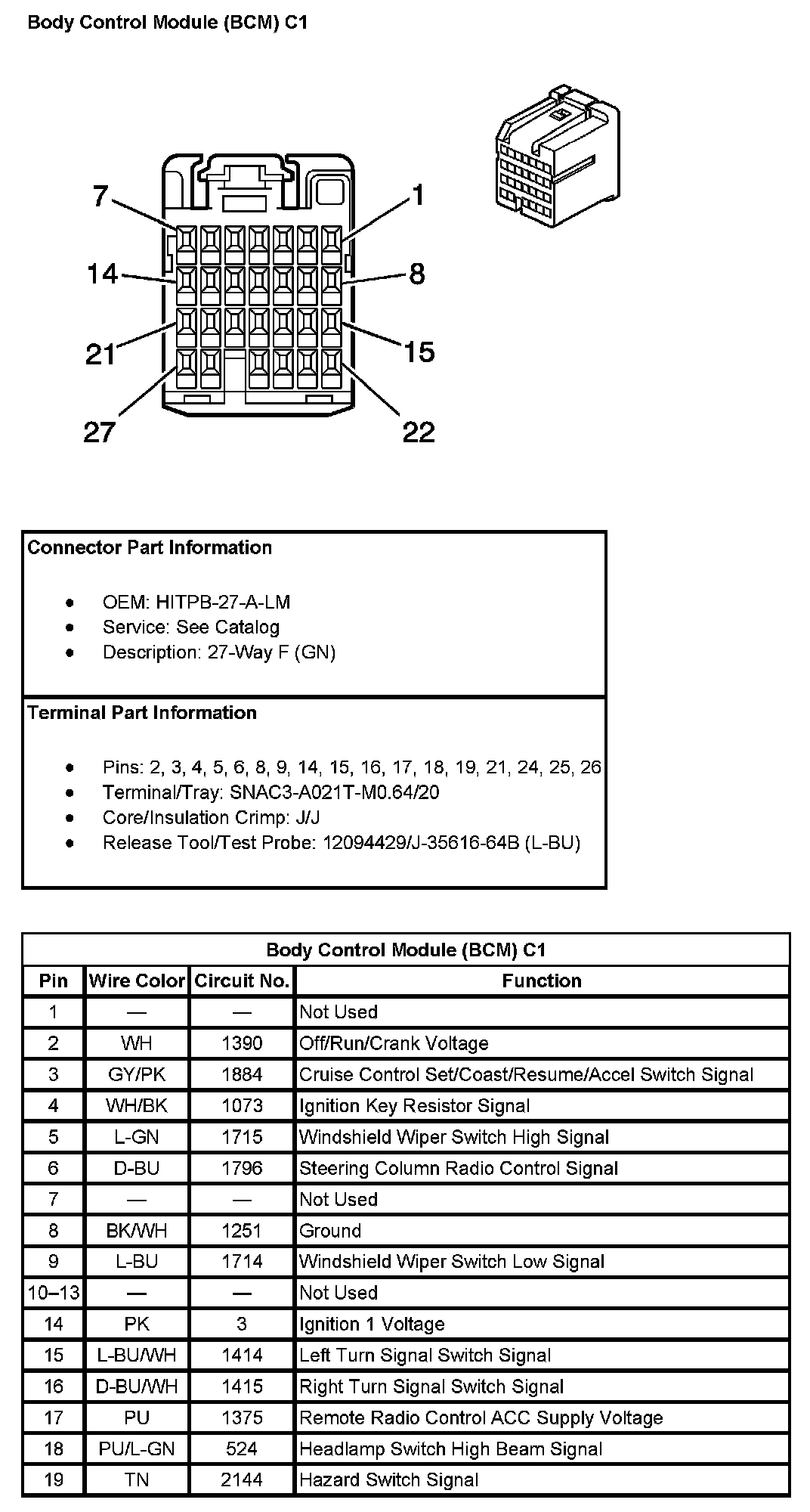

Body Control Module (BCM) C1:

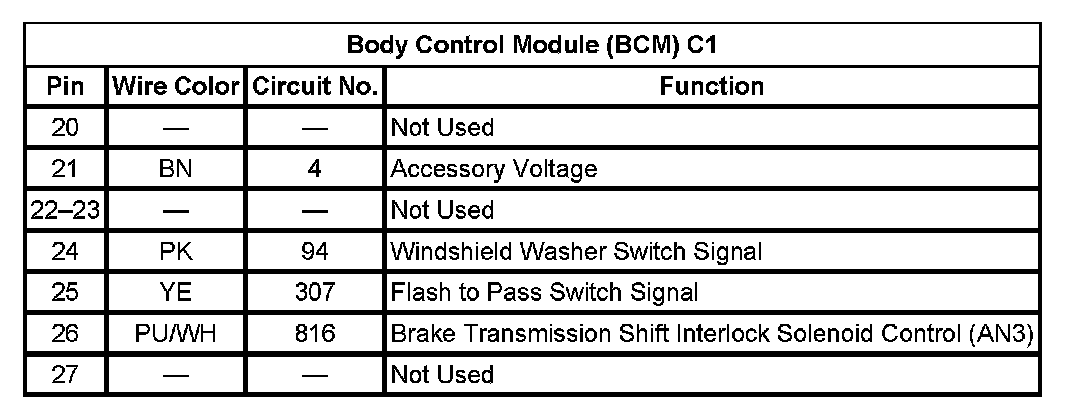

Body Control Module (BCM) C1 (Pin 20 To 27):
