Climate Control Seat Module

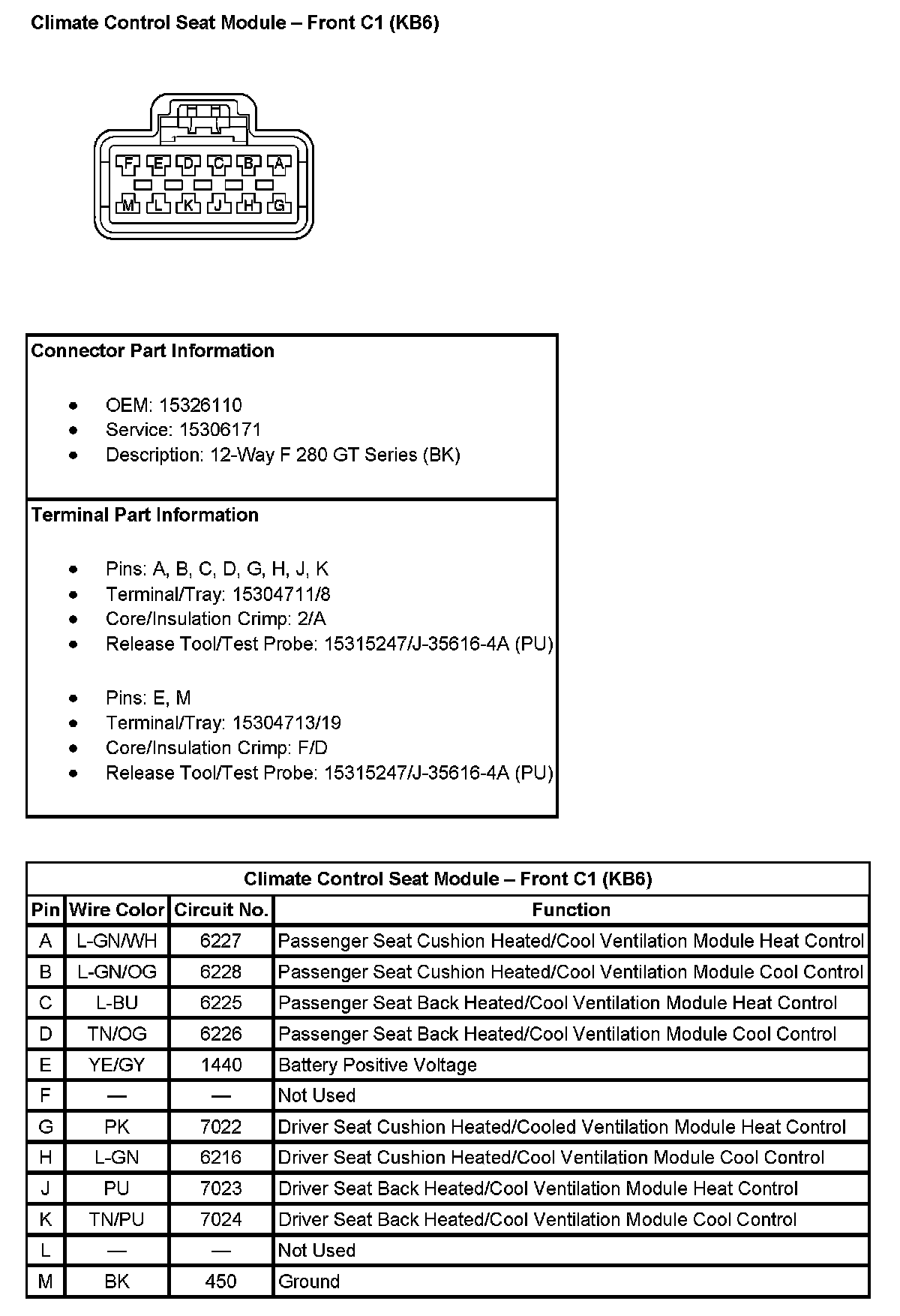

Climate Control Seat Module - Front C1 (With RPO Code KB6):

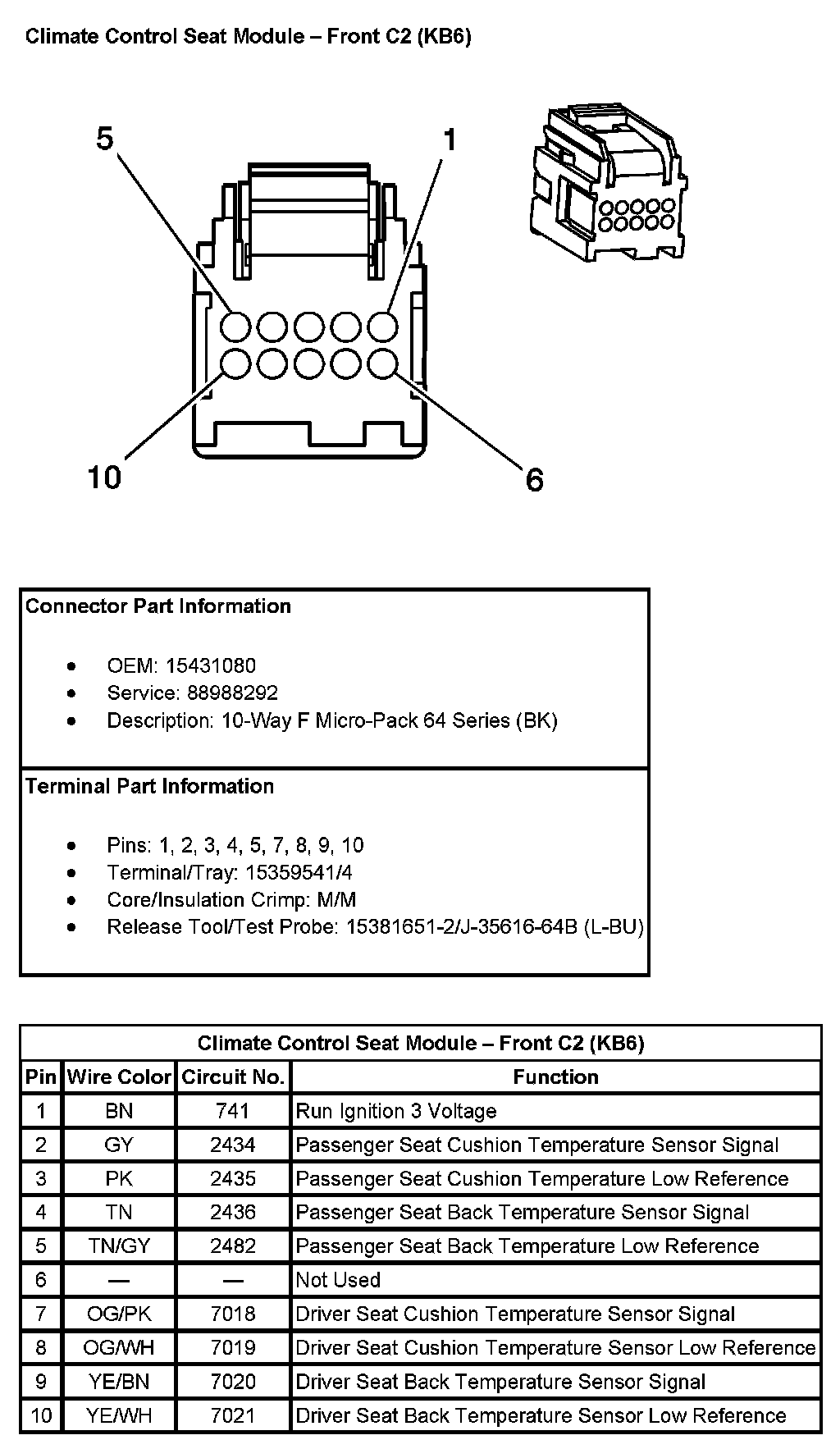

Climate Control Seat Module - Front C2 (With RPO Code KB6):

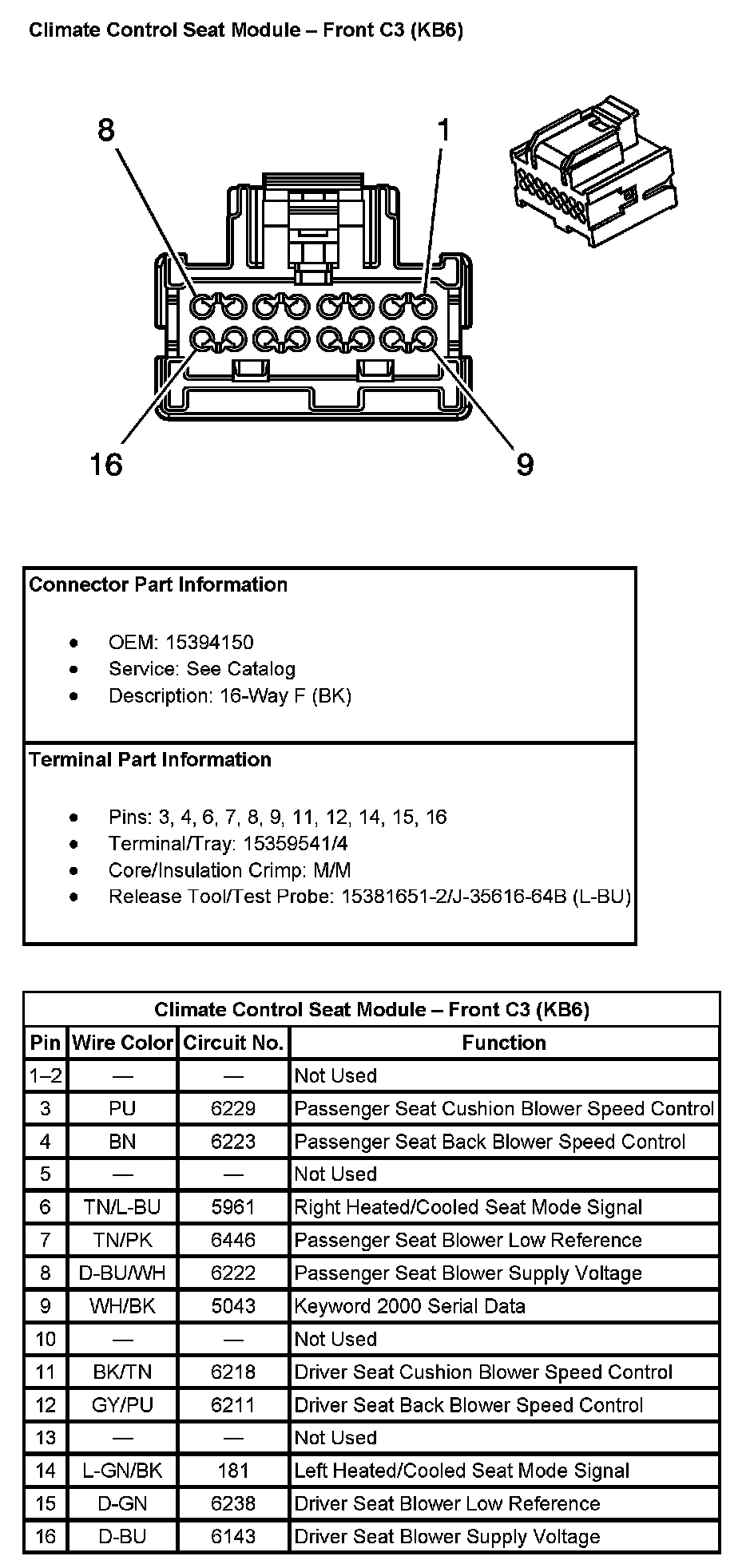

Climate Control Seat Module - Front C3 (With RPO Code KB6):
