Engine Compartment Views

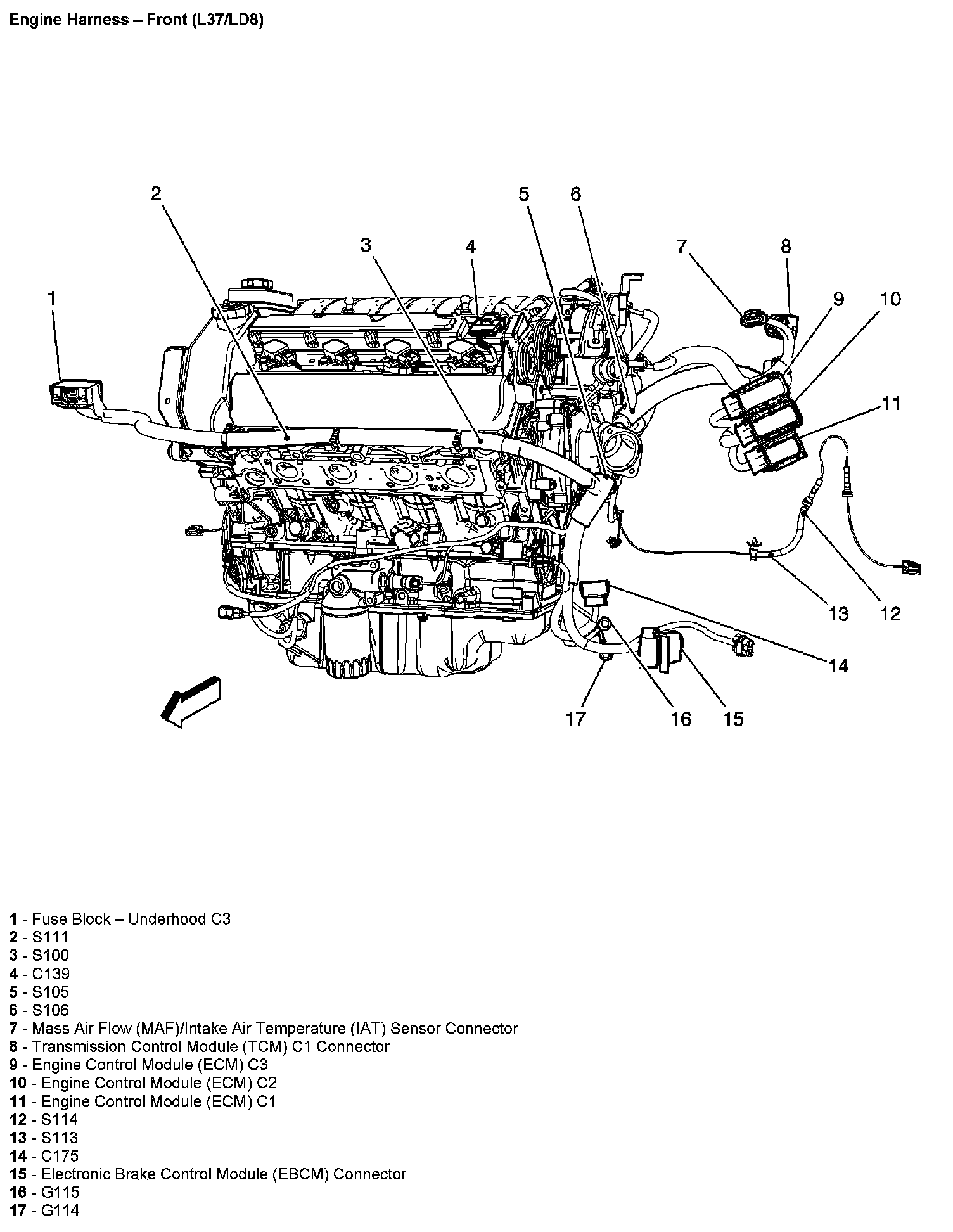

Engine Harness - Front (With RPO Code L37/LD8):

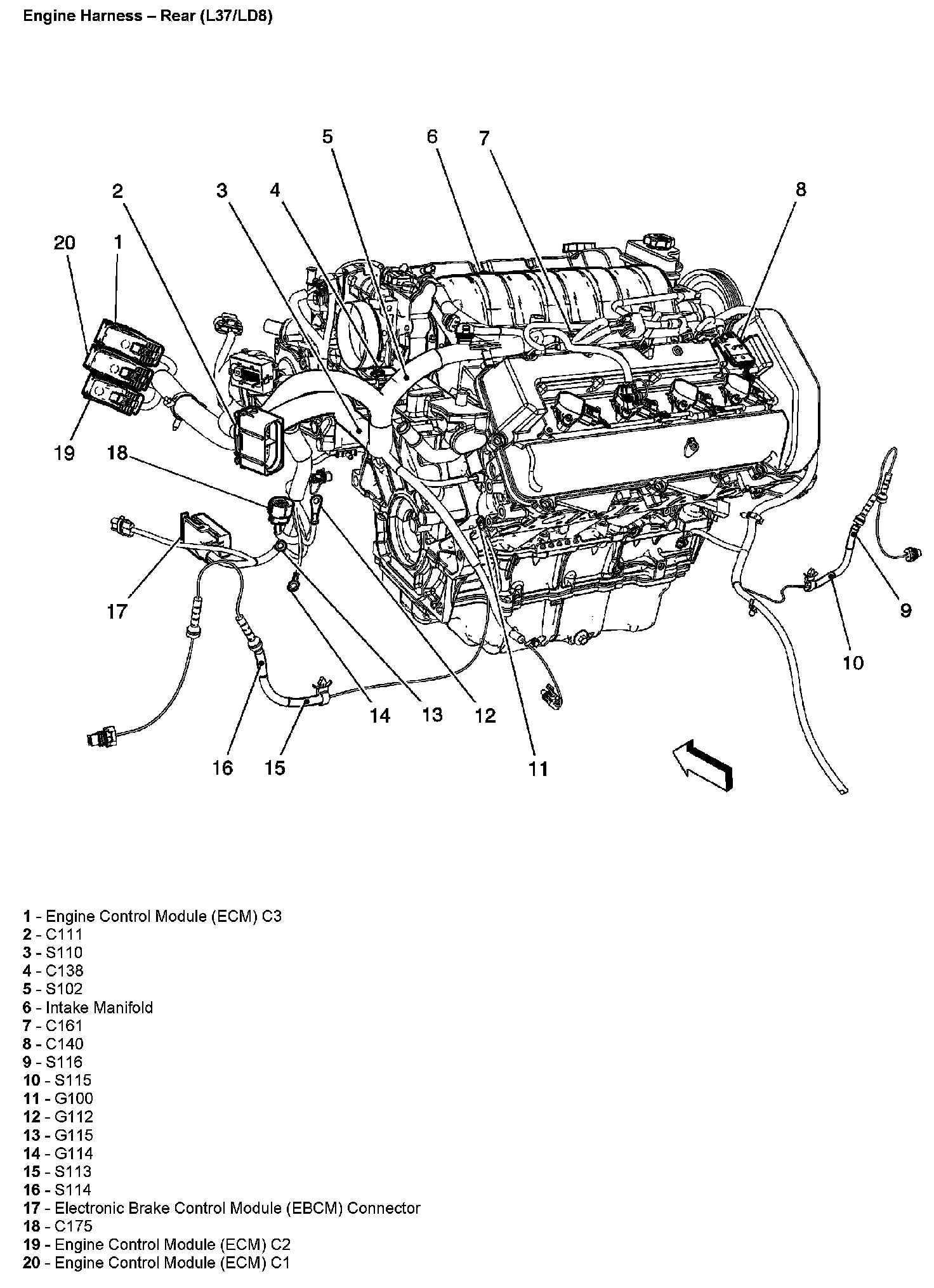

Engine Harness - Rear (With RPO Code L37/LD8):
