Accelerator Pedal Position Sensor: Locations

Engine Controls Component Views

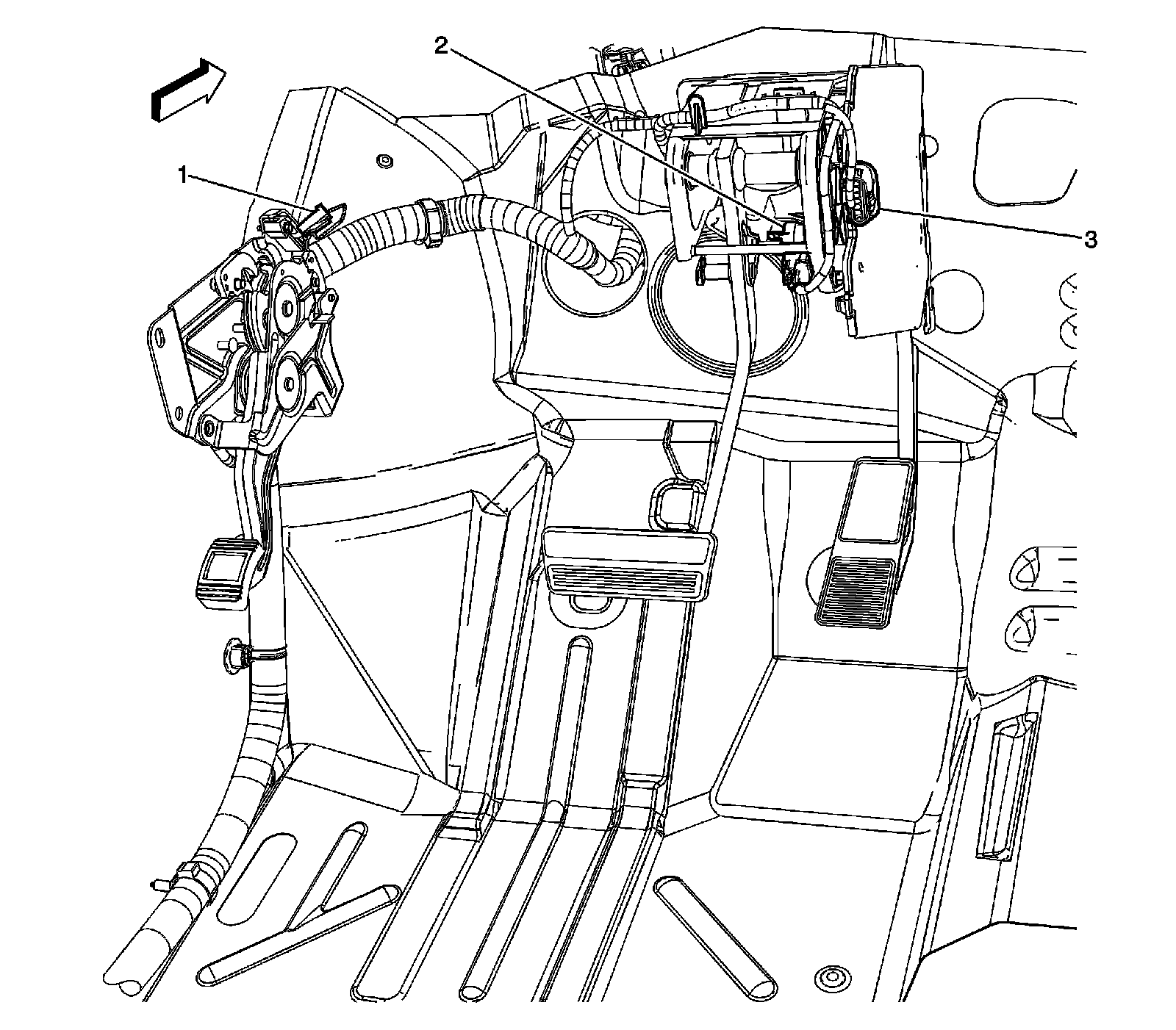

Lower Left Side of I/P

Lower Left Side of I/P:

1 - Park Brake Switch
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
