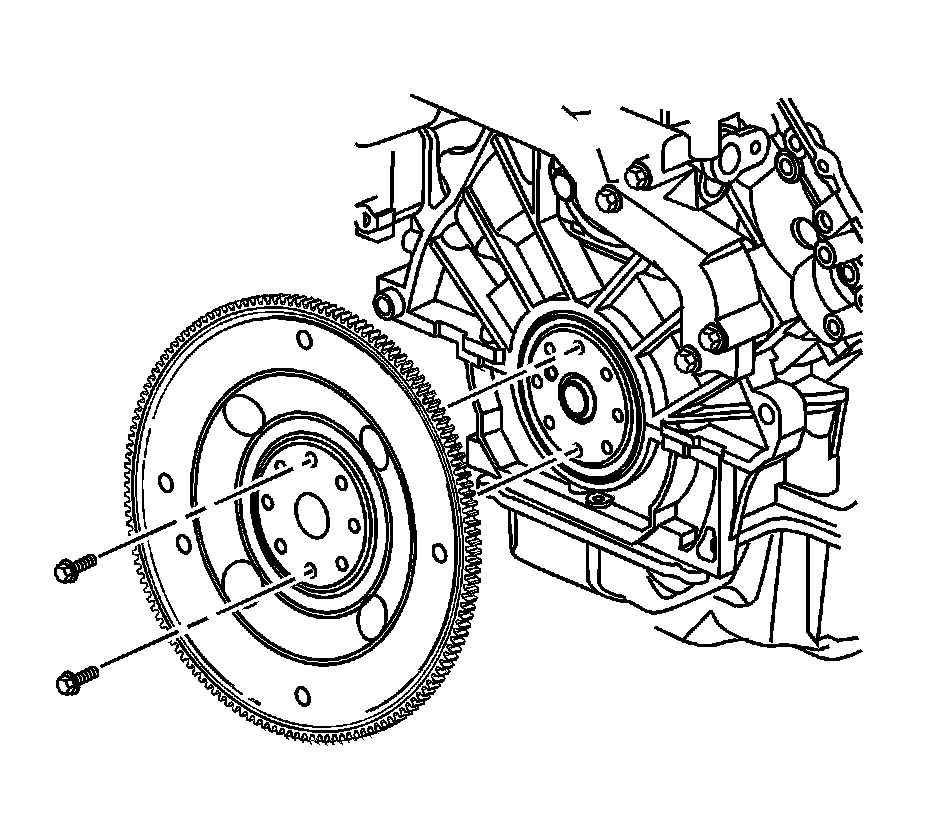

Flex Plate





Install the flywheel bolts.
^ Tighten the bolts a first pass to 30 N.m (22 lb ft).
^ Tighten the bolts a final pass an additional 50 degrees using the J 45059

Torque Converter 60 N.m (44 lb ft)
