Object Detection Component Views

Fig 1: Object Detection Components (Center Console)

GM861251

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM) C2 Connector
2	Body Control Module (BCM) C1 Connector
3	Body Control Module (BCM) C0 Connector
4	Fuse Block - Center Console C2 Connector
5	Fuse Block - Center Console C1 Connector
6	Rear Parking Assist (RPA) Diagnostic Connector (UD7)

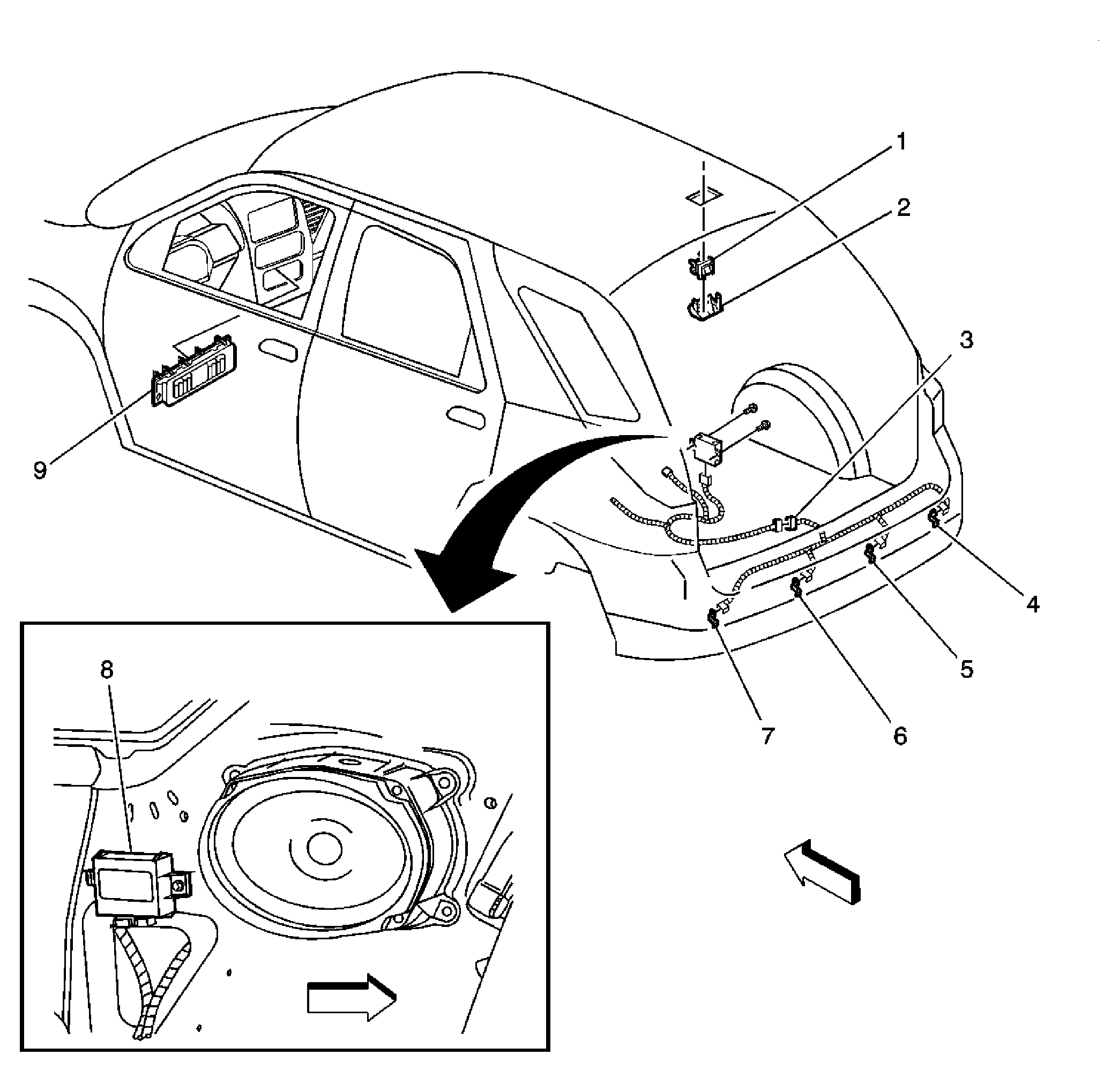

Fig 2: Rear Parking Assist (RPA) Location View

GM819386

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Display
2	Rear Parking Assist (RPA) Display Housing
3	C411
4	Object Sensor - RR Corner
5	Object Sensor - RR Middle
6	Object Sensor - LR Middle
7	Object Sensor - LR Corner
8	Rear Parking Assist (RPA) Module
9	I/P Switch Assembly
