Entertainment/Communication Component Views

Fig 1: Entertainment/Communication Components (Front of Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - RF (LF Similar)
2	Cellular and Navigation Antenna
3	Headlamp - Low Beam - Left, and Headlamp - High Beam - Left (Right Similar)
4	Marker Lamp - LF (RF Similar)
5	Fog Lamp - LF (RF Similar)

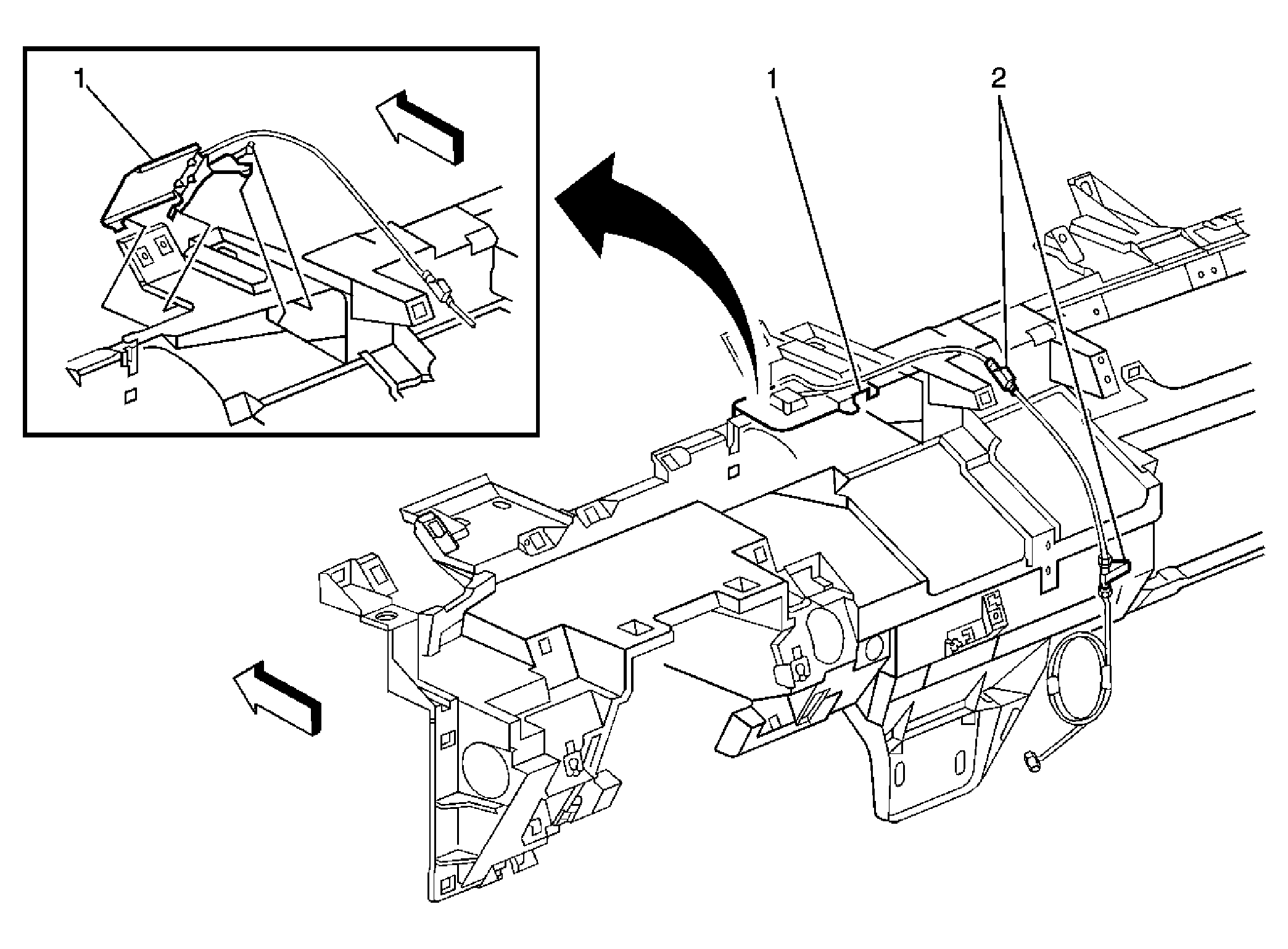

Fig 2: Entertainment/Communication Components (Below I/P Upper Trim Pad)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Global Position System (GPS) Antenna
2	Antenna Coax

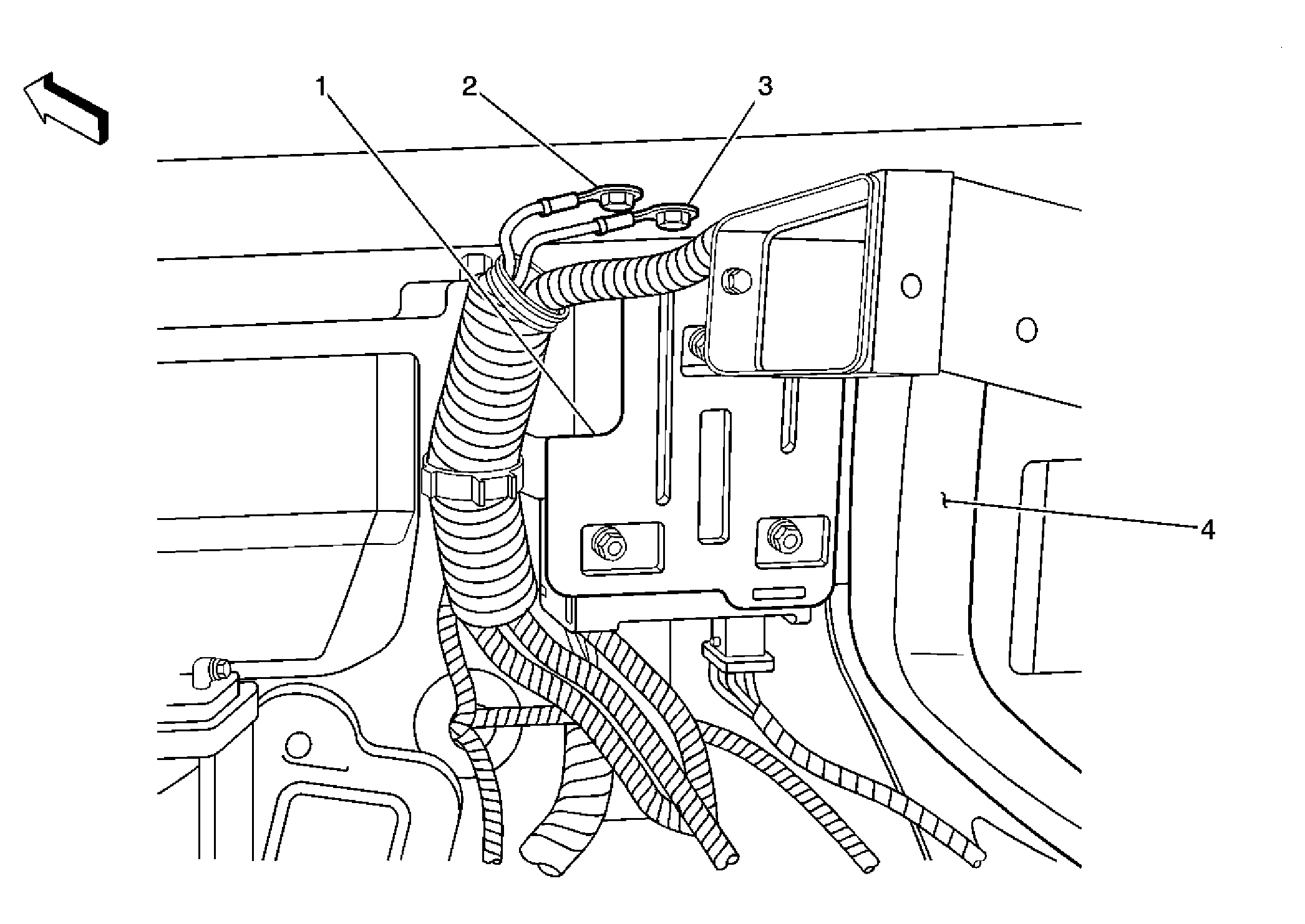

Fig 3: Entertainment/Communication Components (Behind I/P Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	G200
3	G202
4	Daytime Running Lamps (DRL) Diode

Fig 4: Entertainment/Communication Components (Passenger Side of I/P)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Unit (VCU)

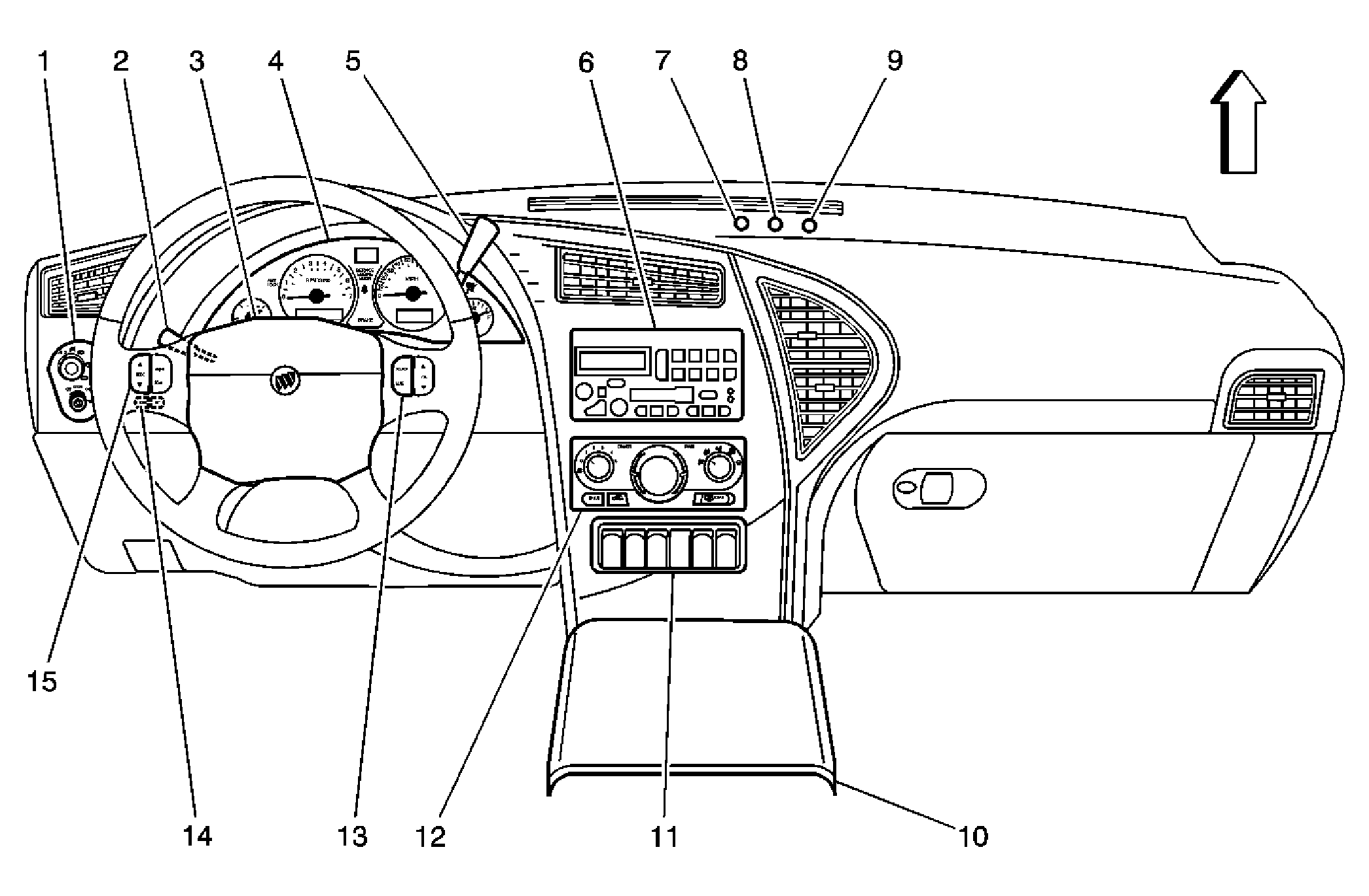

Fig 5: Entertainment/Communication Components (Instrument Panel)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Turn Signal/Multifunction Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Automatic Transmission Shift Lever
6	Radio
7	Theft Light Emitting Diode (LED) (UA6)
8	Sunload Sensor
9	Ambient Light Sensor
10	Center Console
11	I/P Switch Assembly
12	HVAC Control Module
13	Steering Wheel Control Switch Assembly - Right (UK3)
14	Head Up Display (HUD) Switch (UV6) and Driver Information Center (DIC) Switch (UH9)
15	Steering Wheel Control Switch Assembly - Left (UK3)

Fig 6: Entertainment/Communication Components (Overhead Console)

Courtesy of GENERAL MOTORS CORP.

Fig 7: DVD Display Screen Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Video Disc (DVD) Player (U32)
2	Overhead Console

Fig 8: Rear Seat Audio (RSA) Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Audio (RSA) Control (UK6)

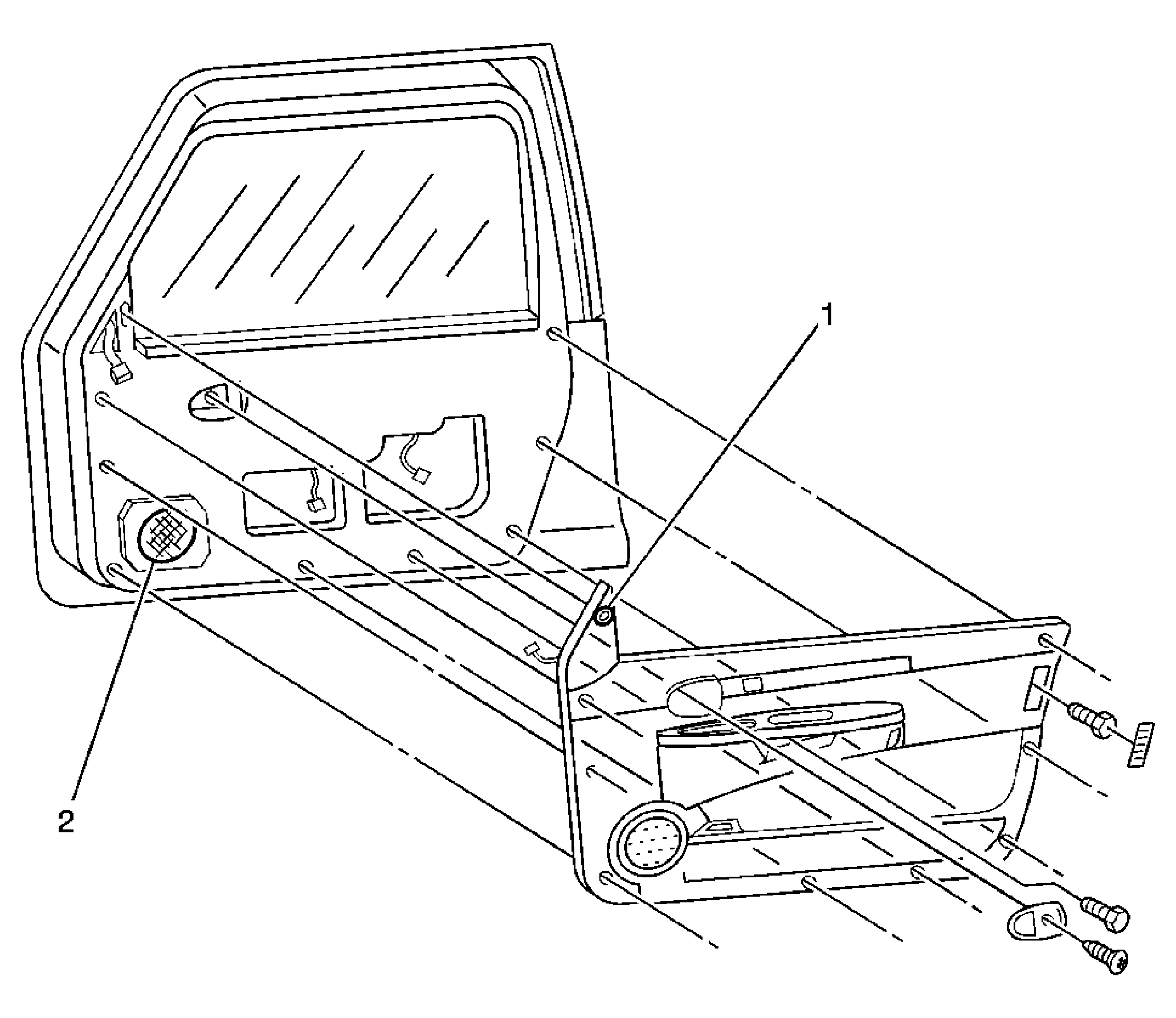

Fig 9: Entertainment/Communication Components (Front Doors)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Tweeter (LF Similar)
2	Speaker - RF Door (LF Similar)

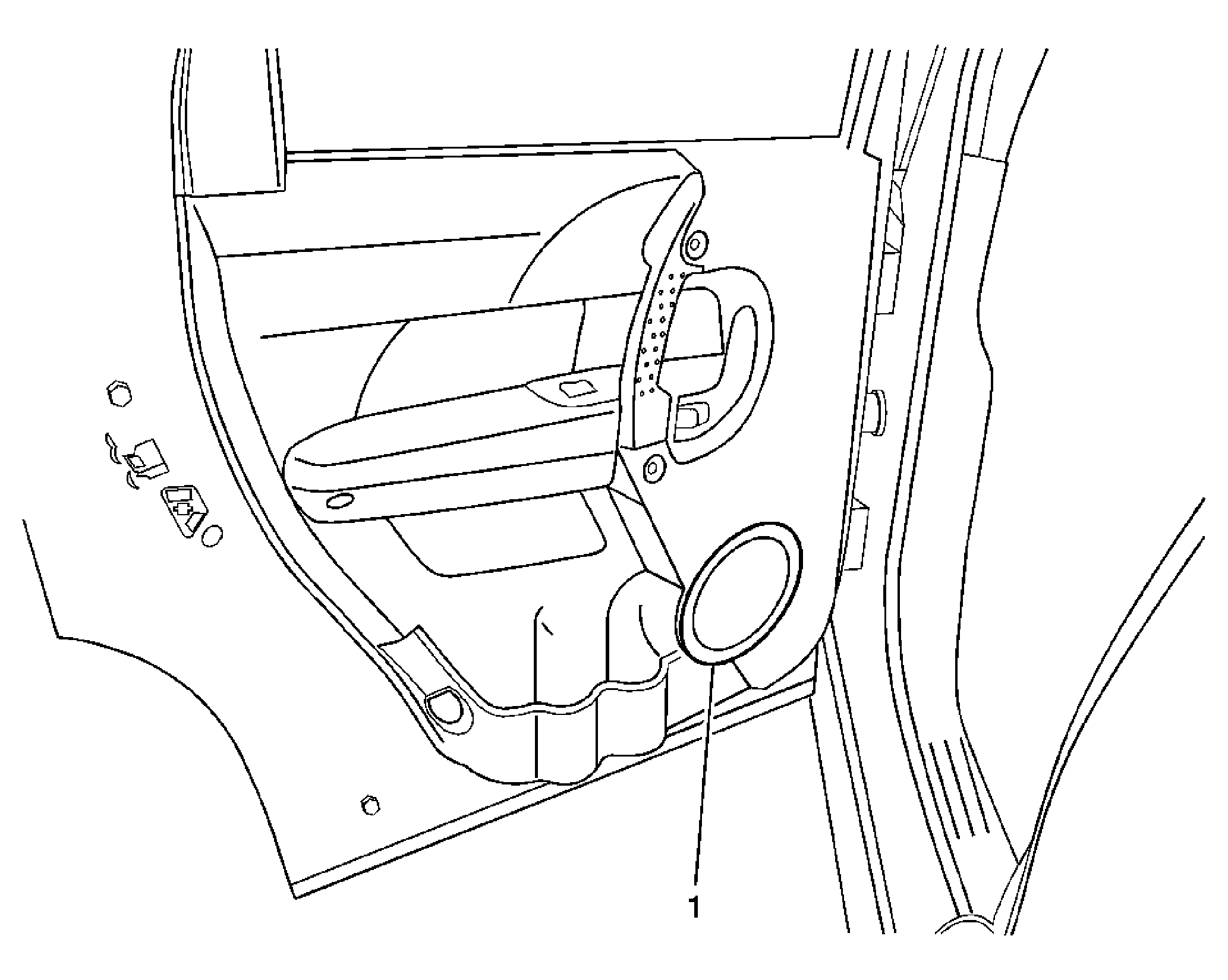

Fig 10: Entertainment/Communication Components (Rear Doors)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door (RR Similar)

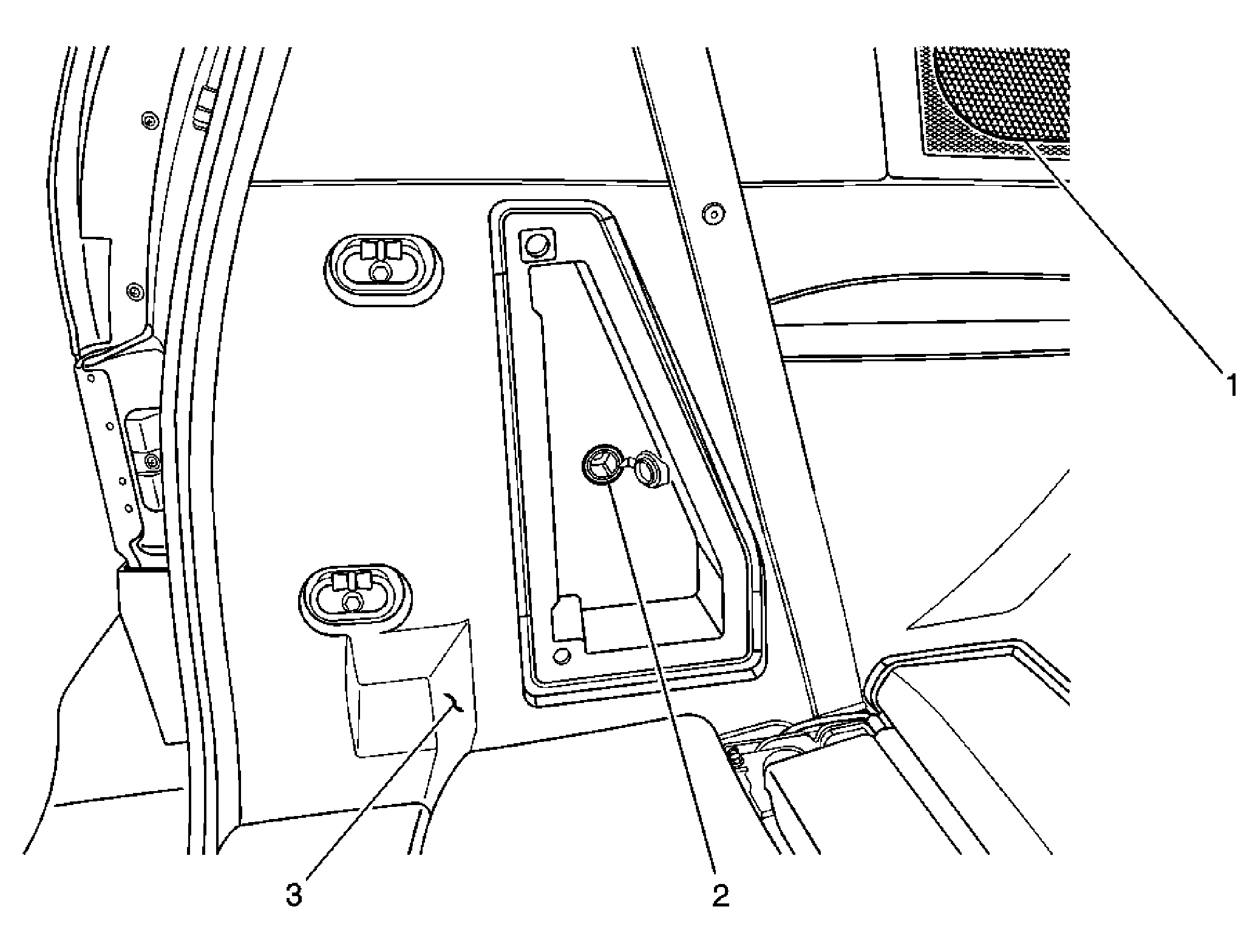

Fig 11: Entertainment/Communication Components (Left Rear of Passenger Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Subwoofer (UQ3) (RR Similar)
2	Auxiliary Power Outlet - Rear
3	Trim Panel
