Power Seat Control Module: Locations

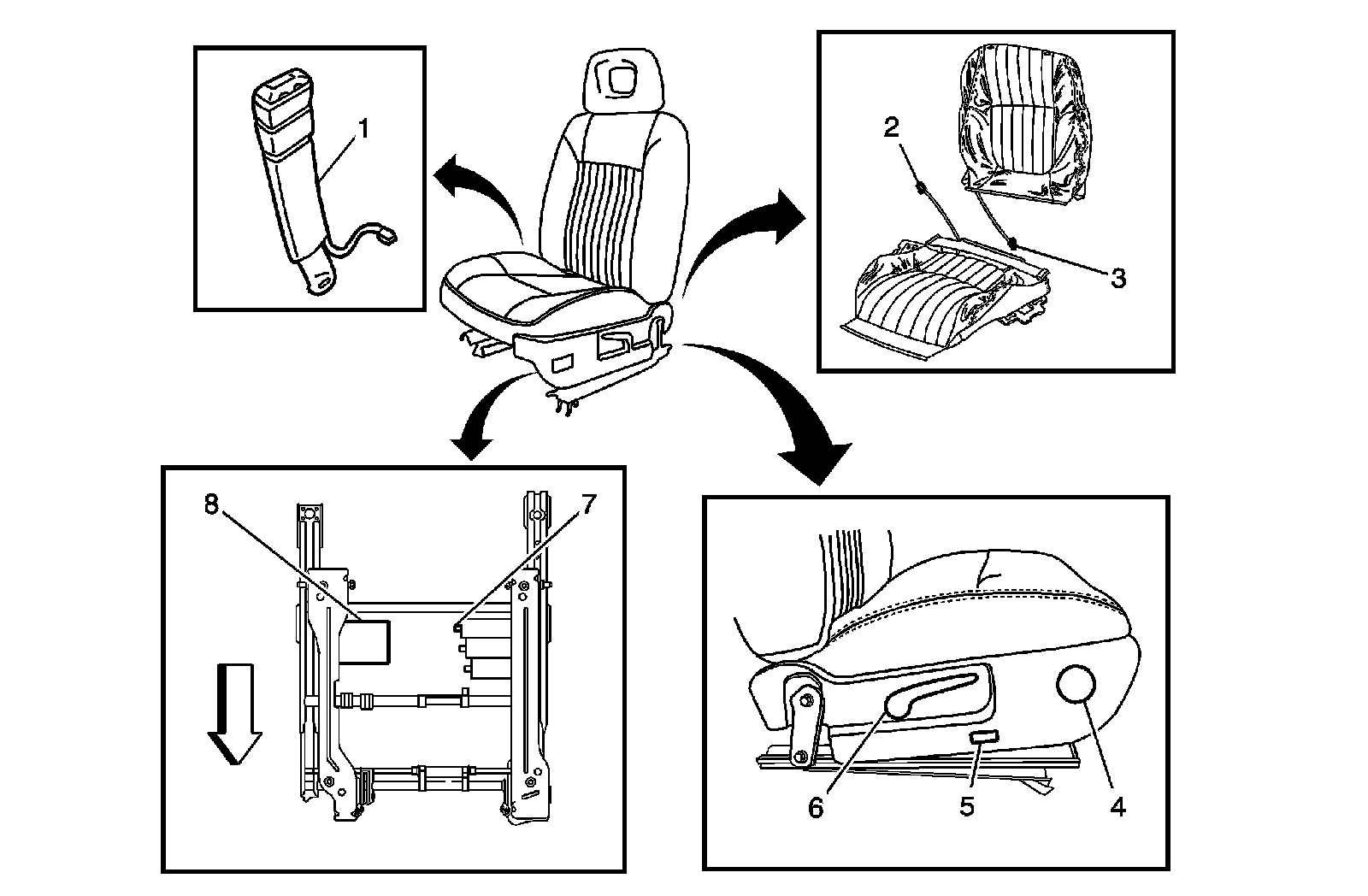

Heated/Cooled Seat Component Views

Power Seat Subsystem




1 - Seat Belt Switch - Left, or Seat Belt Switch - Right
2 - Heated Seat Pad - Driver Back (KA1), or Heated Seat Pad - Passenger Back (KA1)
3 - Heated Seat Pad - Driver Cushion (KA1), or Heated Seat Pad - Passenger Cushion (KA1)
4 - Lumbar Adjuster
5 - Seat Adjuster Switch - Driver (A43 or AG1), or Seat Adjuster Switch - Passenger (AG2)
6 - Seat Recliner Lever
7 - Seat Adjuster Motor Assembly - Driver (A43 or AG1), or Seat Adjuster Motor Assembly - Passenger (AG2)
8 - Memory Seat Module (A43)
