Cruise Control Module: Service and Repair

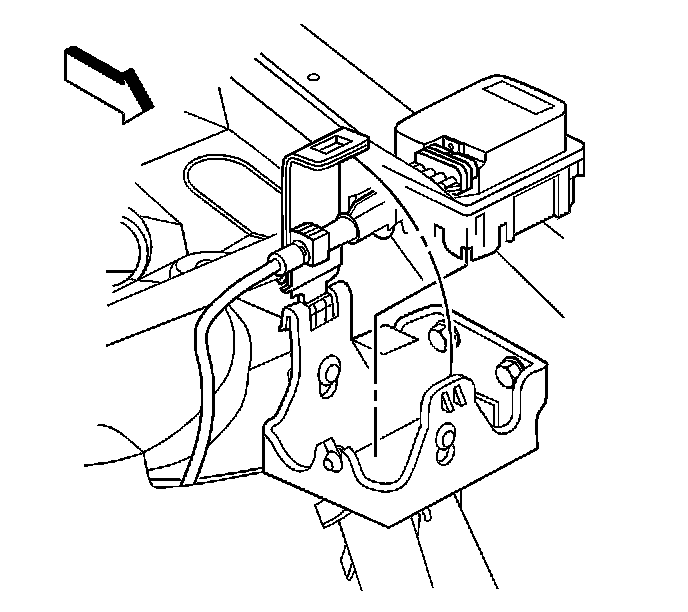

Cruise Control Module Replacement

Removal Procedure

1. Remove the cruise control cable from the module.
2. Disconnect the electrical connector from the cruise control module.




3. Remove the cruise control module from the bracket.

Installation Procedure




1. Install the cruise control module to the bracket.
2. Connect the electrical connector to the cruise control module.
3. Install the cruise control cable to the module.
4. Refer to Programming and Relearning Programming and Relearning
