Transmission Control Systems



Automatic Transmission Inline 20-Way Connector End View (3.5L)

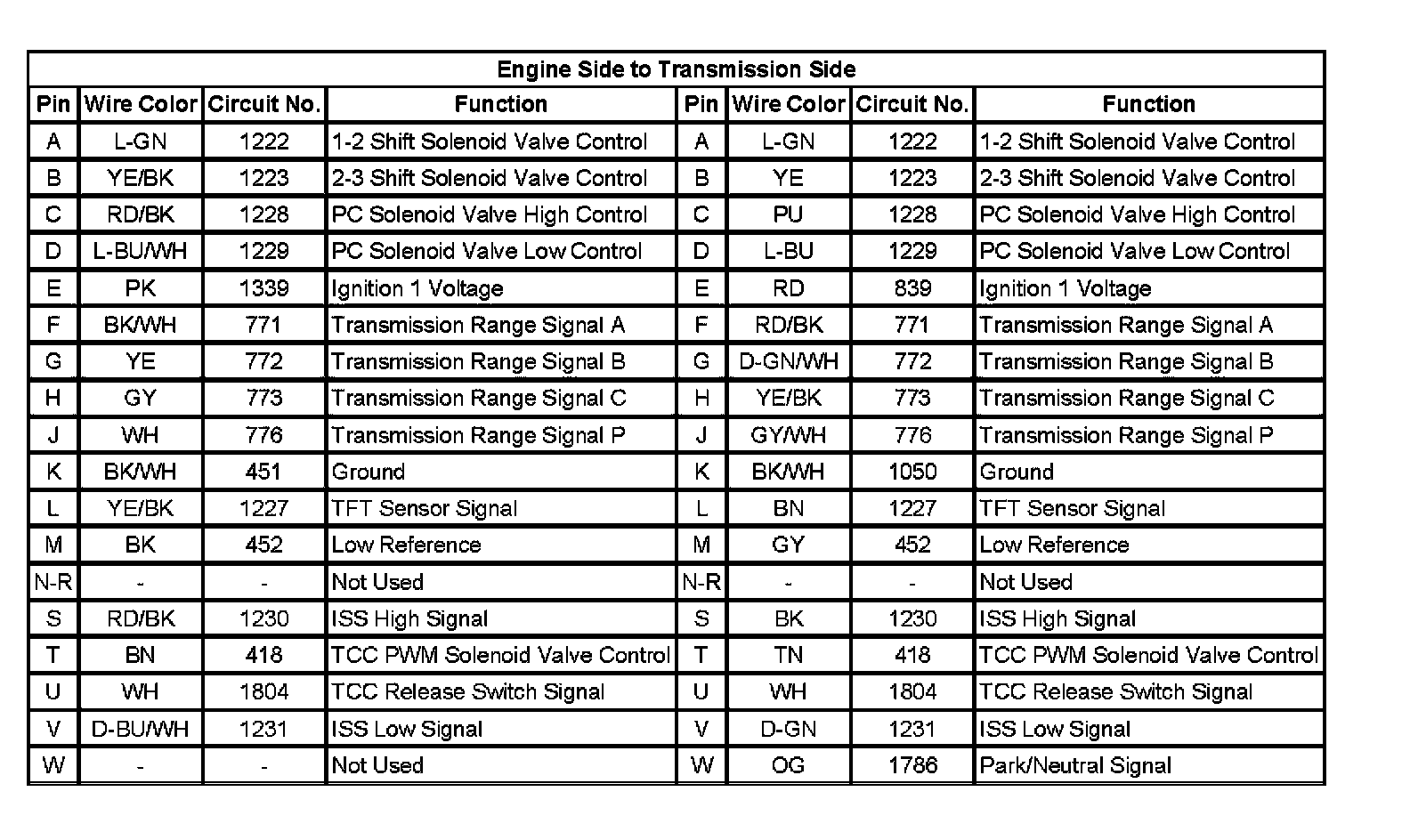

Engine Side to Transmission Side (3.5L):
