Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor Replacement

Removal Procedure




1. Remove the air cleaner outlet duct.

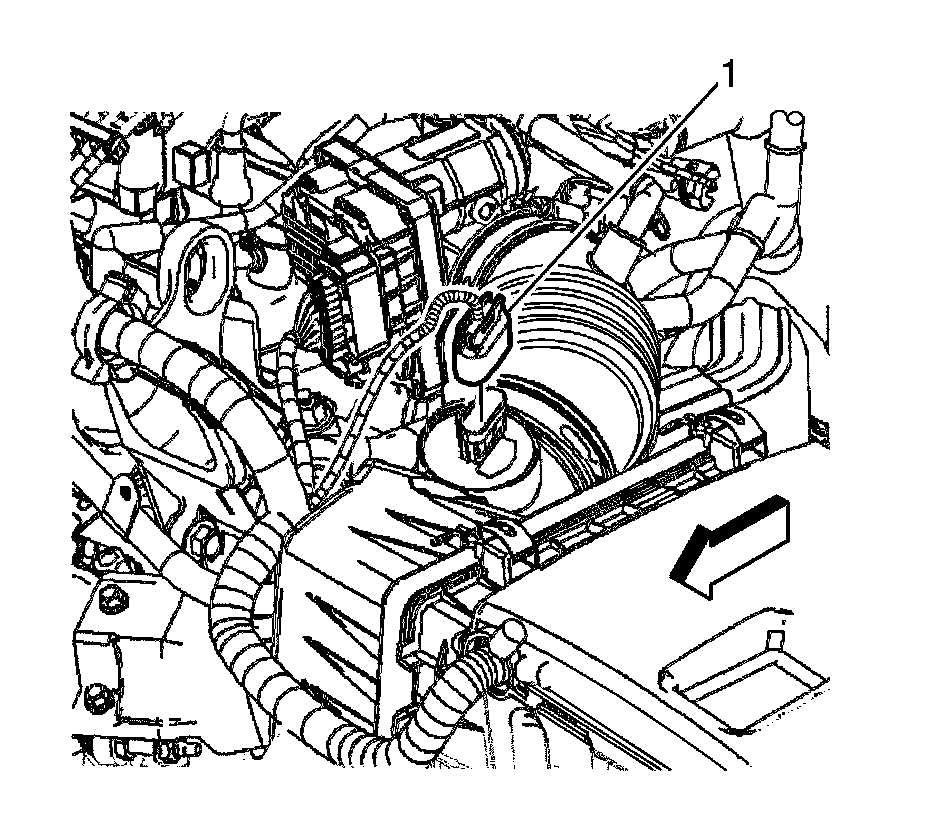

2. Disconnect the mass air flow (MAF) sensor electrical connector (1).

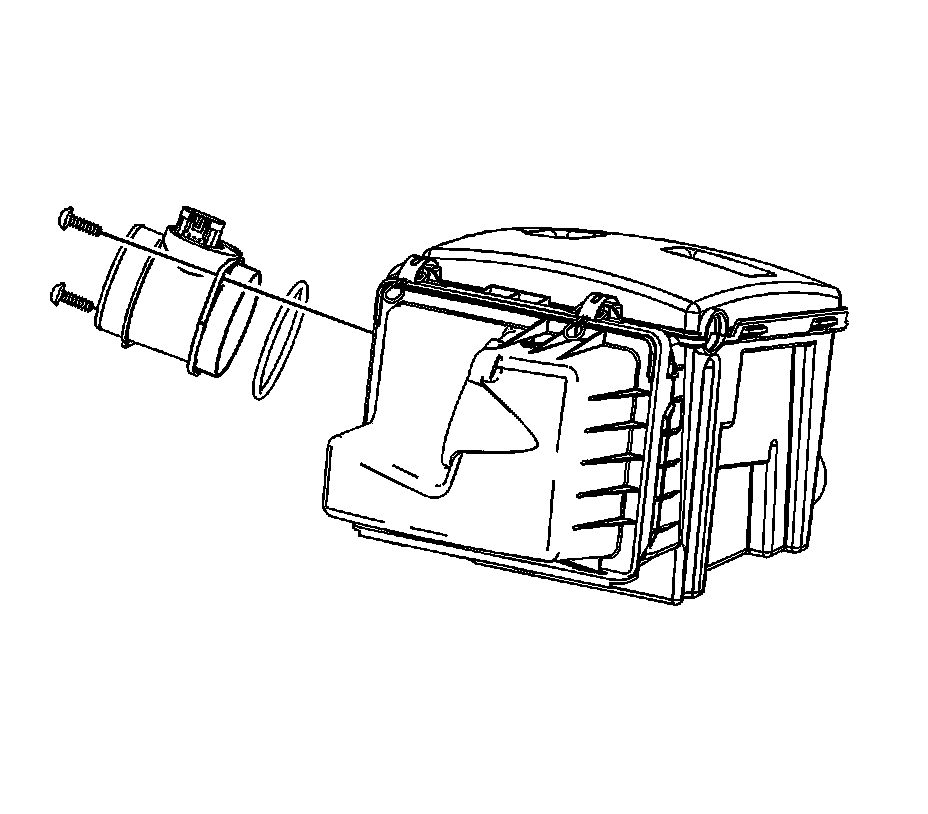

3. Remove the MAF sensor screws.
4. Remove the MAF sensor and O-ring seal.

Installation Procedure




1. Install the MAF sensor O-ring seal and sensor.

Notice: Refer to Fastener Notice.

2. Install the MAF sensor screws.

Tighten the screws to 4 N.m (35 lb in).




3. Connect the MAF sensor electrical connector (1).
4. Install the air cleaner outlet duct.
