Body Control Module: Diagrams

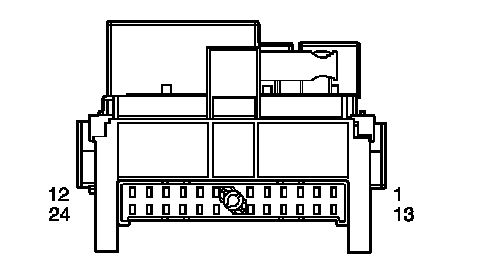

Data Communication Connector End Views

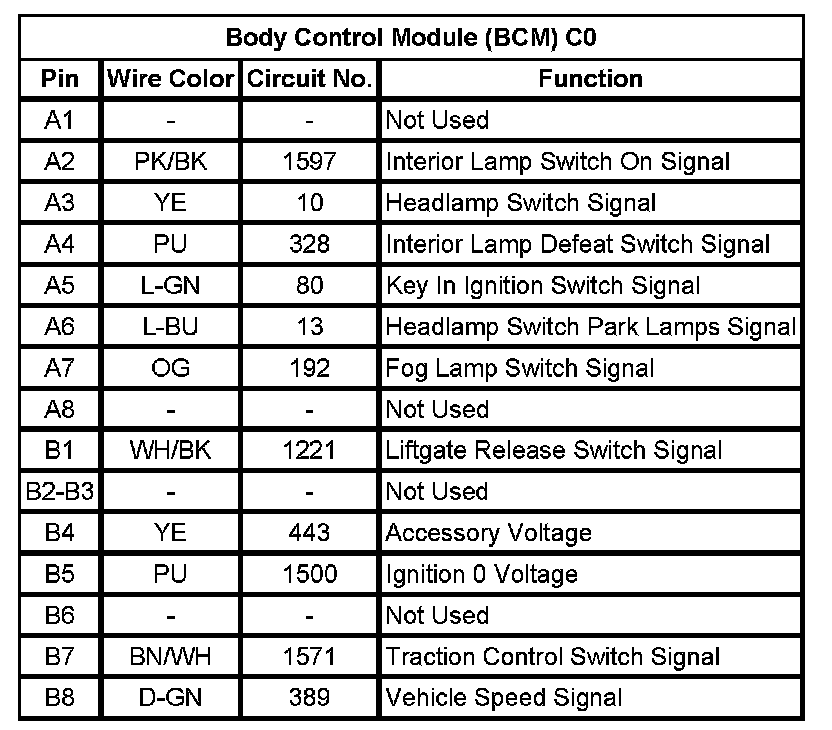

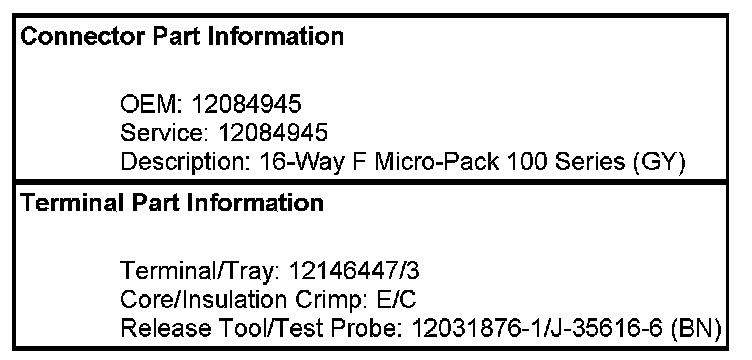

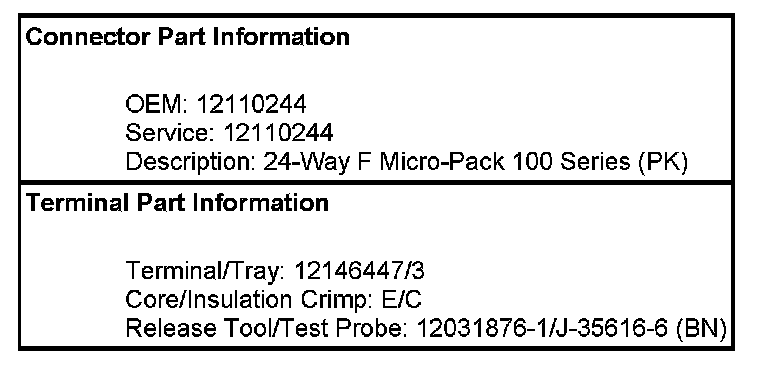

Body Control Module (BCM) C0

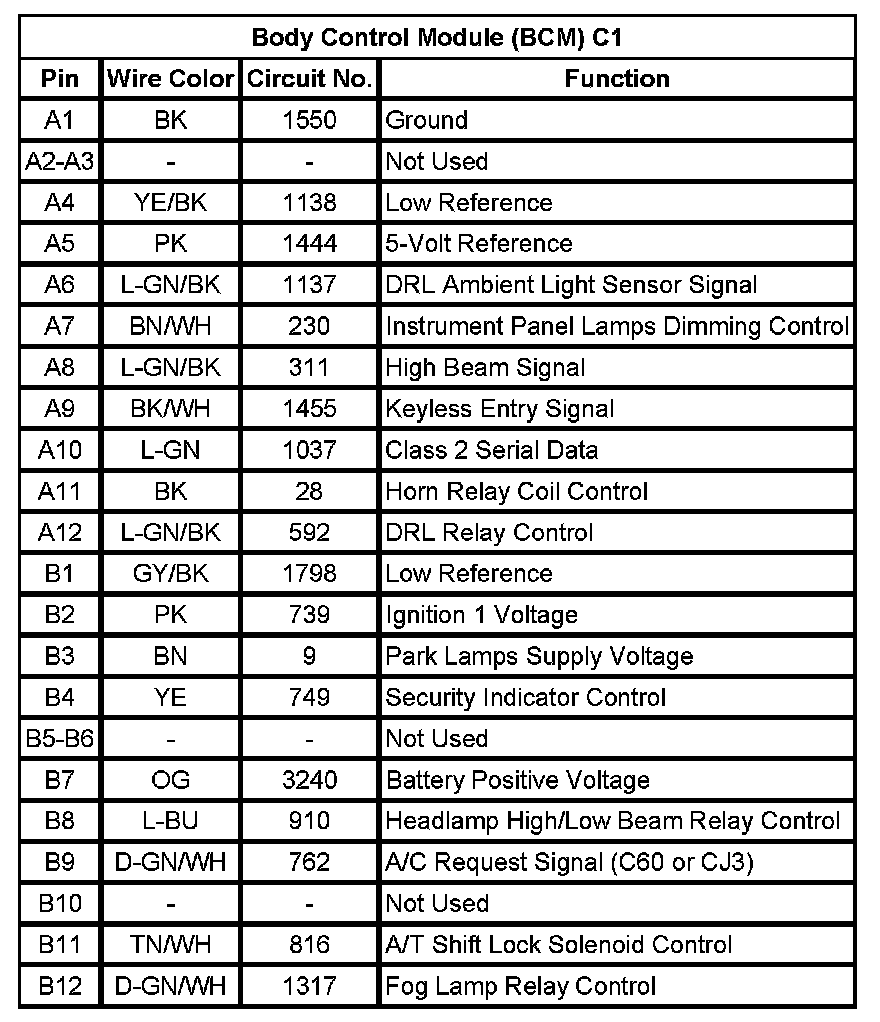

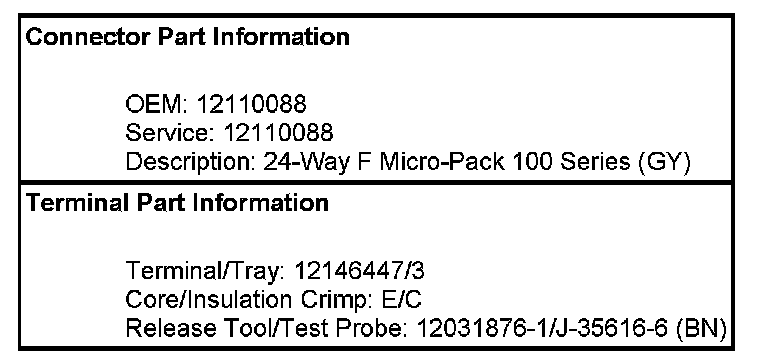

Body Control Module (BCM) C1

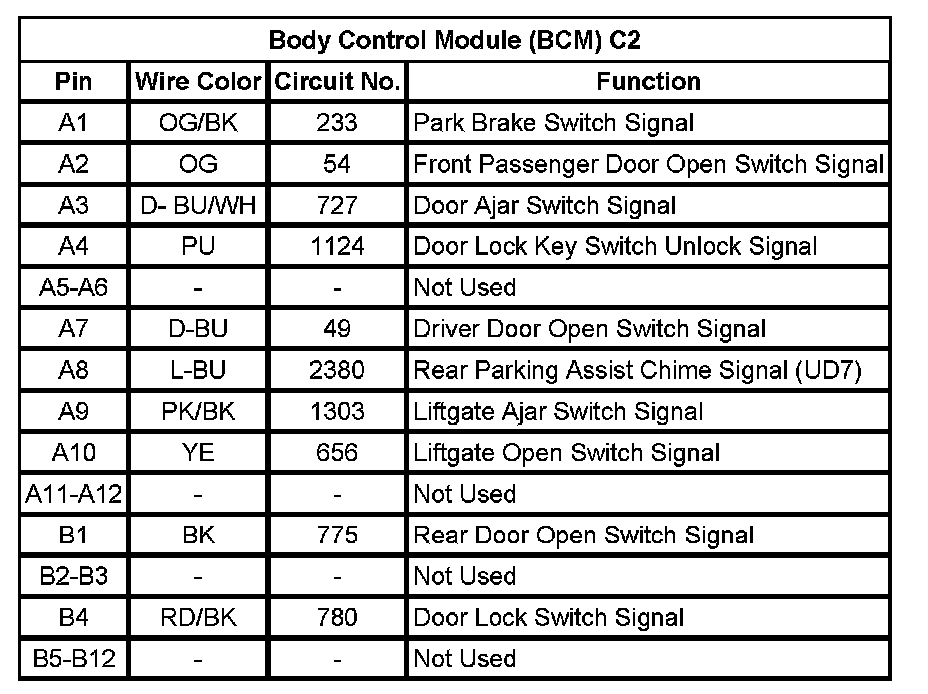

Body Control Module (BCM) C2

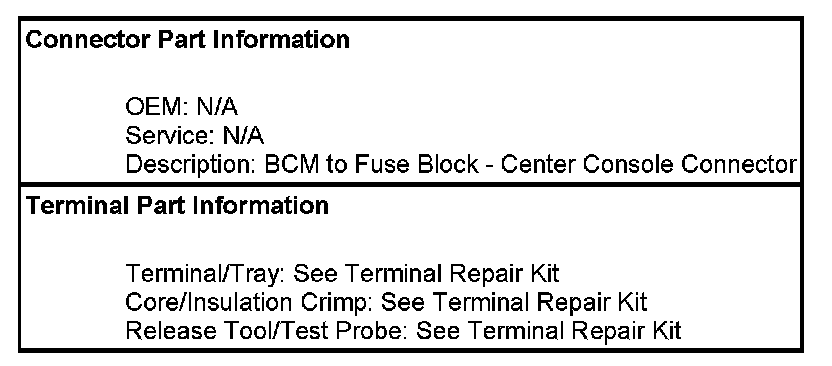

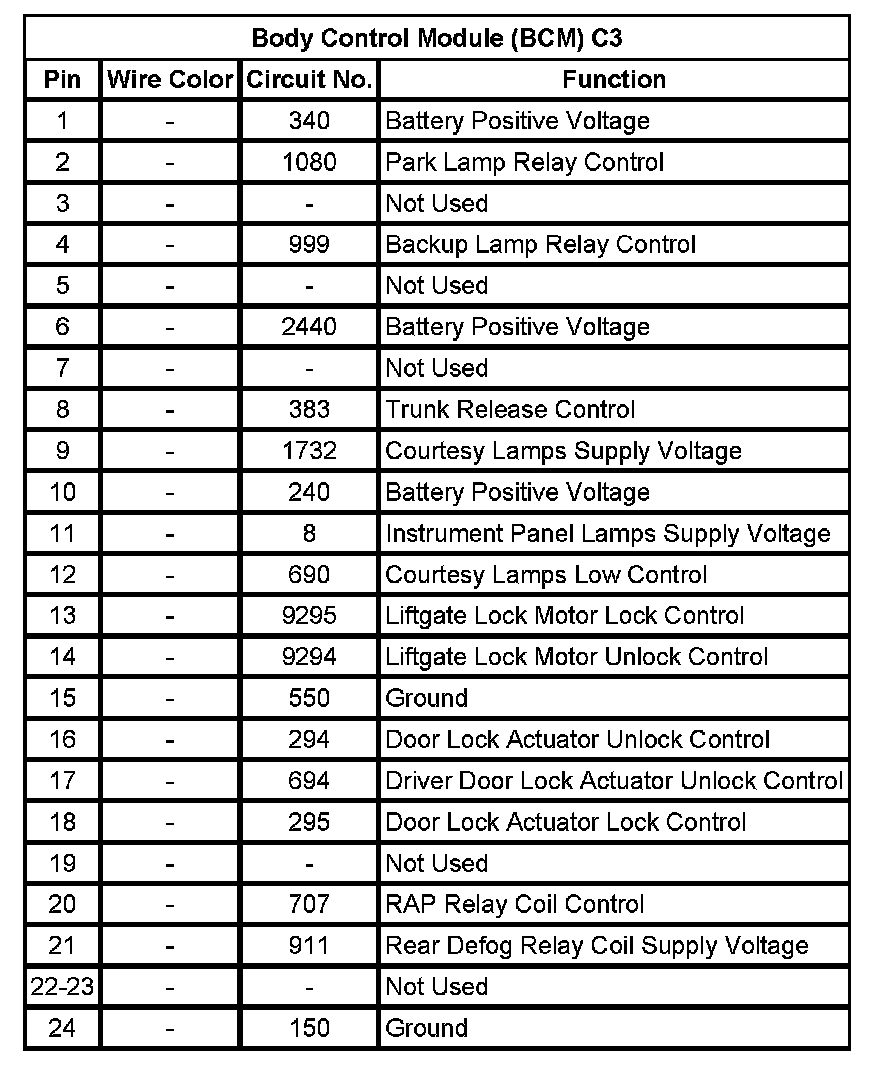

Body Control Module (BCM) C3
