Engine Control Module: Locations

Engine Controls Component Views

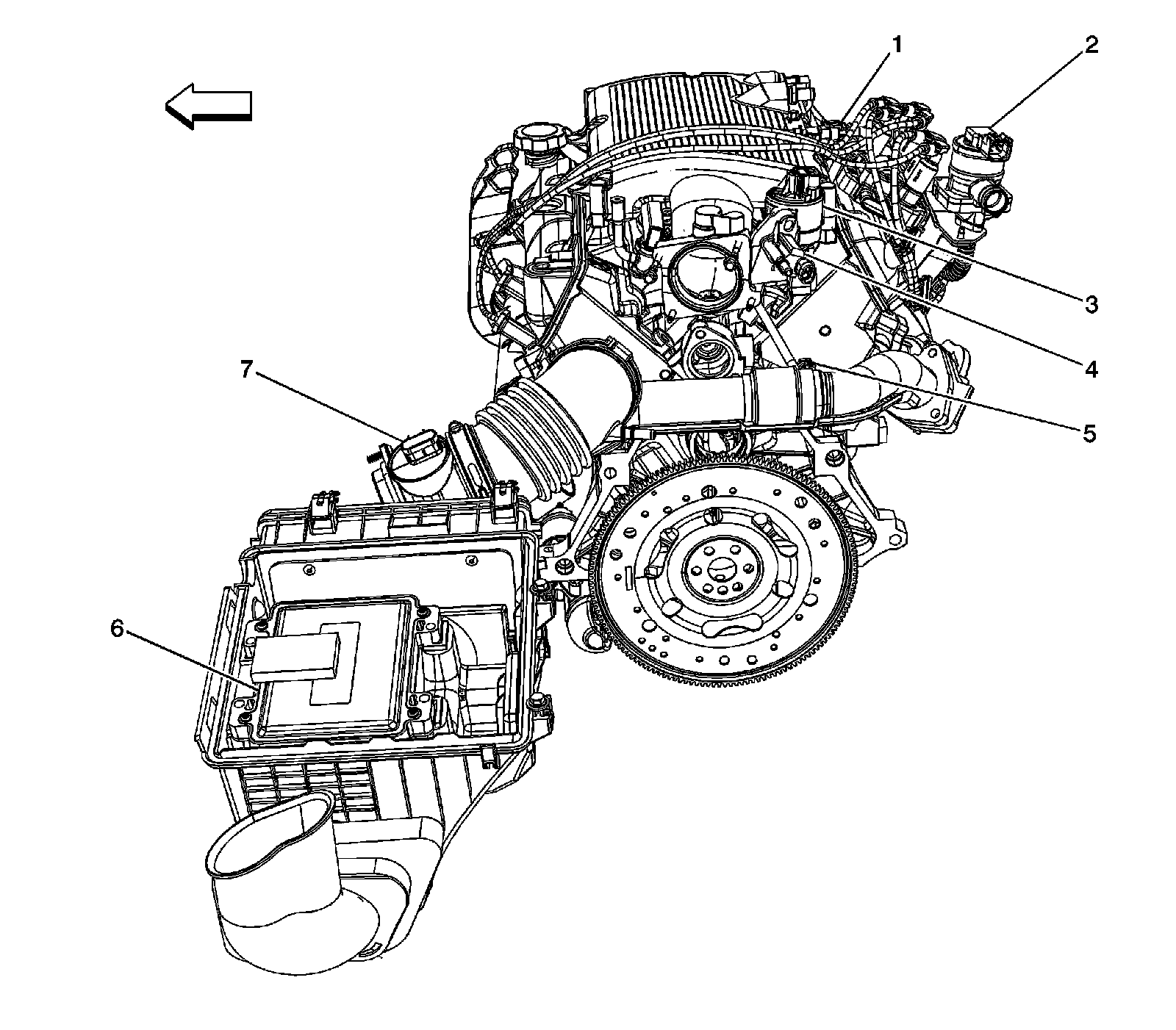

Top Rear Engine Components - LX9




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Secondary Air Injection (AIR) Solenoid (If Equipped)
3 - Exhaust Gas Recirculation (EGR) Valve
4 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
5 - Engine Coolant Temperature (ECT) Sensor
6 - Powertrain Control Module (PCM)
7 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
