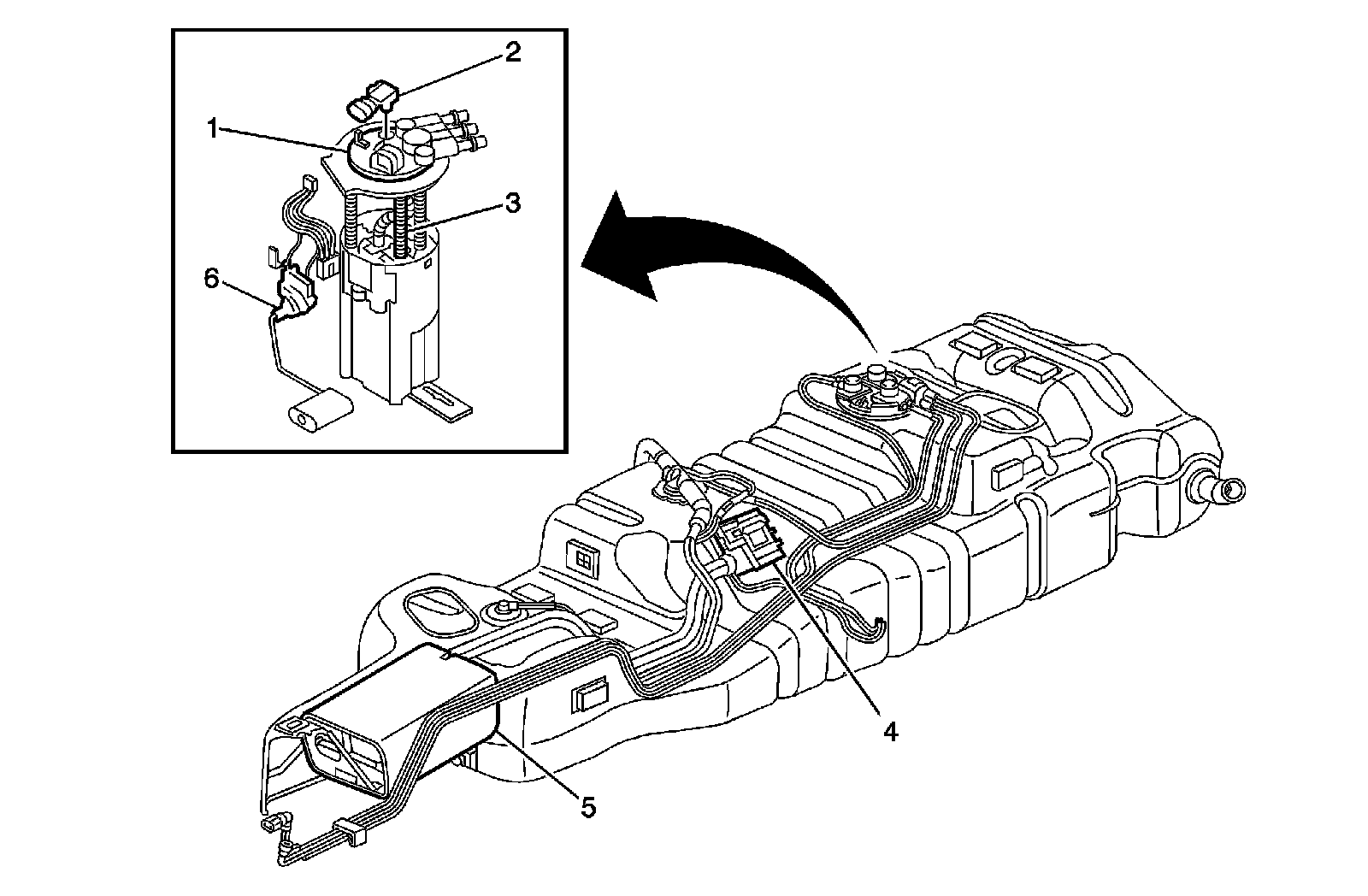

Fuel Tank Pressure Sensor: Locations

Engine Controls Component Views

Fuel Tank

1 - Fuel Pump and Sender Assembly
2 - Fuel Tank Pressure (FTP) Sensor
3 - Fuel Pump
4 - Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
5 - EVAP Canister
6 - Fuel Level Sender
