Electronic Throttle Control Module: Locations

Engine Controls Component Views

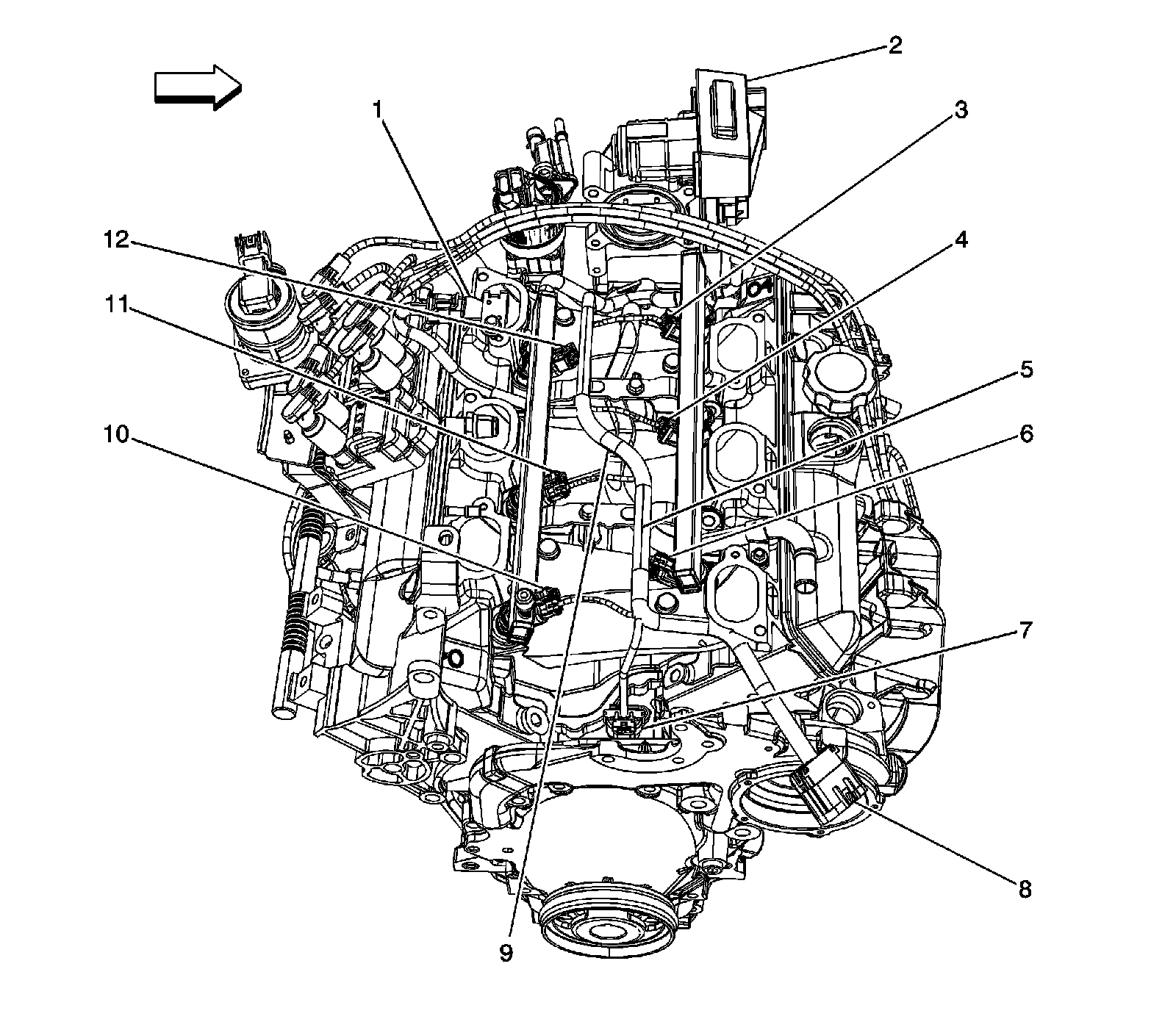

Top of Engine Components - LX9




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Actuator Control (TAC) Module
3 - Fuel Injector 6
4 - Fuel Injector 4
5 - S109
6 - Fuel Injector 2
7 - Camshaft Position (CMP) Sensor
8 - C102 Engine Harness to Fuel Injector Harness
9 - S110
10 - Fuel Injector 1
11 - Fuel Injector 3
12 - Fuel Injector 5
