Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor Replacement

Removal Procedure




1. Remove the fuel tank.
2. Disconnect the fuel sender wiring harness electrical connector from the fuel tank pressure sensor.

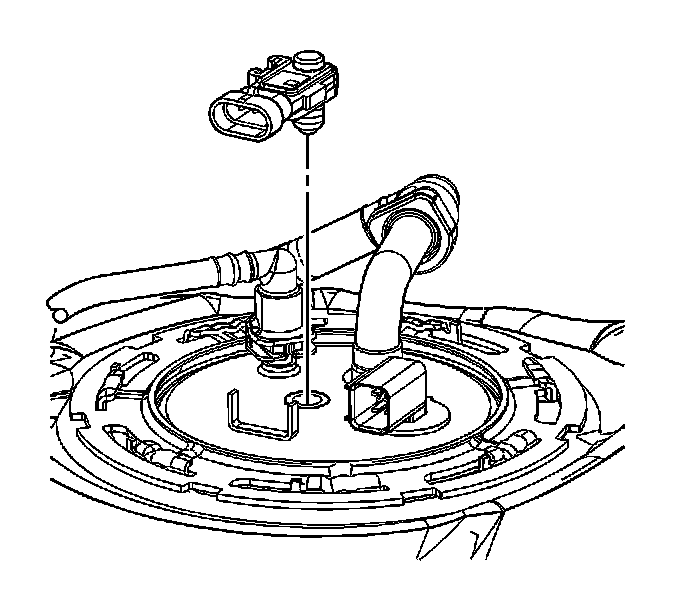

3. Remove the fuel tank pressure sensor.

Installation Procedure




1. Install the fuel tank pressure sensor.
2. Connect the fuel sender wiring harness electrical connector to the fuel tank pressure sensor.
3. Install the fuel tank.
