Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block - I/P Behind right side of dash. See Figure.

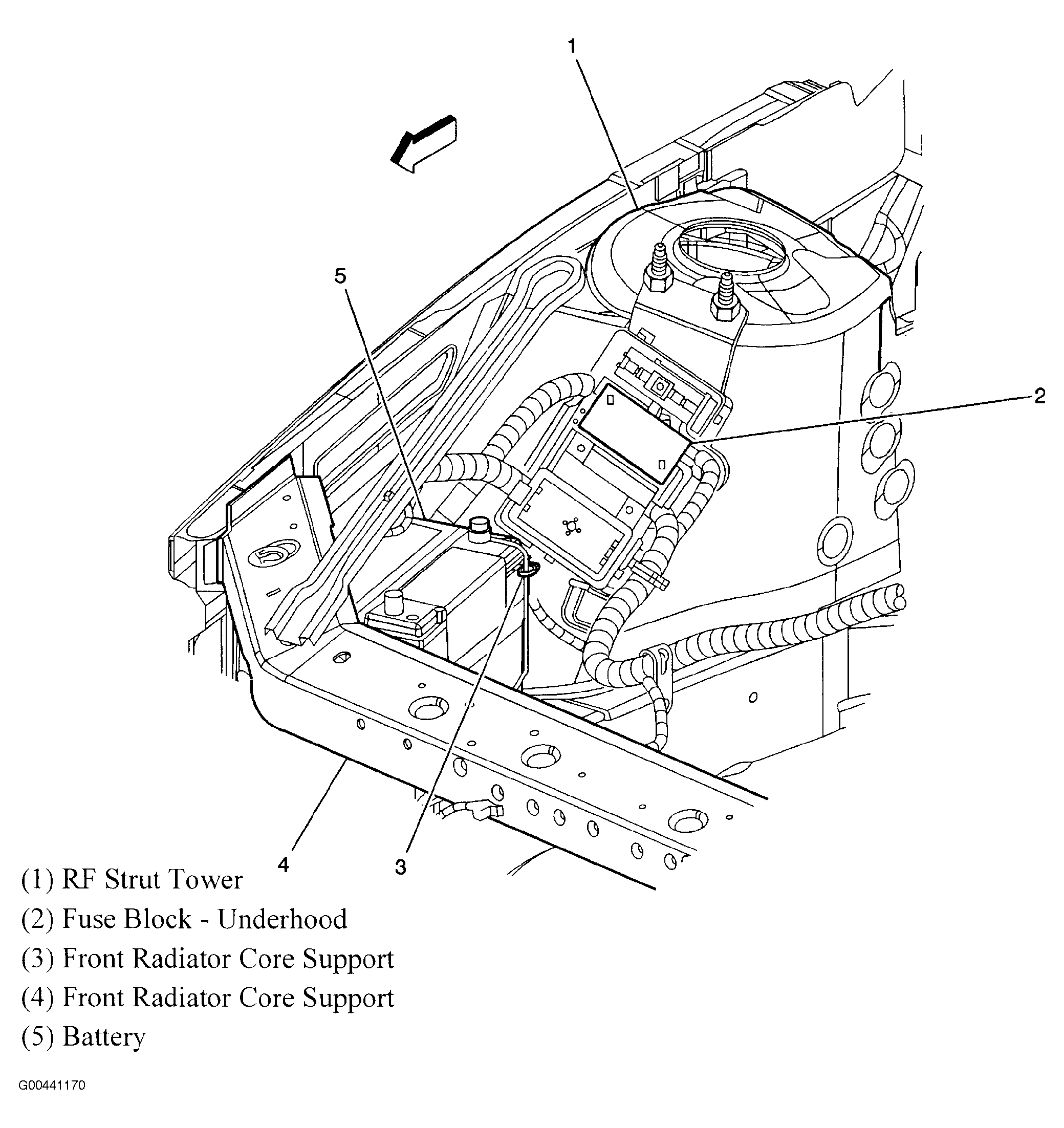

Fuse Block - Underhood Mounted to right strut tower. See Figure.
