Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

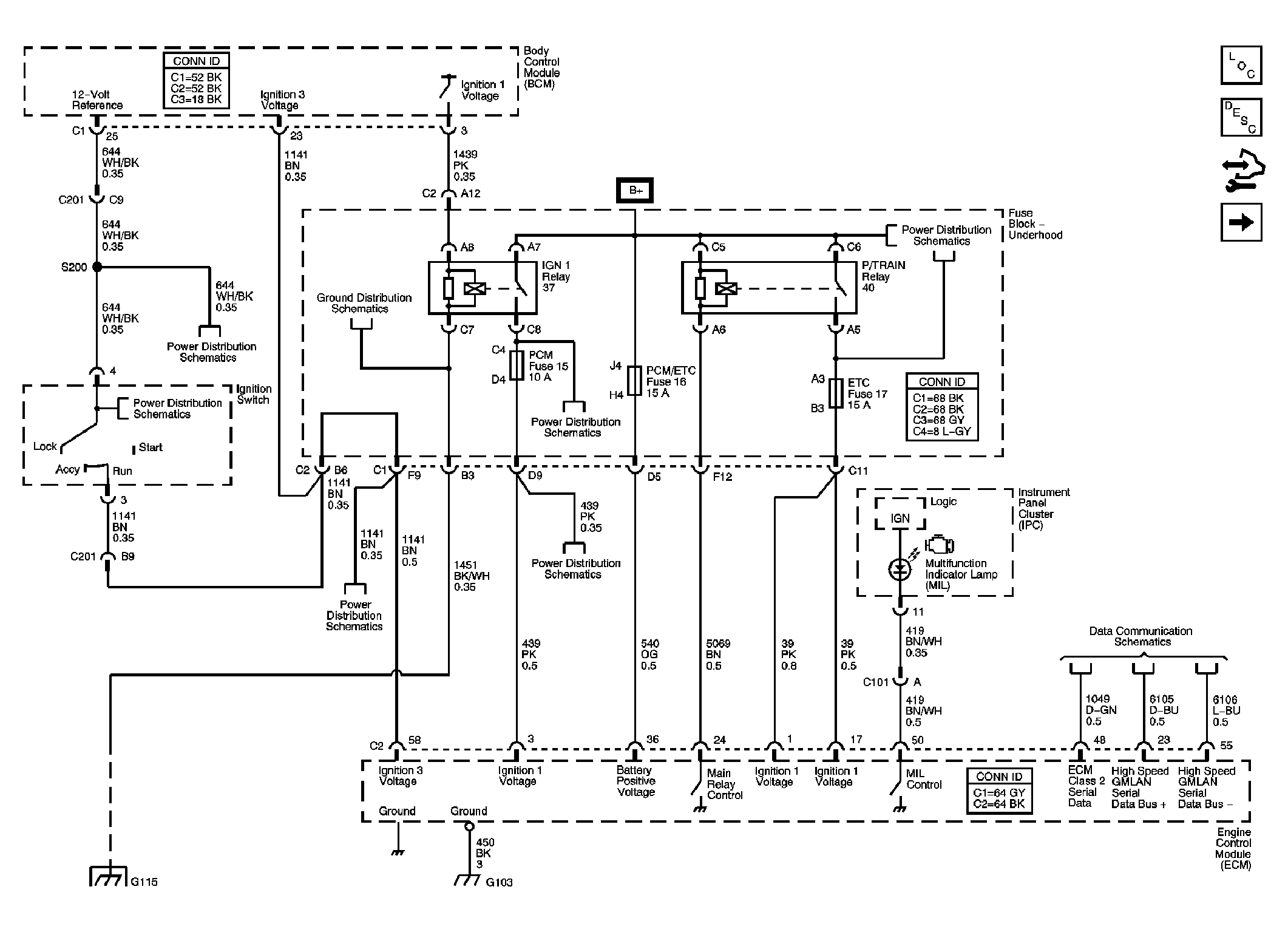

Fig 1: Module Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

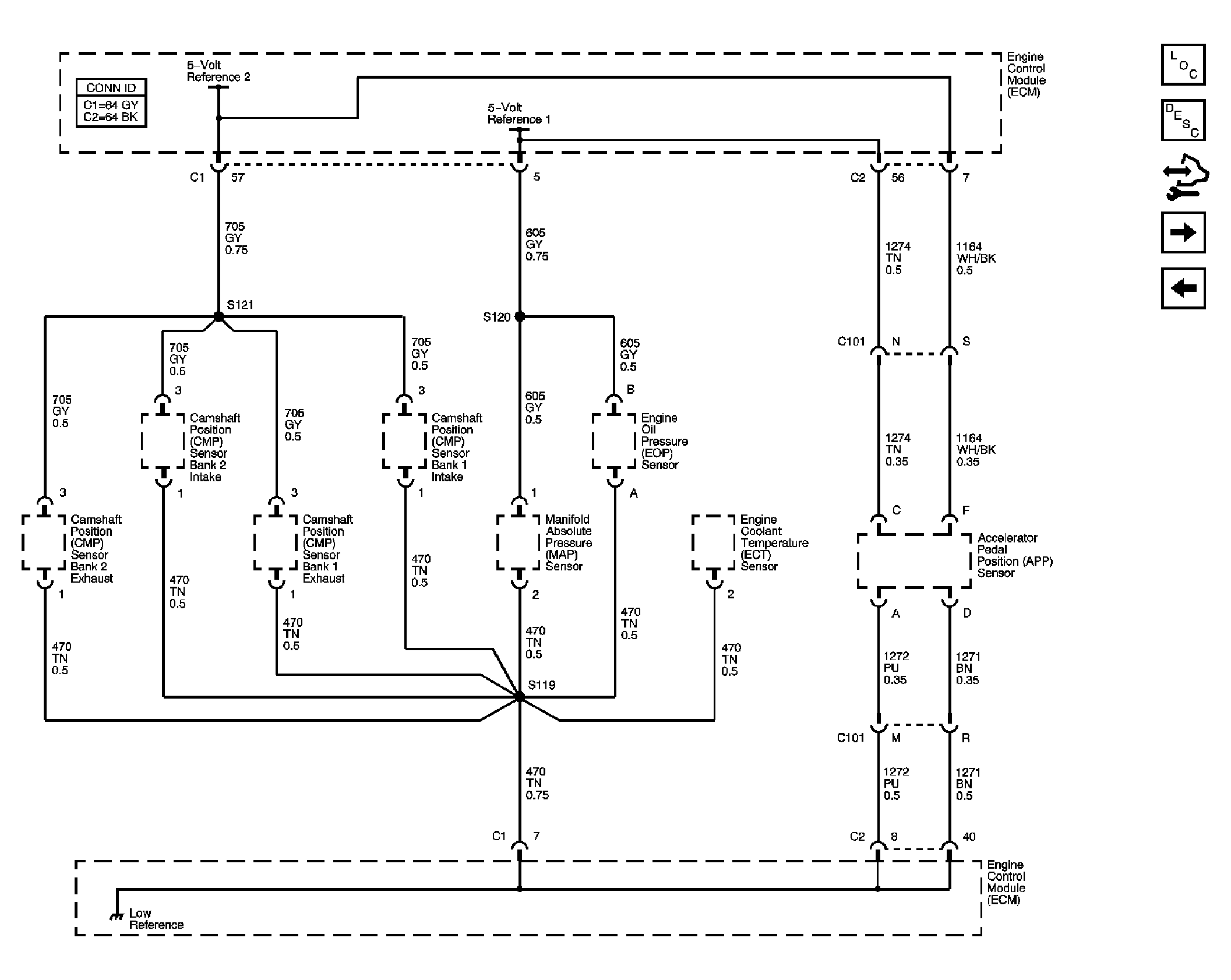

Fig 2: 5-Volt & Low Reference Schematic (Page 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

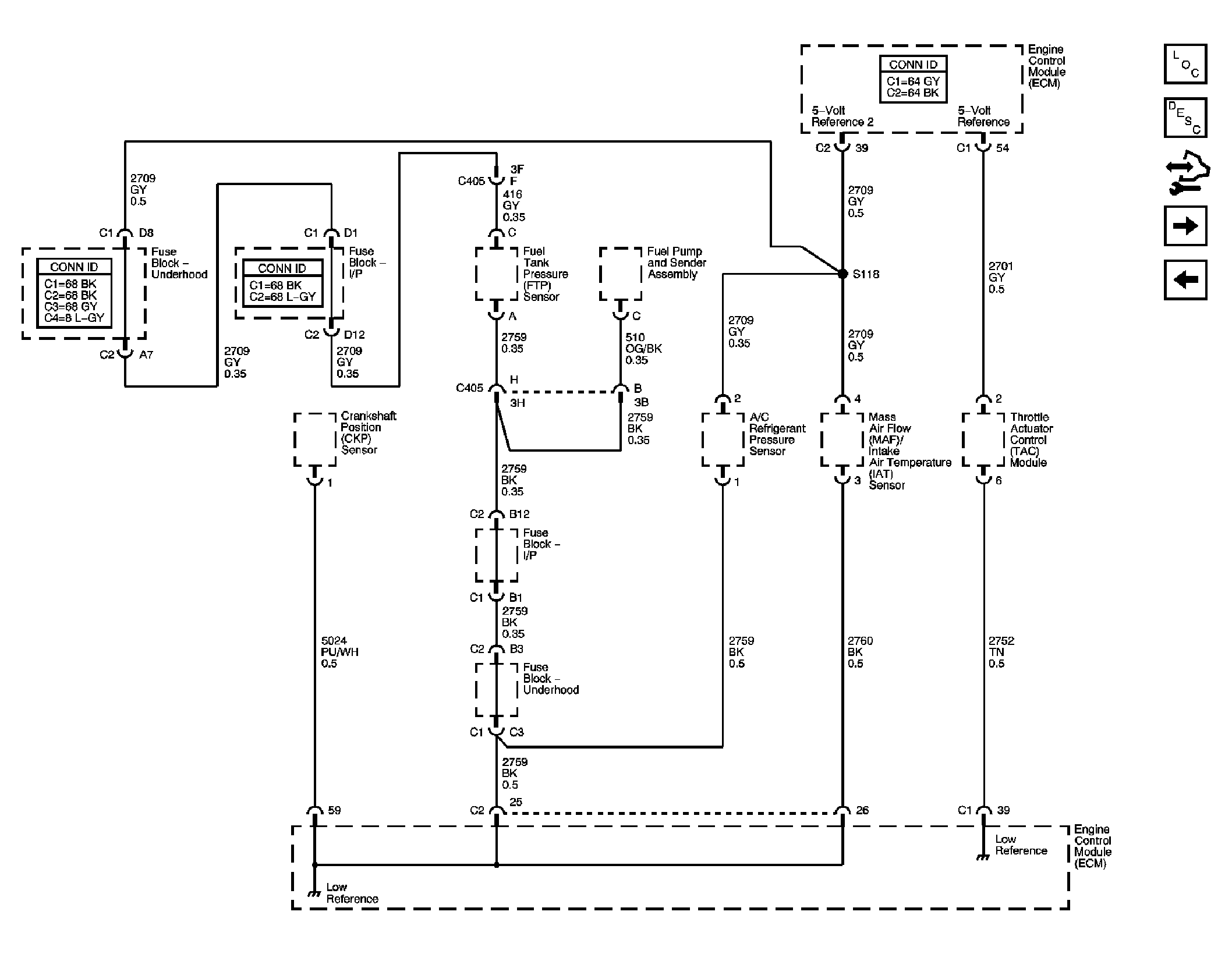

Fig 3: 5-Volt & Low Reference Schematic (Page 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

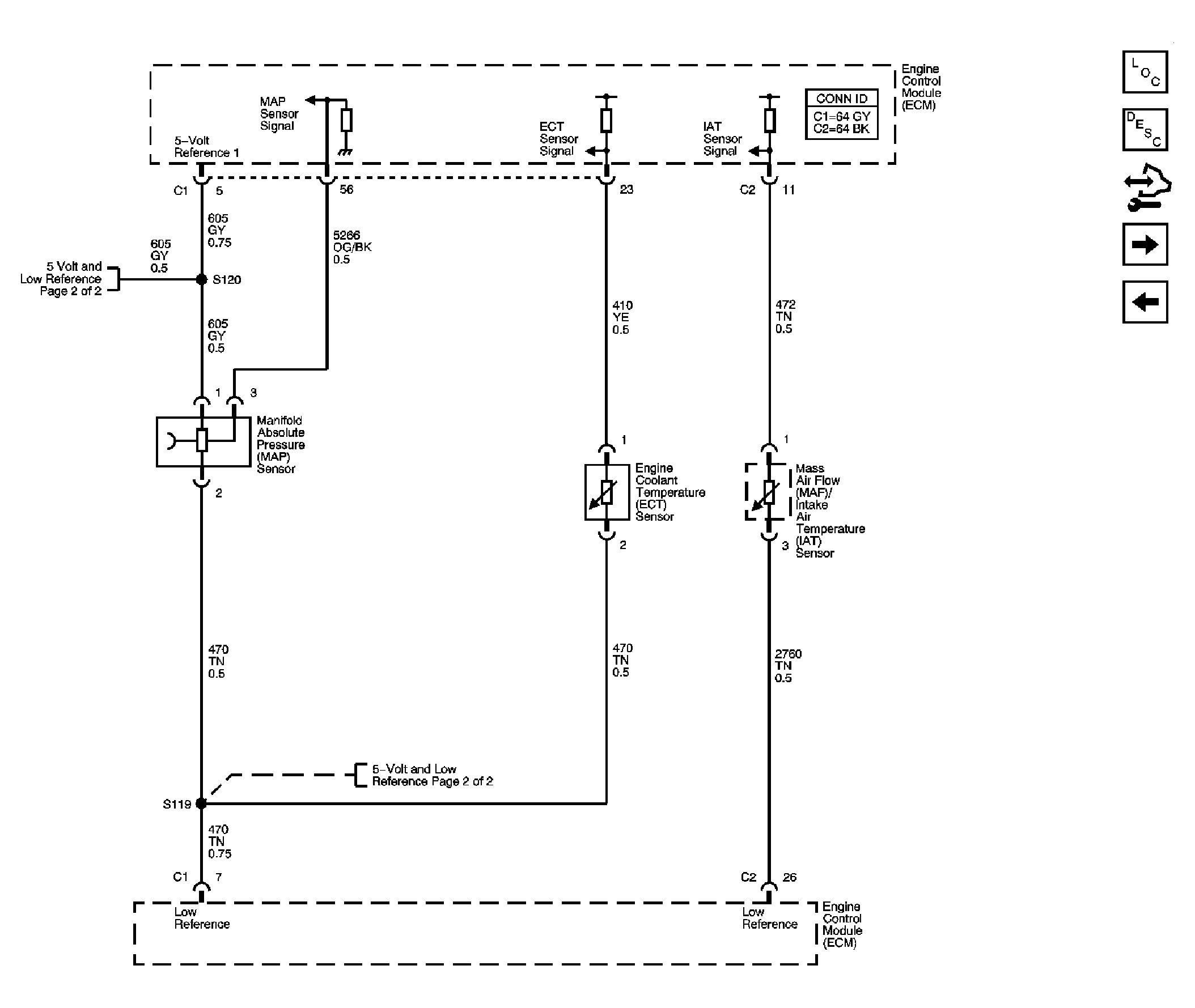

Fig 4: Pressure & Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

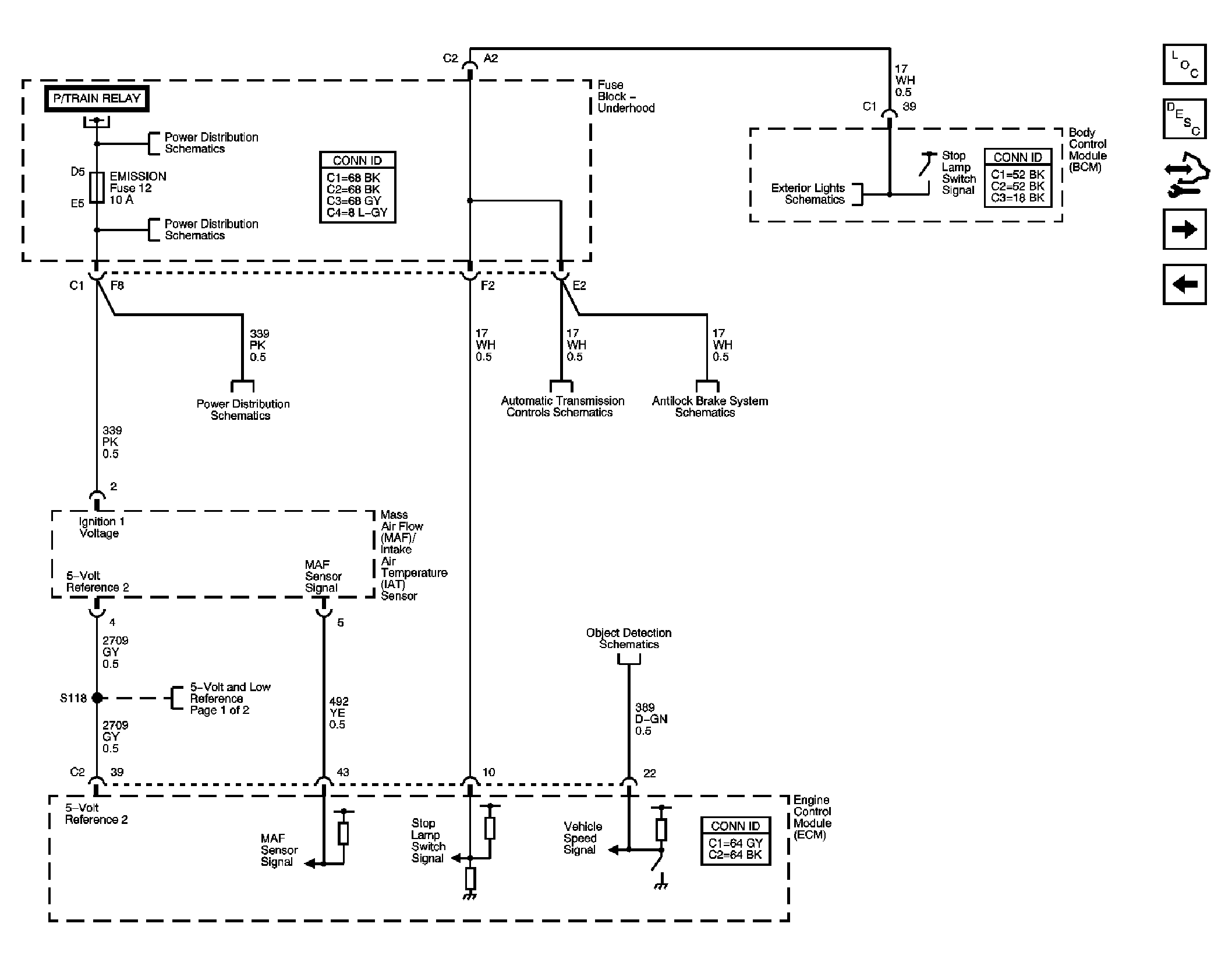

Fig 5: MAF, VSS, and Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

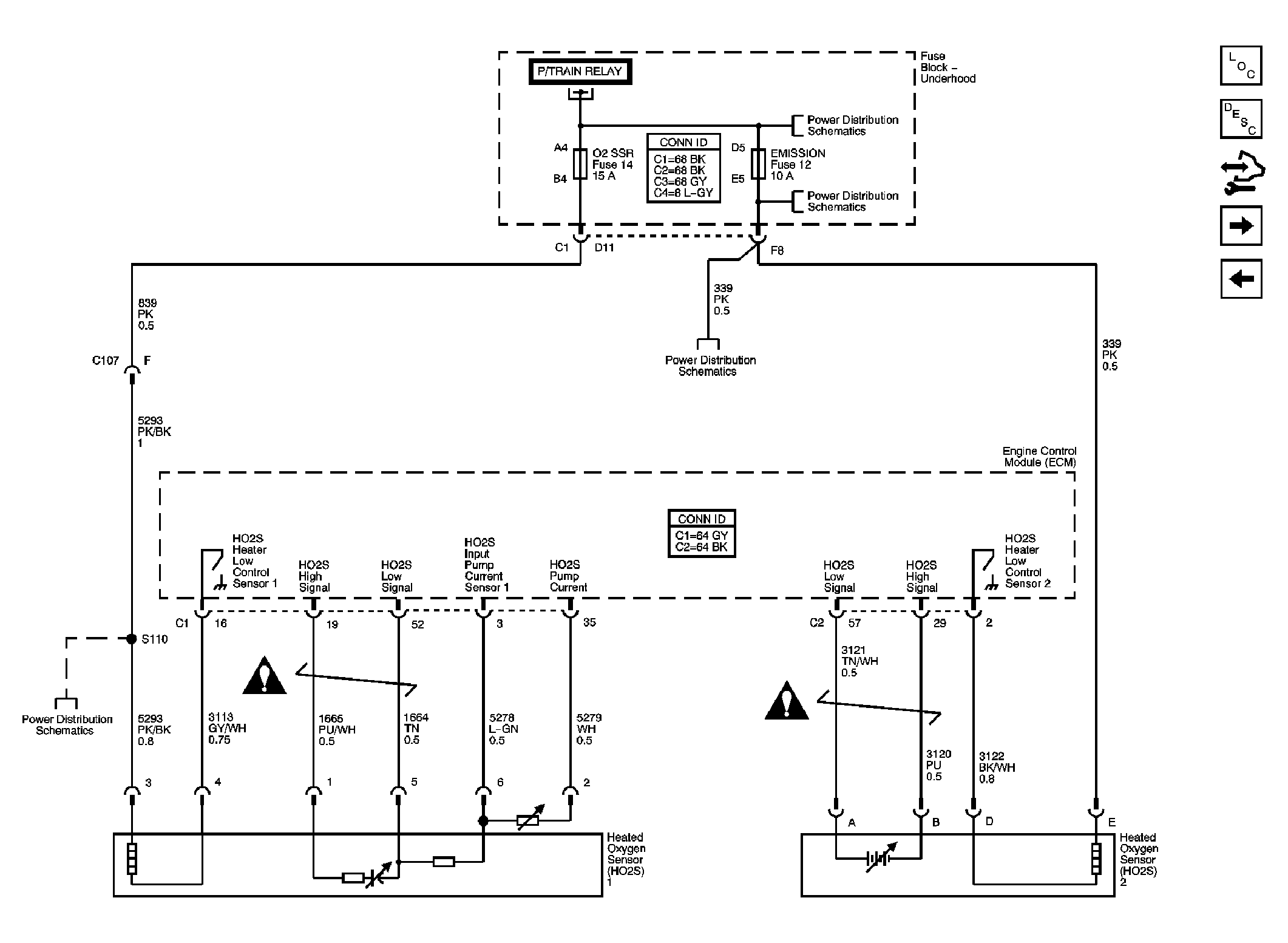

Fig 6: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

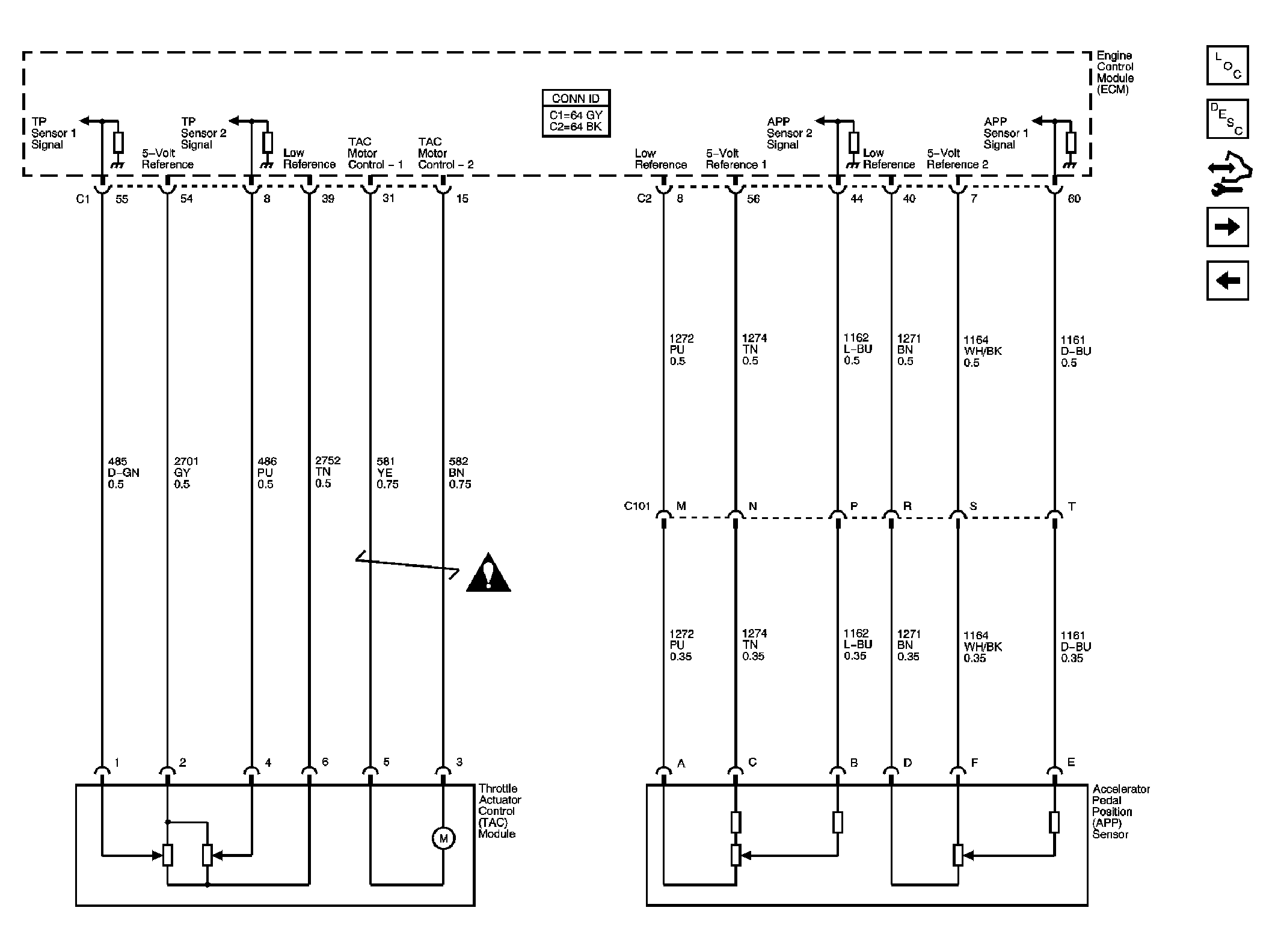

Fig 7: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

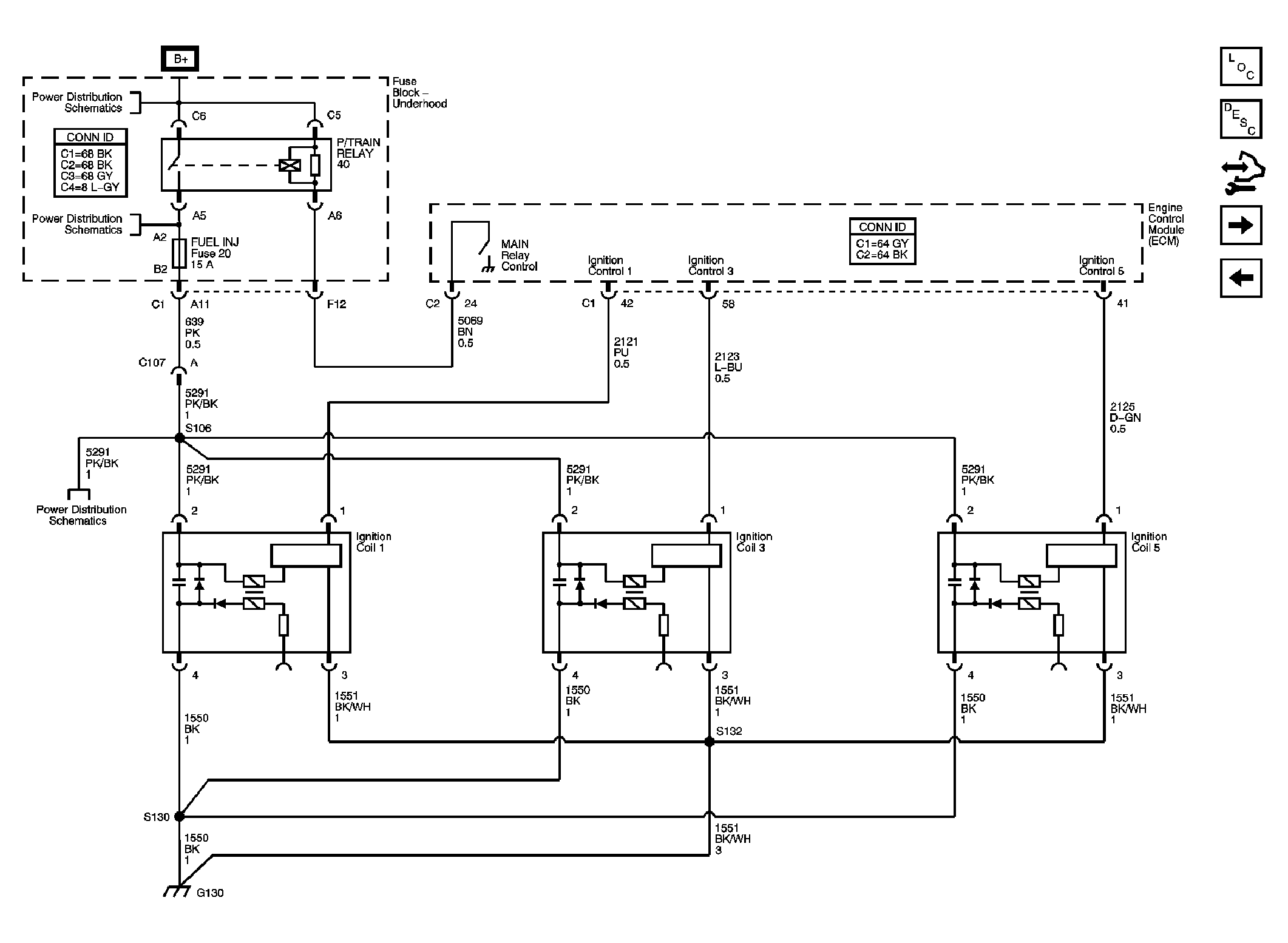

Fig 8: Ignition Controls Schematic - Bank 1 (Odd) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

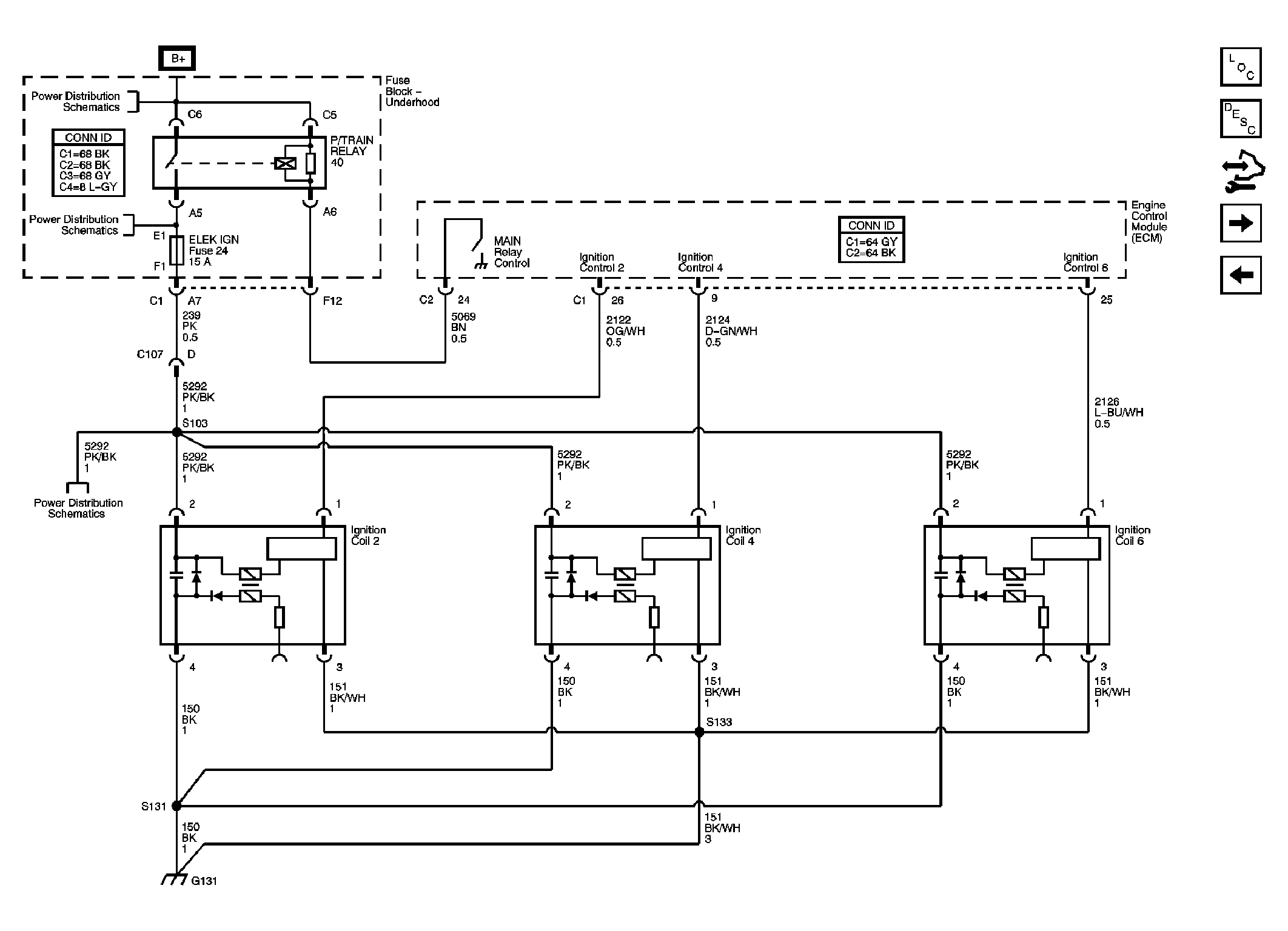

Fig 9: Ignition Controls Schematic - Bank 2 (Even) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

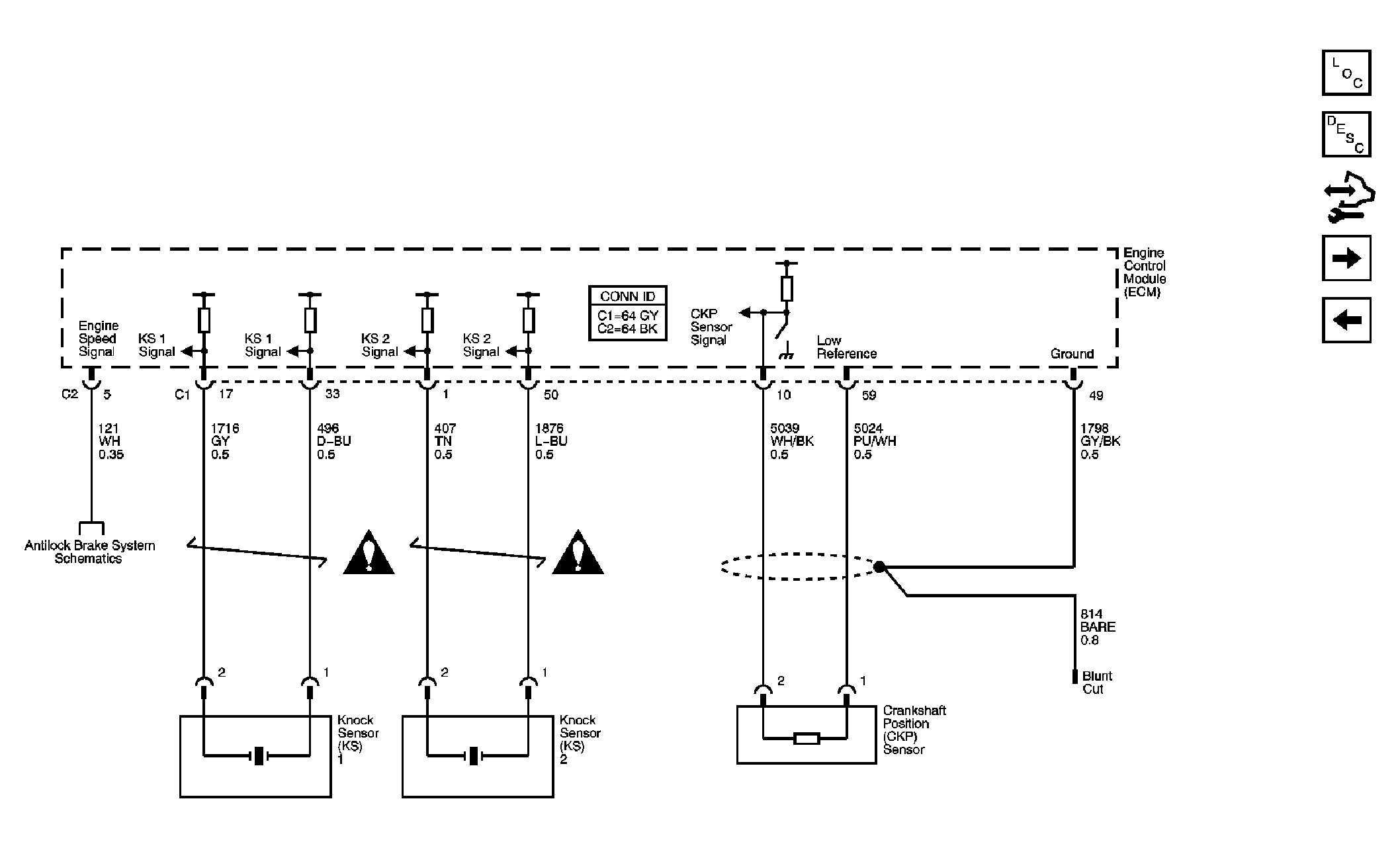

Fig 10: Ignition Controls Knock and CKP Sensors and Engine Speed Schematic

Courtesy of GENERAL MOTORS CORP.

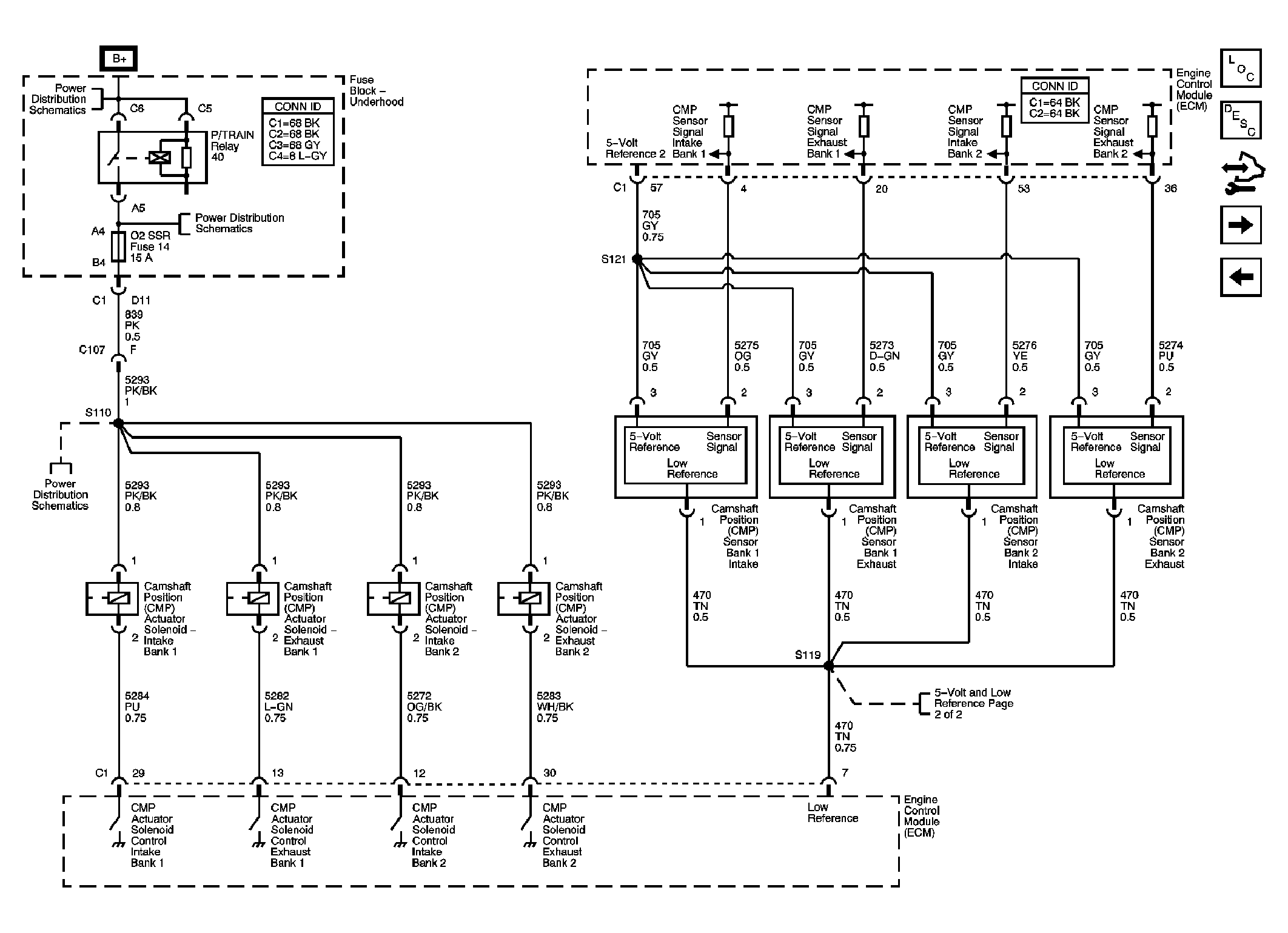

Fig 11: Ignition Controls Schematic - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

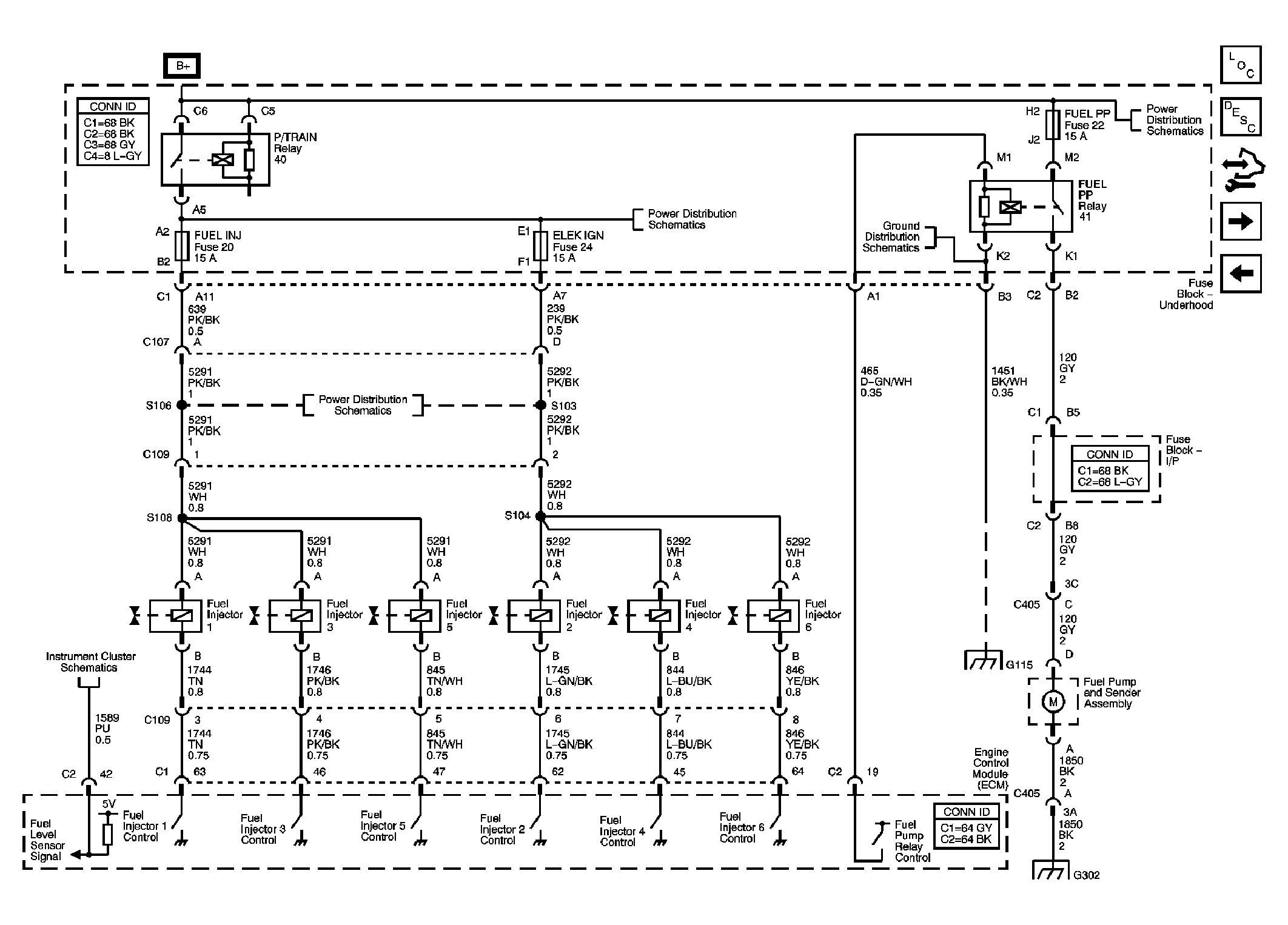

Fig 12: Fuel Controls Schematic - Fuel Pump and Injectors

Courtesy of GENERAL MOTORS CORP.

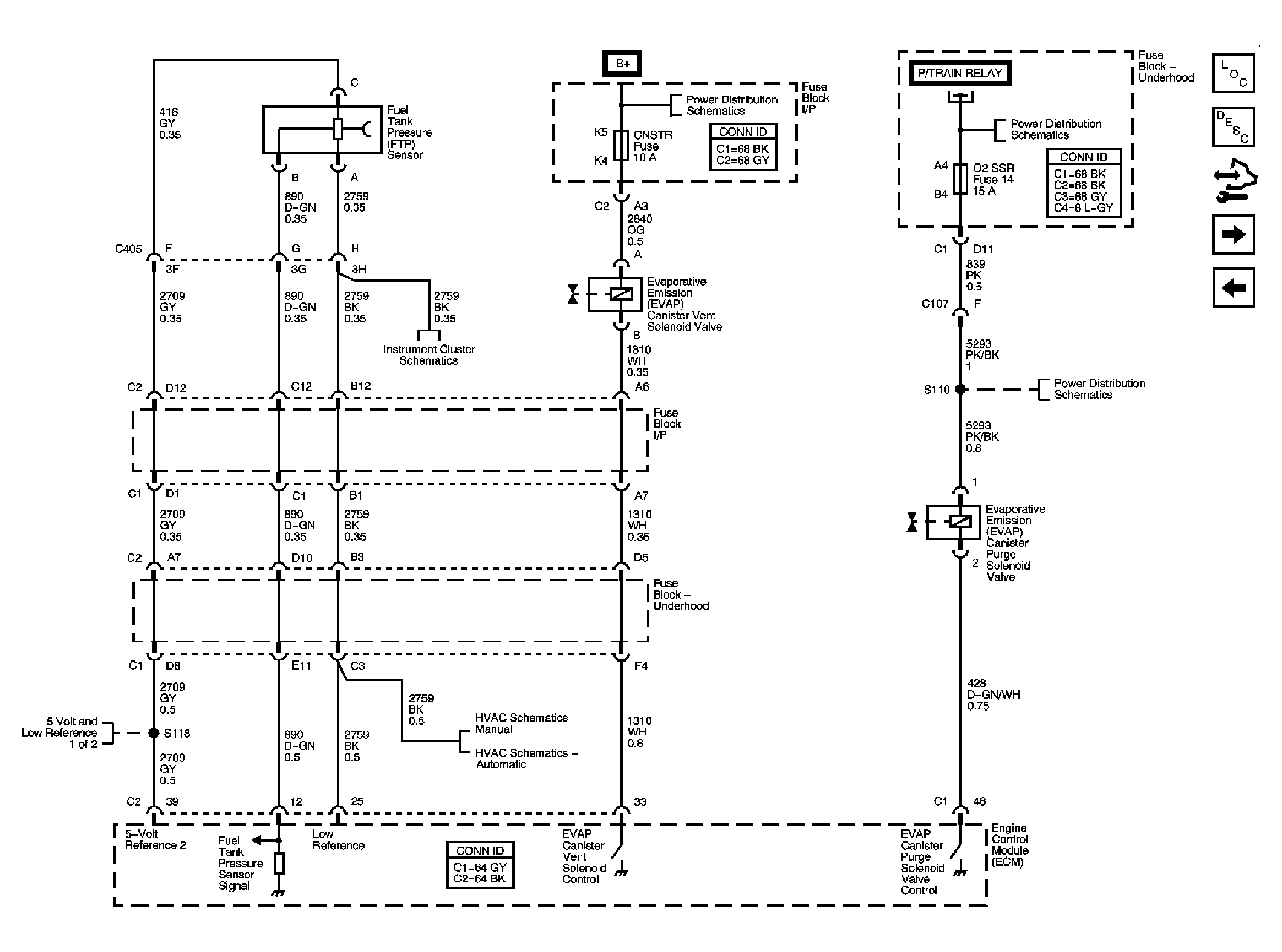

Fig 13: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

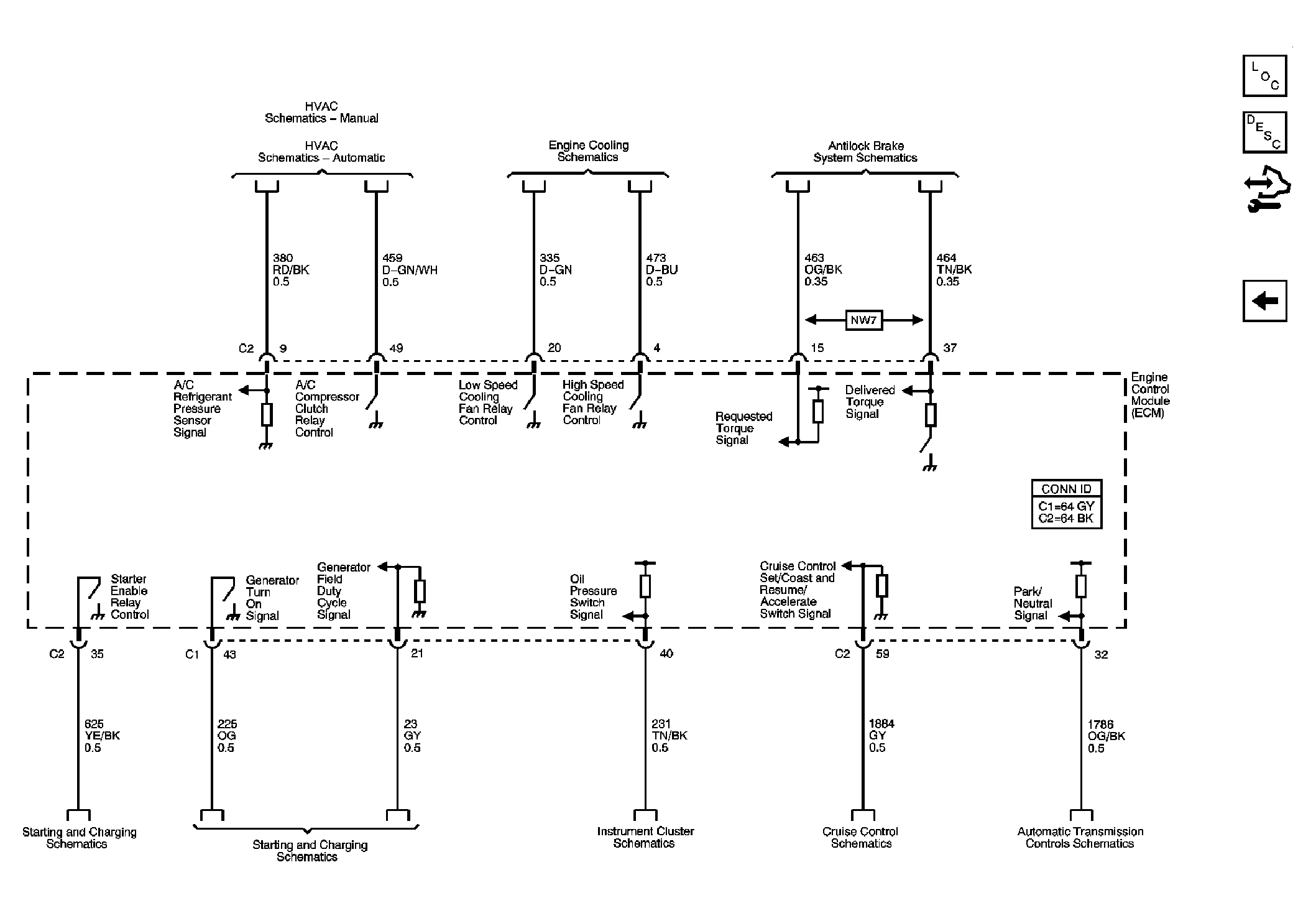

Fig 14: Module References Schematic

Courtesy of GENERAL MOTORS CORP.
