Air Bag Control Module

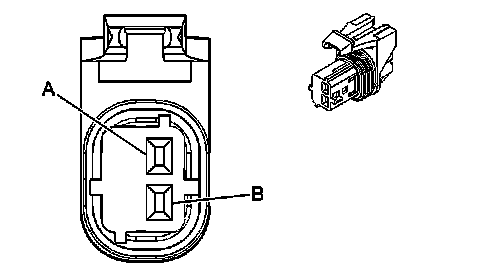

Component Connector End Views

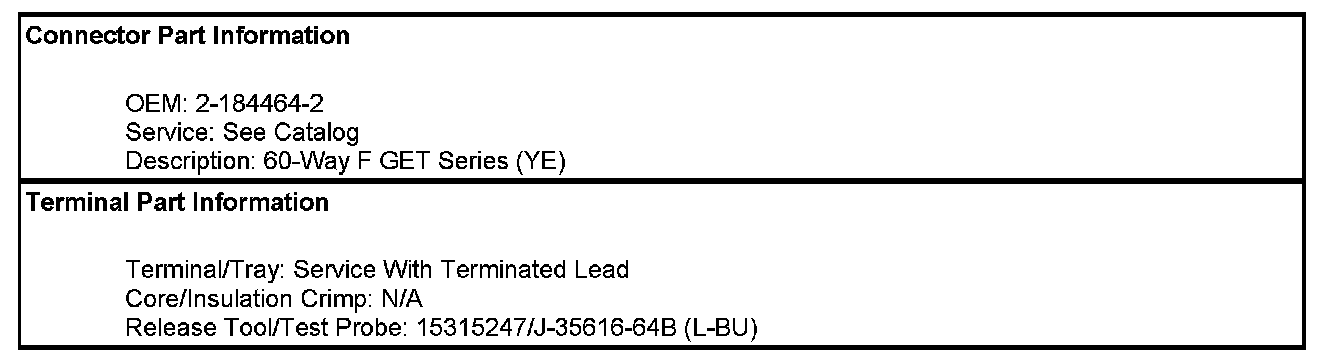

Inflatable Restraint Sensing and Diagnostic Module (SDM)

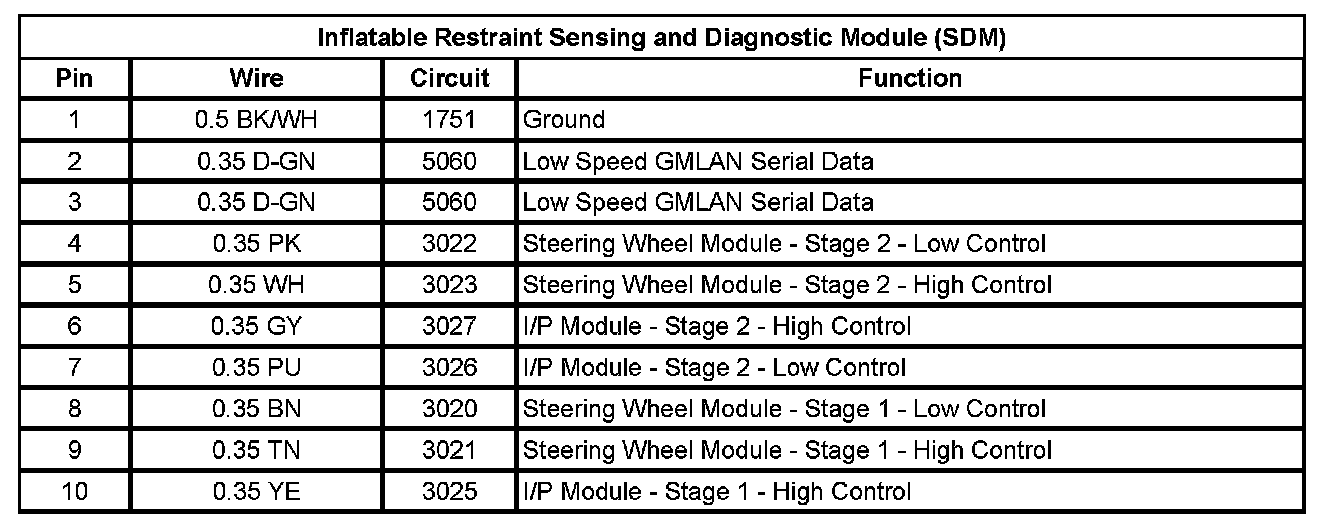

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 1 To 10):

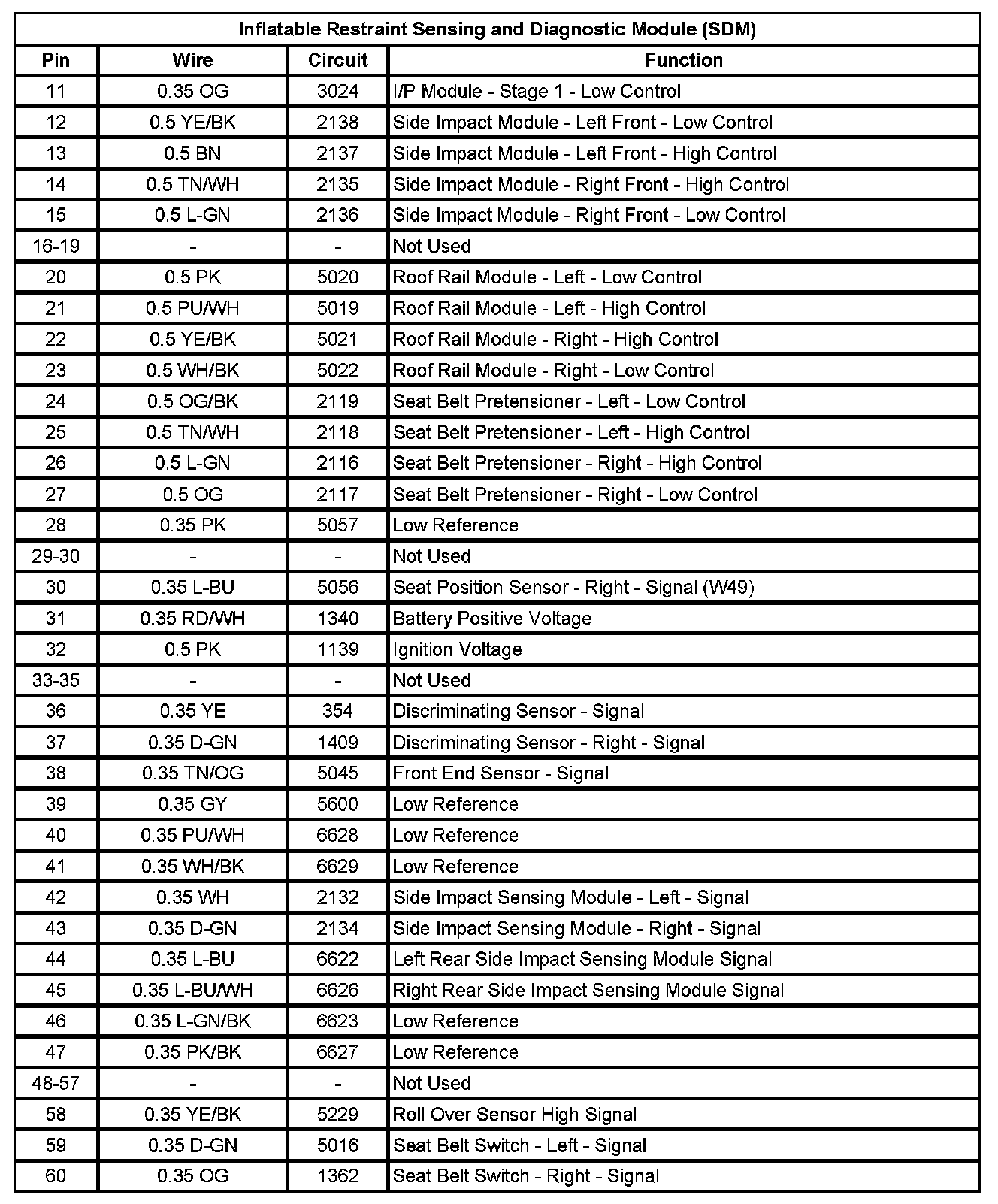

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 11 To 60):

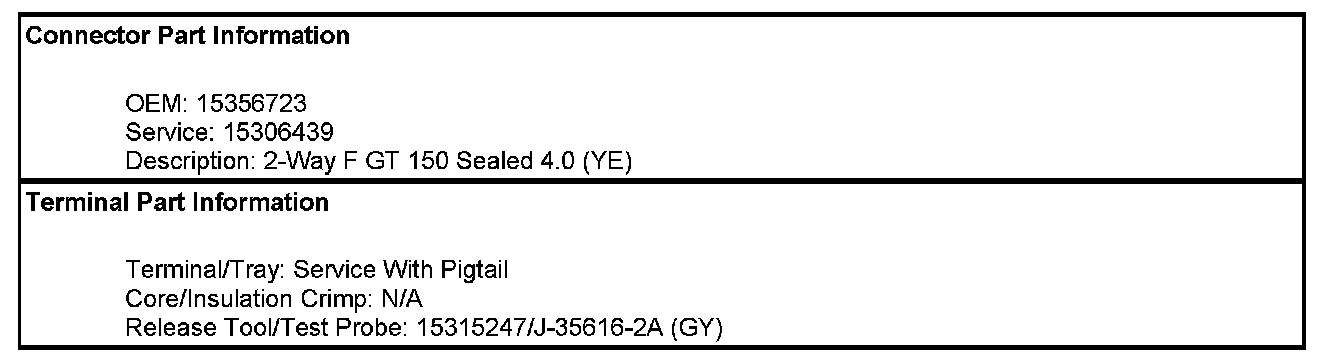

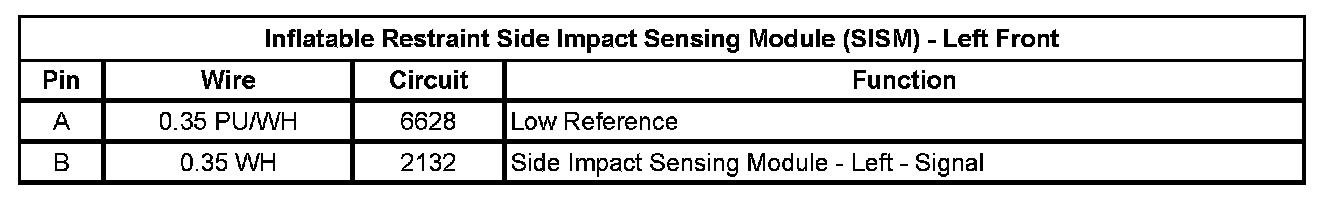

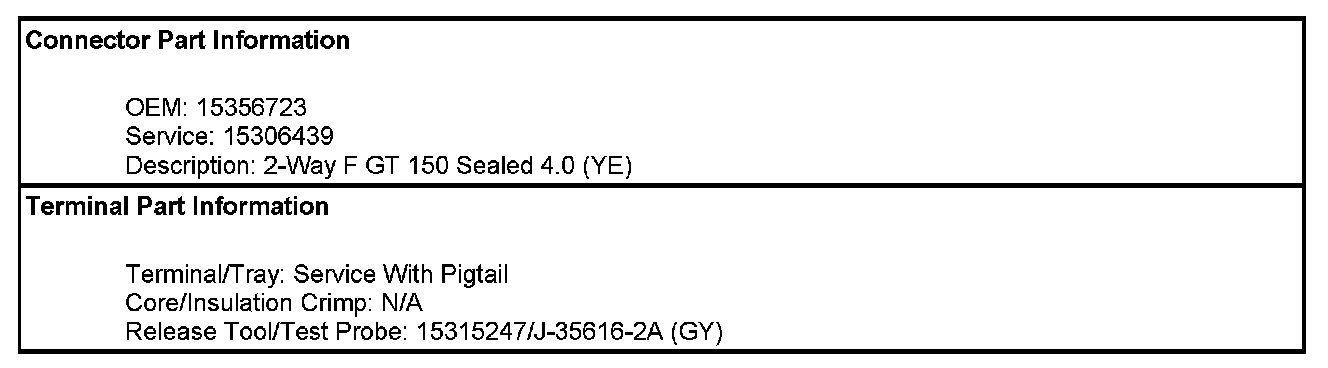

Inflatable Restraint Side Impact Sensing Module (SISM) - Left Front

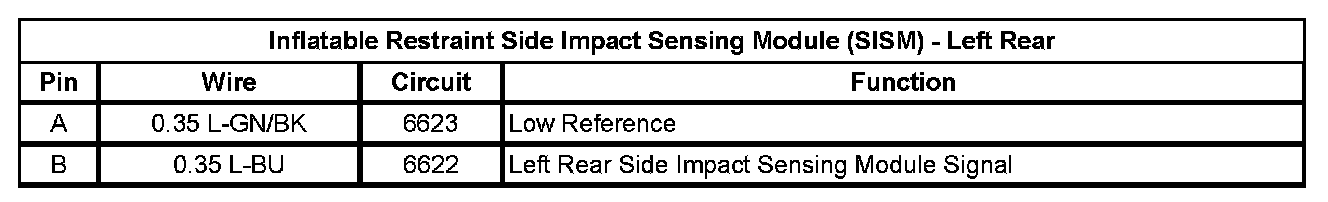

Inflatable Restraint Side Impact Sensing Module (SISM) - Left Rear
Inflatable Restraint Side Impact Sensing Module (SISM) - Right Front

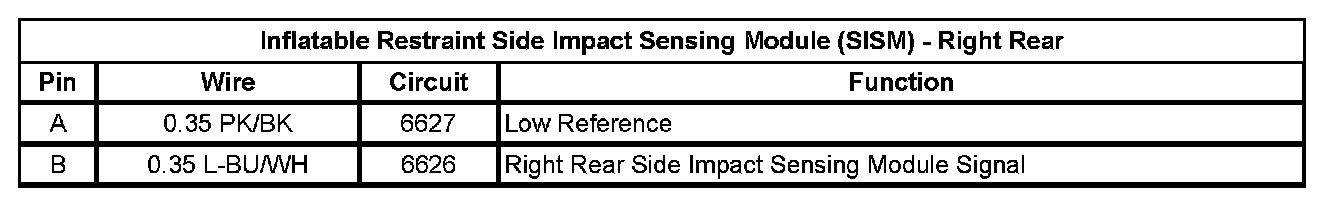

Inflatable Restraint Side Impact Sensing Module (SISM) - Right Rear
