Amplifier, Sound System



Component Connector End Views

Audio Amplifier X1 (UQA/UQS)














Audio Amplifier X1 (UQG)














Audio Amplifier X2 (UQA/UQS)














Audio Amplifier X2 (UQG)

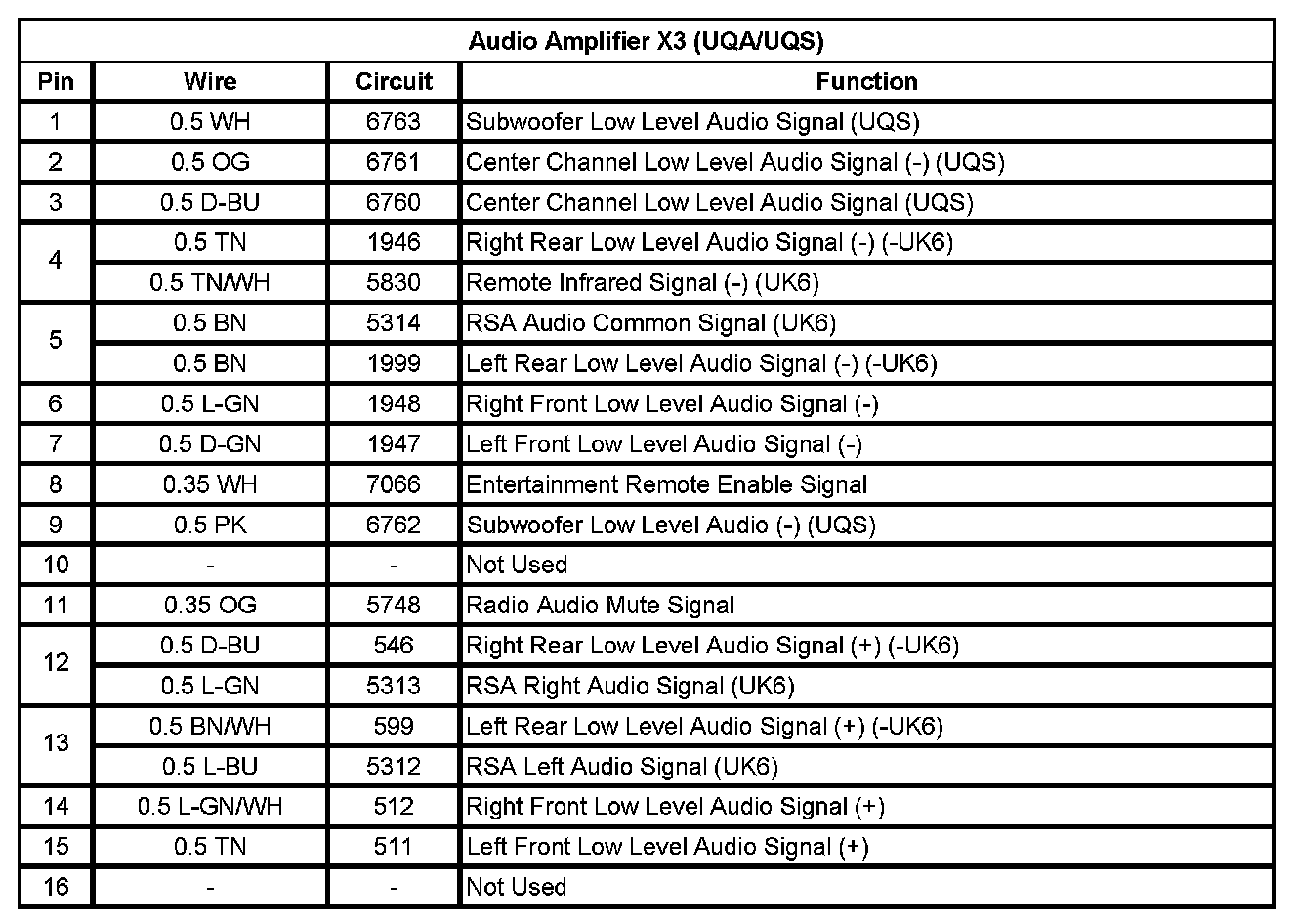

Audio Amplifier X3 (UQA/UQS)

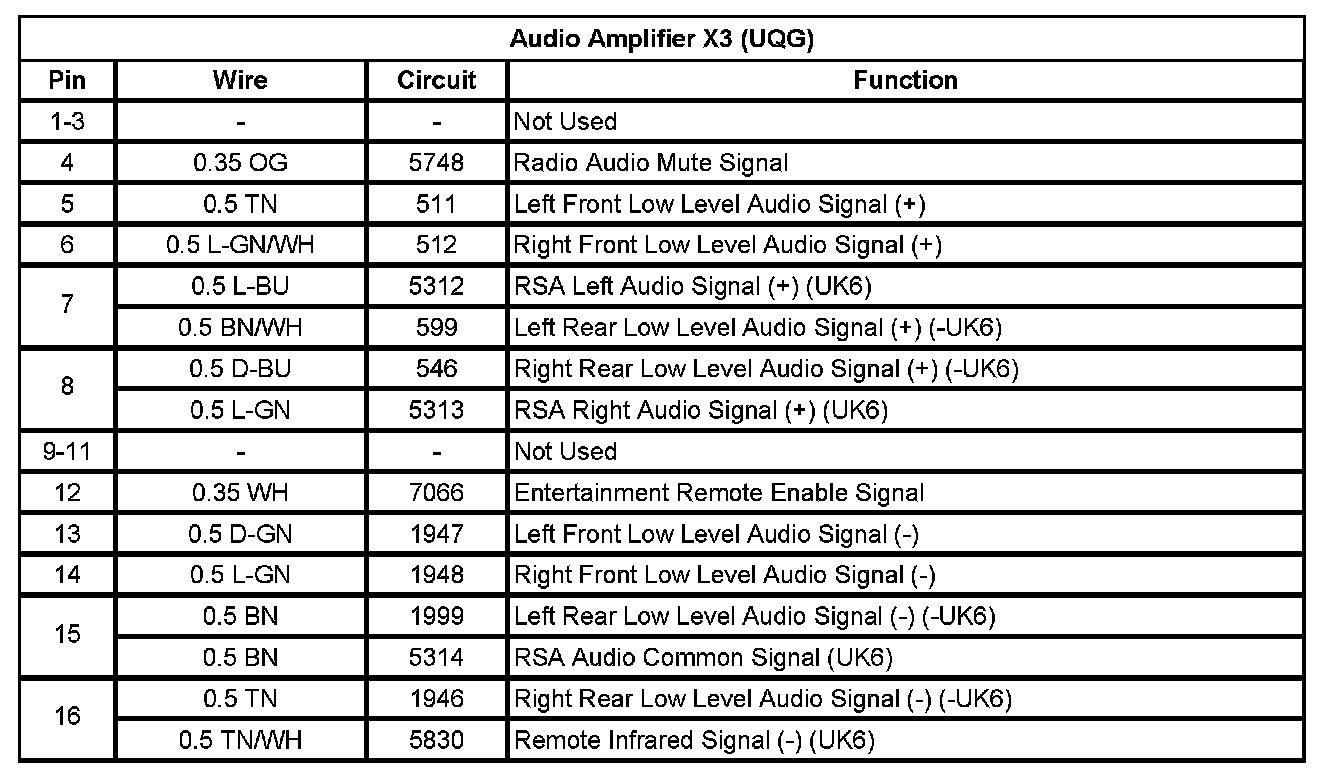

Audio Amplifier X3 (UQG)
