Control Assembly, HVAC



Component Connector End Views

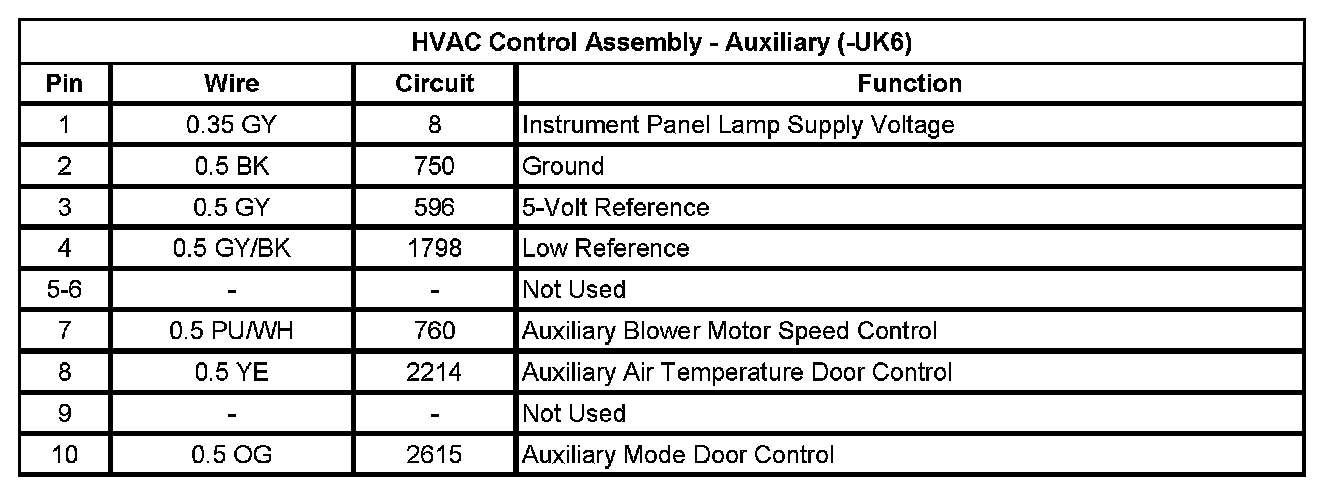

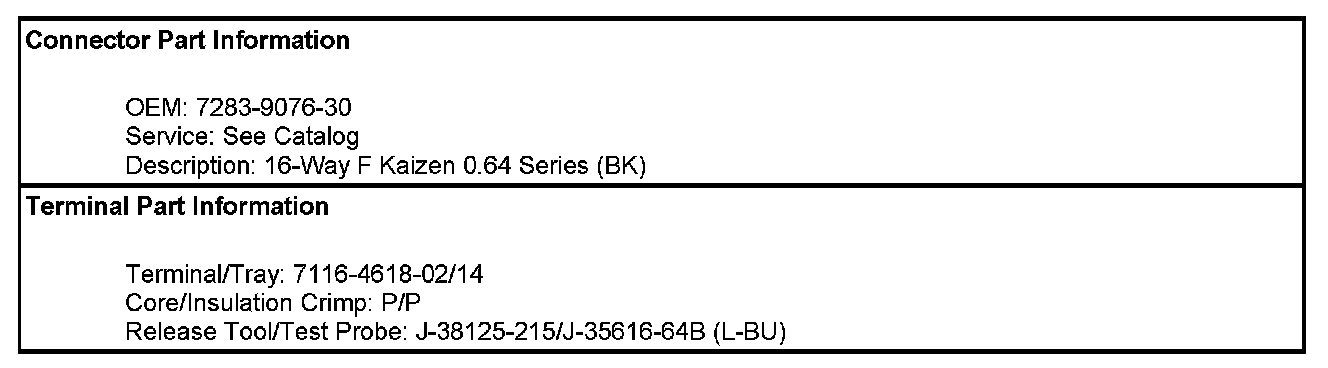

HVAC Control Assembly - Auxiliary (-UK6)

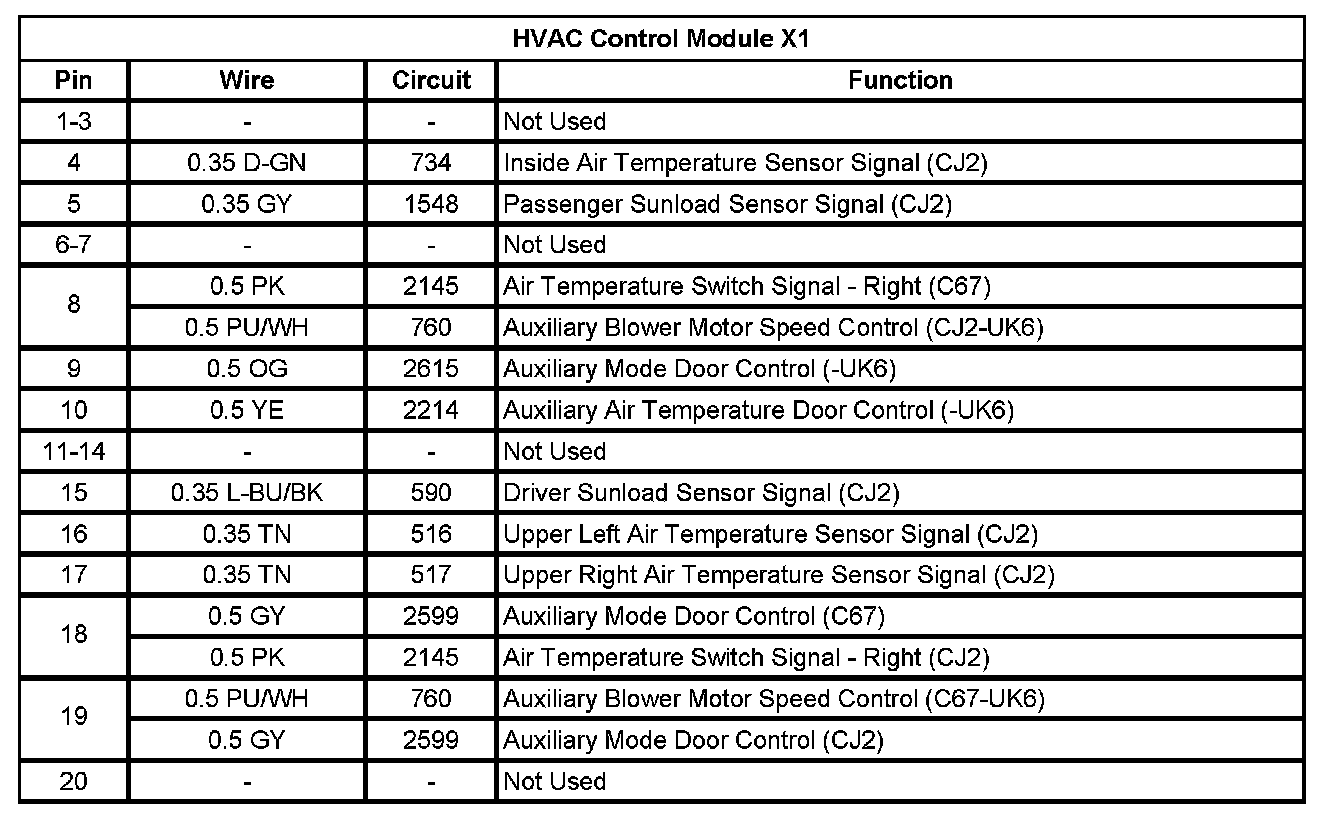

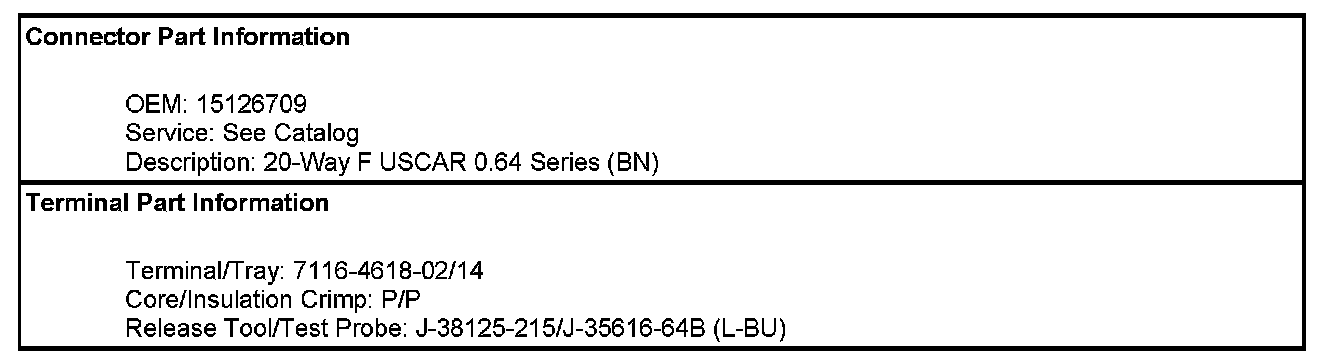

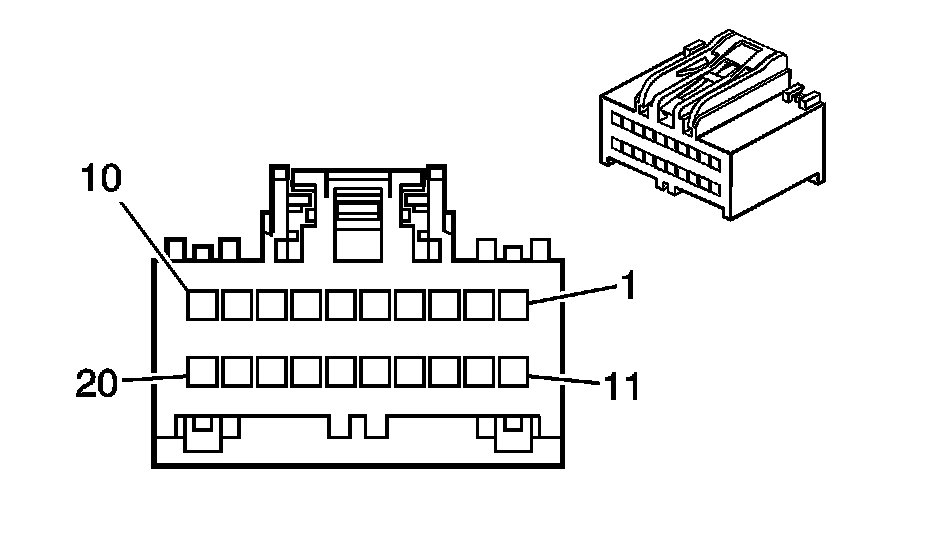

HVAC Control Module X1

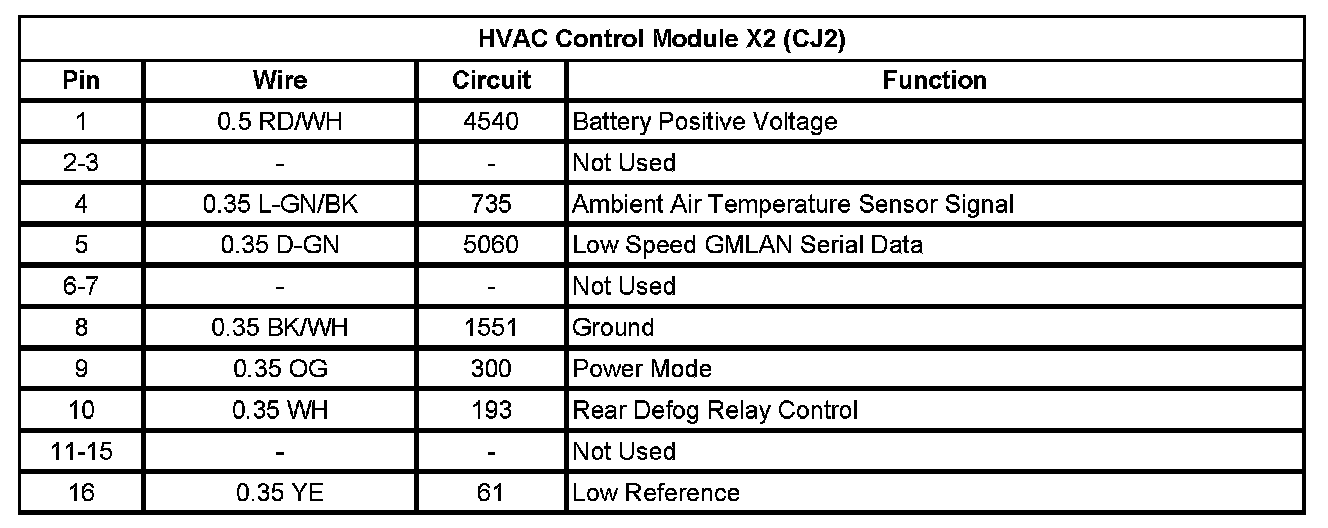

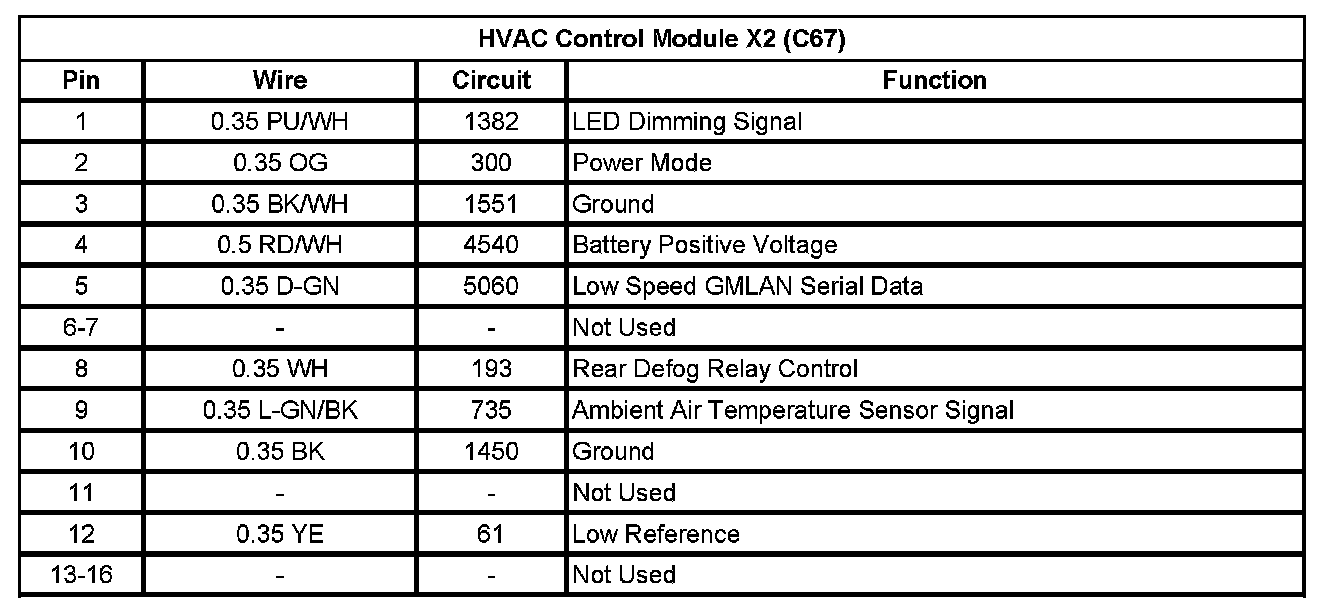

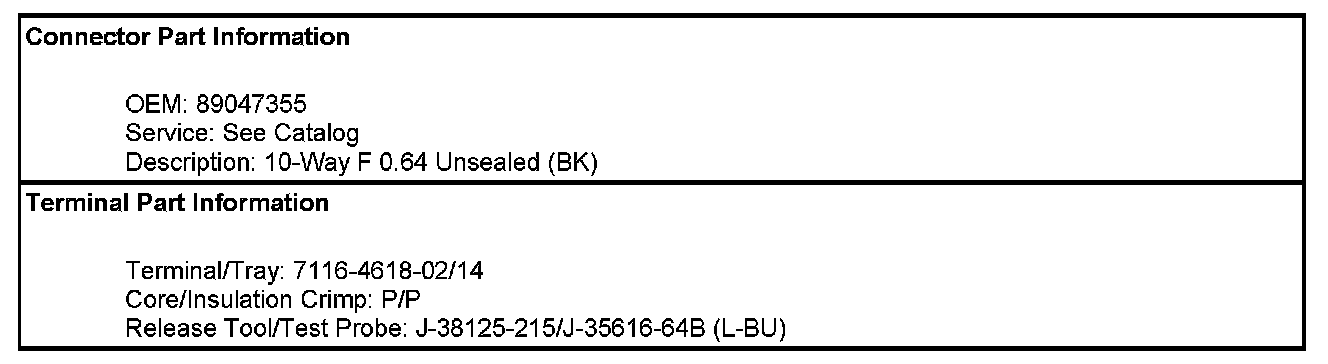

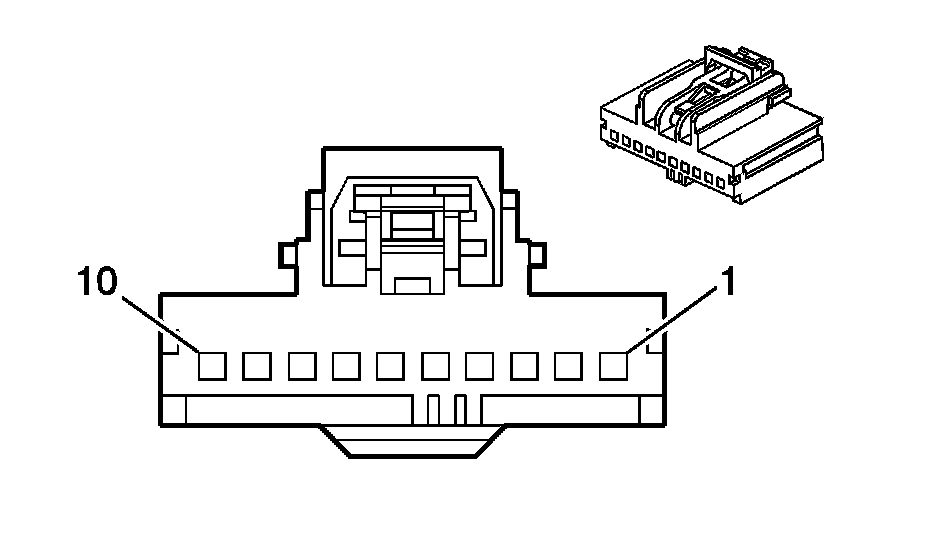

HVAC Control Module X2 (C67)














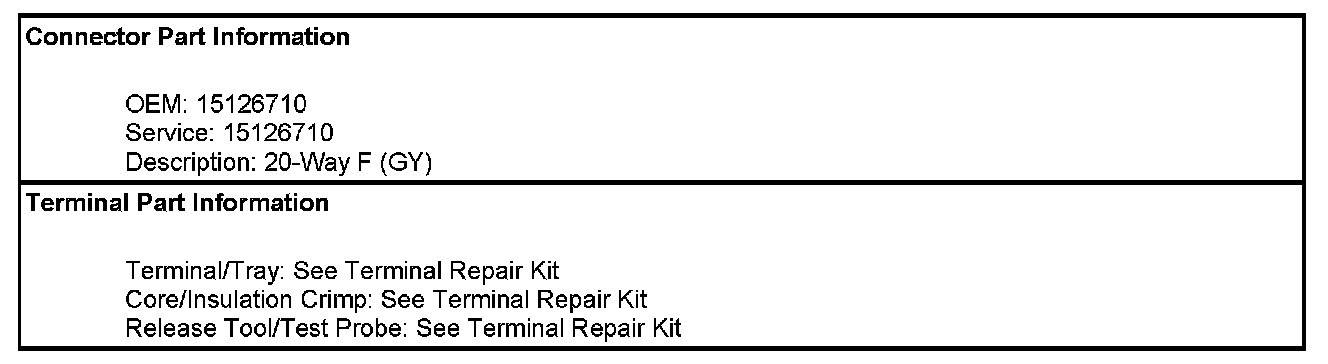

HVAC Control Module X2 (CJ2)

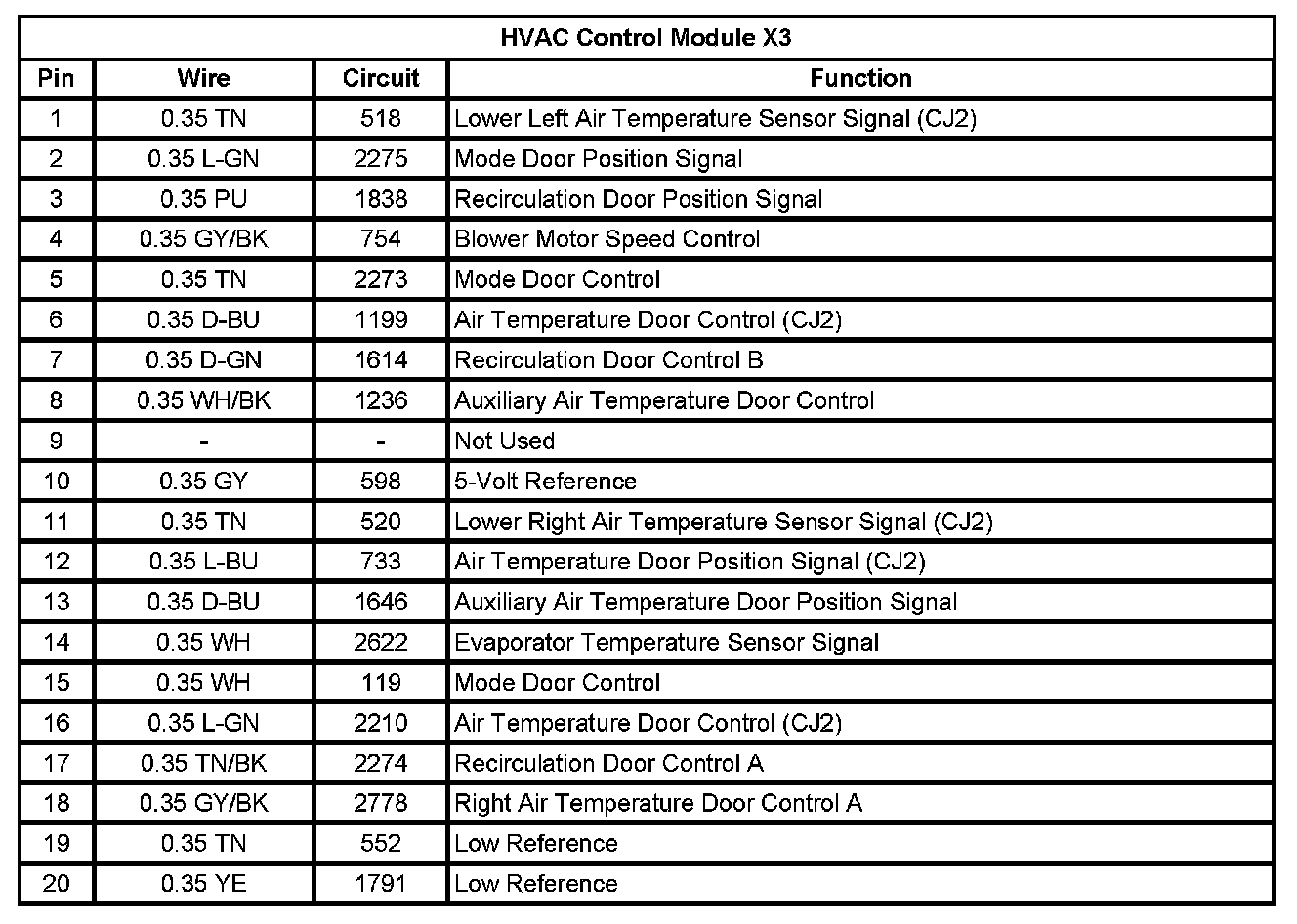

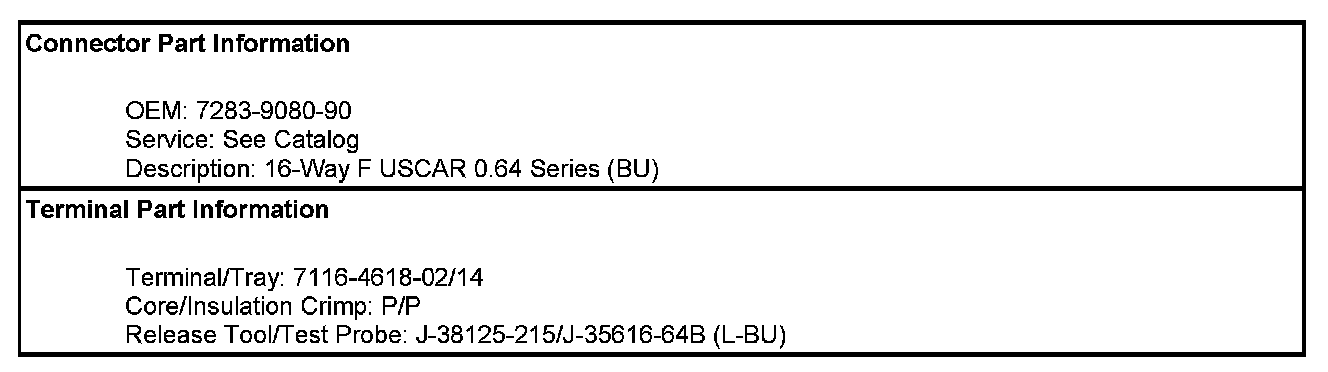

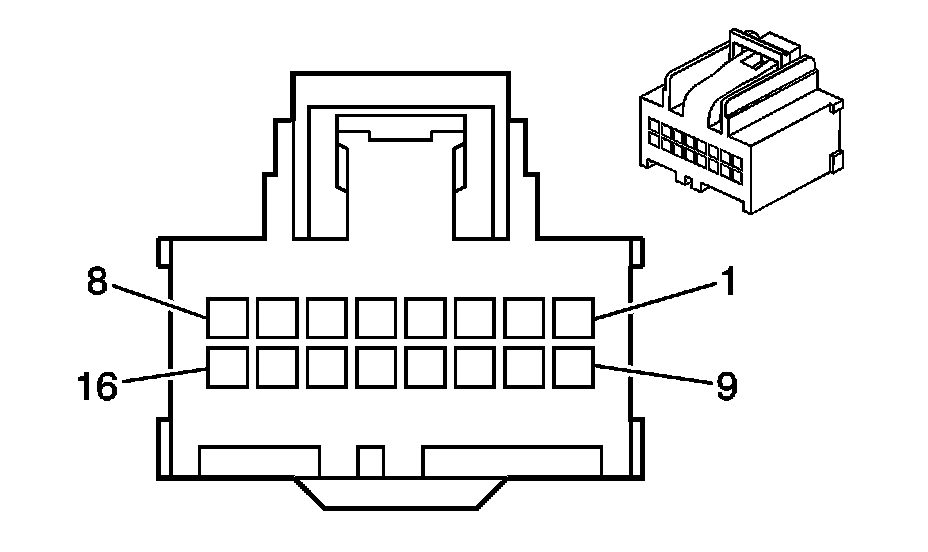

HVAC Control Module X3

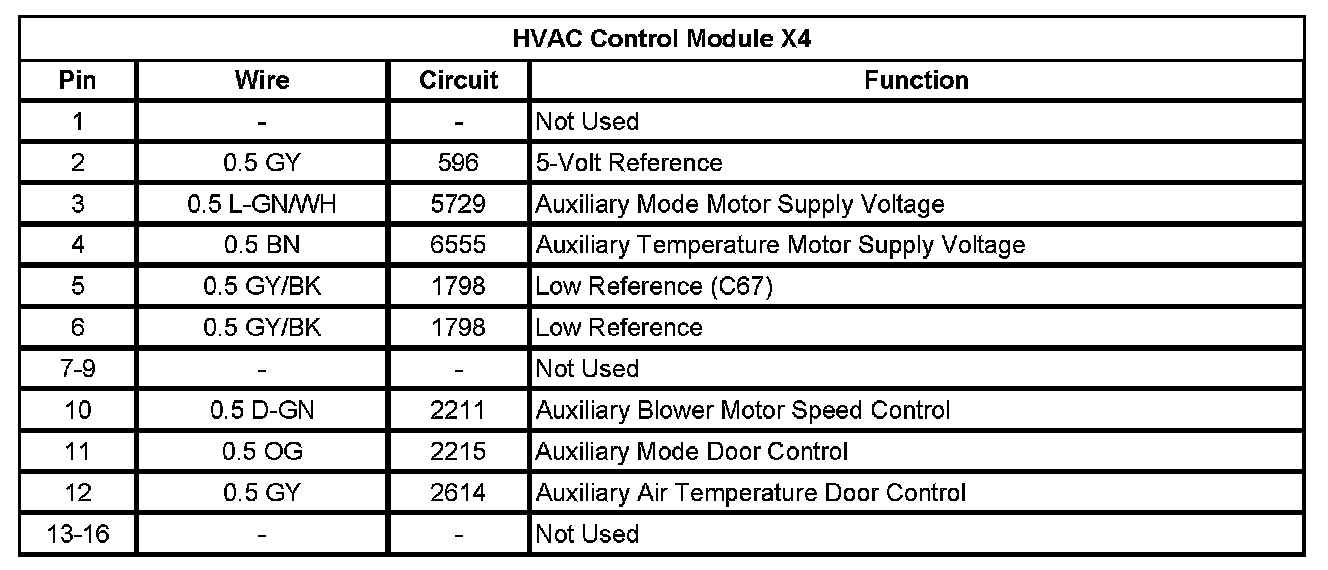

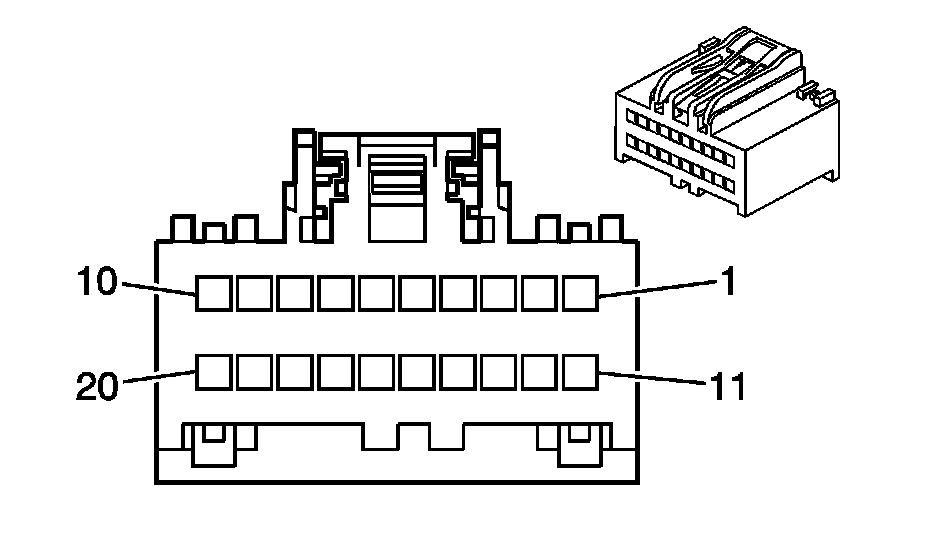

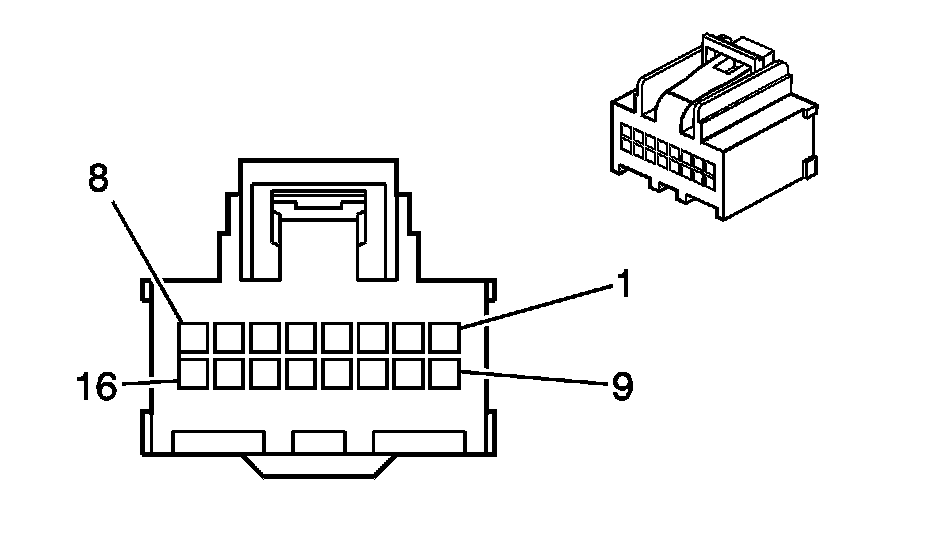

HVAC Control Module X4
