Engine Control Module

Component Connector End Views

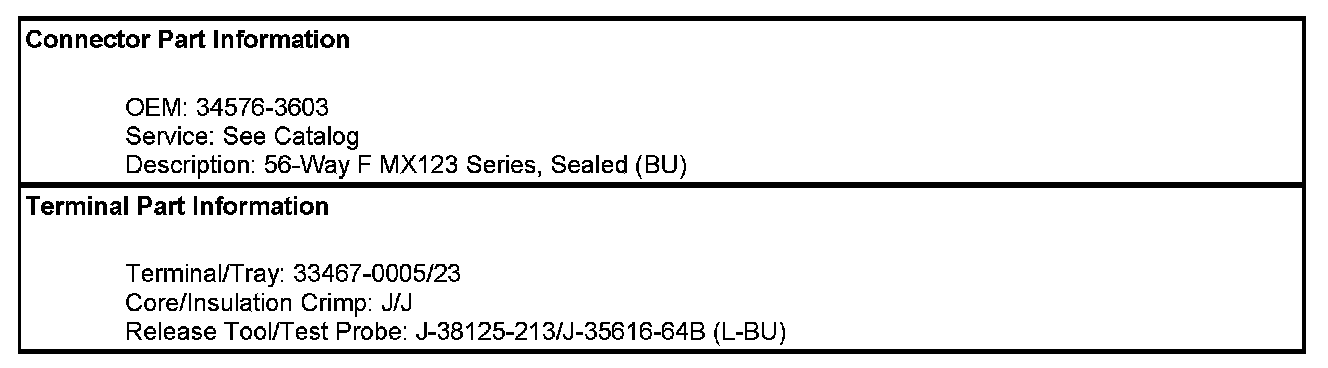

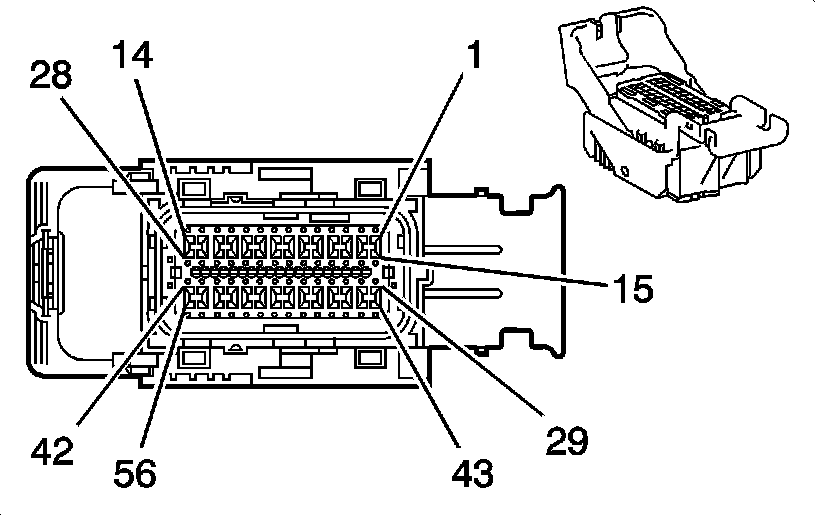

Engine Control Module (ECM) X1 (LY7)

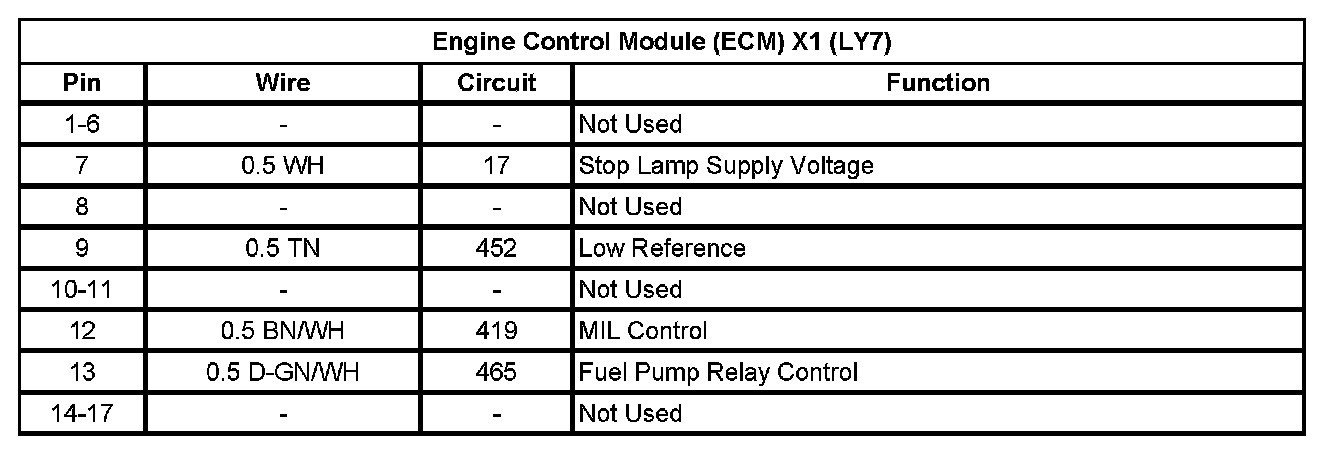

Engine Control Module (ECM) X1 (LY7) (Pin 1 To 17):

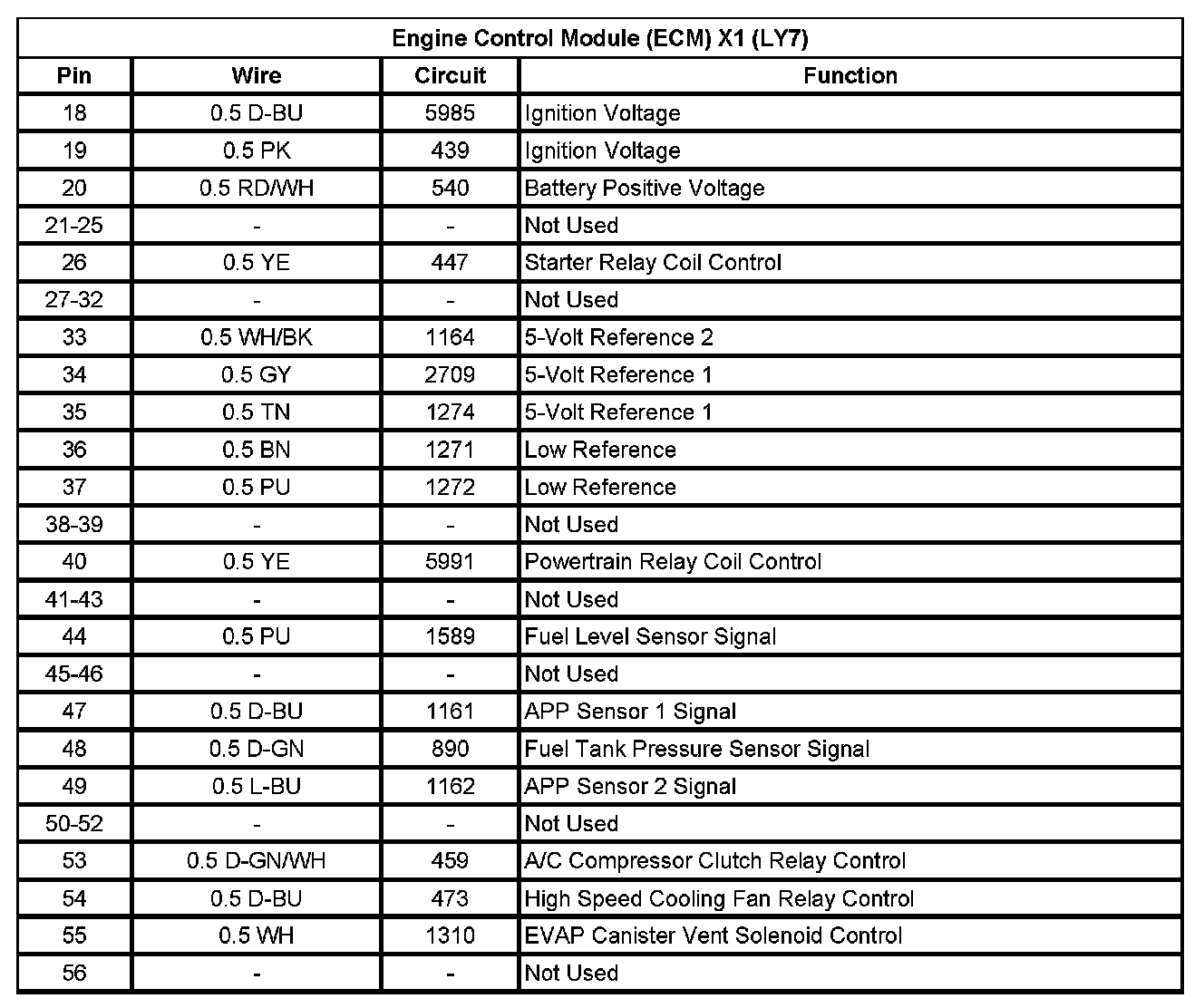

Engine Control Module (ECM) X1 (LY7) (Pin 18 To 56):

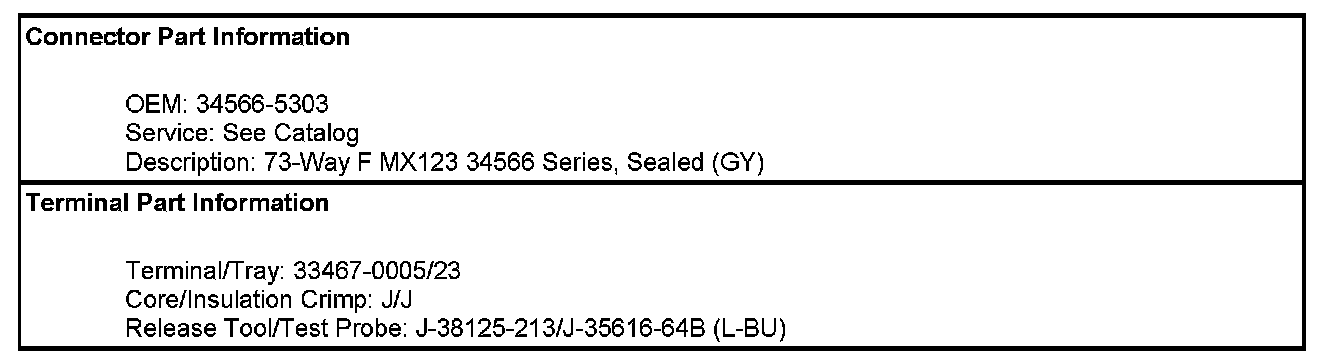

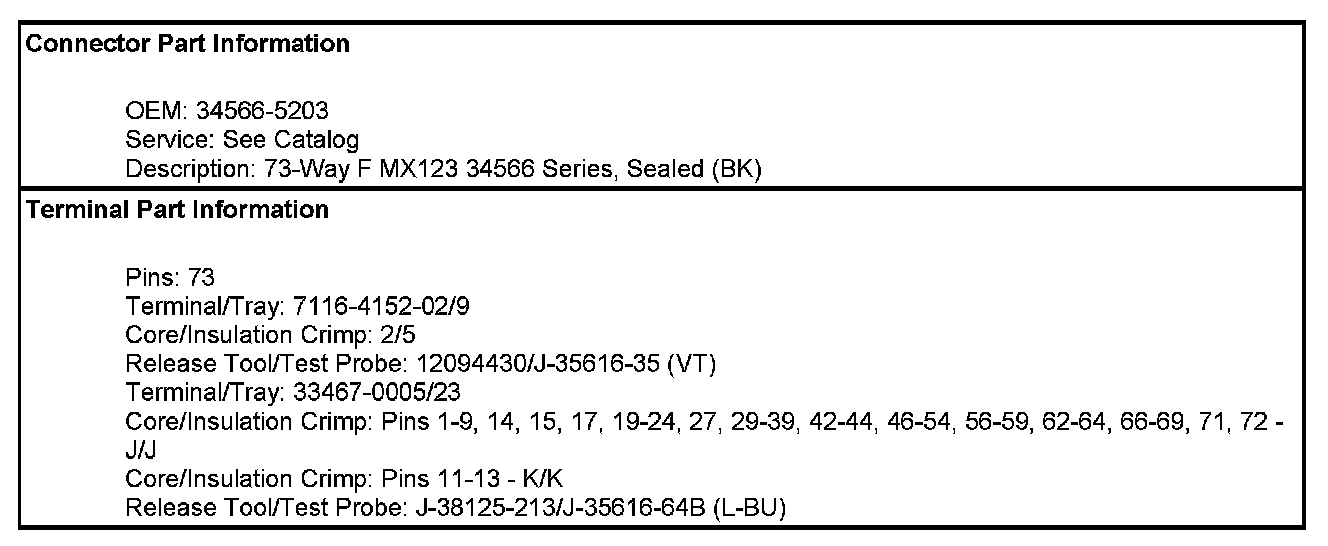

Engine Control Module (ECM) X2 (LY7)

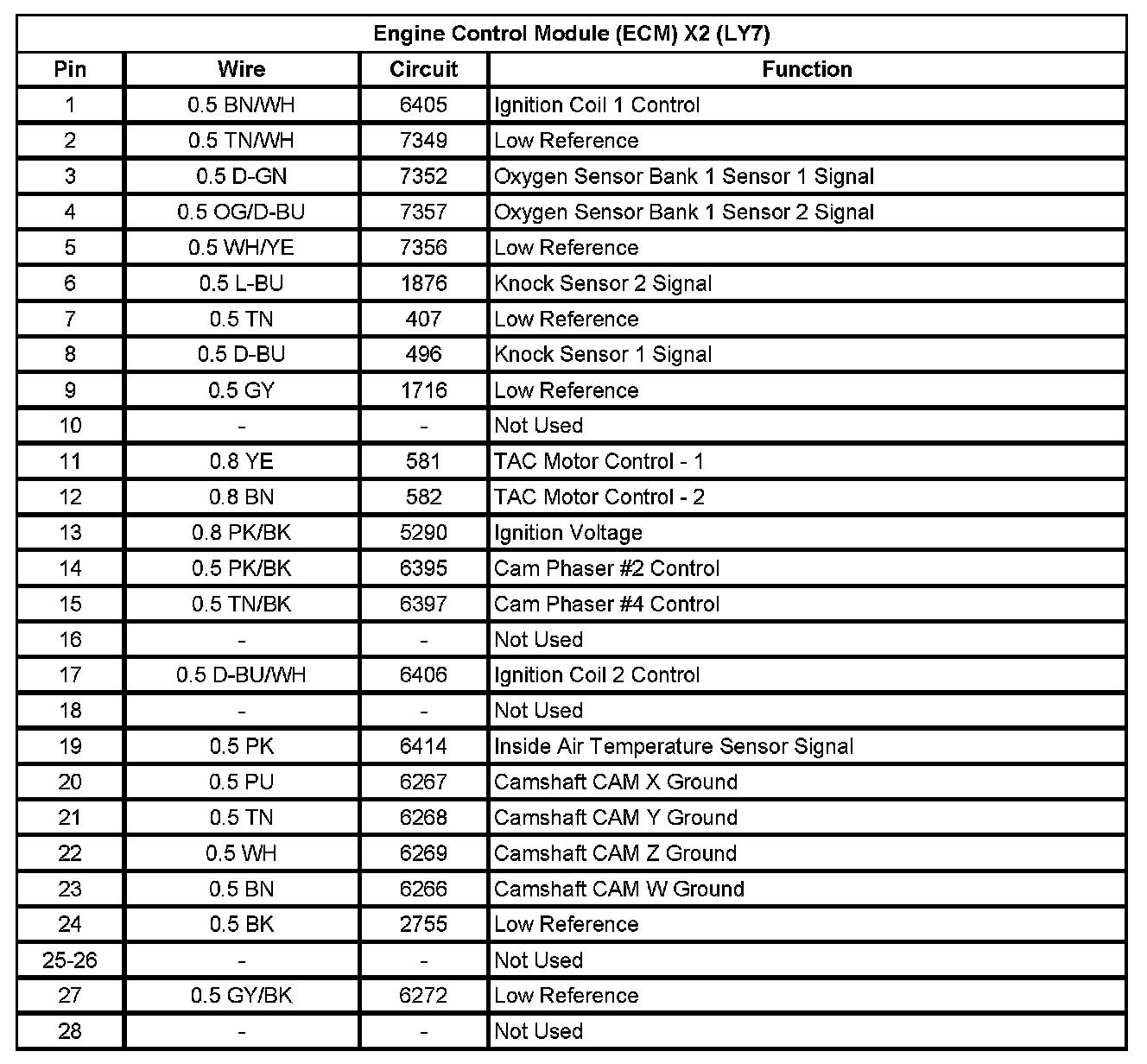

Engine Control Module (ECM) X2 (LY7) (Pin 1 To 28):

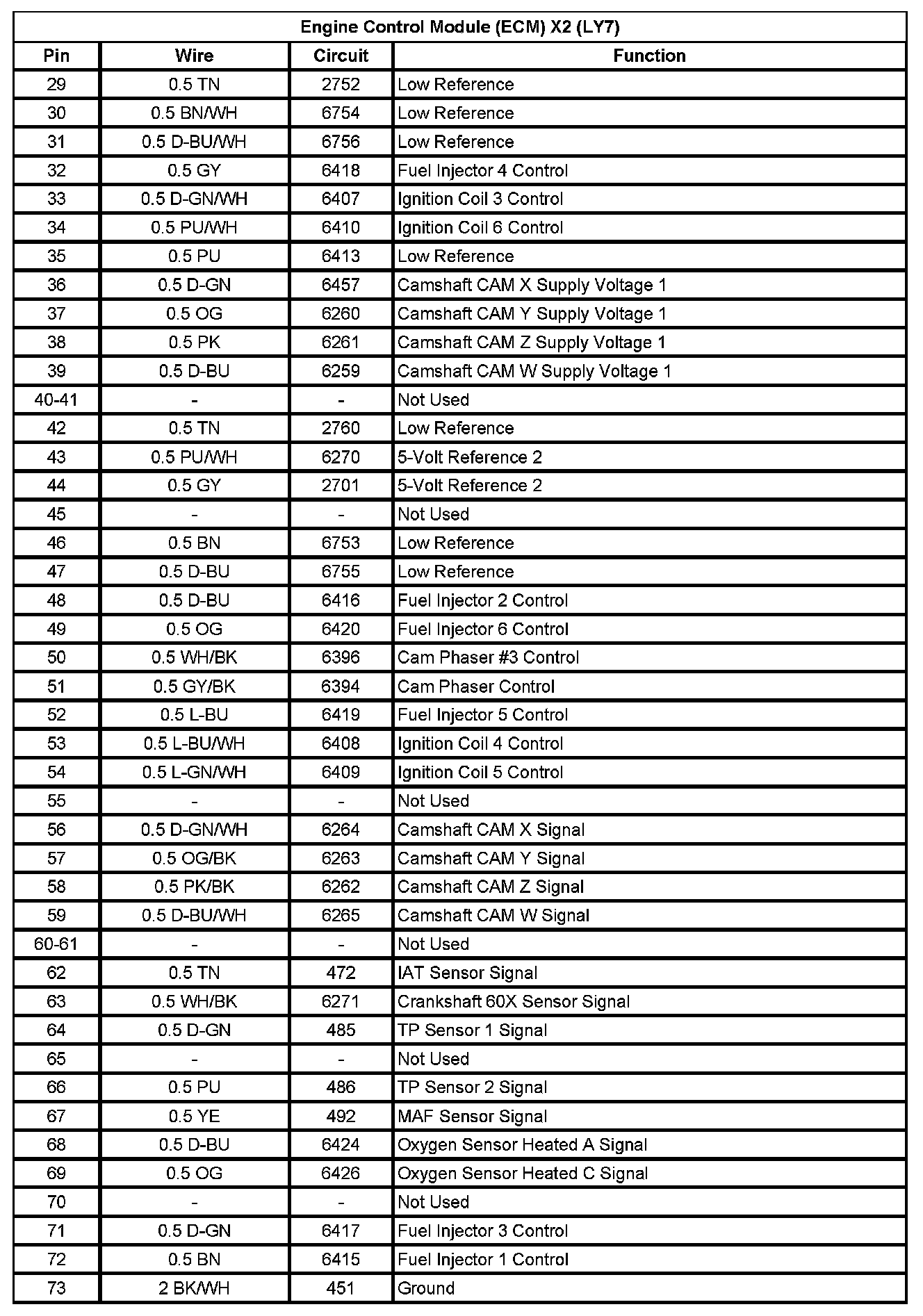

Engine Control Module (ECM) X2 (LY7) (Pin 29 To 73):

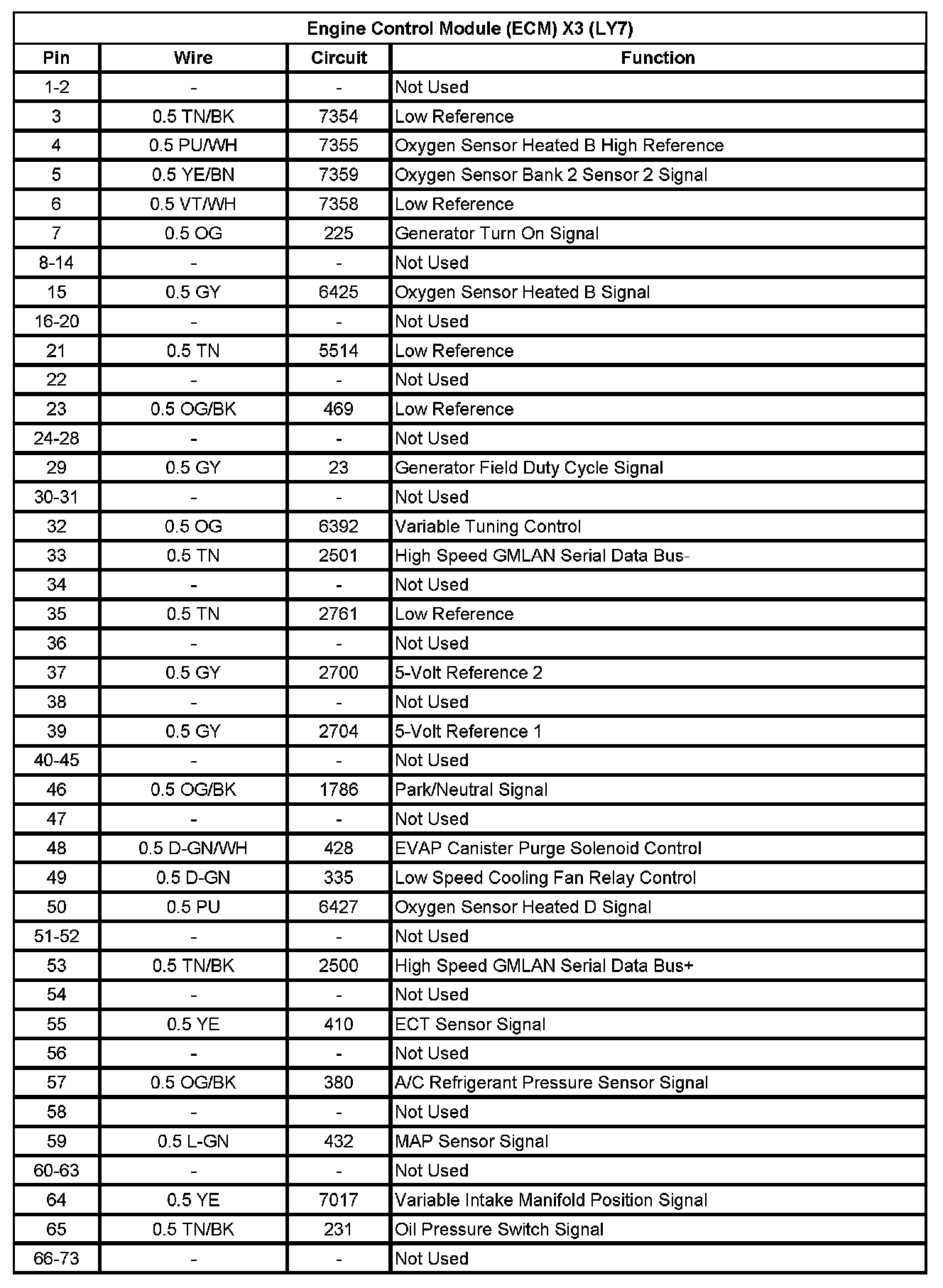

Engine Control Module (ECM) X3 (LY7)
