I/P Fuse Block
Electrical Center Identification Views

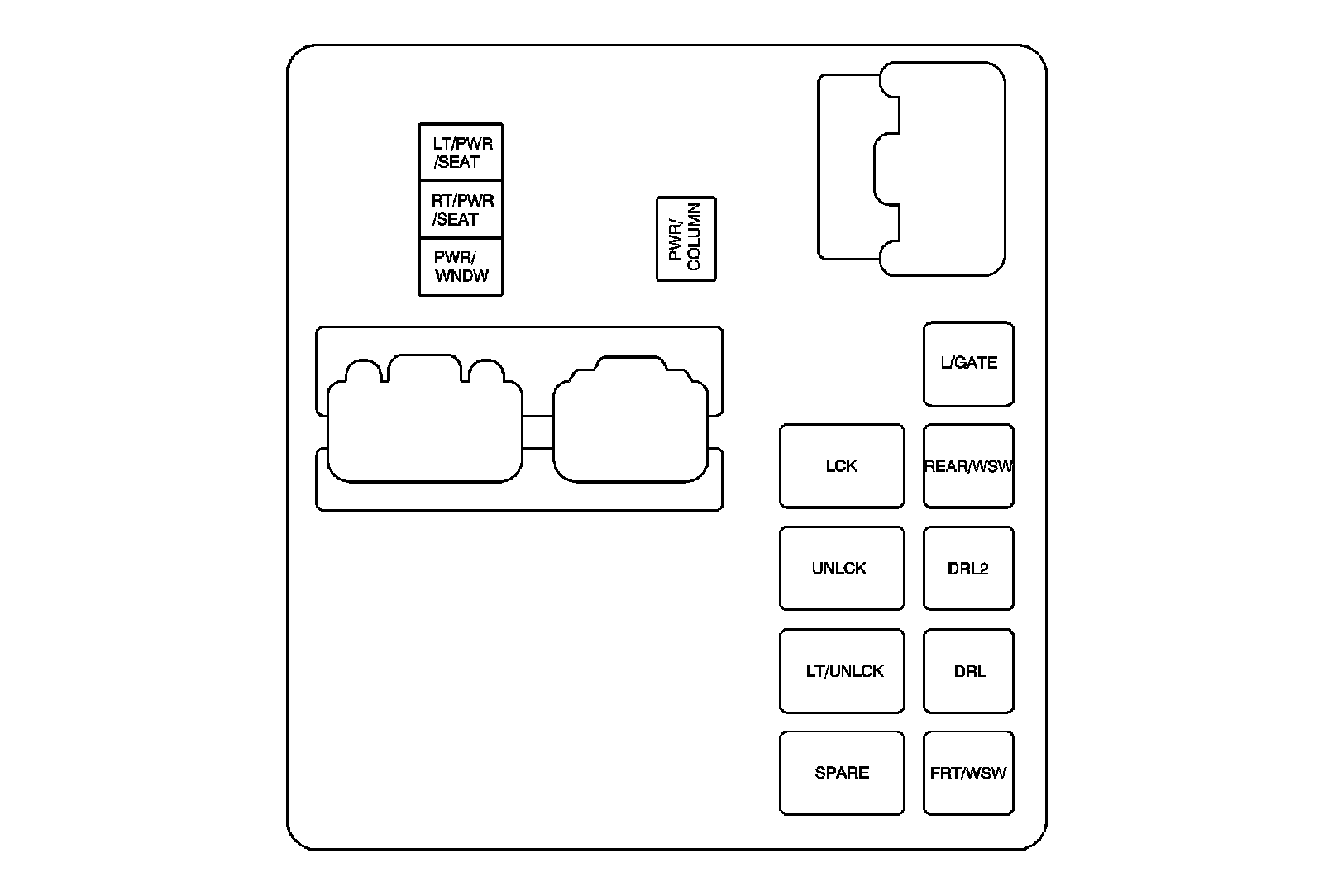

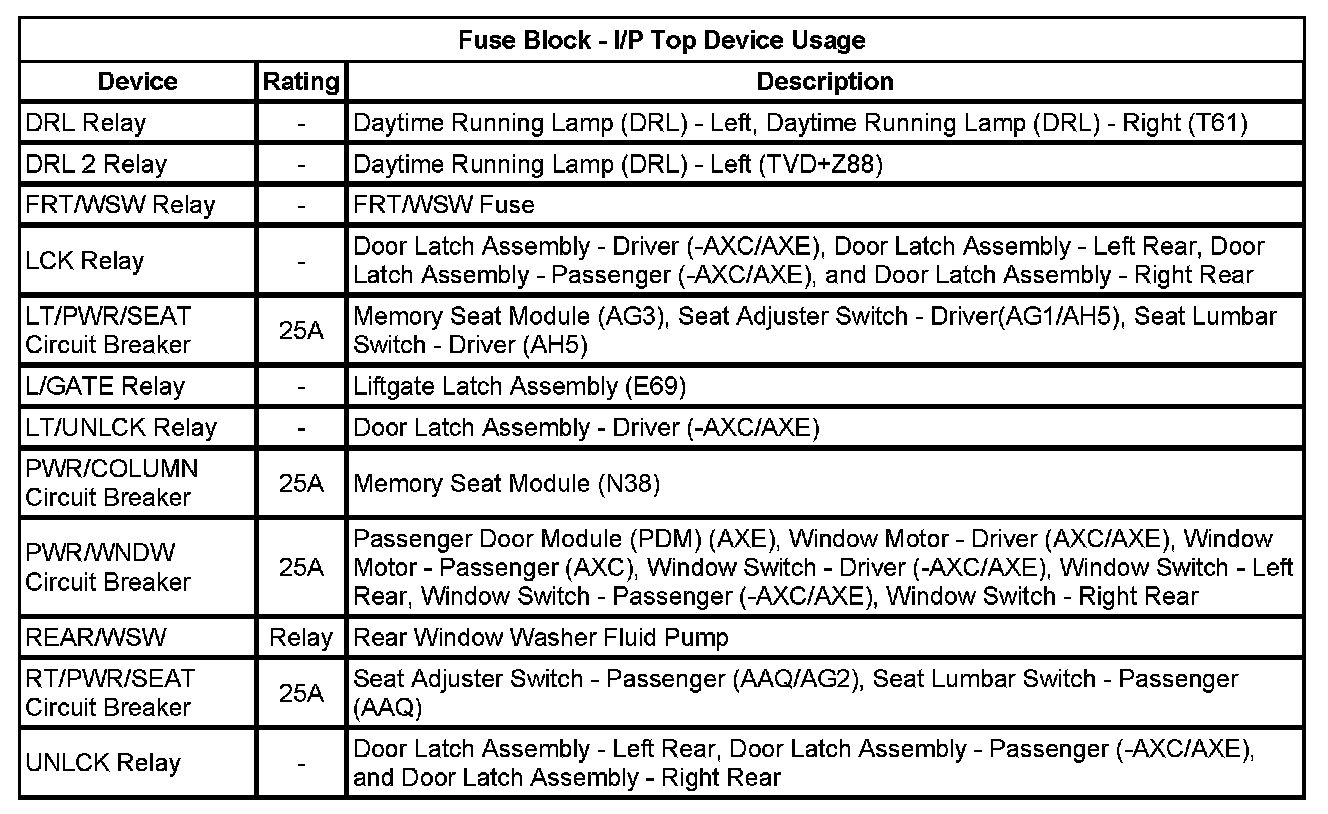

Fuse Block - I/P Top Device Layout

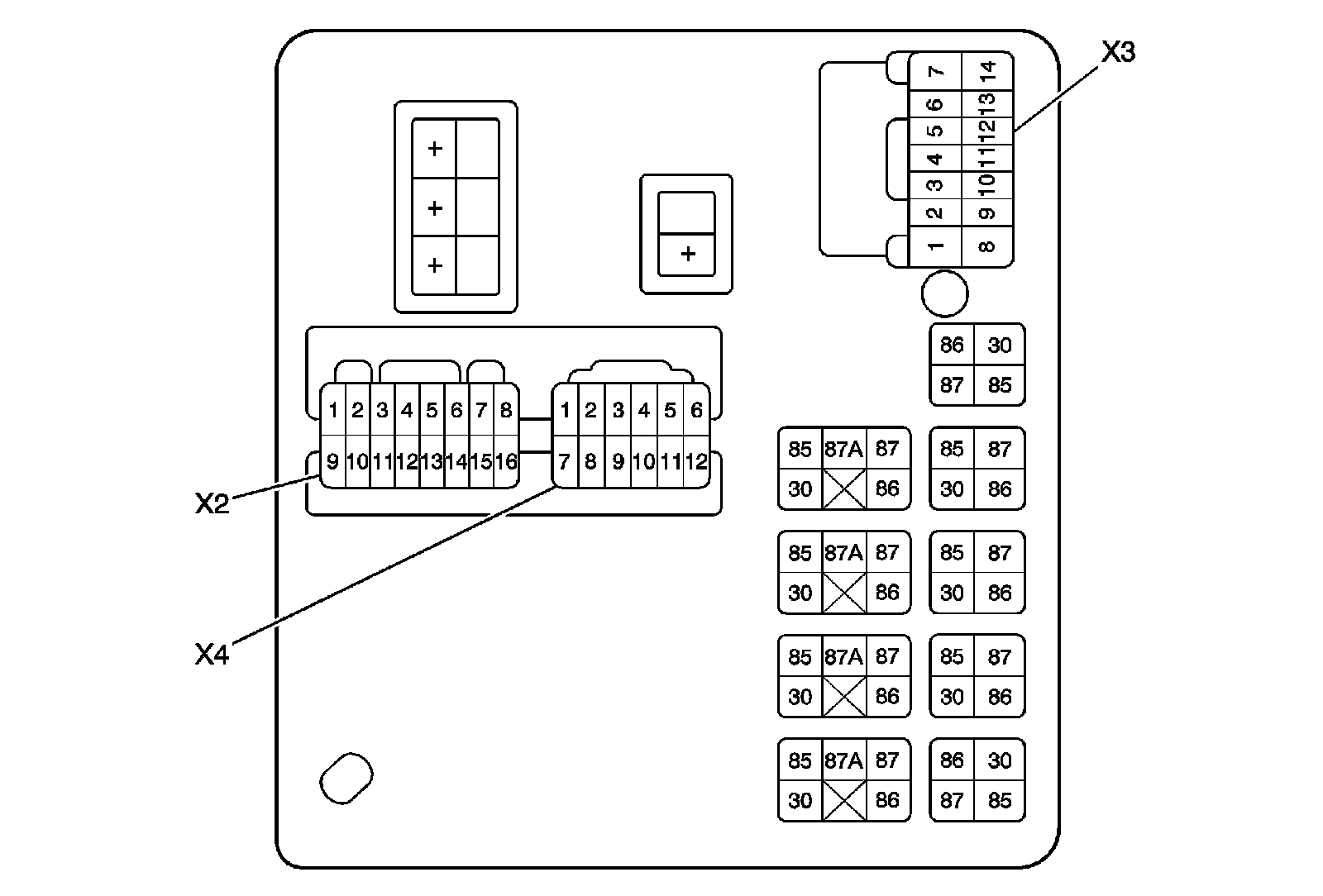

Fuse Block - I/P Top View

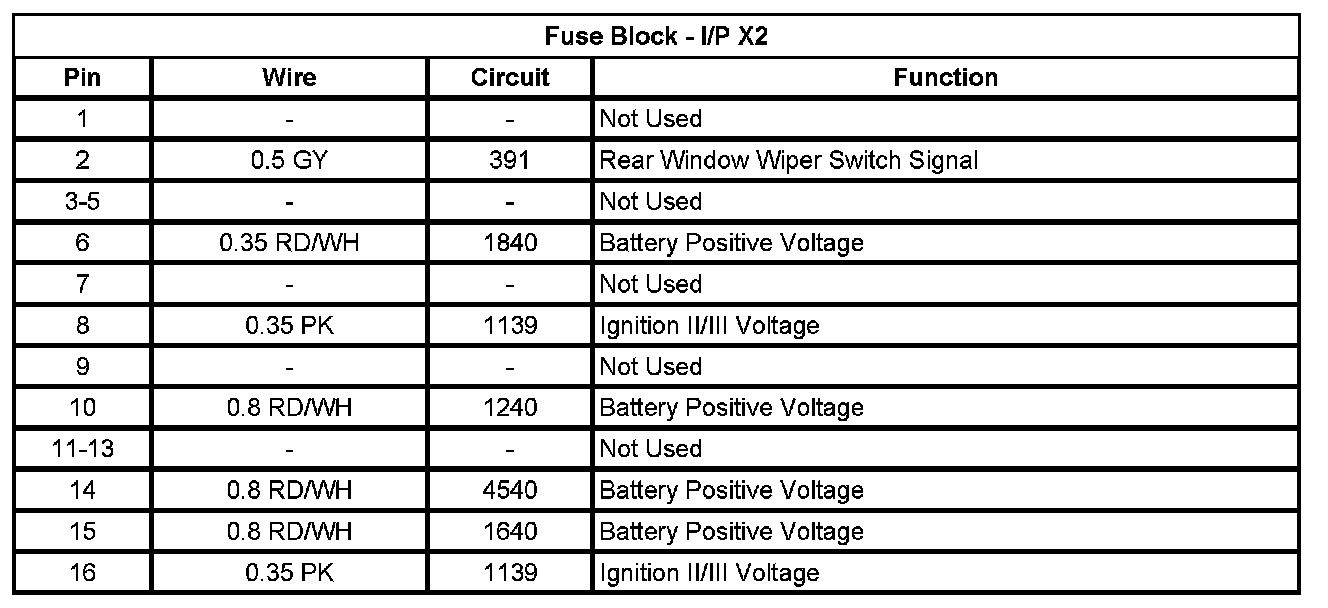

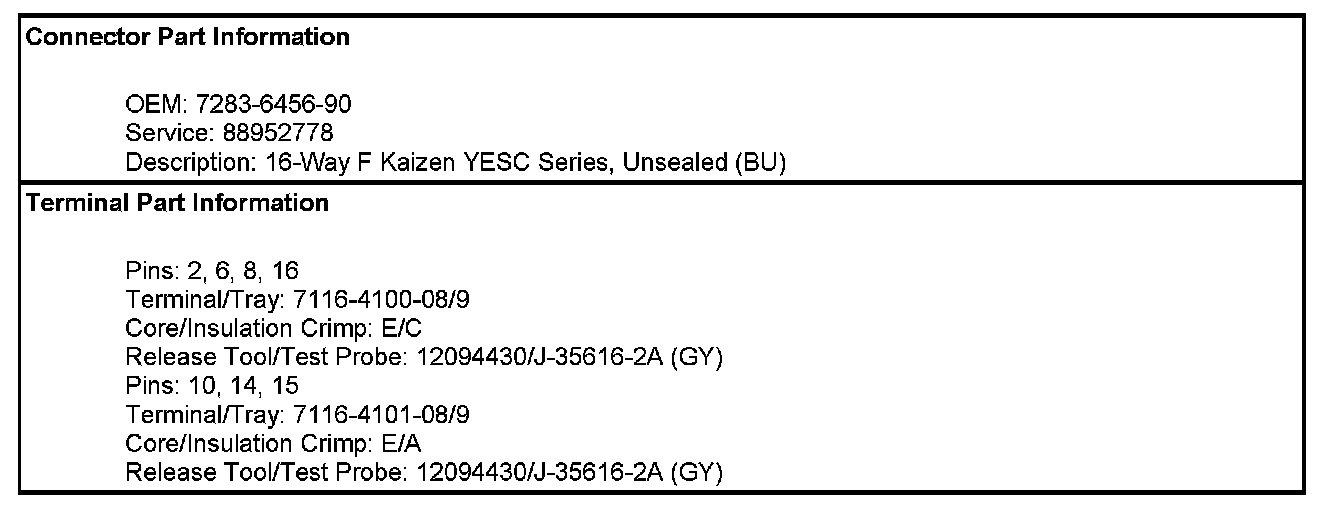

Fuse Block - I/P X2

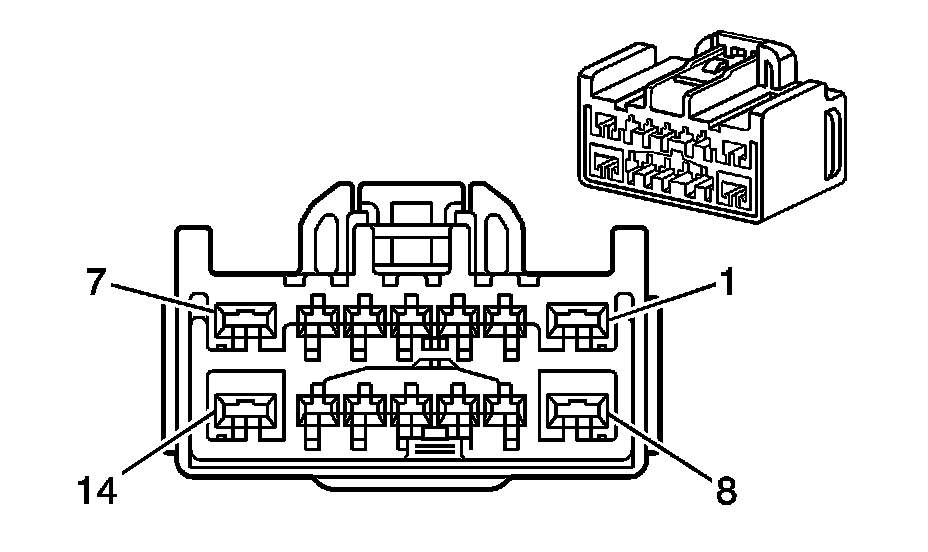

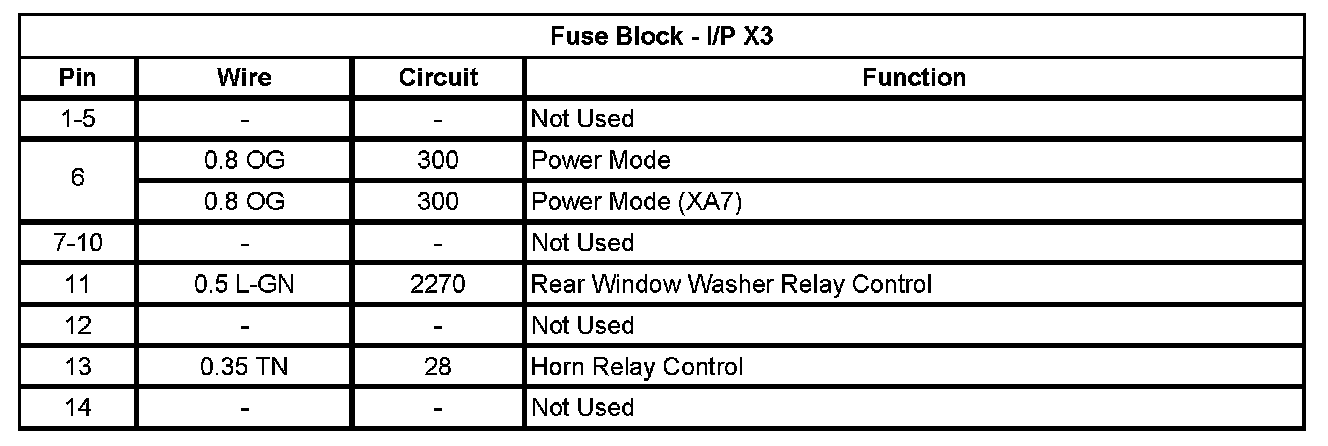

Fuse Block - I/P X3

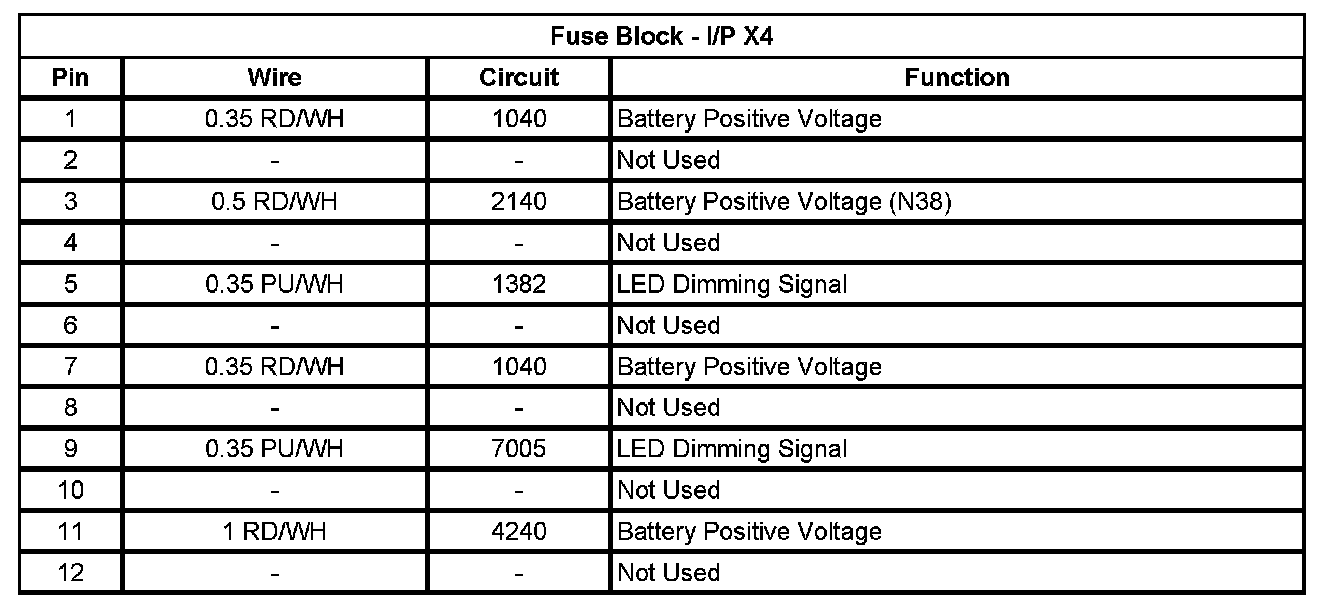

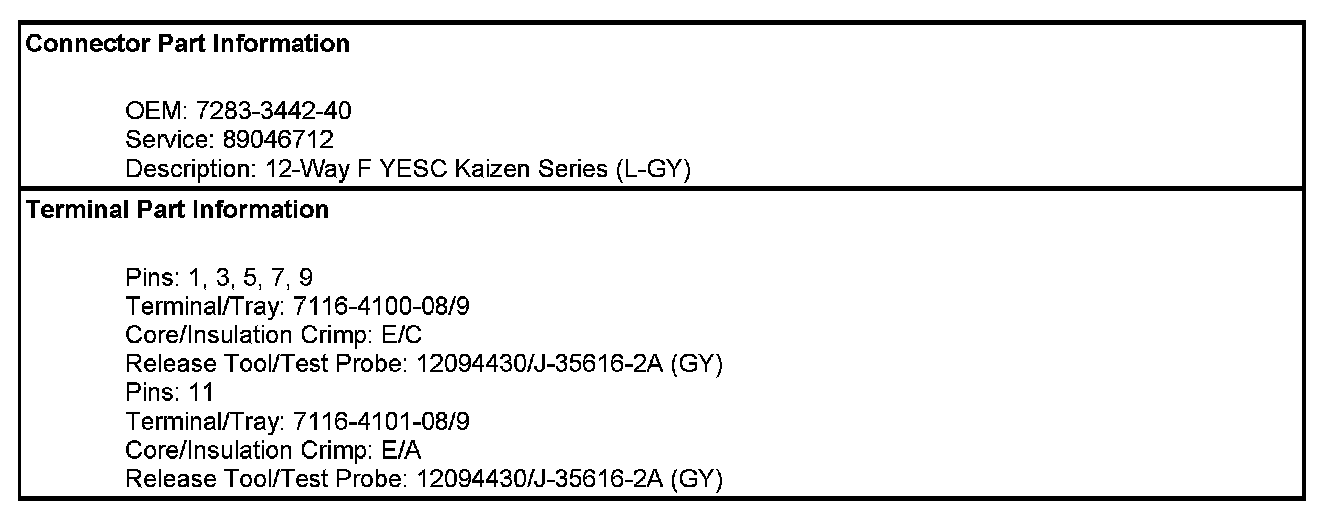

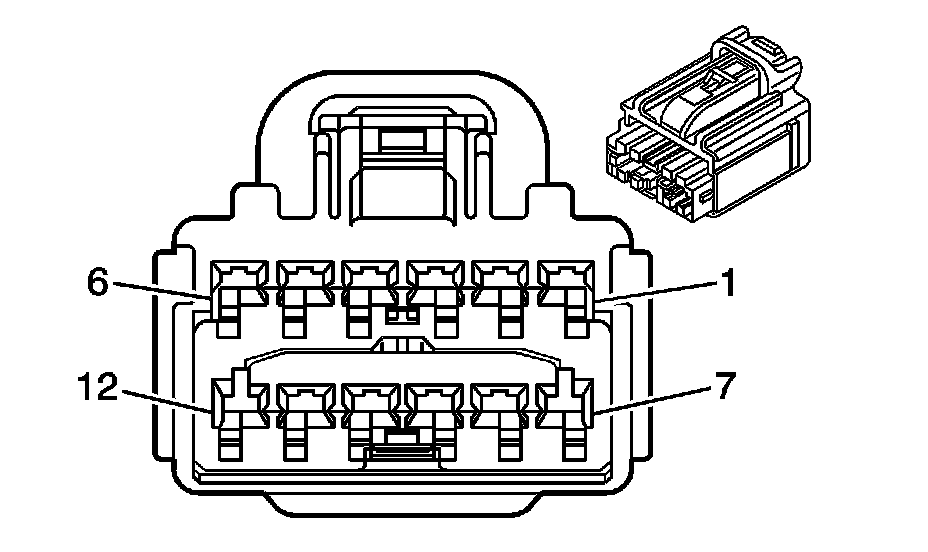

Fuse Block - I/P X4

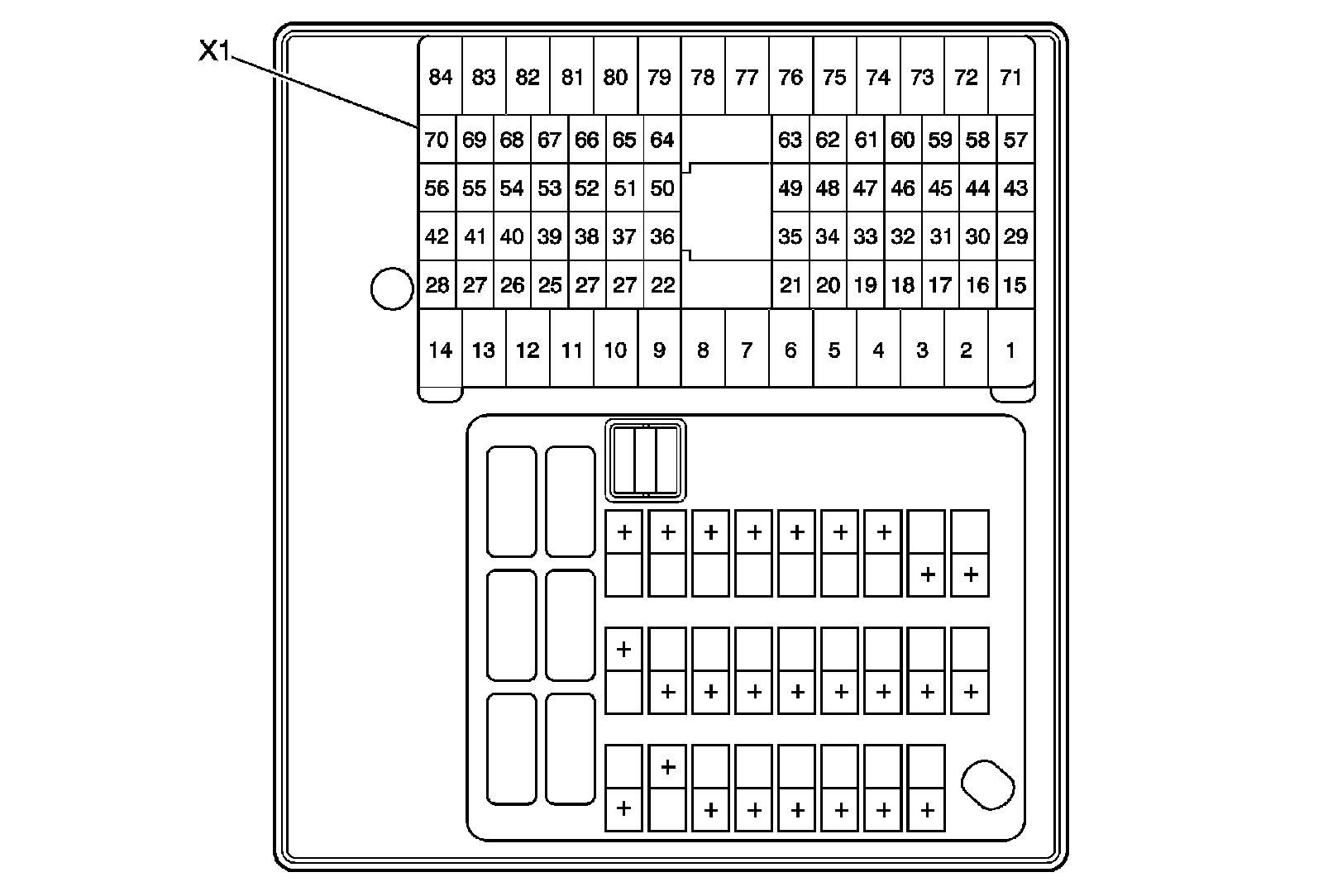

Fuse Block - I/P Bottom View

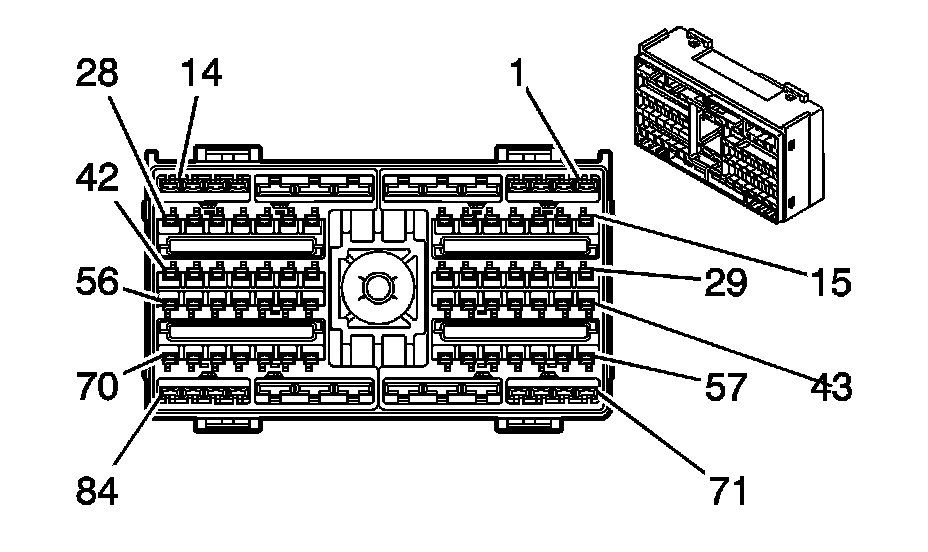

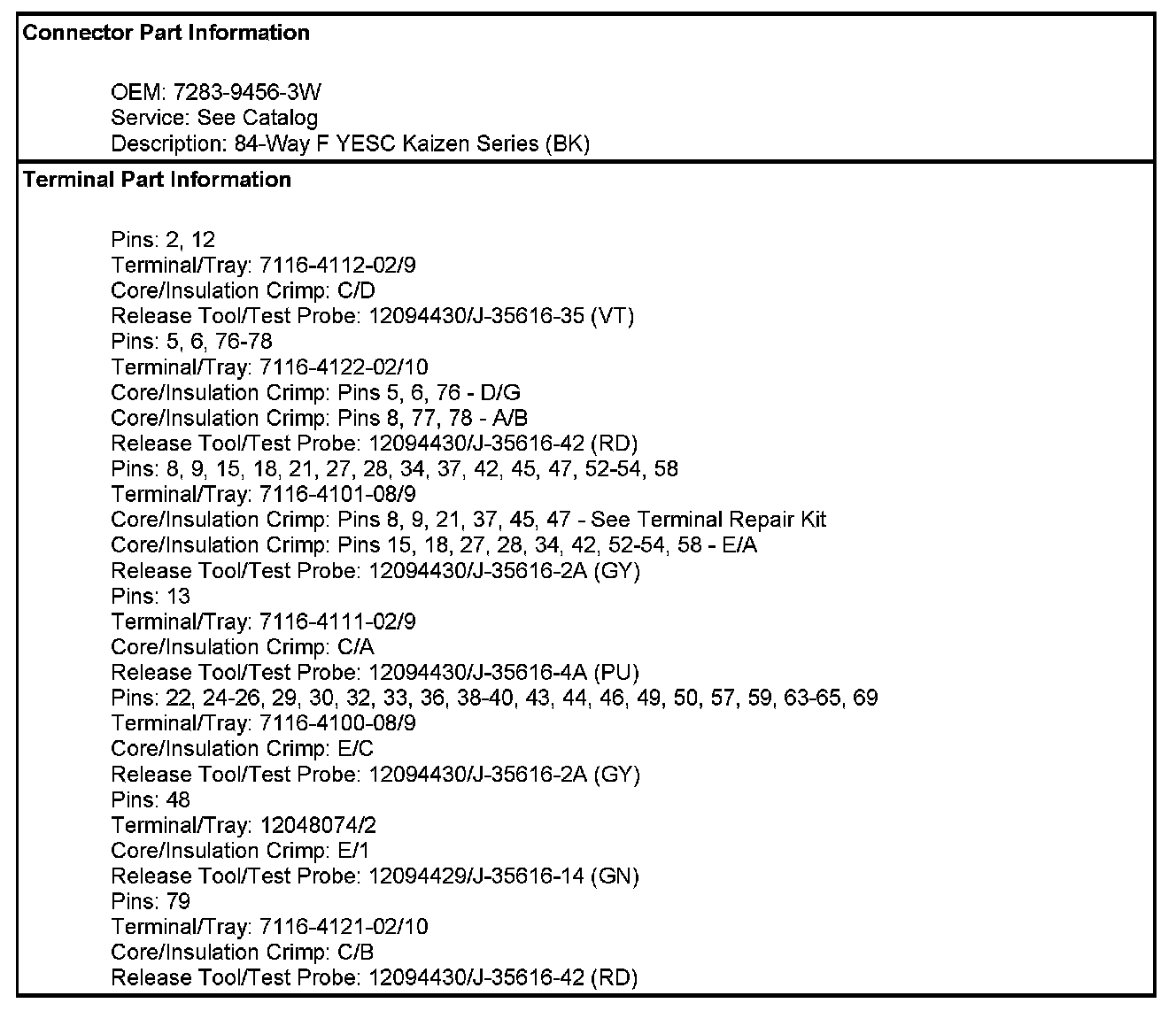

Fuse Block - I/P X1

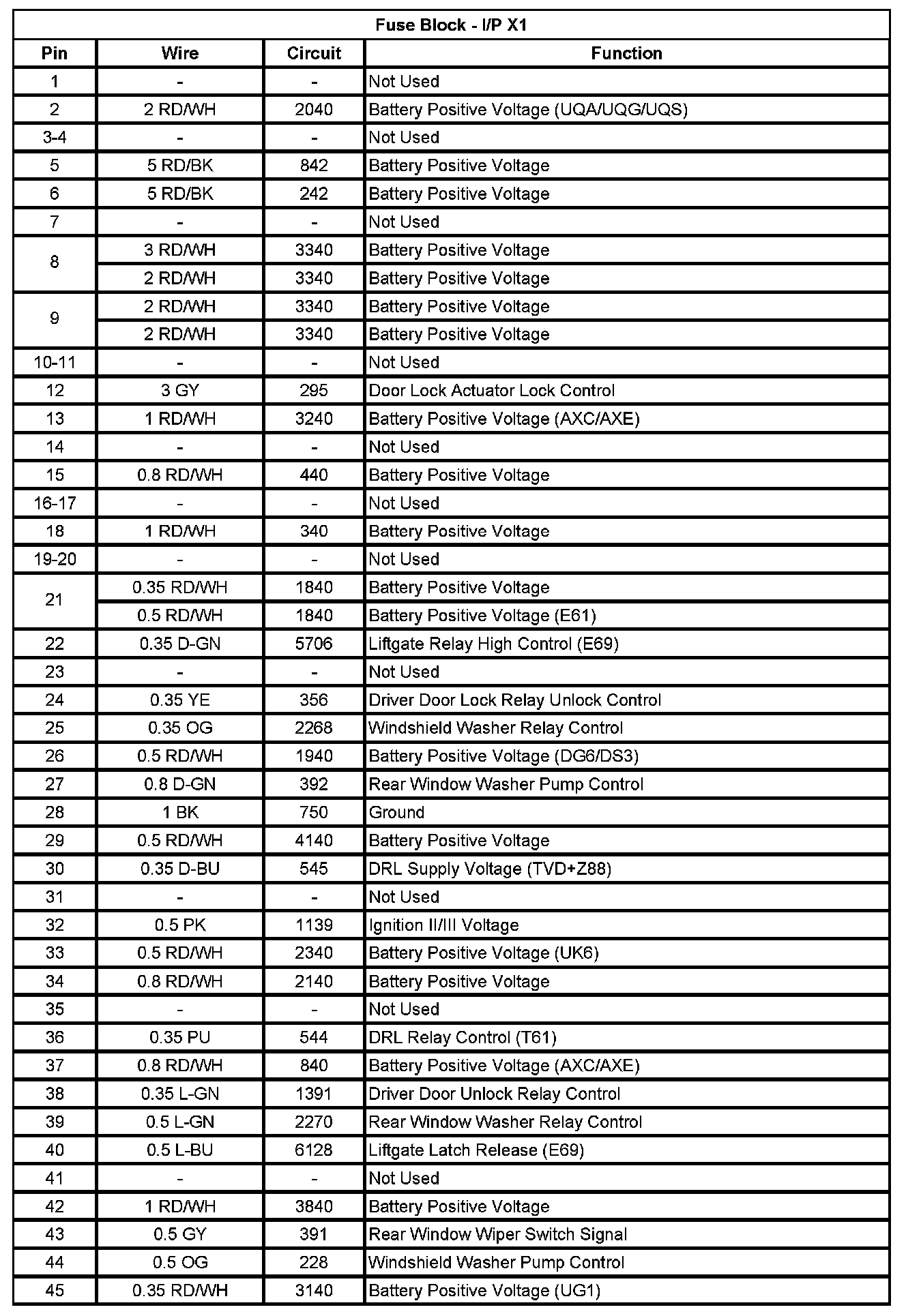

Fuse Block - I/P X1 (Pin 1 To 45):

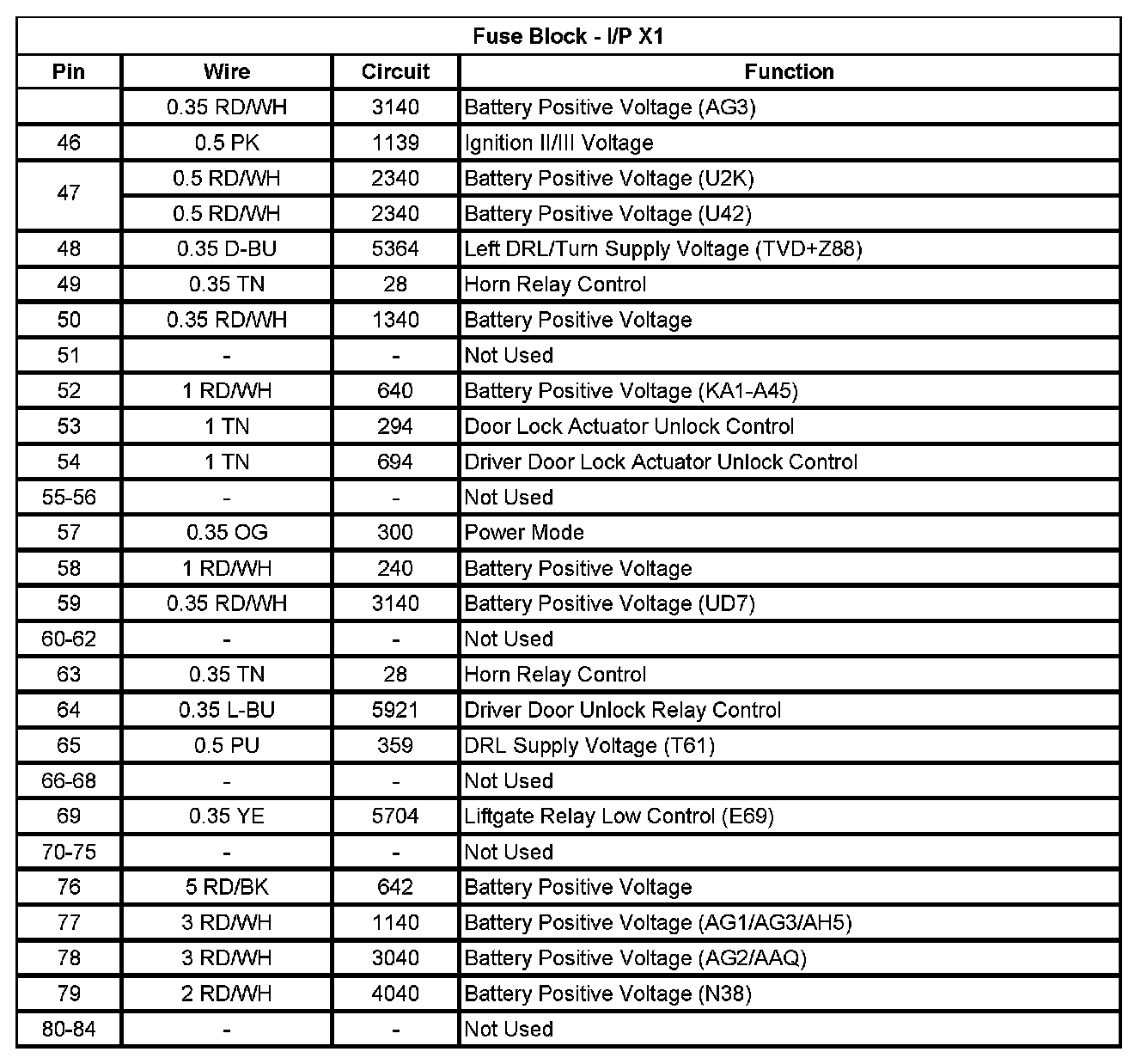

Fuse Block - I/P X1 (Pin 46 To 84):
