Power Trunk / Liftgate Control Module



Component Connector End Views - Continued

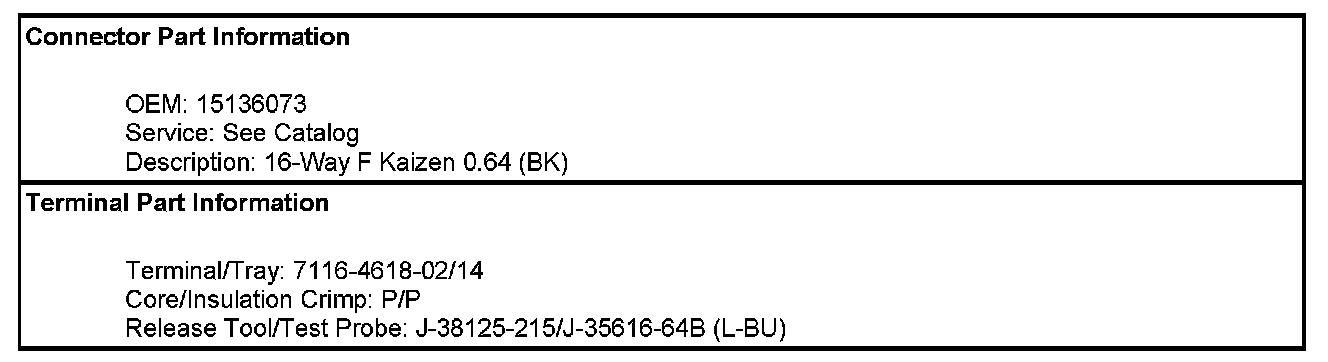

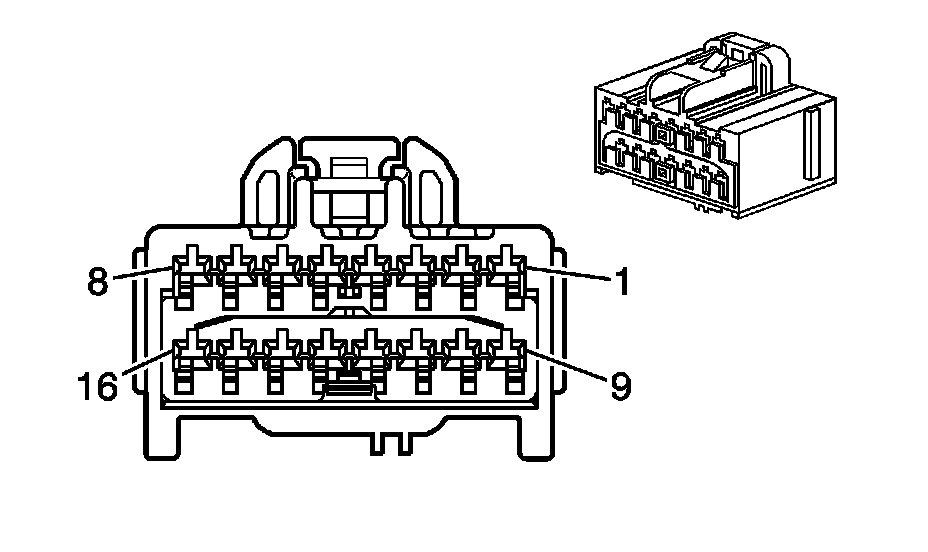

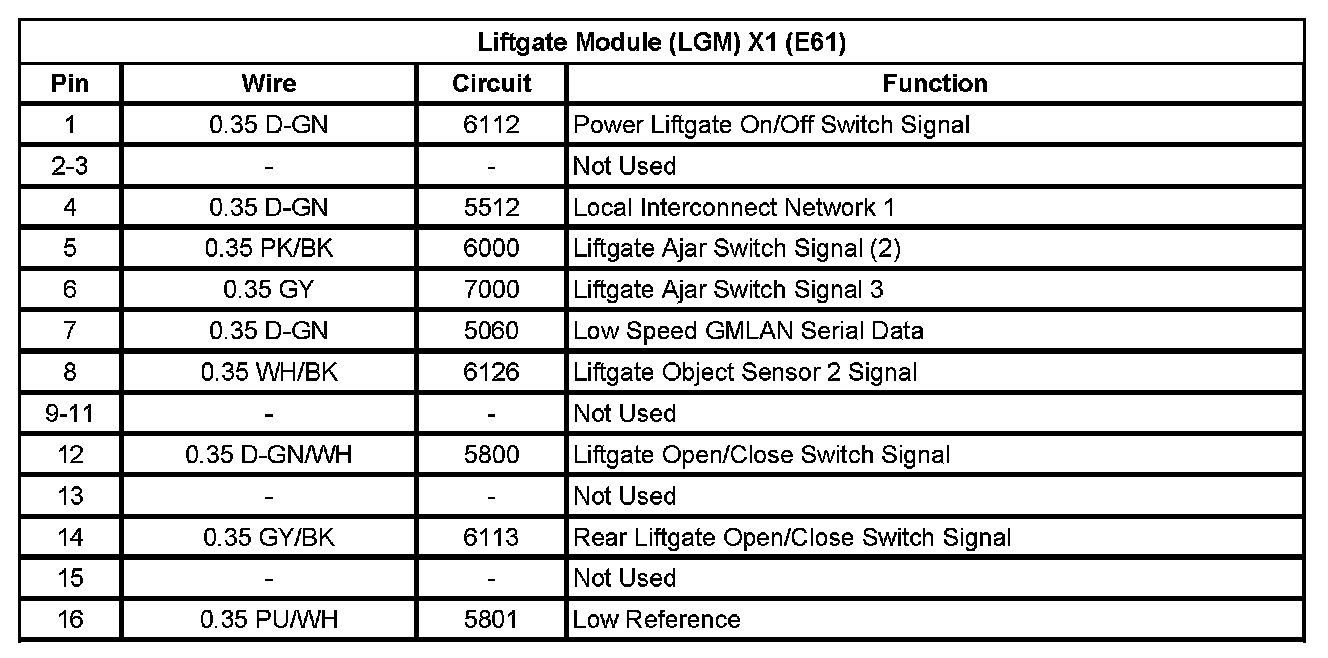

Liftgate Module (LGM) X1 (E61)

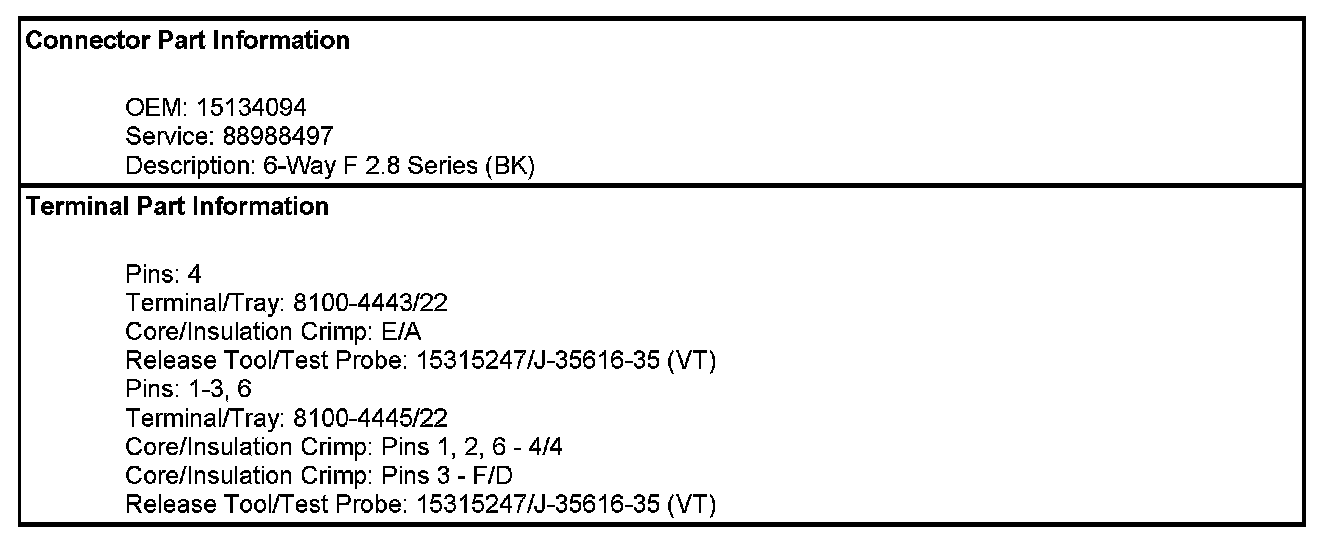

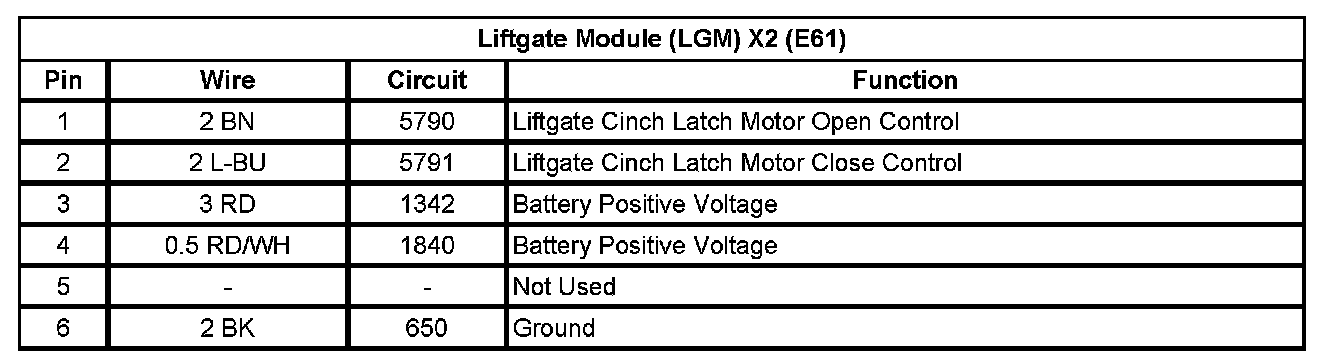

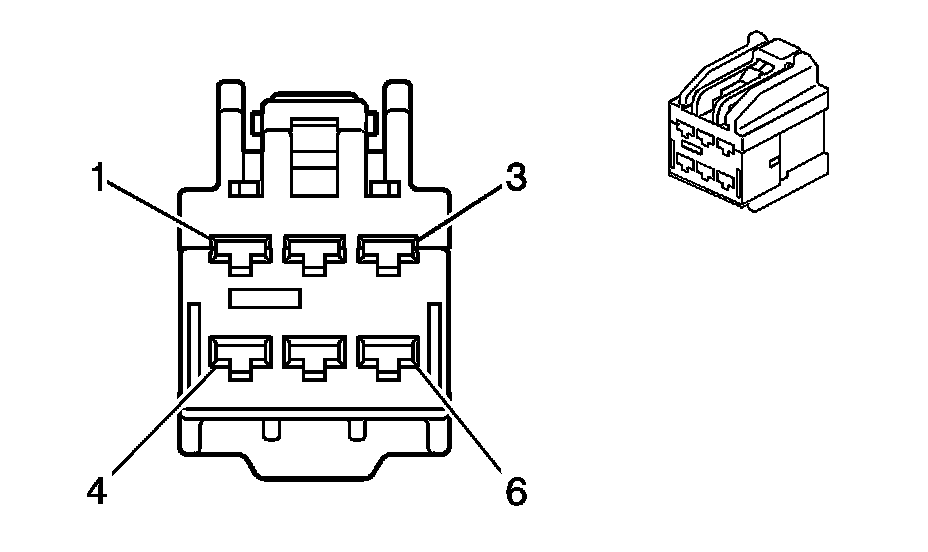

Liftgate Module (LGM) X2 (E61)

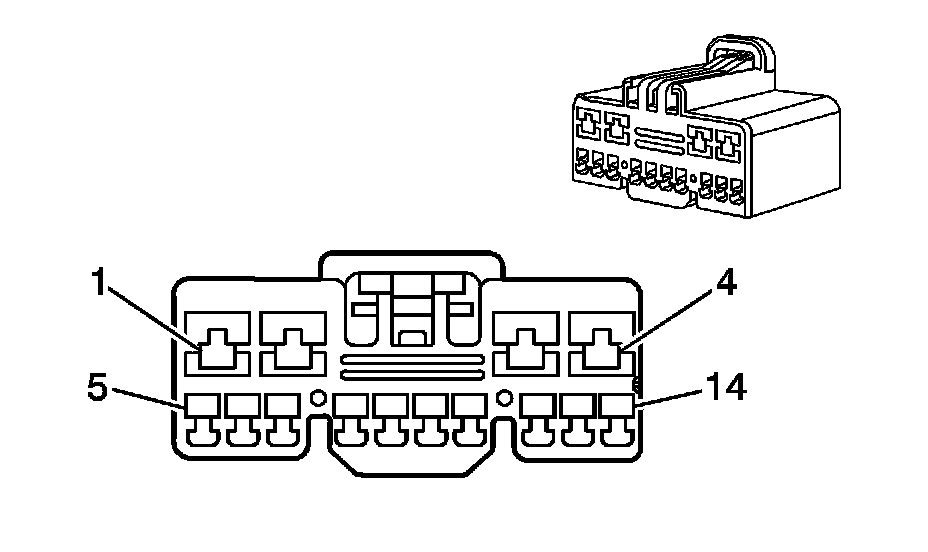

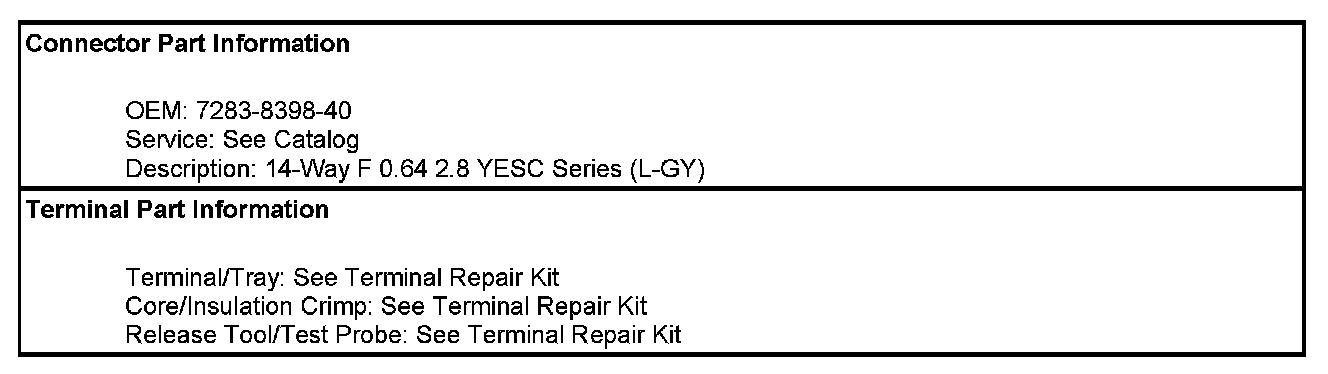

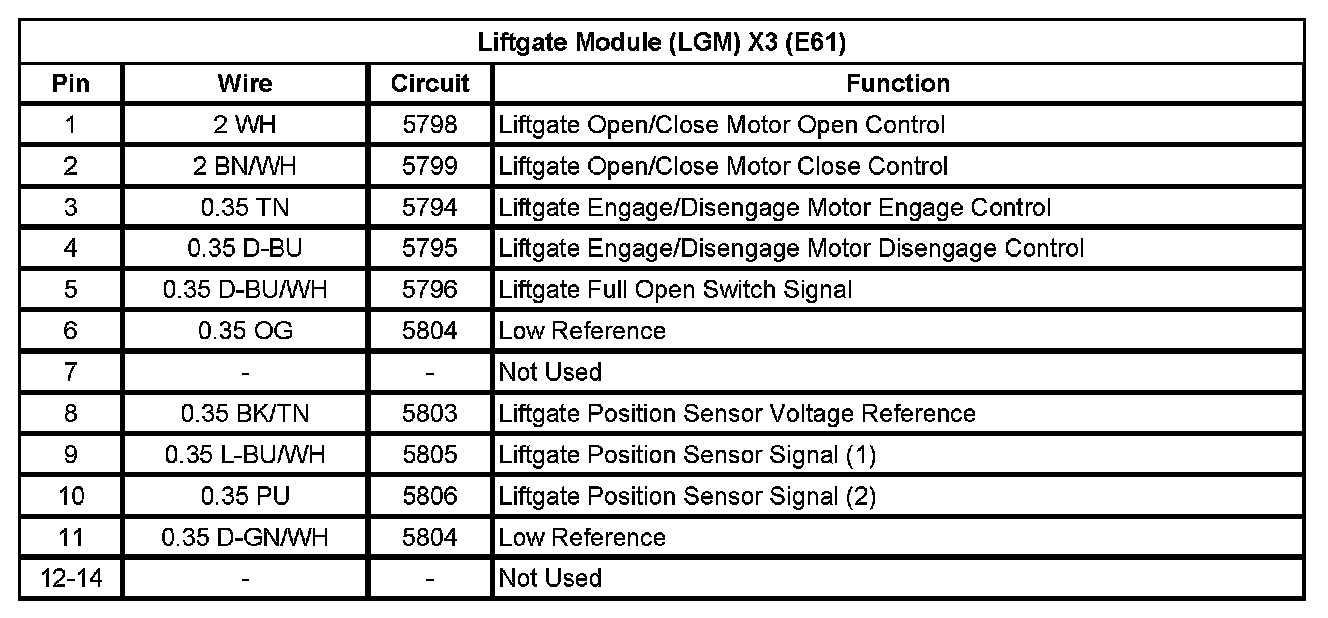

Liftgate Module (LGM) X3 (E61)
