Power Window Switch

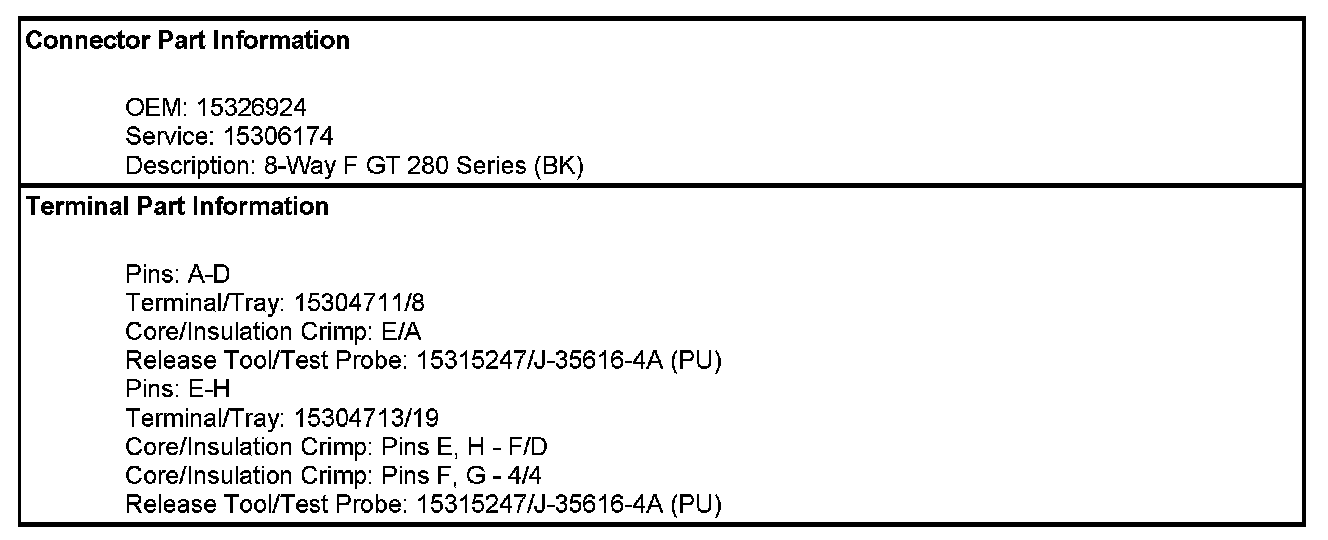

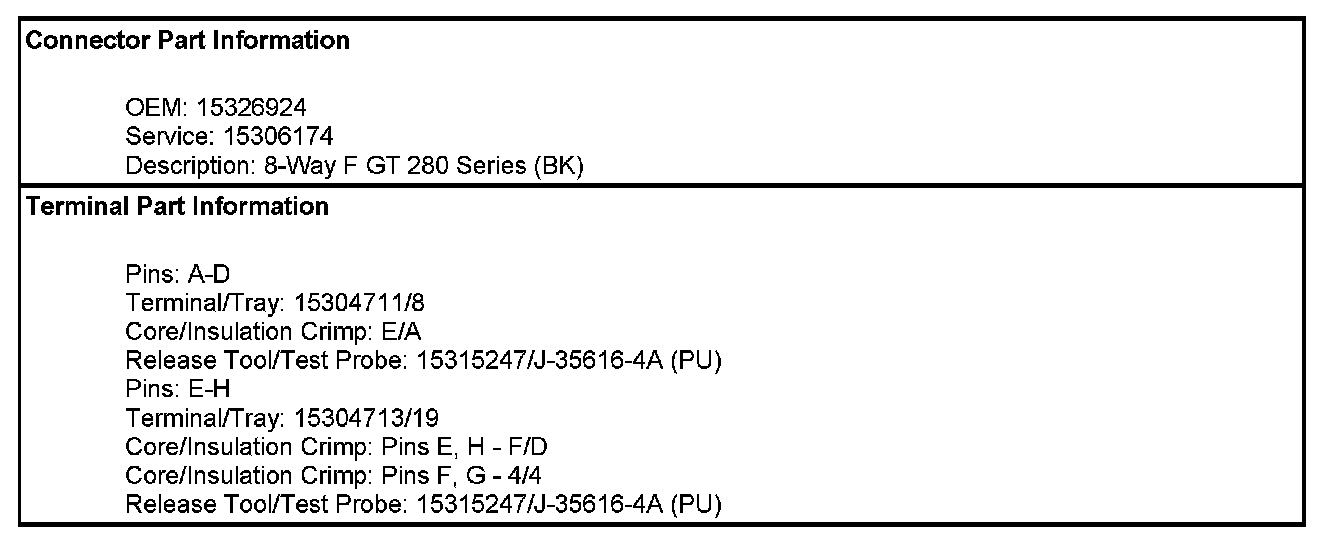

Component Connector End Views

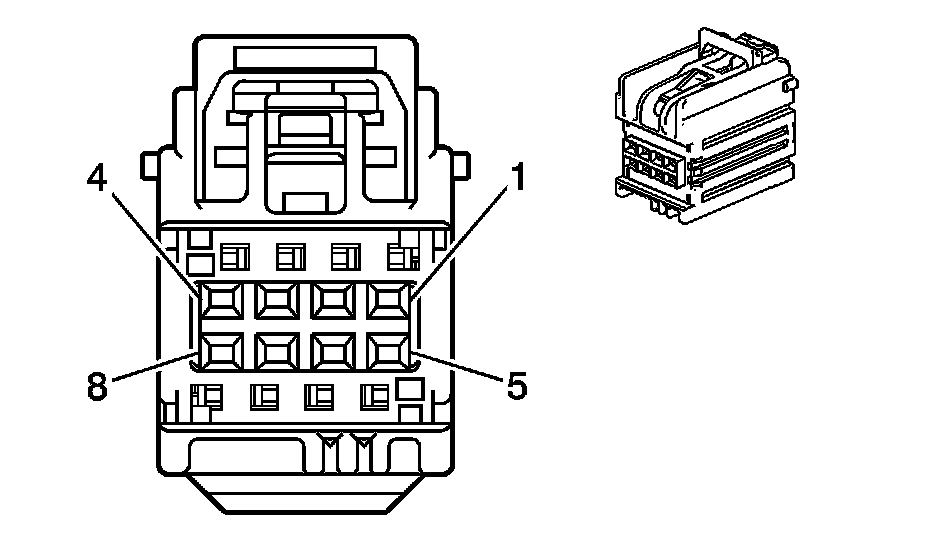

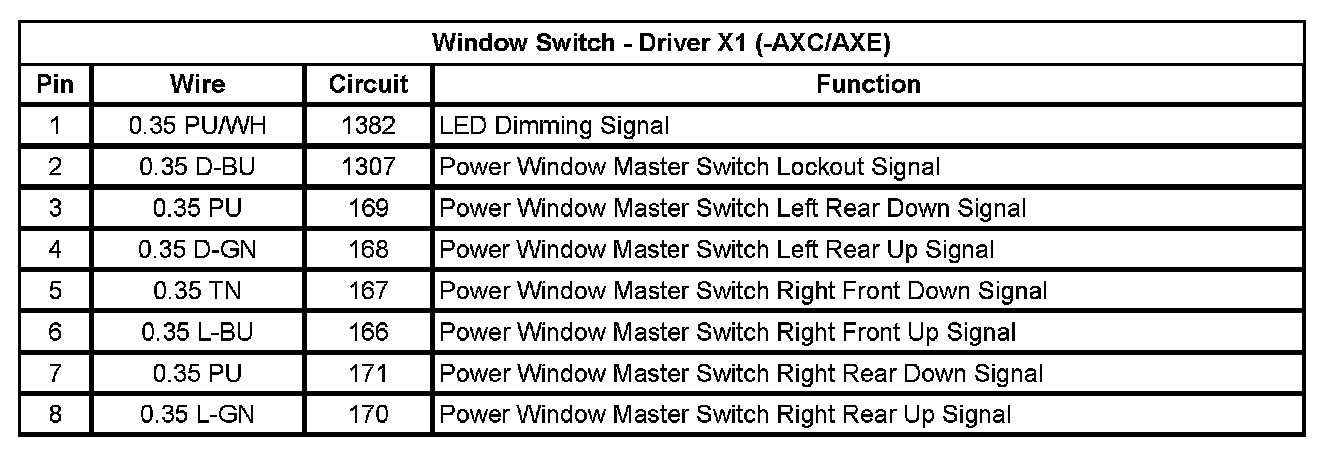

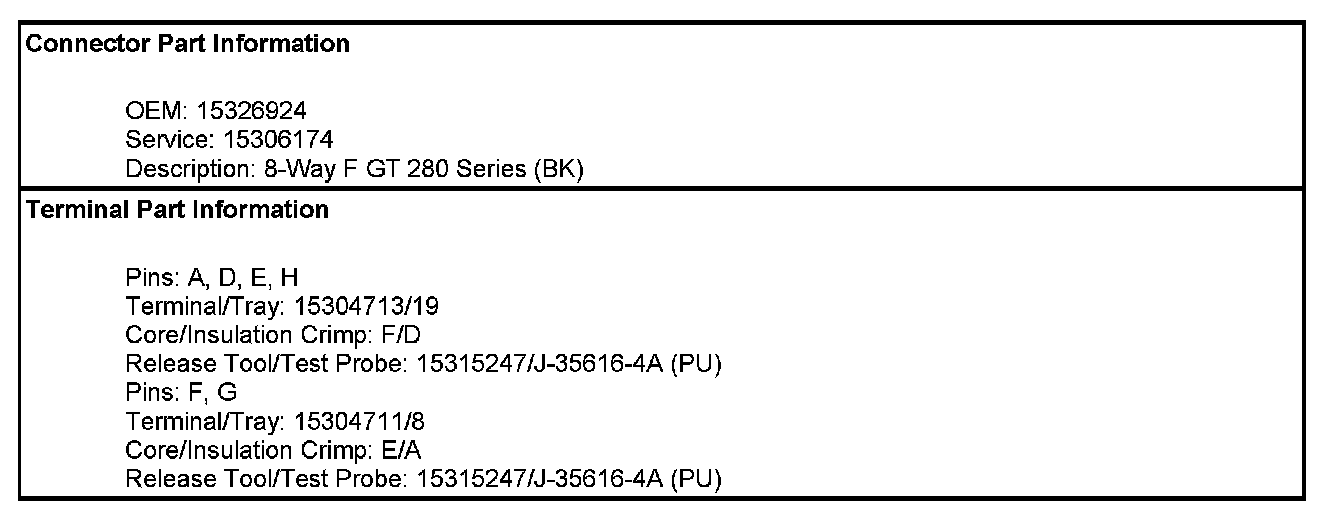

Window Switch - Driver X1 (-AXC/AXE)

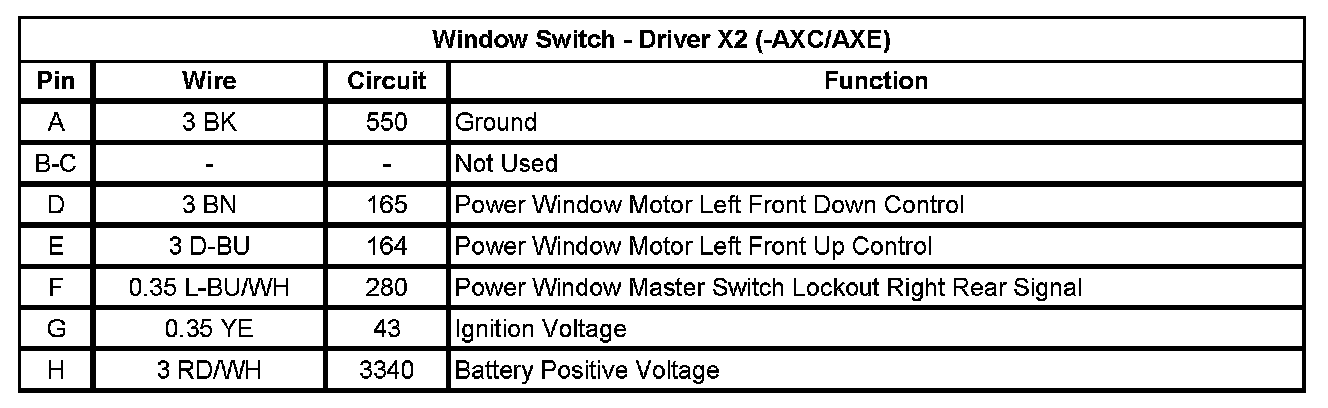

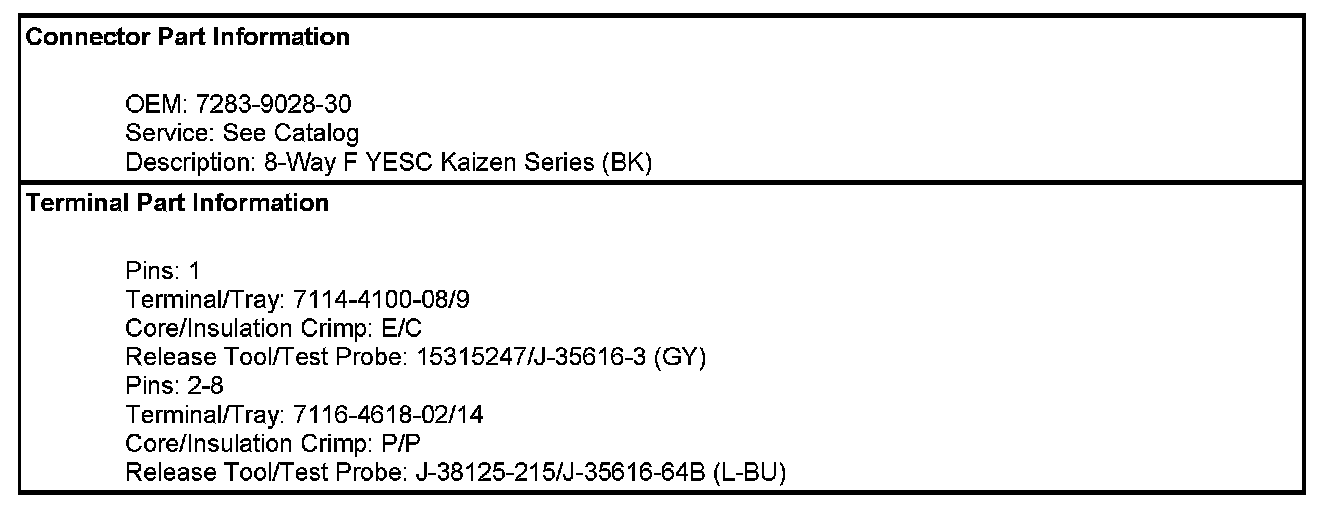

Window Switch - Driver X2 (-AXC/AXE)

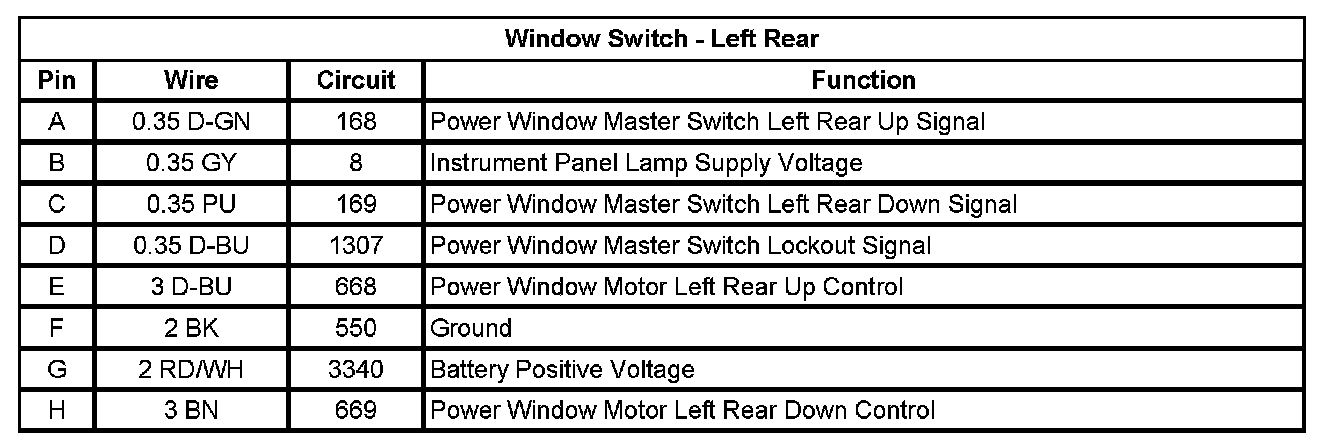

Window Switch - Left Rear

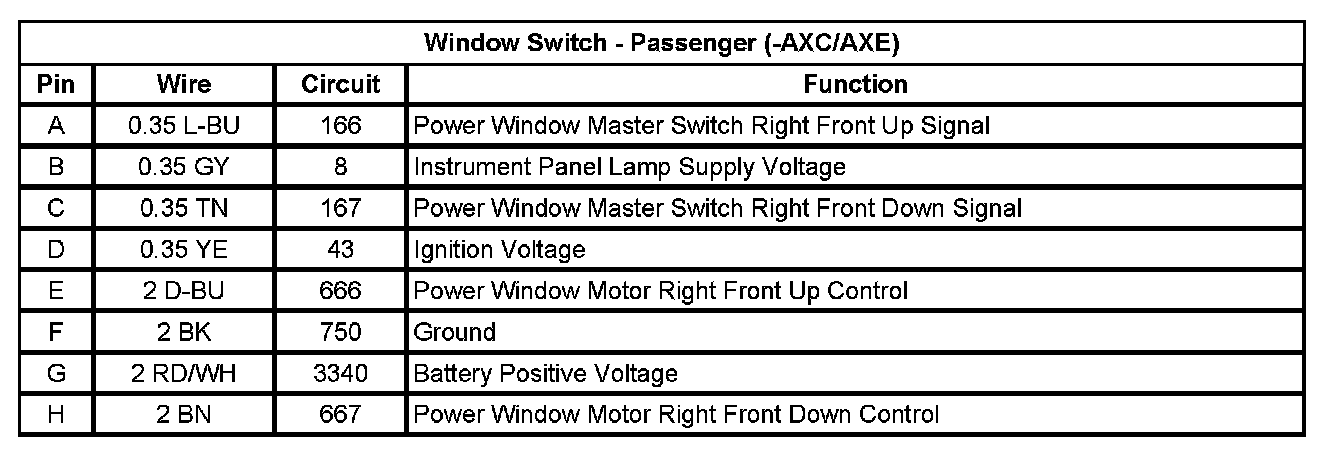

Window Switch - Passenger (-AXC/AXE)

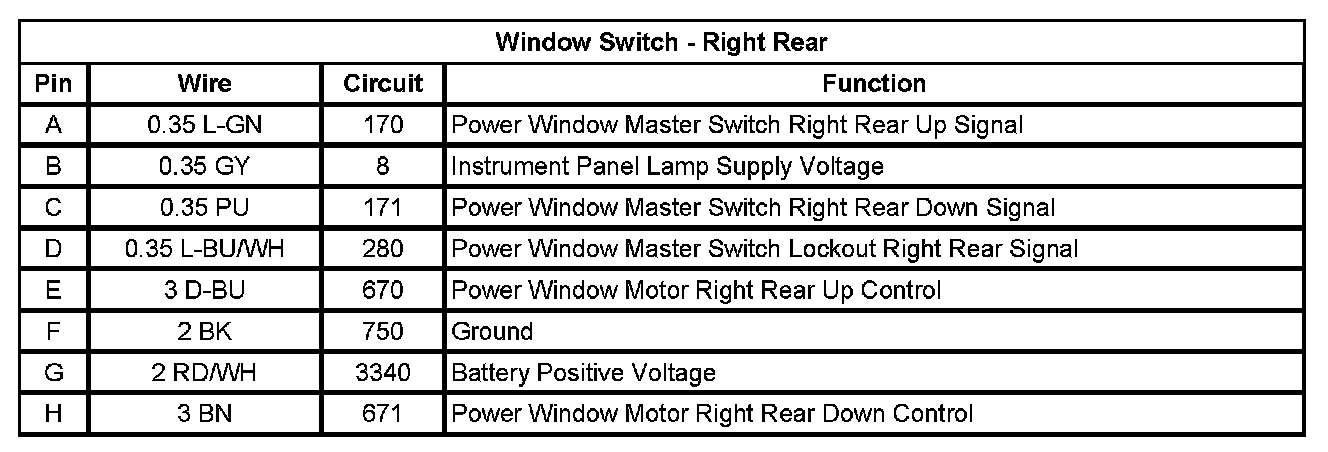

Window Switch - Right Rear
