Vanity Lamp

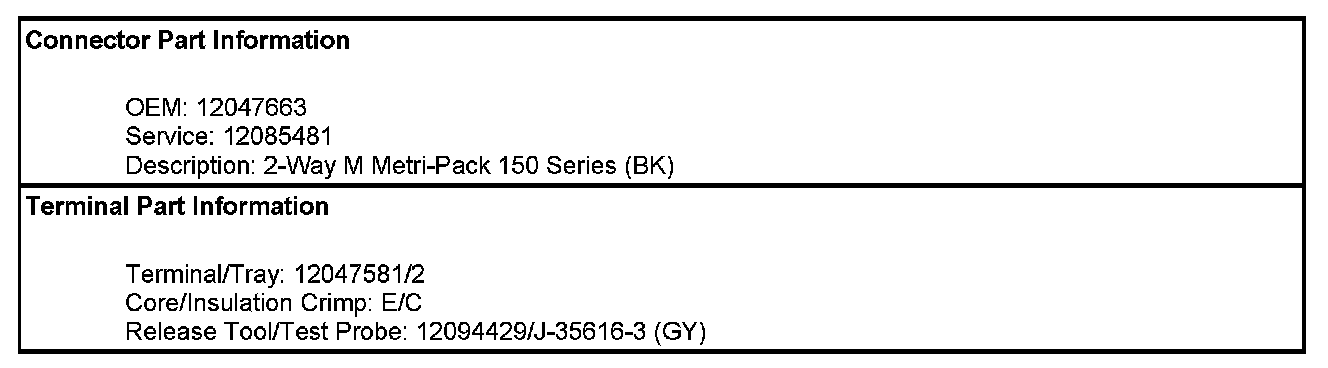

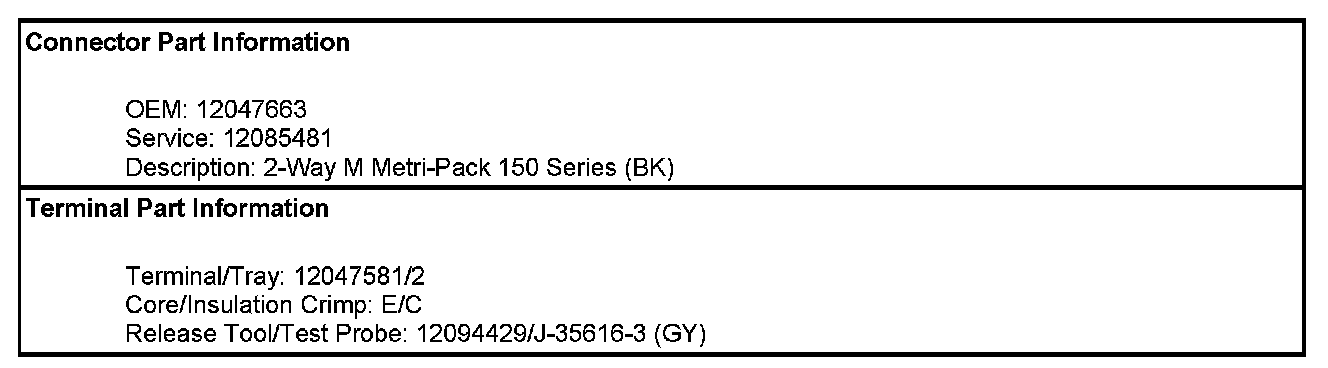

Component Connector End Views

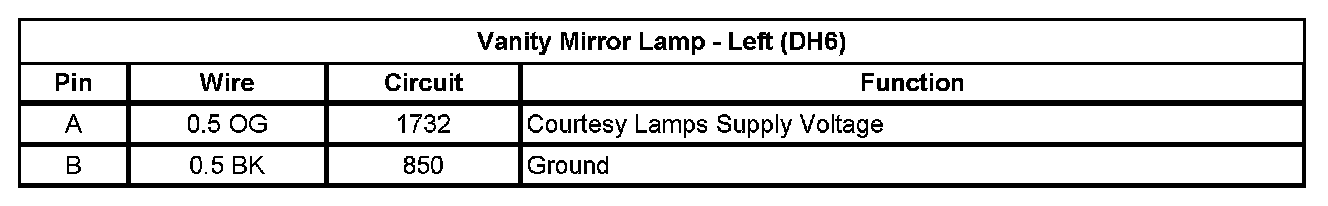

Vanity Mirror Lamp - Left (DH6)

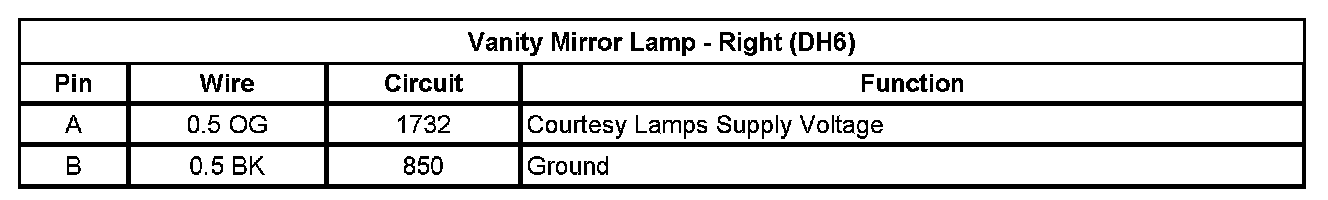

Vanity Mirror Lamp - Right (DH6)
