Connector Views



Component Connector End Views

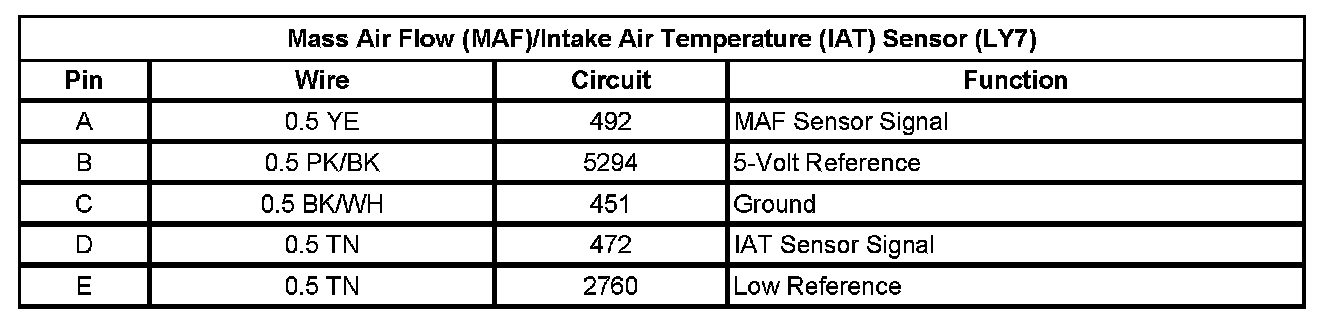

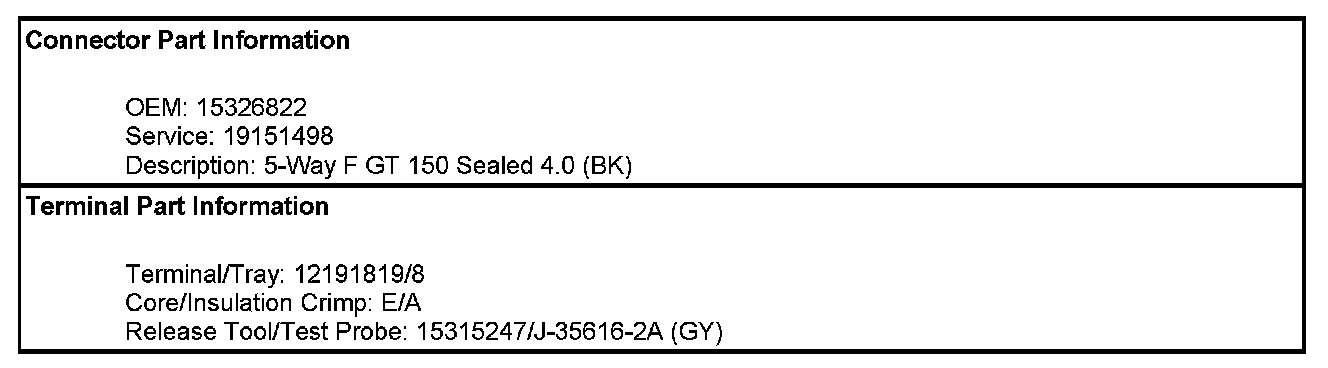

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LY7)
