Connector Views

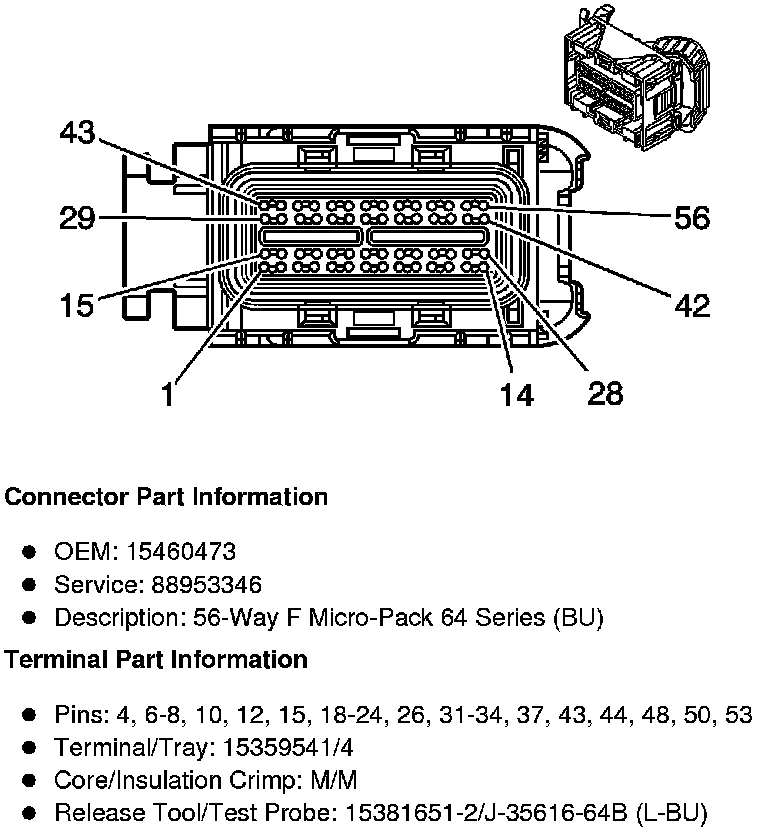

Component Connector End Views

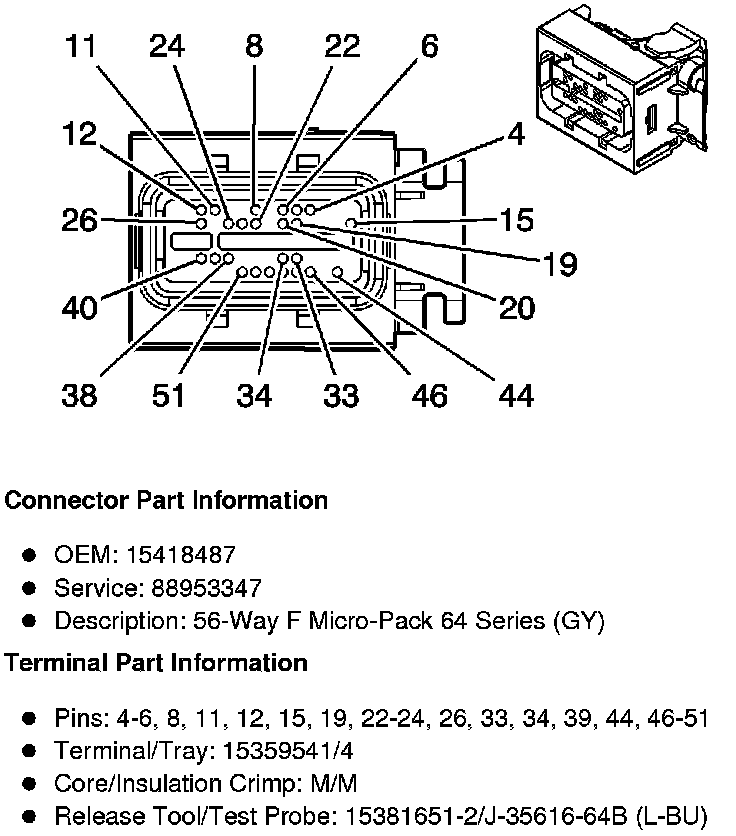

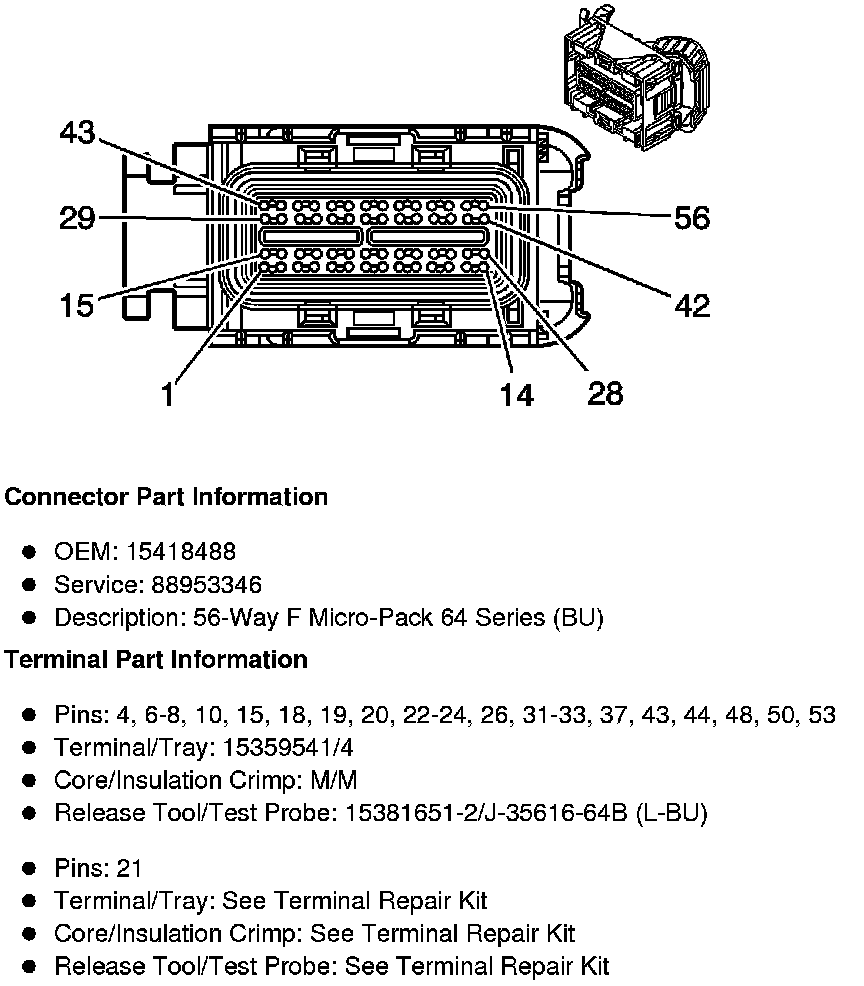

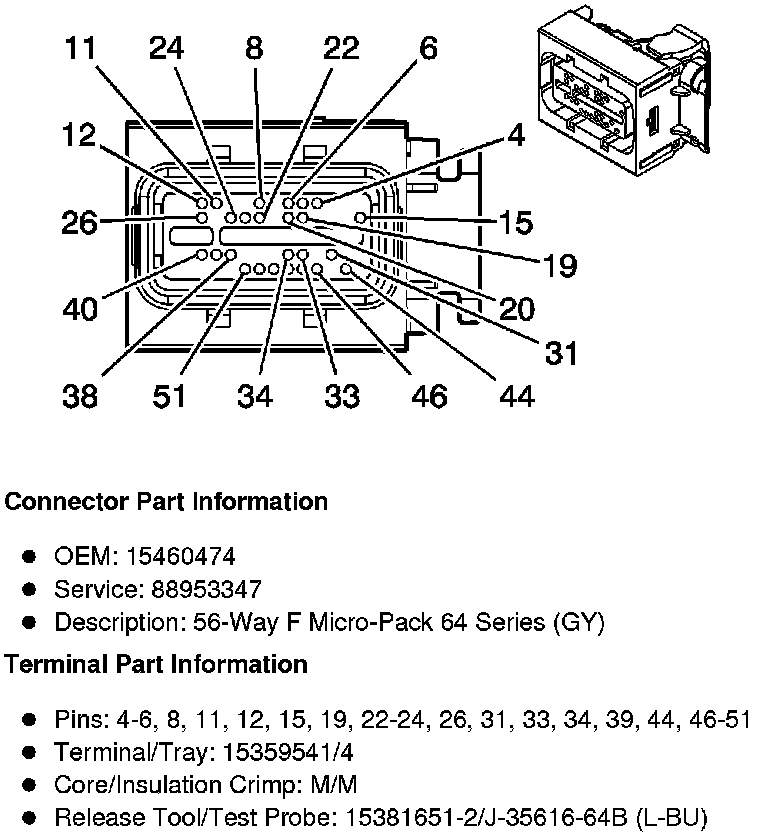

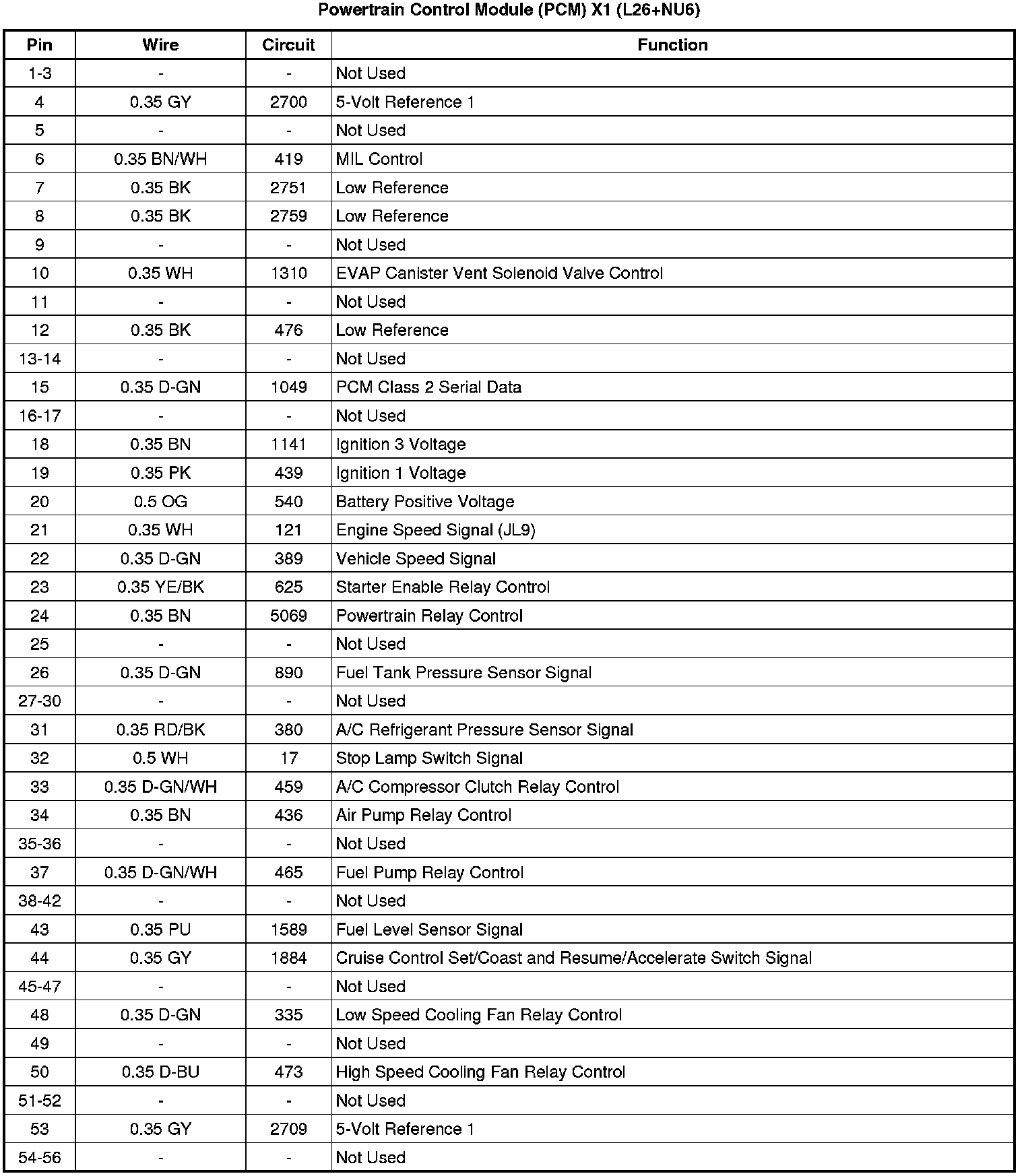

Powertrain Control Module (PCM) X1 (L26+NU6)

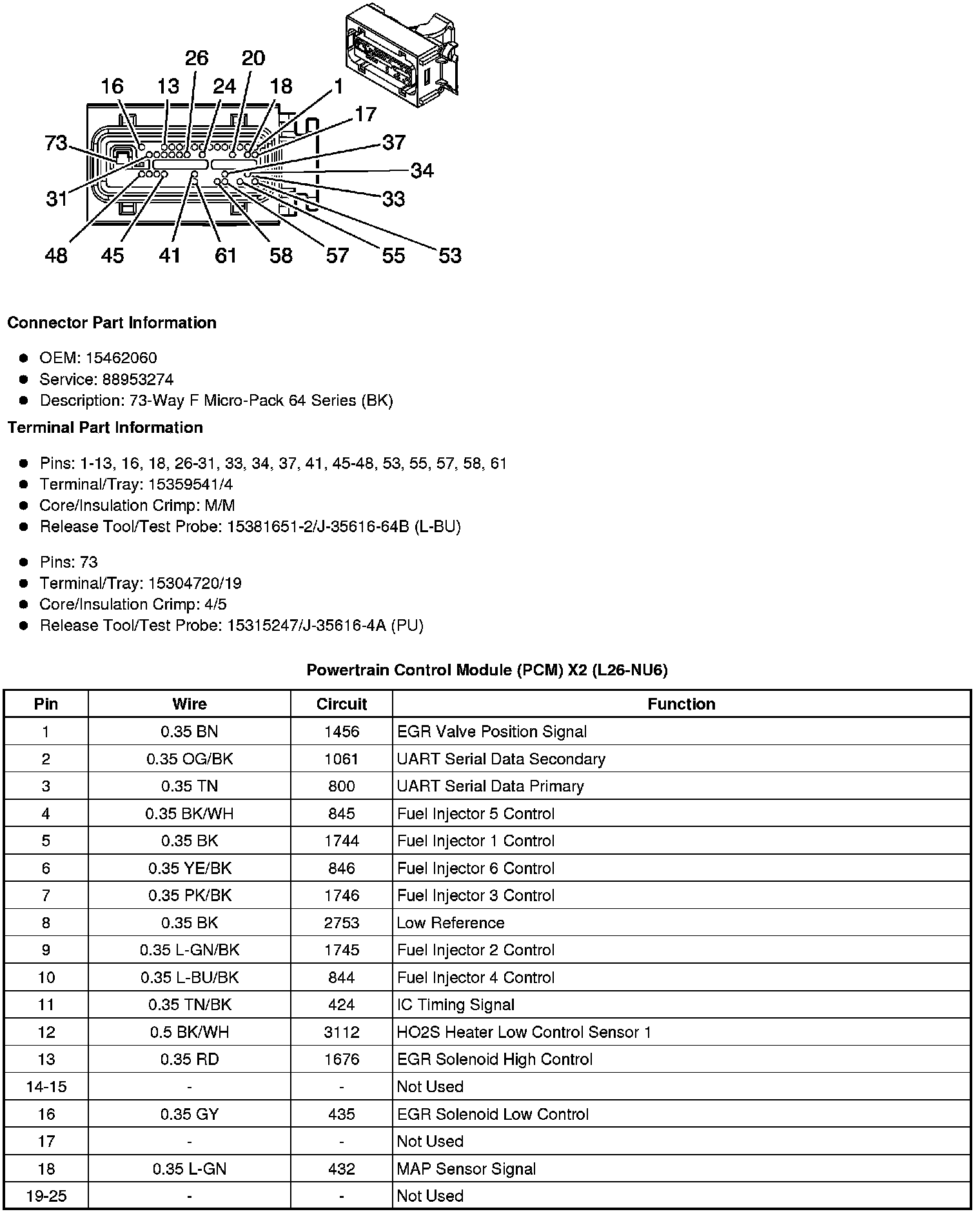

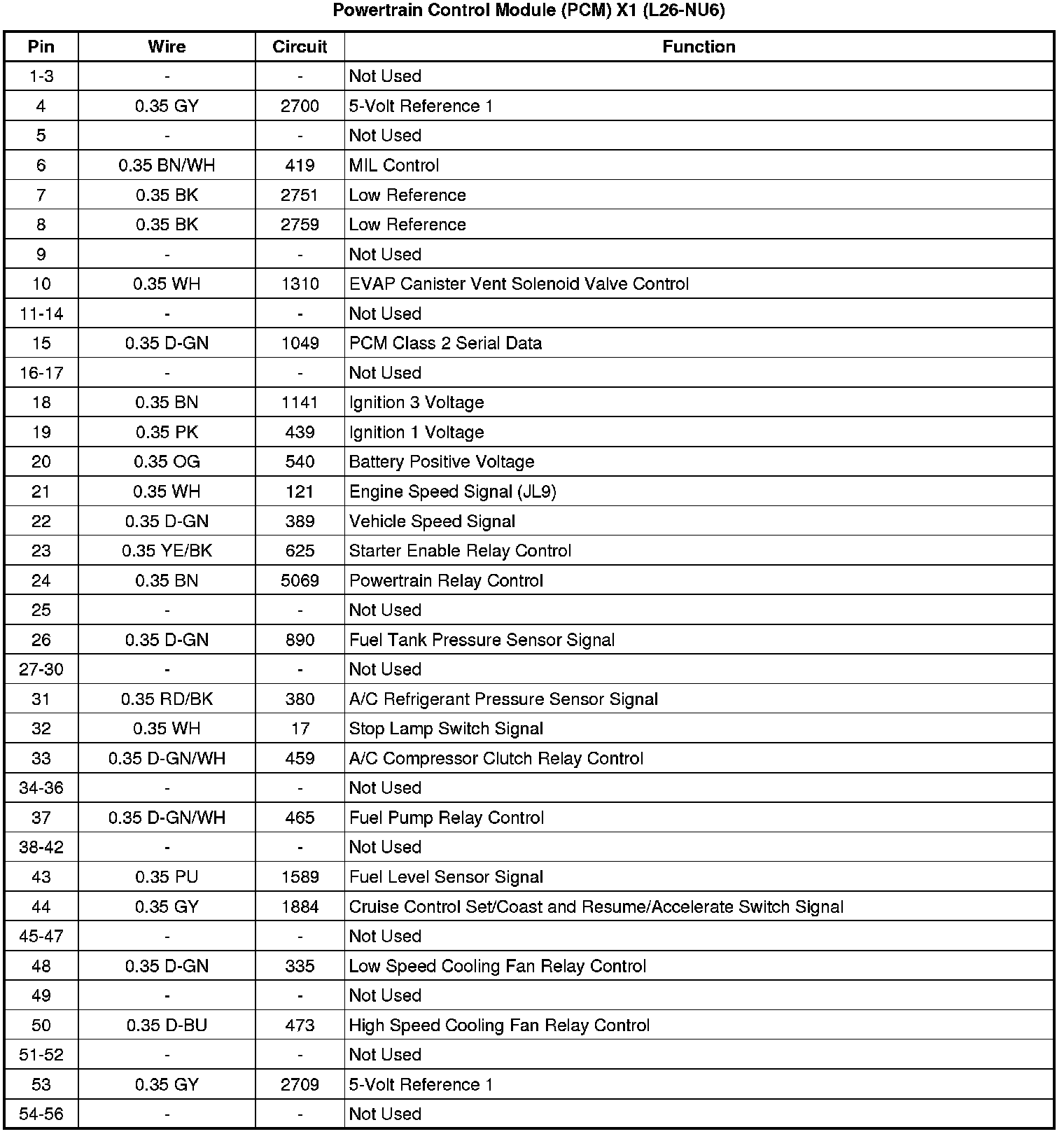

Powertrain Control Module (PCM) X1 (L26-NU6)

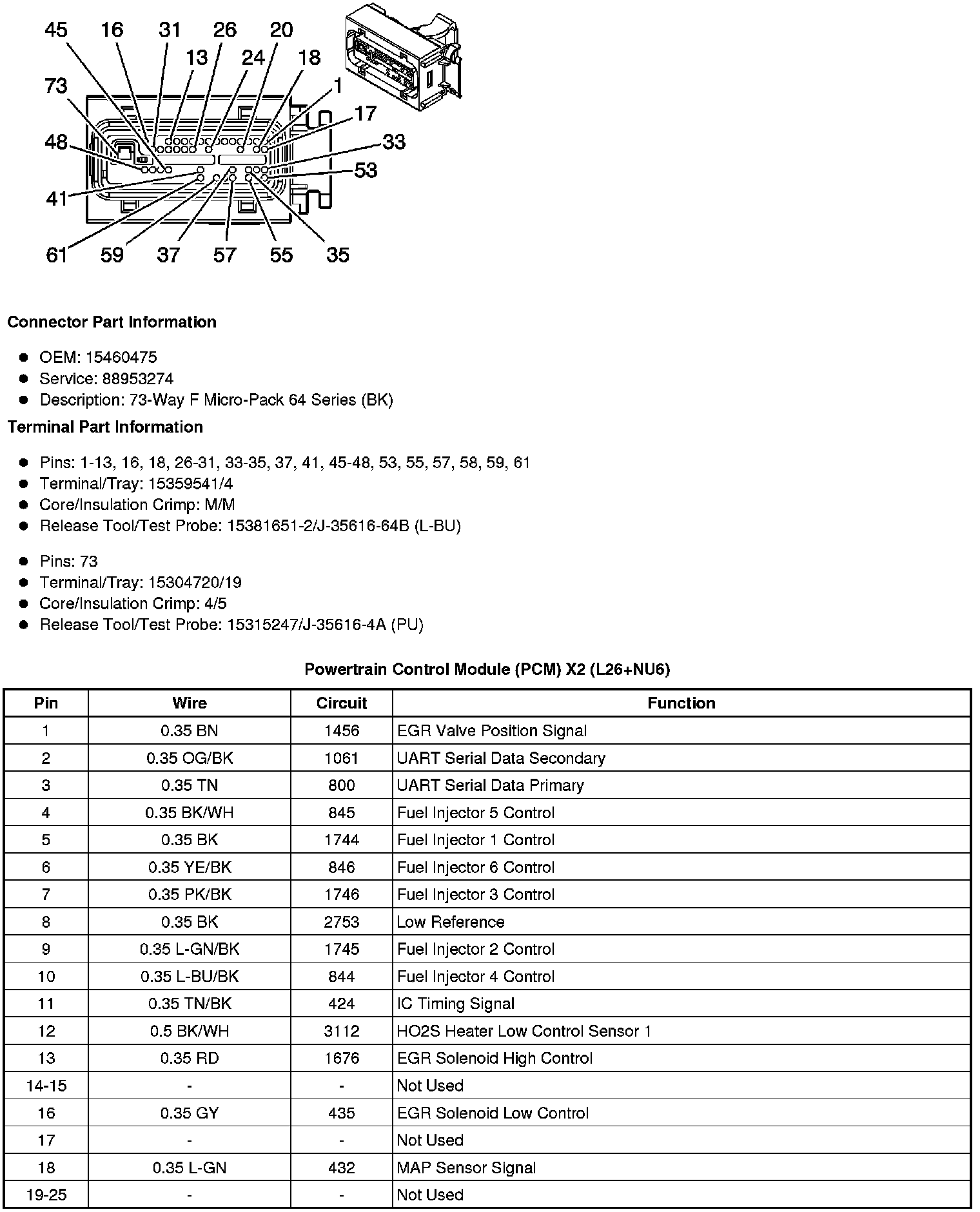

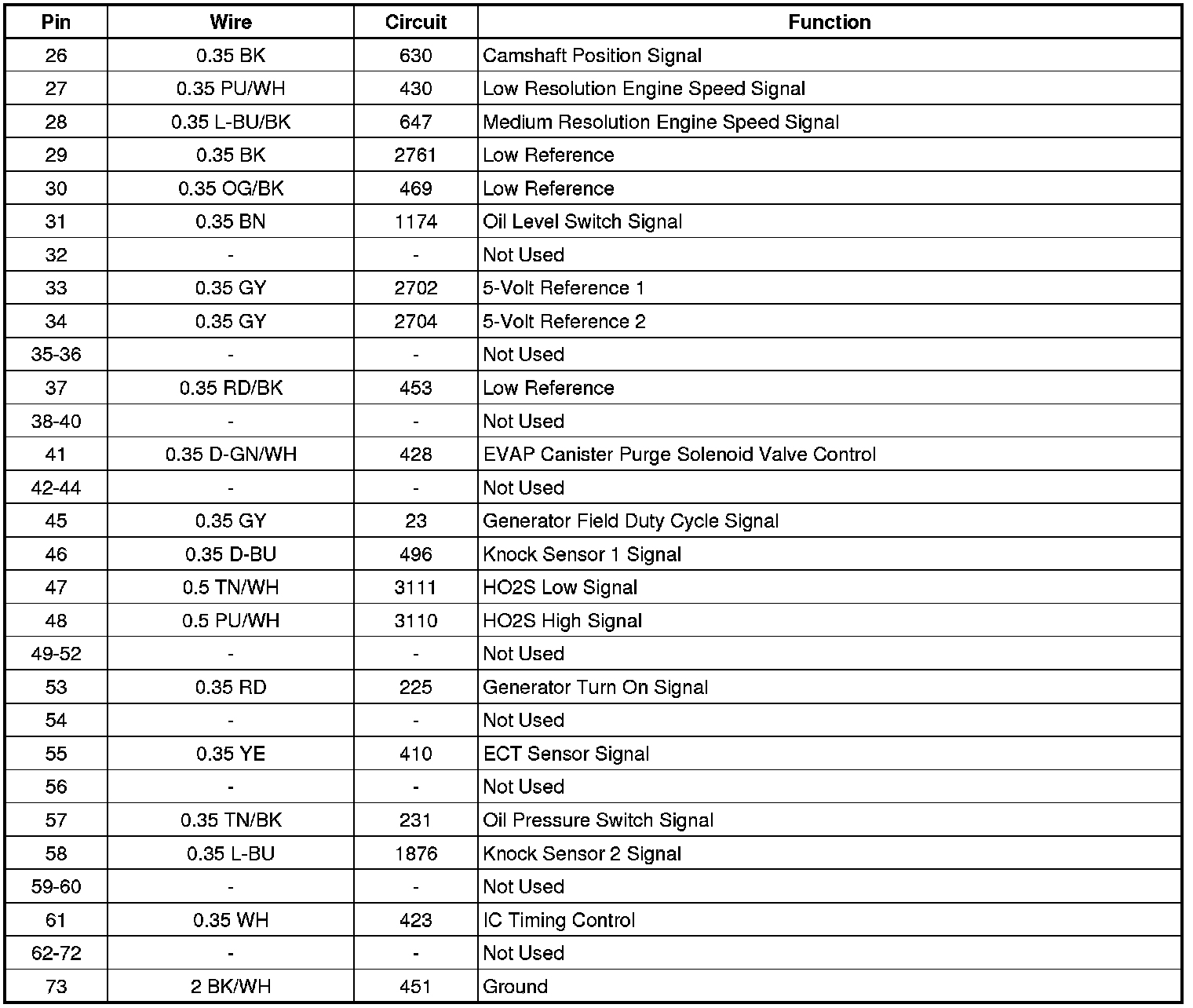

Powertrain Control Module (PCM) X2 (L26+NU6)

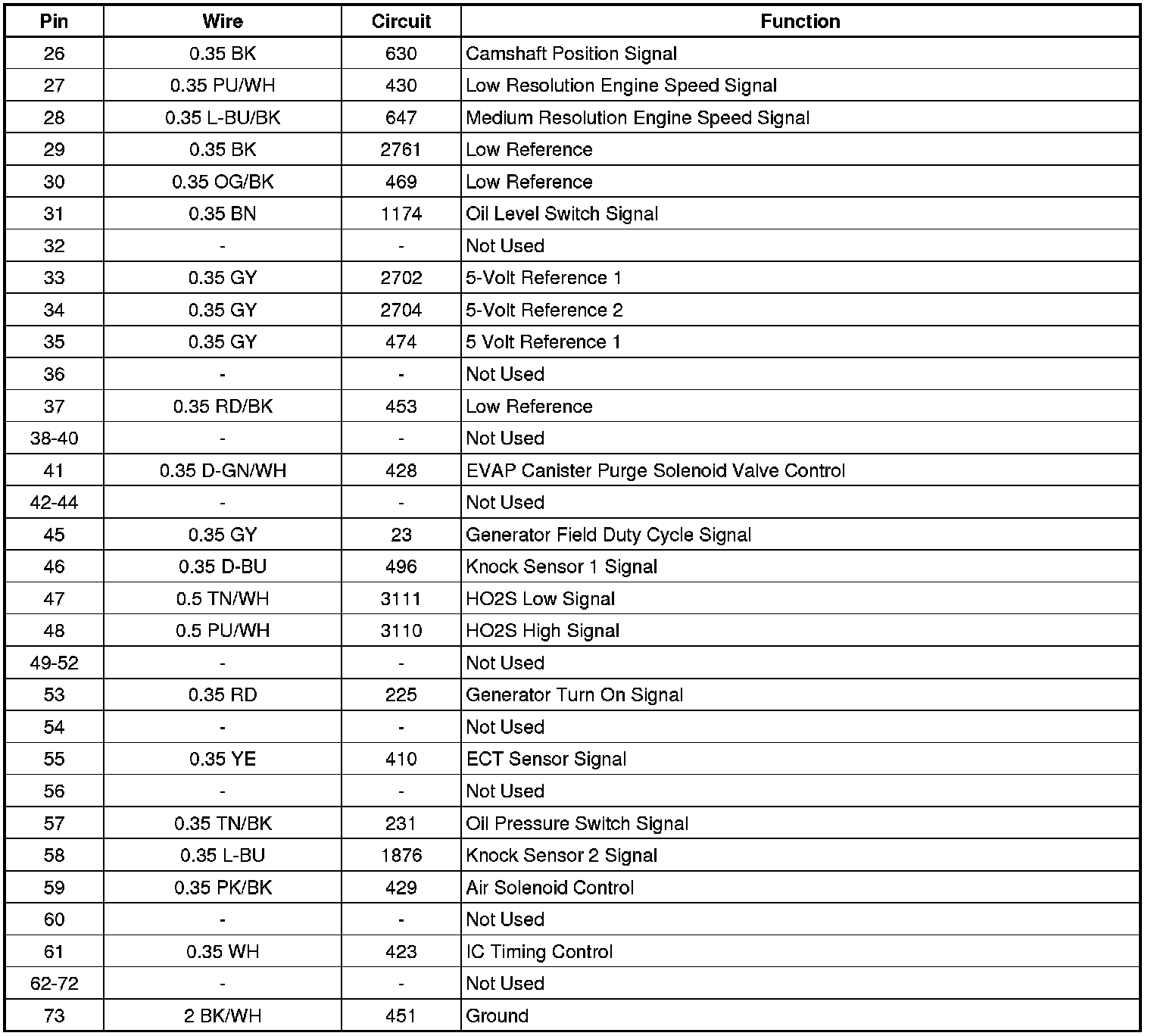

Powertrain Control Module (PCM) X2 (L26-NU6)

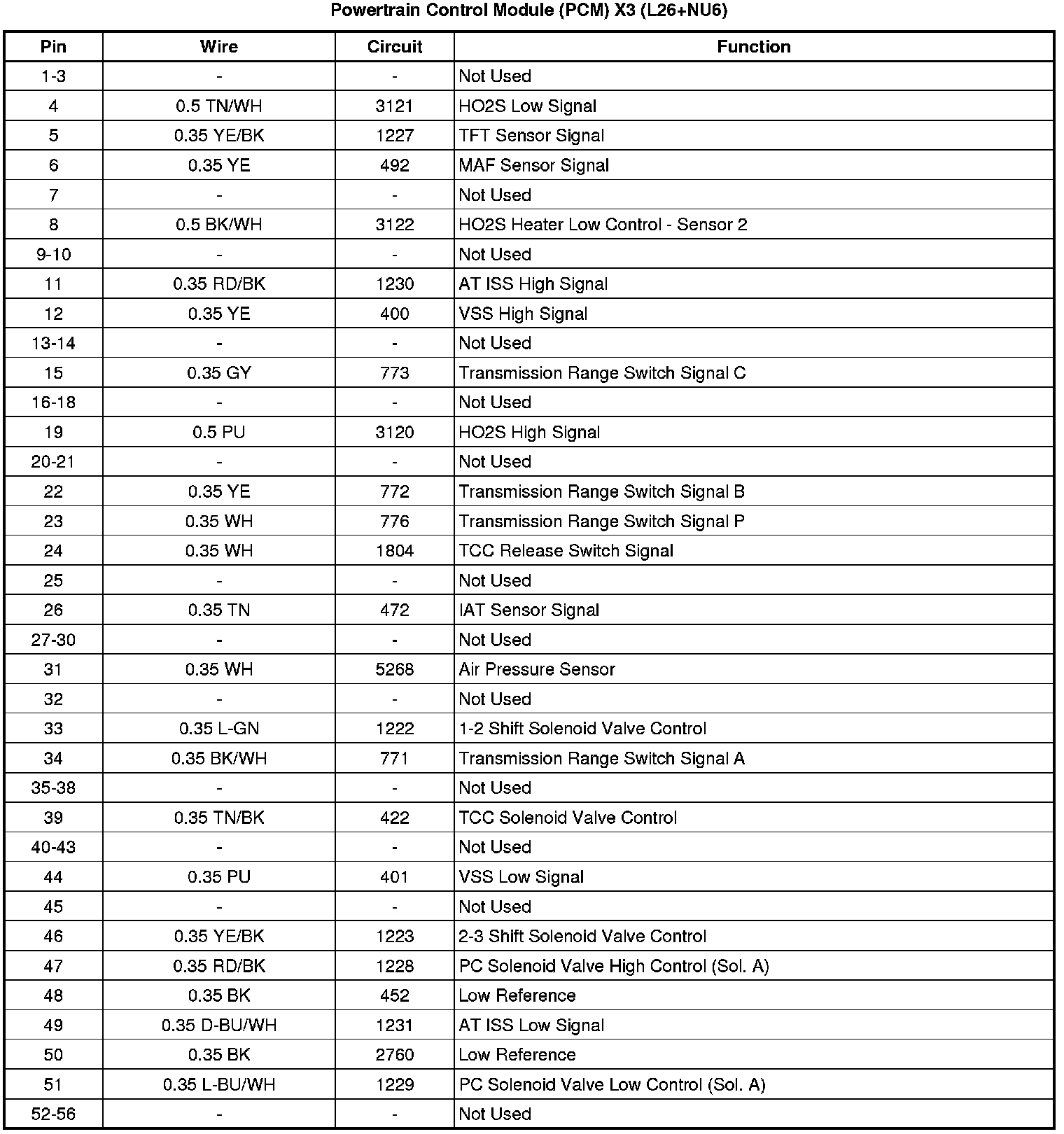

Powertrain Control Module (PCM) X3 (L26+NU6)

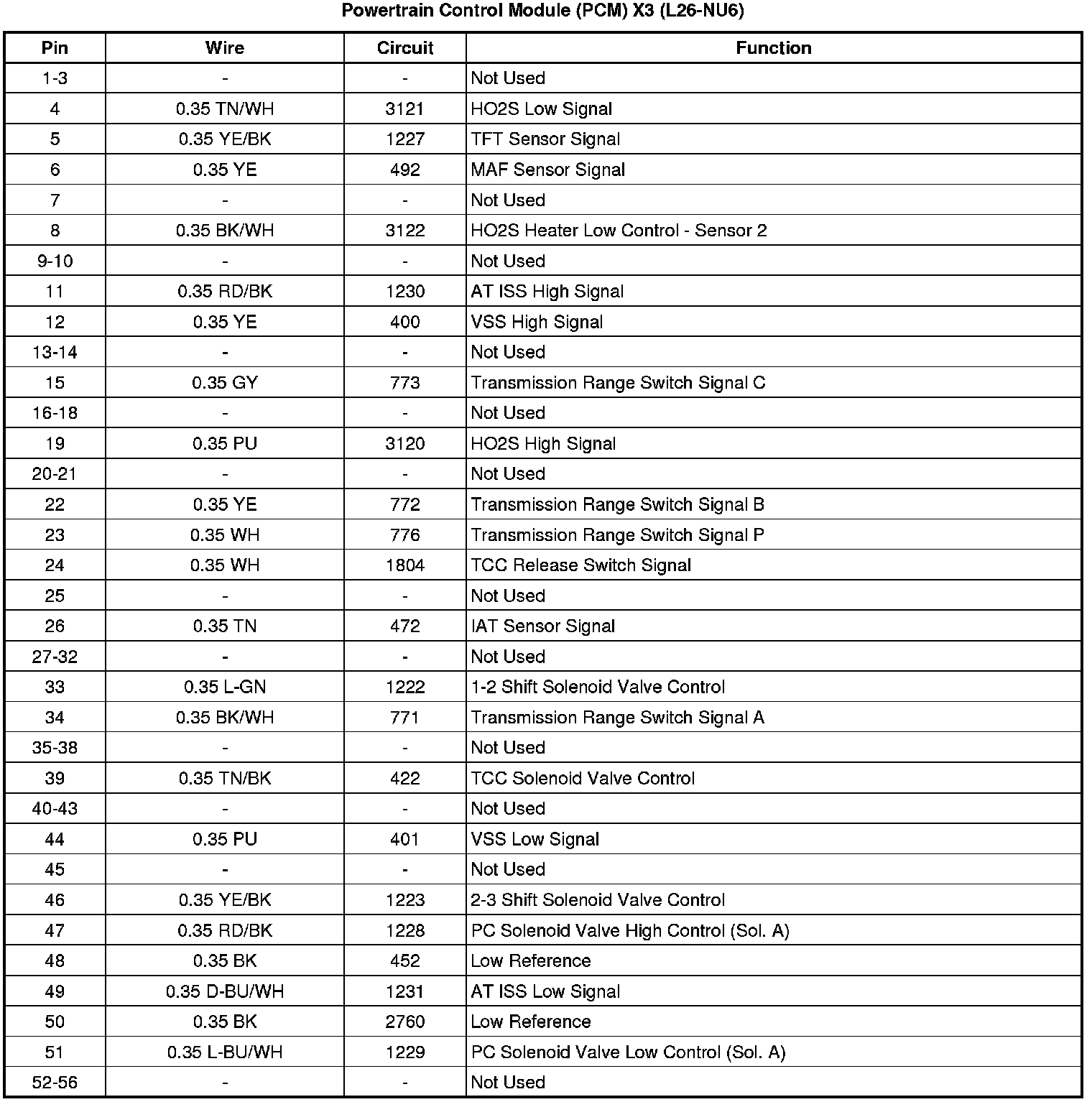

Powertrain Control Module (PCM) X3 (L26-NU6)
