Removal Procedure

    CAUTION: Refer to SIR Caution .
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement .
    3. Fig 1: Locating Steering Wheel Bezel & Retaining Screws
    GM720529Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining screws (1) from the steering wheel bezel.
  4. Remove the steering wheel bezel (2).

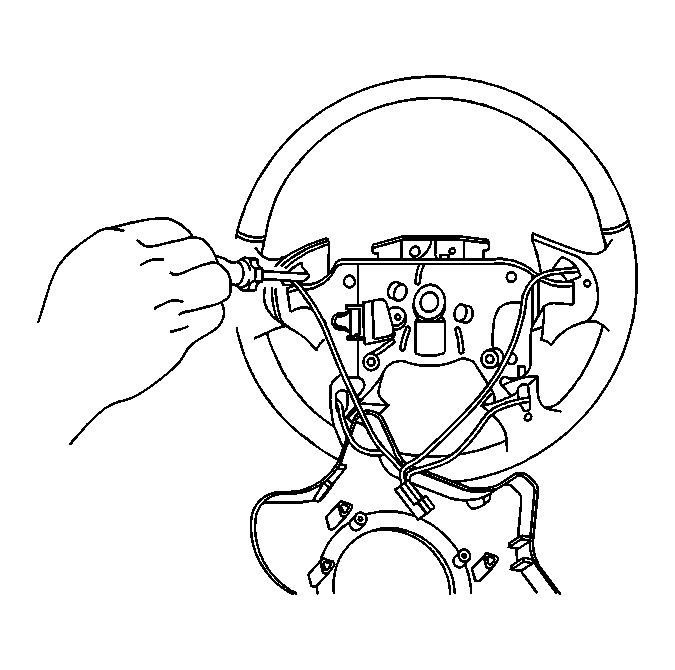

    5. Fig 2: Pushing Switch From Steering Wheel With Small Blunt Ended Tool
    GM720531Courtesy of GENERAL MOTORS CORP.
  5. Insert a small, blunt ended tool into the access hole in the back of the steering wheel in order to push the switch out of the steering wheel.
  6. Disconnect the electrical connector.
