Engine Control Module



Component Connector End Views

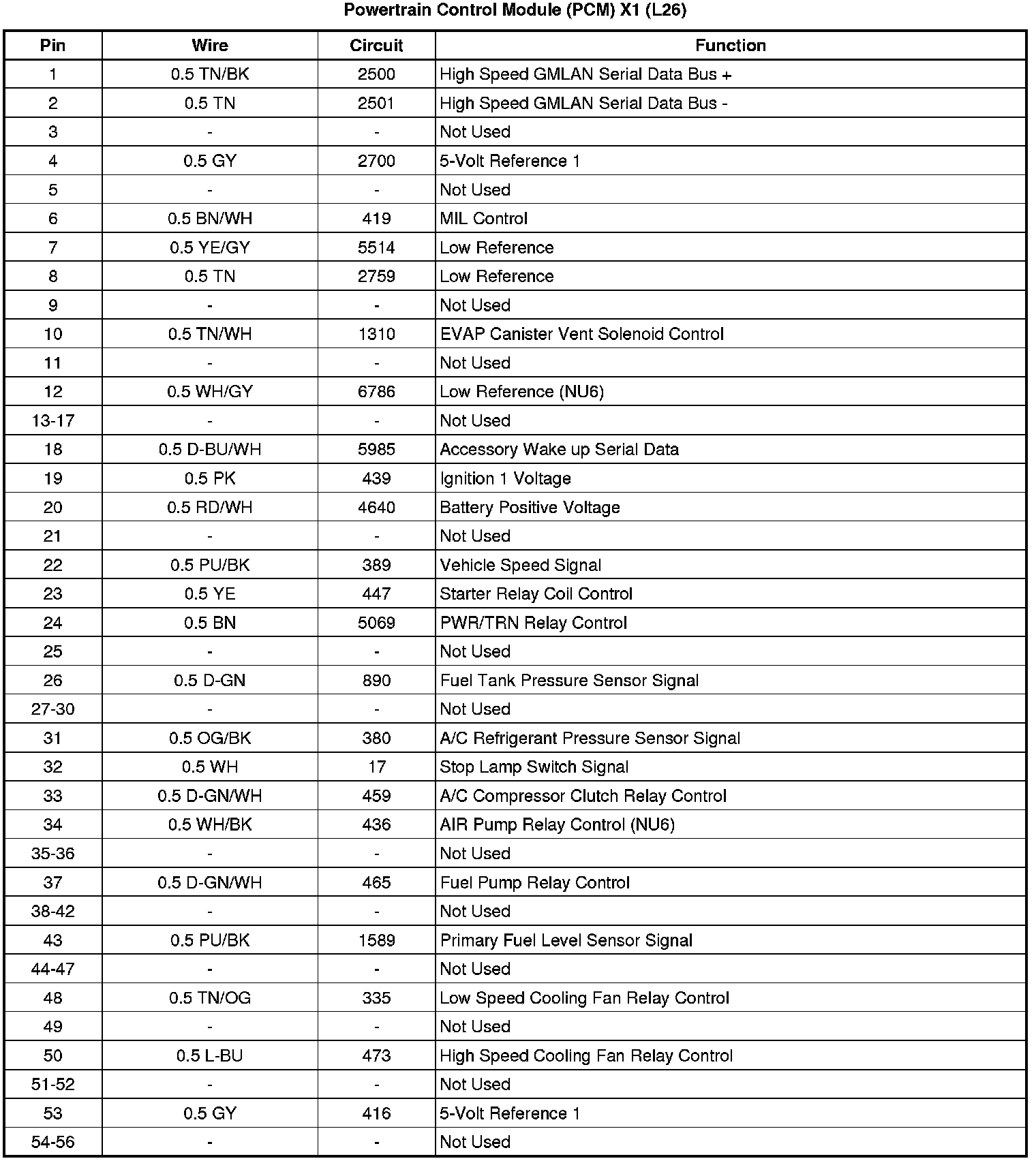

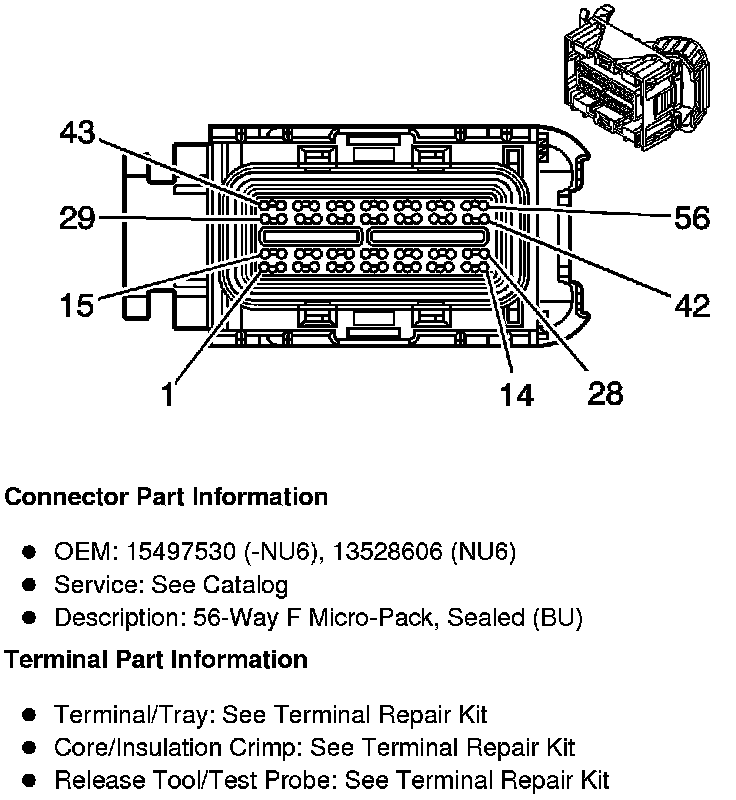

Powertrain Control Module (PCM) X1 (L26/3.8L)

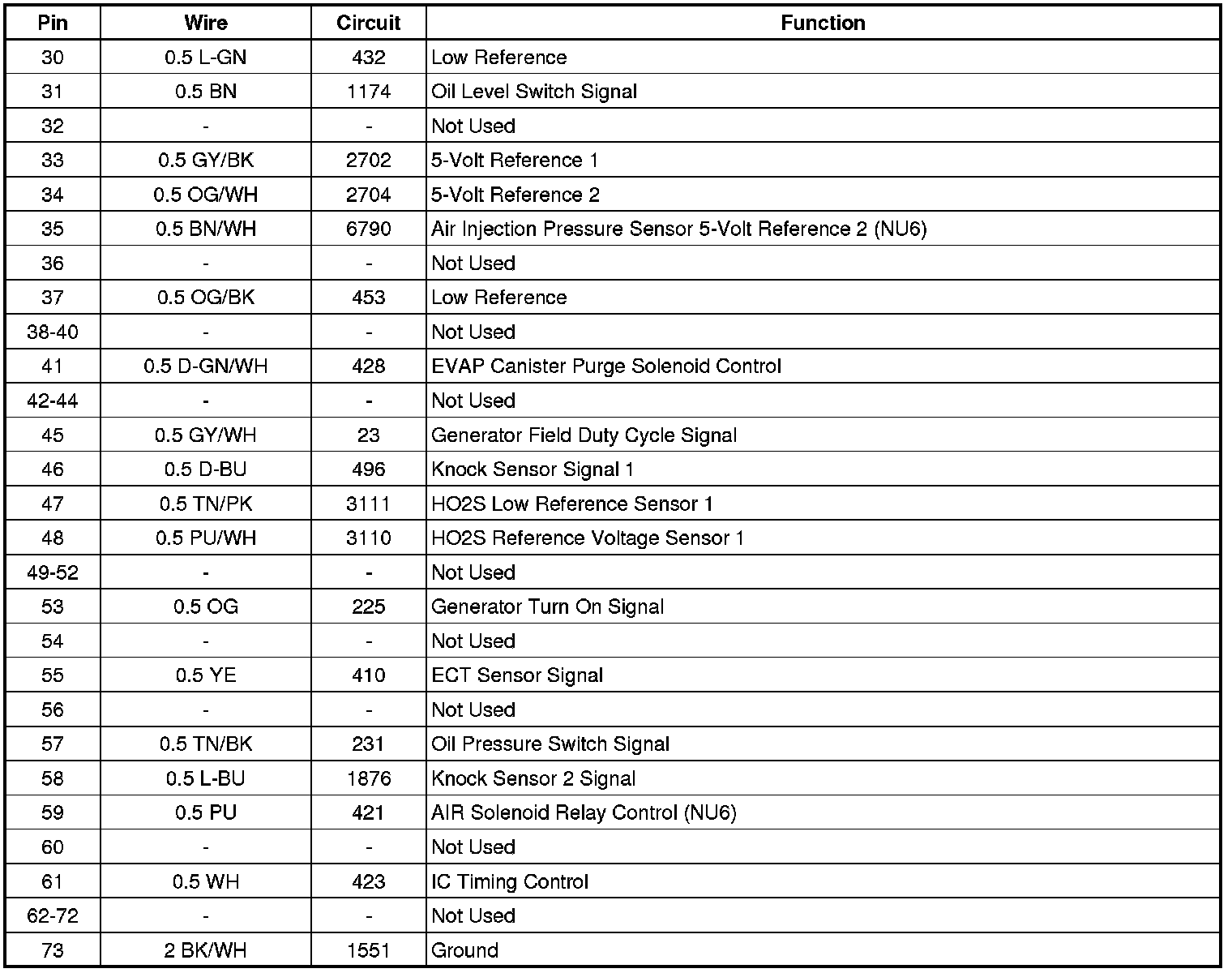

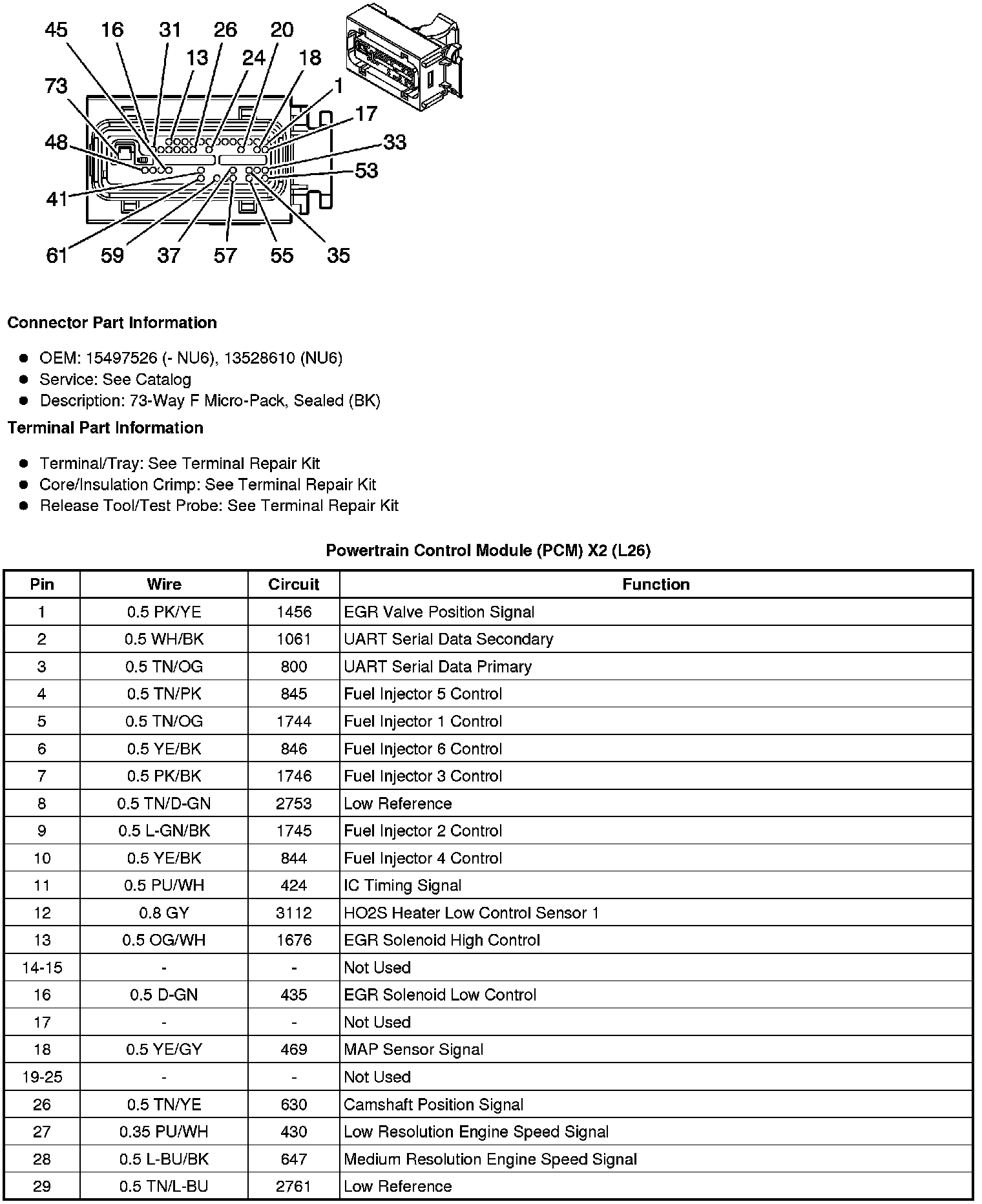

Powertrain Control Module (PCM) X2 (L26/3.8L)

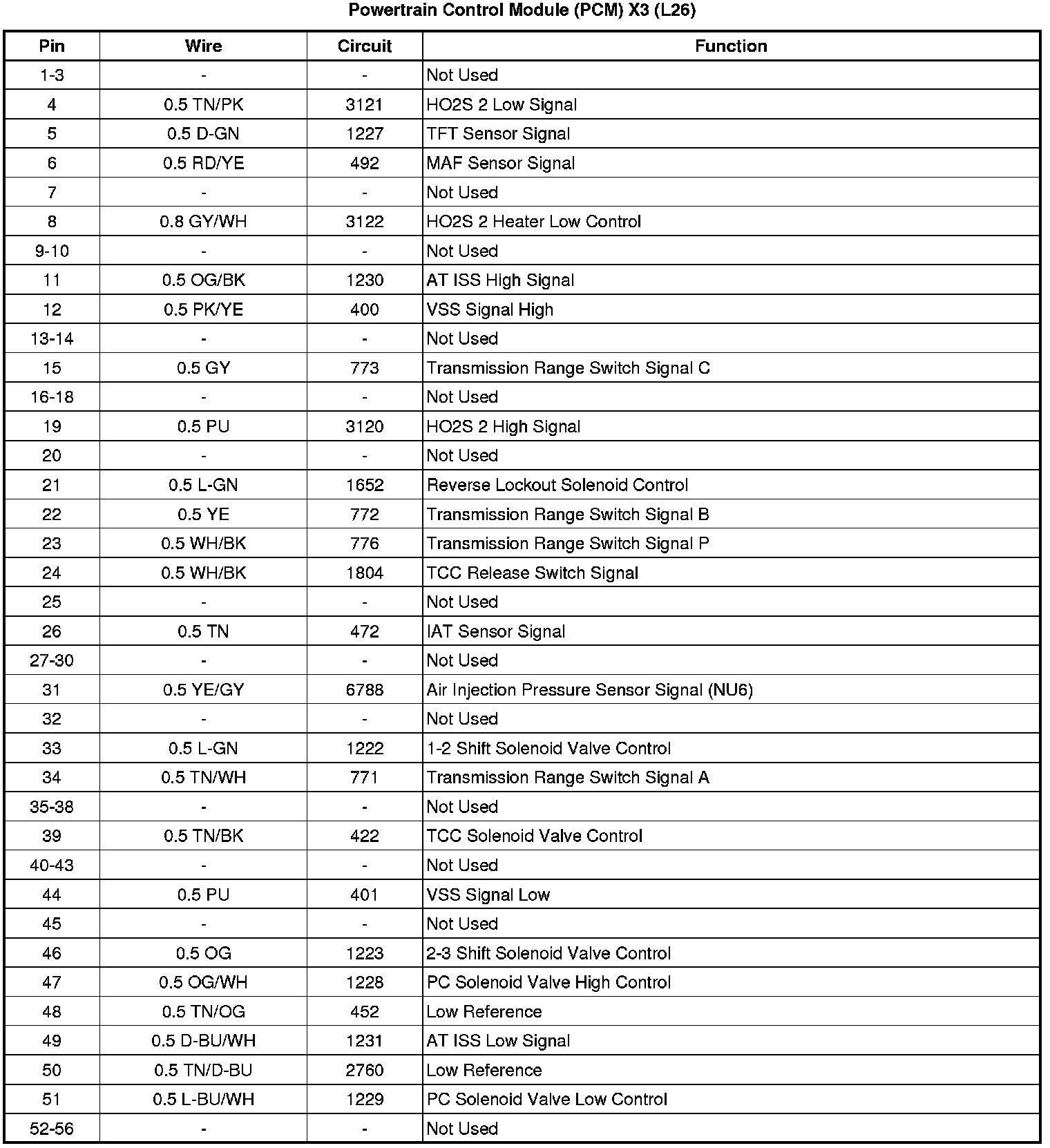

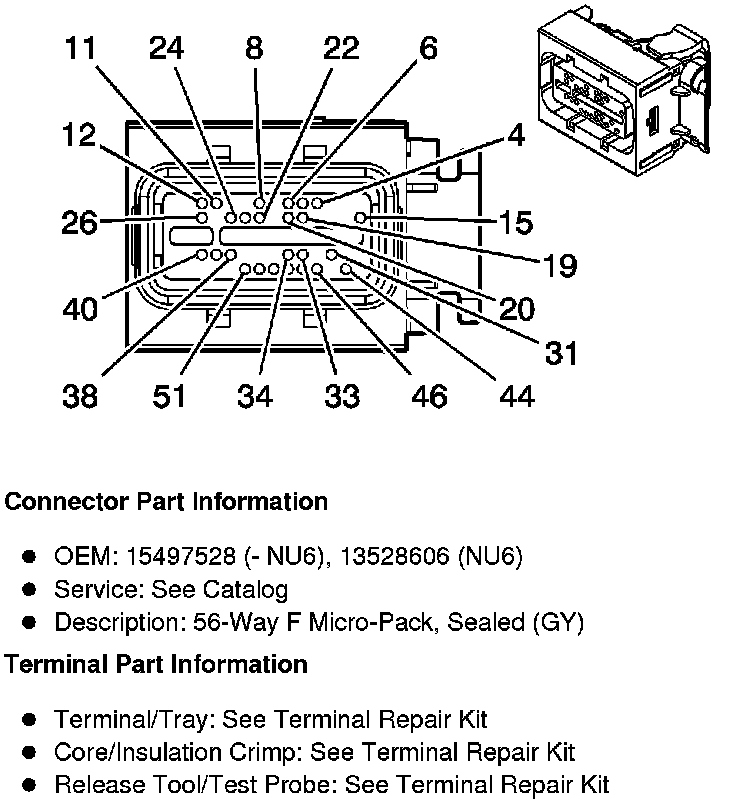

Powertrain Control Module (PCM) X3 (L26/3.8L)
