Fuel Sender Assembly

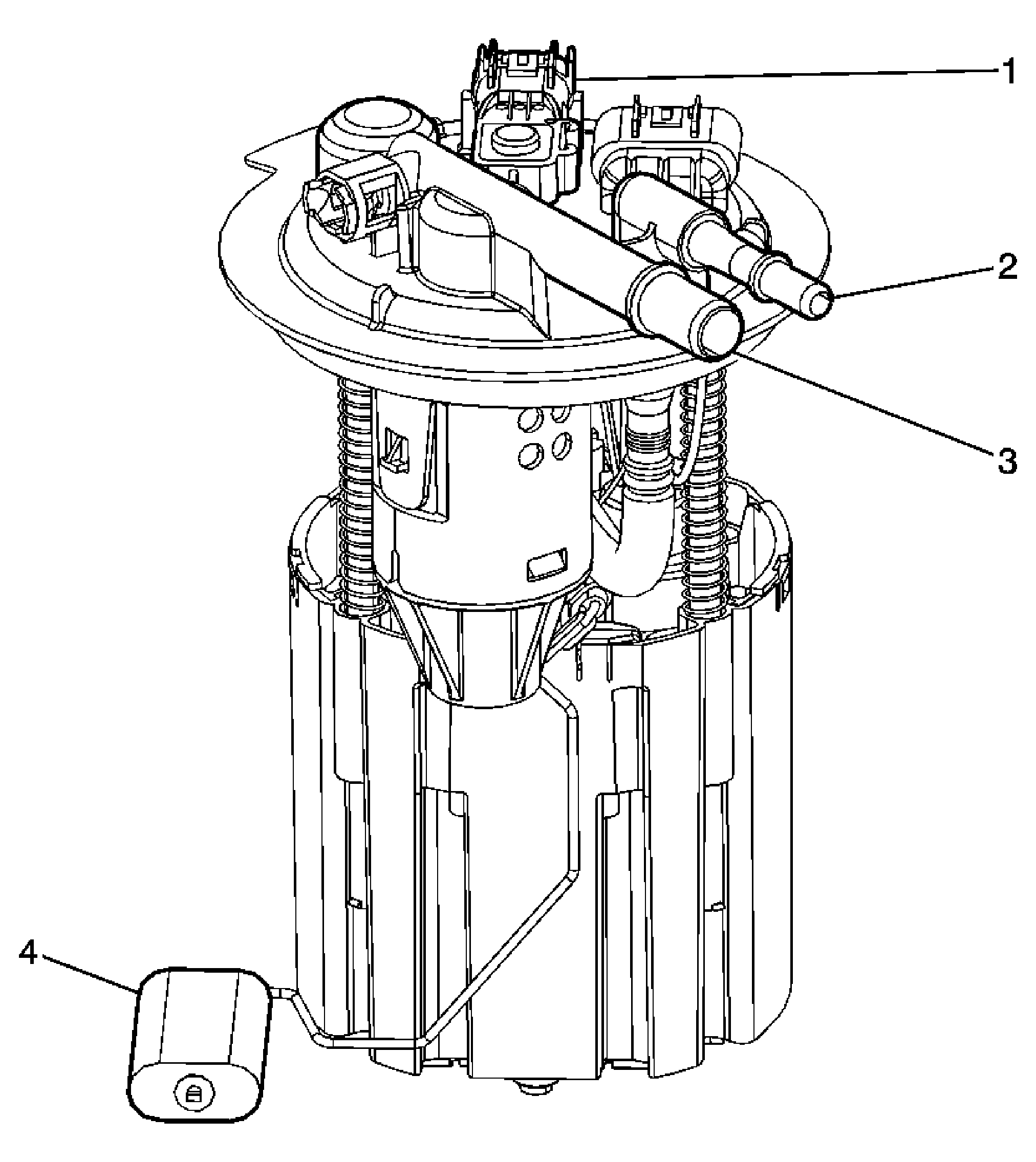

Fig 1: View of Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly consists of the following major components:

• The fuel tank pressure (FTP) sensor (1)
• The post not used (2)
• The fuel feed (3)
• The canister vent (4)
• The fuel limiting vent valve (FLVV) (5)
• The fuel level sensor (6)
• The fuel pump and reservoir assembly (7)
