Air Flow Meter/Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

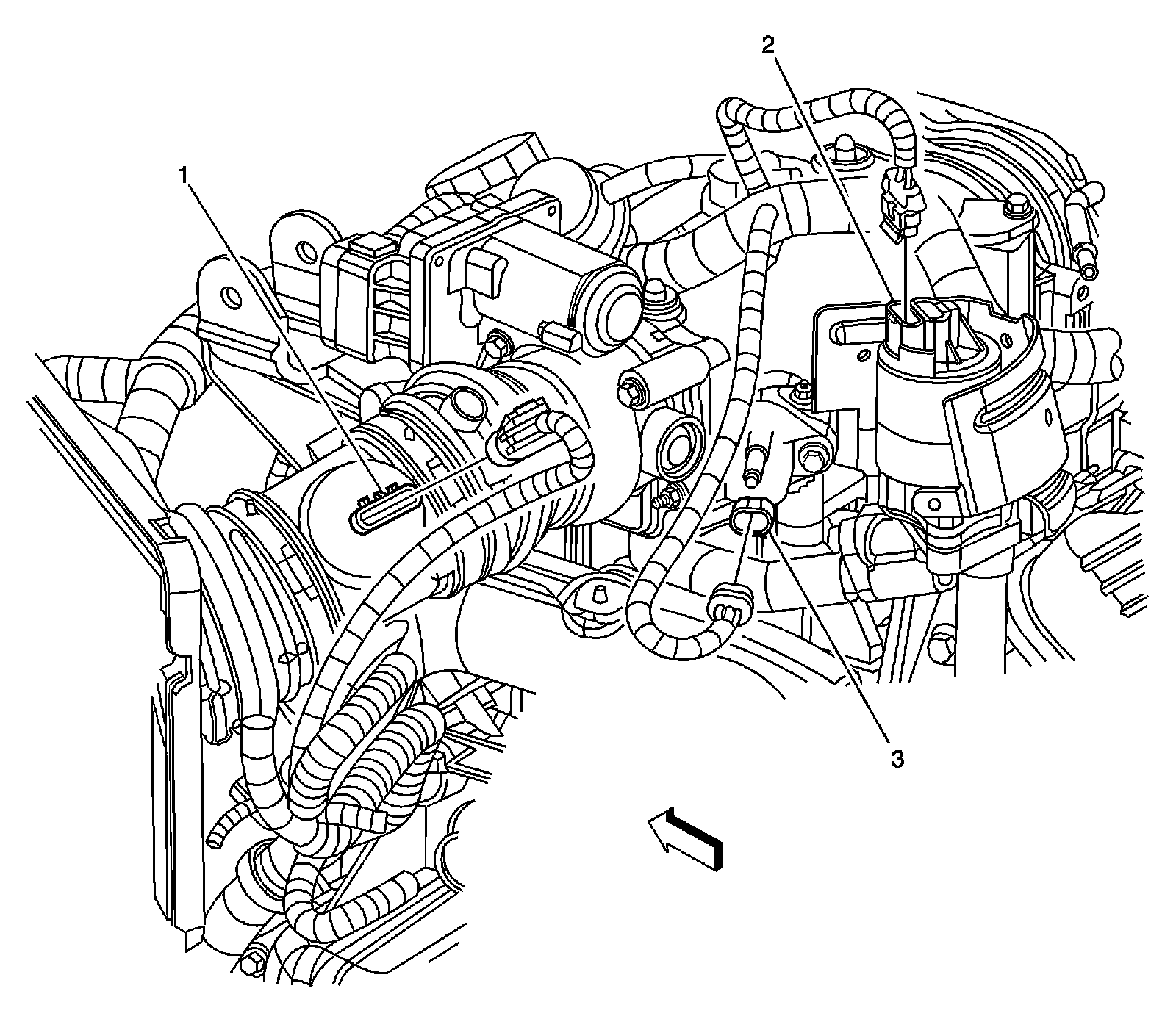

Left Rear of the Engine Components (L26)




1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Exhaust Gas Recirculation (EGR) Valve
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
