Ignition Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

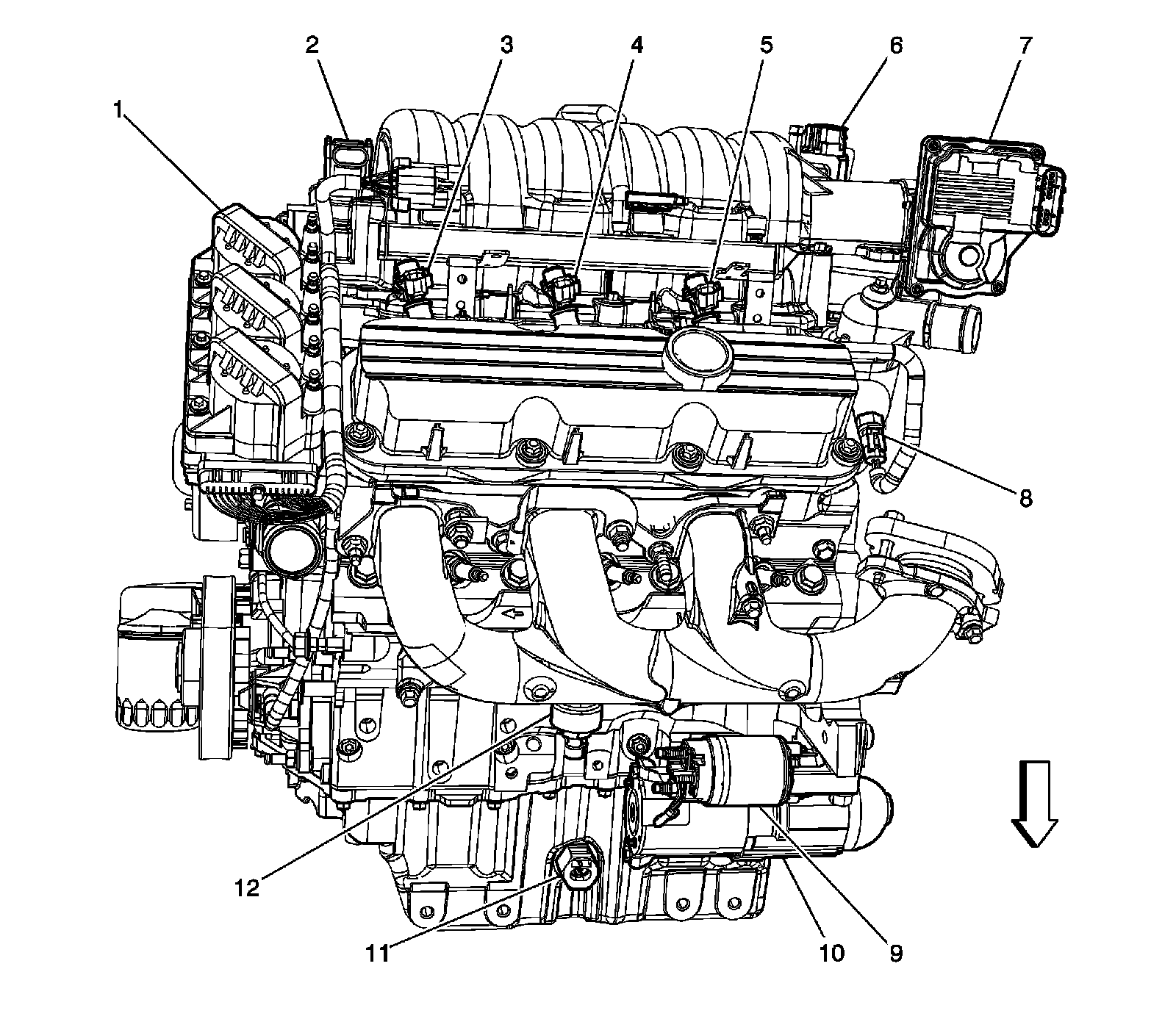

Front of the Engine Components (L26)




1 - Ignition Control Module (ICM)
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Fuel Injector 1
4 - Fuel Injector 3
5 - Fuel Injector 5
6 - Exhaust Gas Recirculation (EGR) Valve
7 - Throttle Body
8 - Engine Coolant Temperature (ECT) Sensor
9 - Starter Solenoid
10 - Starter Motor
11 - Engine Oil Level (EOL) Switch
12 - Knock Sensor (KS) 1

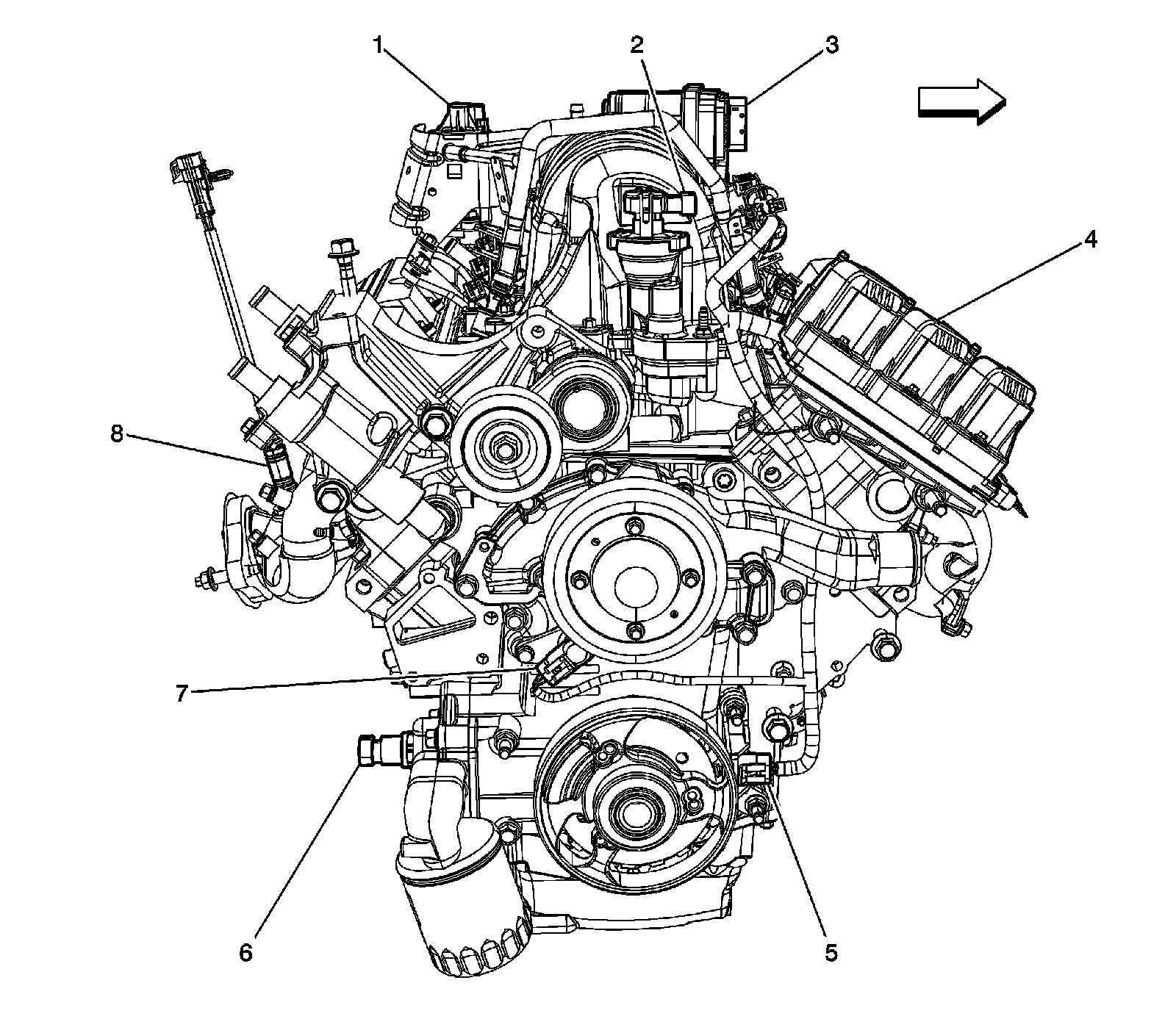

Left Side of the Engine Components (L26)




1 - Exhaust Gas Recirculation (EGR) Valve
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Throttle Body
4 - Ignition Control Module (ICM)
5 - Crankshaft Position (CKP) Sensor
6 - Engine Oil Pressure (EOP) Switch
7 - Camshaft Position (CMP) Sensor
8 - Heated Oxygen Sensor (HO2S) 1
