Window Switch - Right Rear Door

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

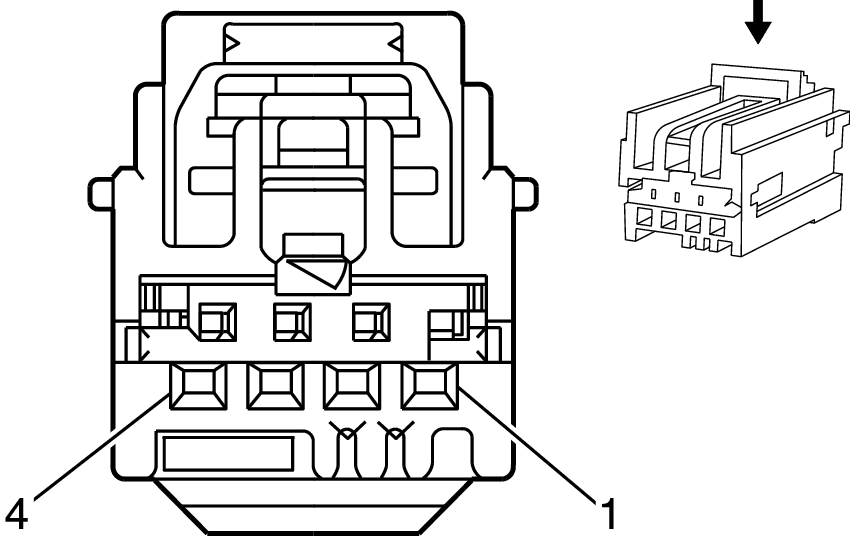

Fig 1: Window Switch - Right Rear Door Connector End View

Courtesy of GENERAL MOTORS COMPANY

Pin	Wire	Circuit	Function
1	0.35 BK	750	Ground
2	0.35 GY	8	Instrument Panel Lamp Supply Voltage
3	0.35 PK	5865	Power Window Passenger Switch Voltage Reference
4	0.35 BN/YE	6709	Power Window Switch Right Rear Signal

Connector Part Information

Harness Type: Right Rear Door Trim
OEM Connector: 7283-9016-30
Service Connector: 19149305
Description: 4-Way F (BK)

Terminal Part Information

Terminated Lead: 13575845
Release Tool: J-38125-215A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: SAIT-A03T-M064/14
Core/Insulation Crimp: P/P
